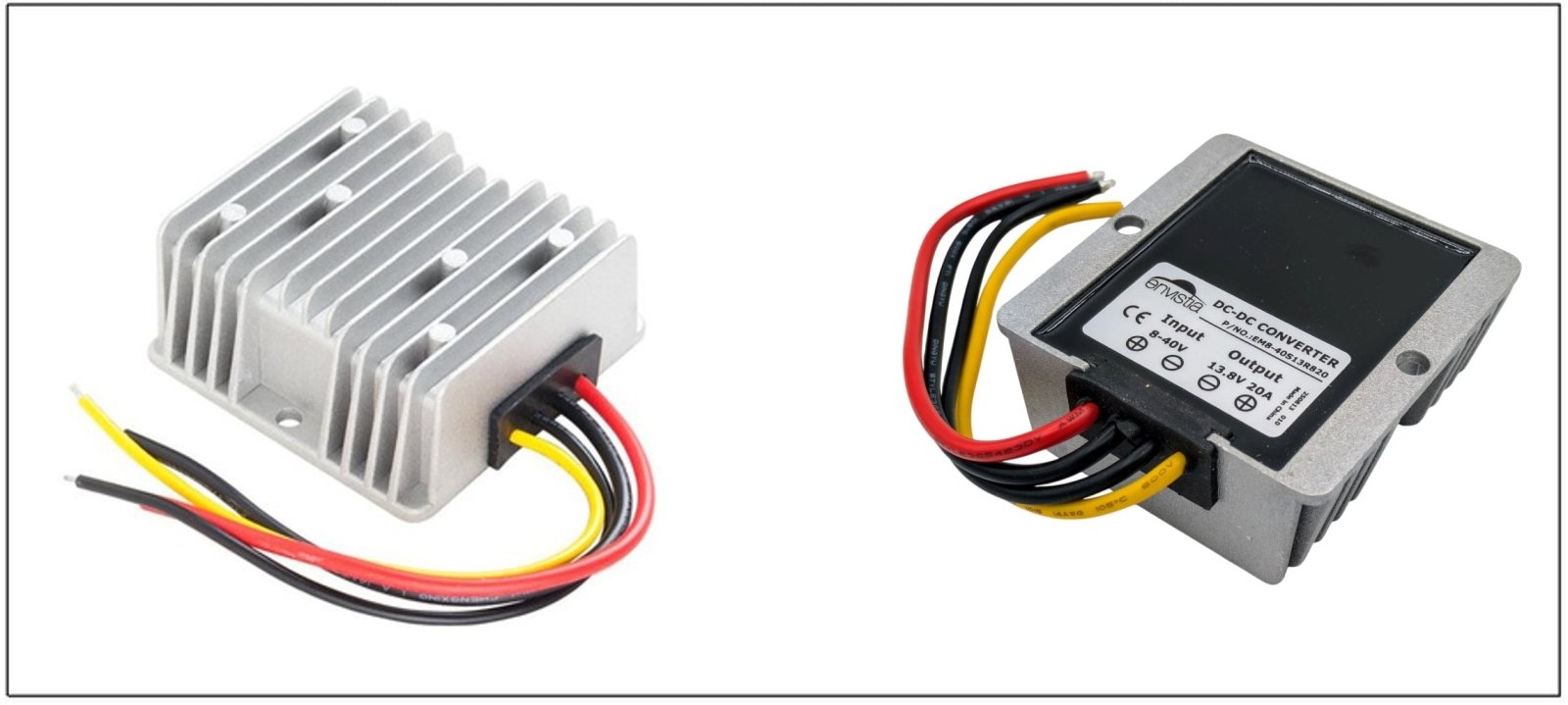

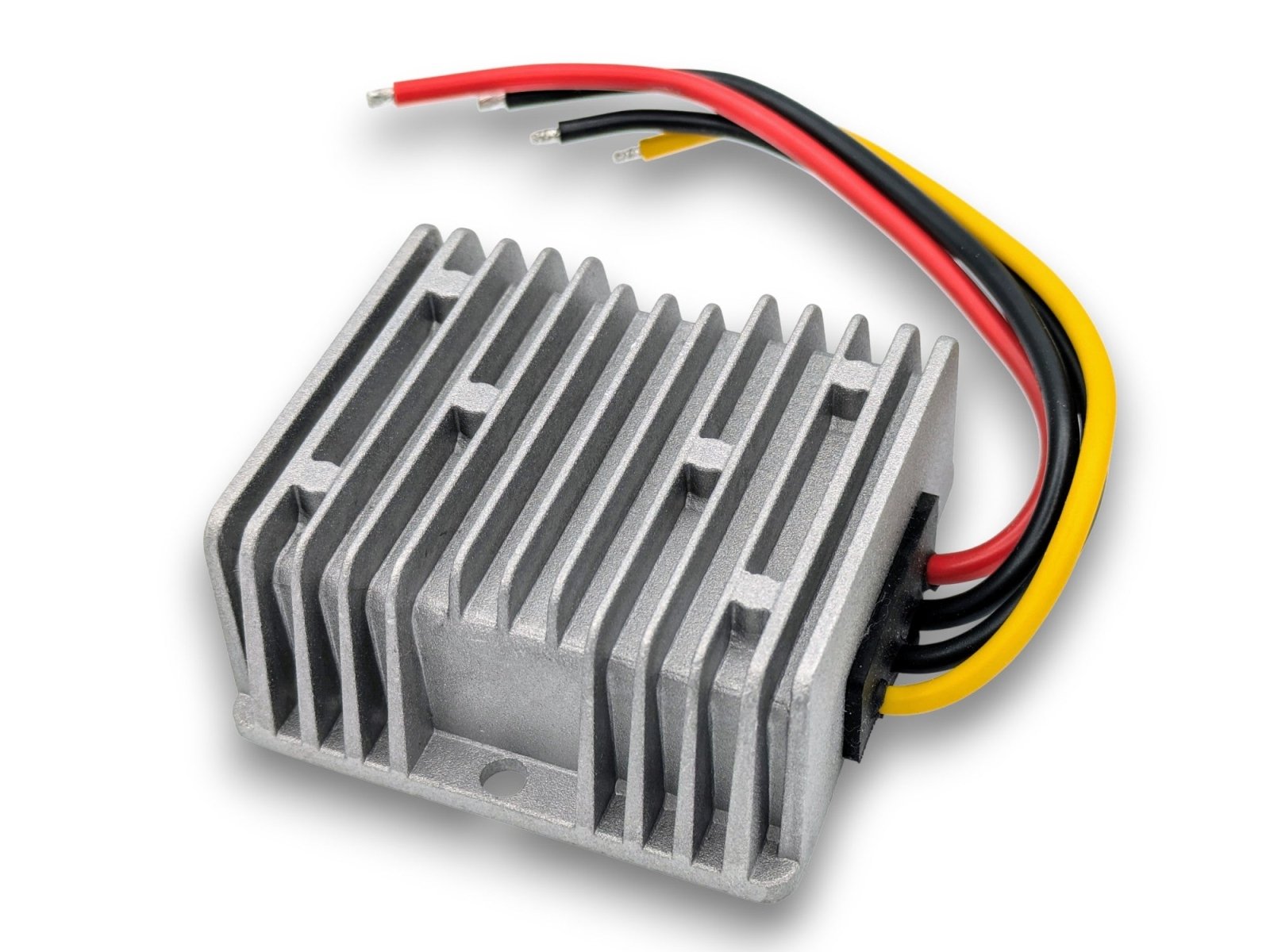

8-40V In 13.8V Out 20A Boost Buck DC/DC Converter DC Power Stabilizer EM8-40S13R820

Power your critical devices with a stable and reliable 13.8V DC power supply! This high-performance DC-DC Boost Buck Converter efficiently converts a wide input voltage range (8-40V) to a fixed 13.8V output at up to 20A. Ideal for a variety of applications including automotive communication equipment (I.e. Amateur, GMRS, CB and Commercial radios), LED lighting, industrial control, battery charging, and more.

This robust boost-buck (step-up/step-down) converter is designed for demanding environments and provides a stable, regulated output even when the input voltage fluctuates above or below 13.8V. The "Boost-Buck" topology makes it perfect for automotive, solar, and other applications with unstable power sources.

Key Features:

• Wide Input Voltage Range: Accepts 8V to 40V DC input.
• Stable 13.8VDC Output: Boost-Buck (Step-Up/Step-down) topology provides a consistent 13.8V output voltage, crucial for sensitive electronics.
• High Efficiency: Up to 96.2% efficiency (@ 12Vin, 25℃) minimizing heat and maximizing power delivery.
• Waterproof IP68: Fully waterproof and protected against dust and immersion, ensuring reliable operation in harsh conditions.
• Robust Protection: Short circuit, overload, and low voltage protection safeguards your devices and the converter itself.
• Wide Temperature Range: Operates reliably in extreme temperatures, down to -40°C.
• High-Quality Components: Brand-name capacitors ensure long-term reliability and performance.
• Transient Protection: Input transient absorption protection for added safety.
• Burn-in Tested: 100% full load burn-in tested for guaranteed performance and reliability.

Applications:

• Mobile Radio Equipment (Amateur, GMRS, CB, & Commercial Radios)
• Automotive & Vehicle Systems
• LED Light Bars & Lighting Systems
• Industrial Control Boards
• Battery Maintenance & Charging
• Solar Power Systems
• Alternative Energy Projects
• Golf Carts
• Forklifts
• Electromotors
• Telecommunications
• Boat & Yacht

Specifications:

• Input Voltage: 8-40V DC
• Output Voltage: 13.8V DC
• Maximum Output Current: 20A (Maximum)
• Maximum Output Power: 276 Watts
• Efficiency: 96.2% (Typical @ 12V input)

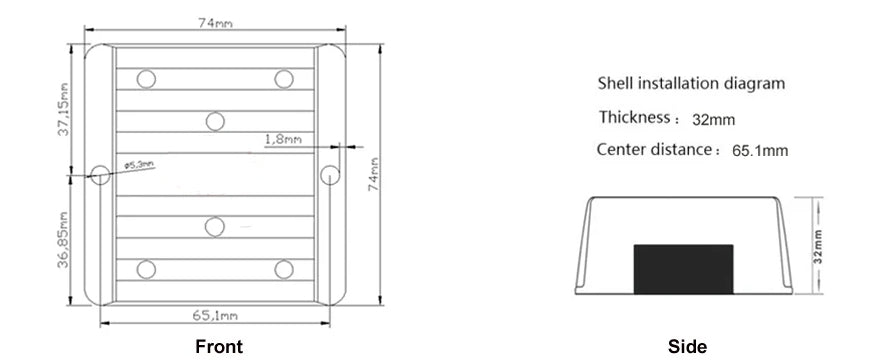

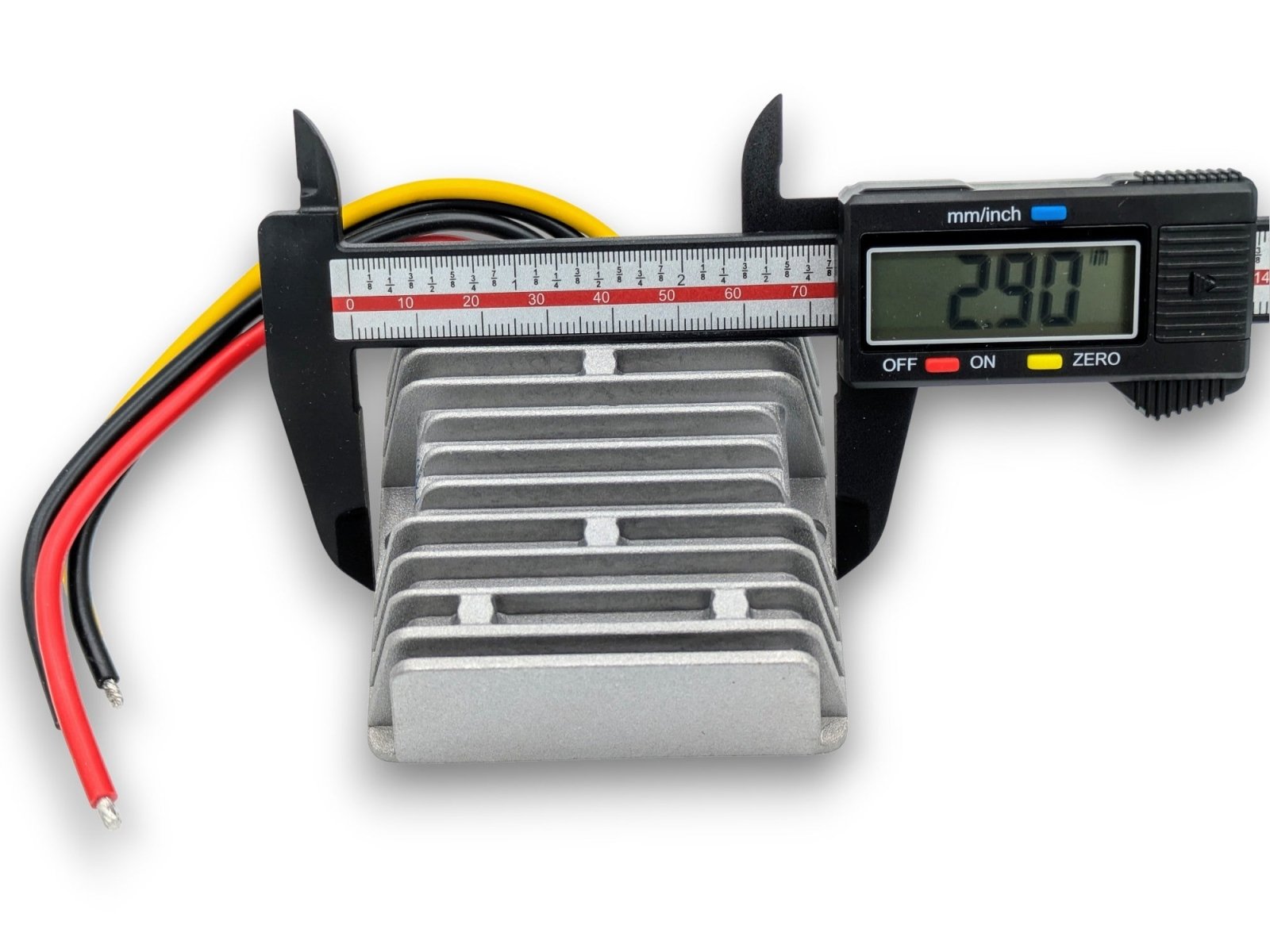

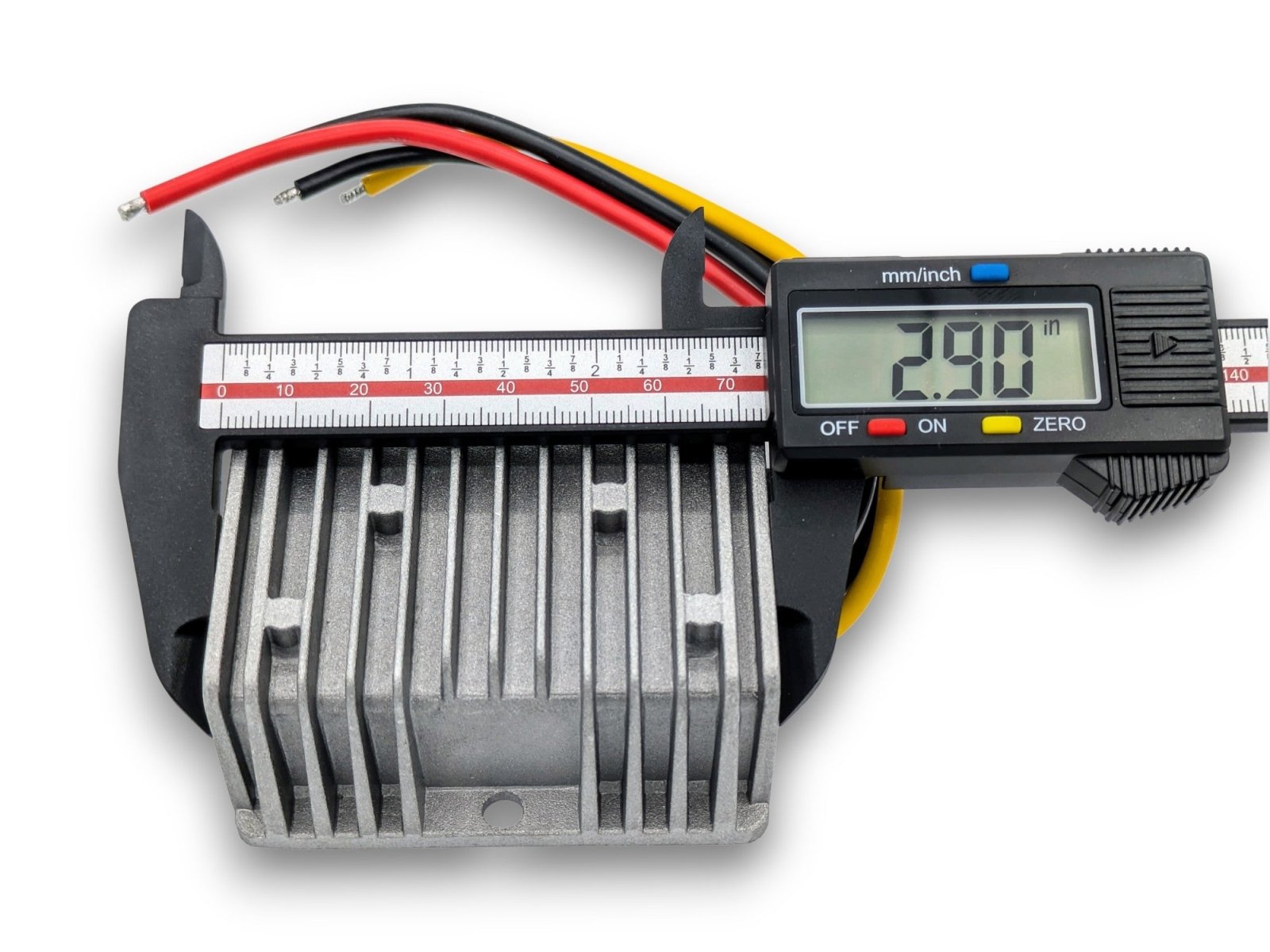

• Dimensions: 74 * 74 * 32 mm (2.91 x 2.91 x 1.26 inches)
• Waterproof Rating: IP68
• Operating Temperature: -40°C to +55°C (Ambient)
• Weight: ≤ 290g
• Protections: Short Circuit, Over Load, Low Voltage, Over Temperature
• Switching Frequency: 120±10 KHz
• MTBF: ≥ 200,000 H

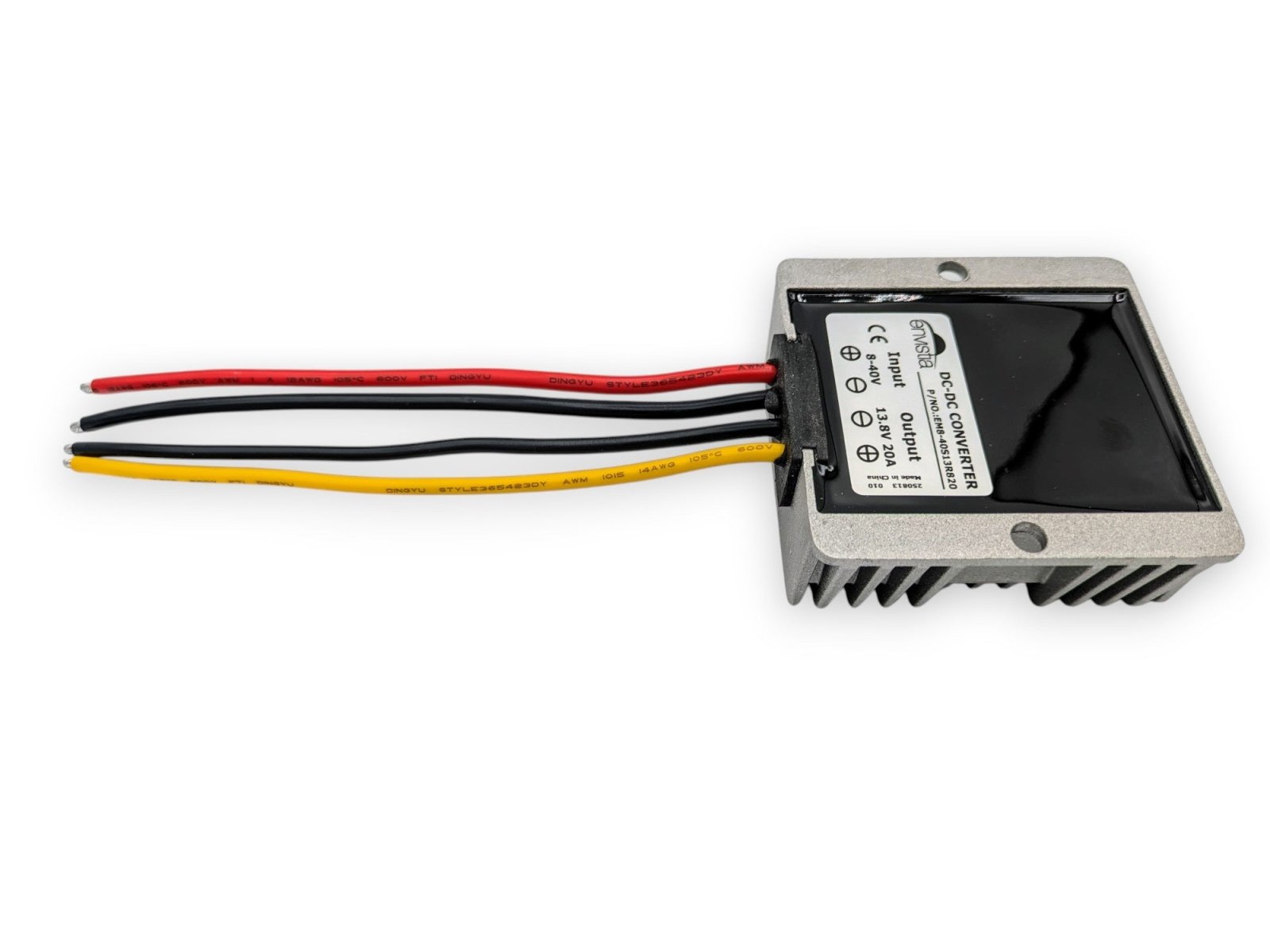

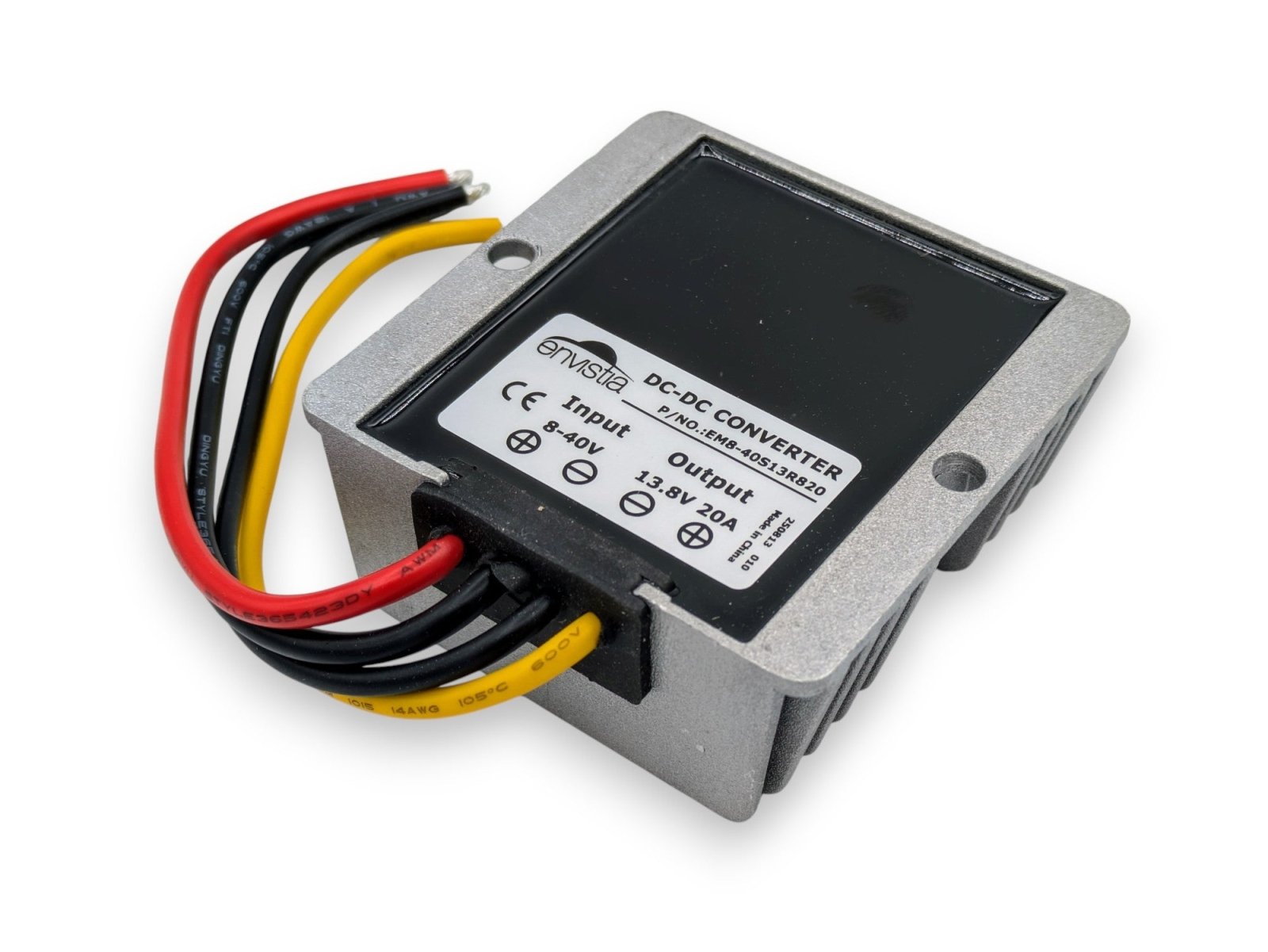

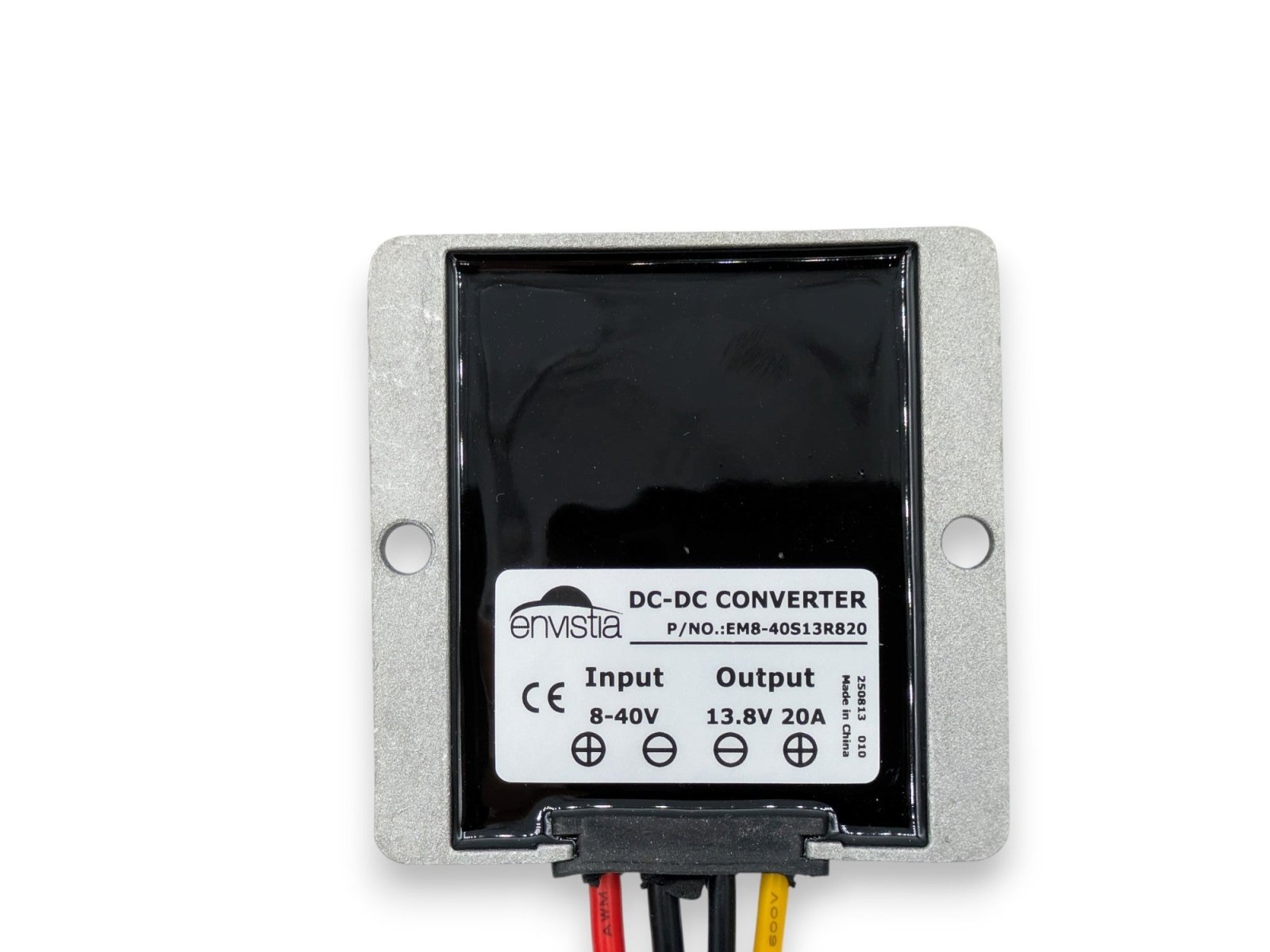

Wiring Instructions:

• Red wire: +Vin (Positive Input)
• Black wire: -Vin (Ground Input)
• Yellow wire: +Vout (Positive Output)
• Black wire: -Vout (Ground Output)

Note: Ensure proper wire gauge for the current requirements of your application.

Thermal Considerations:

Ensure adequate airflow for optimal performance. Monitor the shell temperature to prevent overheating.

Datasheet:

EM8-40S13R820 Datasheet (PDF, click link to download)

Package Includes:

• 1x 8-40V in to 13.8V 20A out DC-DC Boost Buck Converter/DC Power Stabilizer
