📋 Overview

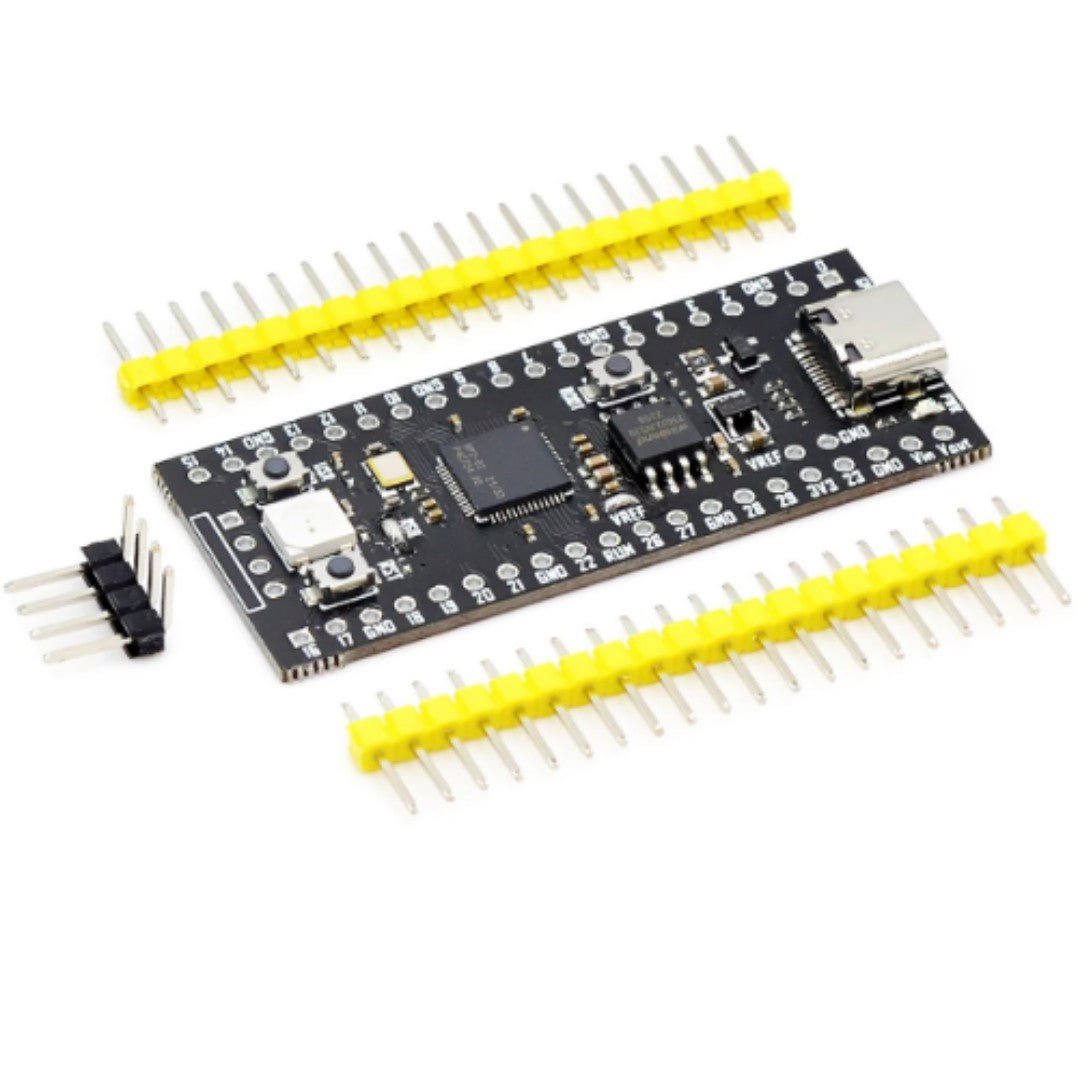

The RP2040 Development Board is a compact, low-cost microcontroller board built around the Raspberry Pi RP2040 chip — the same chip used in the official Raspberry Pi Pico. It combines a dual-core processor, generous 16MB of flash storage, modern USB-C connectivity, and an onboard addressable RGB LED, all on a breadboard-friendly board that follows the same pin layout and form factor as the original Raspberry Pi Pico.
Please note: this board is a Raspberry Pi Pico-compatible board manufactured by a third party — it is not an official Raspberry Pi Foundation product. It uses the genuine RP2040 chip and is fully compatible with Pico software, tutorials, and accessories, but with some worthwhile upgrades:
- USB-C instead of micro-USB
- 16MB of flash instead of the standard 2MB
- A built-in RGB LED for visual feedback
⭐ Key Features
- Dual-Core Processing — RP2040 chip with two ARM Cortex-M0+ cores running at up to 133MHz
- 16MB Flash Memory — 8x more onboard storage than a standard Raspberry Pi Pico
- 264KB SRAM — plenty of working memory for more complex programs
- USB-C Connector — reversible, modern connector for power and data
- Onboard WS2812 RGB LED — NeoPixel-compatible, fully programmable in 24-bit color
- 26 GPIO Pins — with ADC, PWM, UART, SPI, and I2C support, plus Programmable I/O (PIO)
📌 Module Pinout
This board follows the same 40-pin layout as the standard Raspberry Pi Pico, so any Pico pinout diagram or guide will apply directly. Looking at the board with the USB-C connector at the top and the pins facing down:
| Pin(s) | Label | Function |
|---|---|---|
| 1, 2 | GP0, GP1 | General I/O, default UART0 (TX/RX) |
| 4, 5 | GP2, GP3 | General I/O |
| 6, 7 | GP4, GP5 | General I/O, default UART1 (TX/RX) |
| 9–12 | GP6–GP9 | General I/O |
| 14–17 | GP10–GP13 | General I/O |
| 19–22 | GP14–GP17 | General I/O |
| 24–27 | GP18–GP21 | General I/O |
| 29 | GP22 | General I/O |
| 31, 32, 34 | GP26, GP27, GP28 | General I/O / ADC0, ADC1, ADC2 (analog input) |
| 3, 8, 13, 18, 23, 28, 33, 38 | GND | Ground |
| 36 | 3V3(OUT) | 3.3V regulated output — powers external sensors/modules |
| 37 | 3V3_EN | Pull low to disable the onboard 3.3V regulator |
| 39 | VSYS | System input voltage (1.8V–5.5V) — power the board without USB |
| 40 | VBUS | 5V from USB-C when connected (not regulated 3.3V) |
| 30 | RUN | Pull low to reset/restart the chip |
⚠️ Important: All GPIO pins operate at 3.3V logic and are not 5V tolerant. Never connect a 5V signal directly to a GPIO pin — this can permanently damage the board. If you need to interface with 5V devices, use a logic level converter. The VBUS pin carries 5V from USB, not 3.3V — don't confuse it with the 3V3(OUT) pin.
🔌 Connecting & Powering the Board
📦 Parts Needed
- 1× RP2040 Development Board (this product)
- 1× USB-C cable (data-capable, not charge-only)
- A computer running Windows, macOS, or Linux
Connection Table
| Board Connector | Connects To |
|---|---|
| USB-C Port | Computer USB port (via USB-C cable) |
📝 Note: For most projects, USB-C alone provides both power and a programming/data connection — no additional wiring is required to get started. The 4-pin right-angle header included in the box is only needed if you plan to use SWD debugging with a separate probe; it's optional for everyday use.
🚀 Step 1: Flash MicroPython & Blink the Onboard RGB LED
This first project loads MicroPython onto the board and runs a simple script that cycles the onboard WS2812 RGB LED through red, green, and blue.
- Download the MicroPython UF2 file for RP2040 from the official MicroPython downloads page
- Hold down the BOOTSEL button on the board, plug it into your computer via USB-C, then release BOOTSEL
- The board will appear as a USB mass storage drive named RPI-RP2
- Drag and drop the downloaded
.uf2file onto that drive — the board will reboot automatically running MicroPython - Install Thonny (a free, beginner-friendly Python editor) and select "MicroPython (Raspberry Pi Pico)" as the interpreter
# RP2040 Onboard RGB LED Blink
# Envistia Mall - Product Support
#
# Cycles the onboard WS2812 RGB LED through red, green, and blue.
# Requires the "neopixel" module, which is built into MicroPython for RP2040.
from machine import Pin
import neopixel
import time
# NOTE: Confirm the correct GPIO pin for your board's RGB LED.
# Many RP2040 16MB boards use GP16 - check your board's pinout diagram if unsure.
NUM_LEDS = 1
LED_PIN = 16
np = neopixel.NeoPixel(Pin(LED_PIN), NUM_LEDS)
colors = [(255, 0, 0), (0, 255, 0), (0, 0, 255)]
while True:
for color in colors:
np[0] = color
np.write()
time.sleep(0.5)
How to Use:
- Open the script above in Thonny
- Click "Run" (or press F5) to send it to the board
- Watch the onboard RGB LED cycle through red, green, and blue every half-second
- If the LED doesn't light up, double-check the
LED_PINvalue against your board's pinout diagram
🎯 Common Applications
- Learning Embedded Programming — a low-cost, forgiving platform for beginners learning MicroPython, CircuitPython, or C/C++
- Rapid Prototyping — quickly test project ideas before committing to a final design
- IoT & Home Automation — read sensors and control devices with a compact, capable controller
- Robotics & Motor Control — 16 PWM channels make it well-suited for driving motors and servos
- USB HID Devices — build custom keyboards, macro pads, or game controllers
🛠️ Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Board doesn't appear as a drive when plugging in | BOOTSEL wasn't held during connection, or the USB cable is charge-only | Try again, holding BOOTSEL before plugging in; confirm your cable supports data transfer |
| RGB LED doesn't light up in the example script | Wrong GPIO pin specified for the LED in code | Check the pinout diagram/silkscreen on your specific board for the correct RGB LED pin |
| Thonny can't connect to the board | Wrong interpreter selected, or board is still in BOOTSEL/mass-storage mode | Select "MicroPython (Raspberry Pi Pico)" in Thonny's interpreter settings; unplug and replug without holding BOOTSEL |
| Board resets unexpectedly during use | Insufficient power from the USB port, or a short circuit on a GPIO pin | Try a different USB port or powered hub; check external wiring for shorts |
| Code runs but nothing happens on GPIO pins | 3.3V logic level mismatch with an external 5V device | Add a logic level converter between the board and any 5V peripherals |
| UF2 firmware won't load / drive disappears instantly | Corrupted or incompatible UF2 file | Re-download the UF2 file from the official source and try again |
💡 Tips for Best Results
- Use a good quality USB-C cable — some inexpensive cables are charge-only and won't support programming
- Remember it's 3.3V logic — always double-check voltage compatibility before connecting external devices
- Take advantage of the 16MB flash — this board can hold larger MicroPython/CircuitPython programs and even a small filesystem for data logging
- Use the onboard RGB LED for debugging — a quick way to get visual status feedback without needing a display
- Explore Programmable I/O (PIO) — a unique RP2040 feature that lets you offload timing-critical tasks from the main cores
- Since this is a compatible board, not an official Pico — minor differences (like the exact RGB LED pin) may exist between manufacturing batches, so always verify against your board's printed pinout before assuming a pin number
