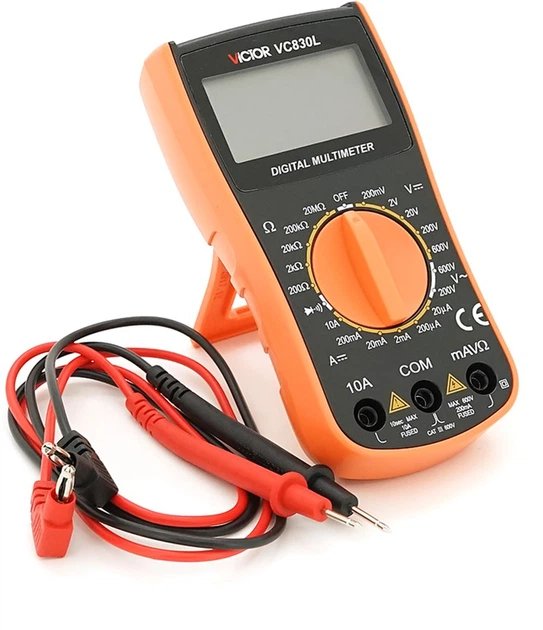

This guide covers setup, controls, and use of the Victor VC830L Digital Multimeter — a compact, pocket-sized handheld DMM that measures DC and AC voltage, DC current, and resistance, with diode testing and audible continuity testing built in. It's an ideal all-around tool for the lab, workshop, or toolbox.
📏 Compact by design: At just 138 × 72 × 35mm and about 150g (including the battery), the VC830L is noticeably smaller and lighter than our BEST DT-9205M multimeter (189 × 91 × 31.5mm, ~280g) — about 42% less footprint. It tucks easily into a tool pouch, toolbox side pocket, or even a large jacket pocket, making it a great grab-and-go meter to keep with your other hand tools.
⚠️ SAFETY NOTE: This meter is rated CAT III 600V — a higher safety category than typical low-cost multimeters, suitable for many household and light commercial circuit measurements. It is still not intended for CAT IV environments (utility service entrances) or high-energy industrial equipment. See the full Safety section below.
💡 What Is This Multimeter?
The VC830L is a handheld 3-1/2 digit digital multimeter designed to measure DC and AC voltage, DC current, resistance, and to test diodes and circuit continuity. A single rotary dial selects both the function and the range, and results are shown on a large, easy-to-read LCD display.
What This Meter Can Do
- DC Voltage (V⎓): Batteries, DC power supplies, automotive electrical systems, microcontroller circuits
- AC Voltage (V∿): Household outlets, appliance wiring (200V and 600V ranges only)
- DC Current (A⎓): Current draw in battery-powered or DC circuits, from microamps up to 10A
- Resistance (Ω): Resistors, wiring, sensors, switches
- Diode test: Checks diode forward voltage drop and orientation
- Continuity test: Audible buzzer for quickly checking wires, fuses, and connections
Note: this model does not measure AC current, capacitance, transistor hFE, frequency, or temperature.
🚀 Getting Started
Connect the Test Leads
The meter has three input jacks along the bottom edge:
| Jack | Label | Used For |
|---|---|---|
| 10A | 10A, fused, max 6 seconds (case printing shows 10 sec max — see note below) | DC current measurements above 200mA, up to 10A |
| COM | Common / return, CAT III 600V | Always connect the black test lead here for every measurement |
| mAVΩ | Max 600V / 200mA, fused | Voltage, resistance, continuity, diode test, and DC current up to 200mA — connect the red test lead here for these functions |
📝 Note on 10A timing: The instruction manual text specifies a maximum of 6 seconds for 10A-range measurements, while the case printing shows "10sec MAX." To be safe, treat 10A measurements as brief spot-checks (a few seconds) rather than continuous readings, and never leave the meter connected on this range longer than necessary.
Turn the Dial
- Rotate the dial from OFF to the function and range you need (see sections below).
- If you're not sure how large the value will be, always start on the highest range for that function and work down until you get a stable, non-"1" reading.
🎛️ Understanding the Dial and Display
Going around the dial from OFF: Ω (resistance) → Diode/Continuity buzzer → DC Current (A⎓, from 20µA up to 10A) → DC Voltage (V⎓, 200mV to 600V) → AC Voltage (V∿, 200V and 600V), back around to OFF.
The display shows up to 4 digits (max reading "1999"). If the display shows only the digit "1" on the far left, this means over range — turn the dial to a higher range.
🔌 How to Measure DC Voltage
- Connect the black lead to COM and the red lead to mAVΩ.
- Turn the dial to the DCV range that covers your expected reading: 200mV, 2V, 20V, 200V, or 600V.
- Touch the probes across the two points you want to measure. The voltage and polarity at the red lead's connection point will be shown on the display.
⚠️ Important: Never exceed 600V DC on this meter — doing so risks damaging its internal circuitry. When measuring high-voltage circuits, be extremely careful to avoid personal contact with the circuit.
🔌 How to Measure AC Voltage
- Connect the black lead to COM and the red lead to mAVΩ.
- Turn the dial to the ACV range that covers your expected reading: 200V or 600V. (This meter does not have a low-voltage AC range — it starts at 200V.)
- Touch the probes across the circuit being measured.
⚠️ Important: Never exceed 600Vrms AC — exceeding this risks damaging the meter. Use extreme caution around high-voltage circuits.
🔌 How to Measure DC Current
- Turn off power to the circuit before connecting the meter in series with it.
- For currents up to 200mA: connect the black lead to COM and the red lead to mAVΩ.
- For currents above 200mA (up to 10A): move the red lead to the 10A jack instead.
- Turn the dial to the matching DC current range: 20µA, 200µA, 2mA, 20mA, 200mA, or 10A.
- Break the circuit at the point you want to measure and connect the meter in series so current flows through it.
- Restore power and read the display. Current value and polarity at the red lead are both shown.
⚠️ Important: Both current jacks are fused (0.2A/250V for the mA jack, 10A/250V for the 10A jack) — exceeding the rated current on either jack will blow the corresponding fuse. If the meter shows no reading during a current measurement, check the relevant fuse. Limit 10A-range measurements to a few seconds at a time (see the timing note above).
🔌 How to Measure Resistance
- Make sure the circuit or component is completely powered off, and that any capacitors in the circuit are fully discharged, before measuring resistance.
- Connect the black lead to COM and the red lead to mAVΩ.
- Turn the dial to the Ω range that covers your expected value: 200Ω, 2kΩ, 20kΩ, 200kΩ, or 20MΩ.
- Touch the probes across the resistor or component and read the display.
📝 Notes: On the 200Ω range, short the test leads together first to measure your lead resistance, then subtract that value from your actual reading. When measuring resistance above 1MΩ, the reading may take a moment to stabilize — this is normal. Never apply voltage to the input while in resistance mode — this is absolutely prohibited, even though the meter has some voltage protection on this range.
🔊 How to Test Diodes and Continuity
- Connect the black lead to COM and the red lead to mAVΩ (the red lead is the positive "+" terminal on this range).
- Turn the dial to the diode/buzzer position.
- For diode testing: connect the red probe to the diode's positive terminal (anode). The display shows the approximate forward voltage drop (test condition: ~1mA forward current, ~3V open-circuit voltage).
- For continuity testing: touch the probes across the wire or connection you want to check. The buzzer sounds if the resistance between the two points is below approximately (70±30)Ω.
⚠️ Important: Only test diodes or continuity on a de-energized circuit.
📋 Specifications
General
| Display | 22mm digit height LCD, 3-1/2 digit, max reading 1999, automatic polarity |
| Sample Rate | Approx. 3 readings per second |
| Overrange Indication | "1" shown on the highest digit |
| Low Battery Indication | Battery icon appears on display |
| Safety Rating | CAT III 600V |
| Power | Single 9V battery, type NEDA 1604 / 6F22 or equivalent |
| Fuses | 0.2A/250V (mA jack) and 10A/250V (10A jack) — both current jacks are fused |
| Operating Environment | 0°C to 40°C, relative humidity <80% |
| Dimensions | Approx. 138 × 72 × 35 mm (5.43 x 2.83 x 1.38 inches) L × W × H |
| Weight | Approx. 150g (5.3 ounces) |
DC Voltage
| Range | Resolution | Accuracy |
|---|---|---|
| 200mV | 100µV | ±(0.5%+4) |
| 2V | 1mV | ±(0.5%+4) |
| 20V | 10mV | ±(0.5%+4) |
| 200V | 100mV | ±(0.5%+4) |
| 600V | 1V | ±(1.0%+5) |
Input impedance: 1MΩ on all ranges.
AC Voltage
| Range | Resolution | Accuracy |
|---|---|---|
| 200V | 100mV | ±(1.2%+10) |
| 600V | 1V | ±(1.2%+10) |
Input impedance: 1MΩ. Frequency response: 40Hz–200Hz.
DC Current
| Range | Resolution | Accuracy |
|---|---|---|
| 20µA | 0.01µA | ±(1.5%+3) |
| 200µA | 0.1µA | ±(1.5%+3) |
| 2mA | 1µA | ±(1.5%+3) |
| 20mA | 10µA | ±(1.5%+3) |
| 200mA | 100µA | ±(1.5%+3) |
| 10A | 10mA | ±(2.0%+5) |
Maximum input current: 10A (manual specifies not exceeding 6 seconds; case printing shows 10 sec max — see the timing note in the How to Measure DC Current section above). Overload protection: 0.2A/250V fast-blow fuse (mA jack); 10A/250V fast-blow fuse (10A jack).
Resistance
| Range | Resolution | Accuracy |
|---|---|---|
| 200Ω | 0.1Ω | ±(0.8%+5) |
| 2kΩ | 1Ω | ±(0.8%+3) |
| 20kΩ | 10Ω | ±(0.8%+3) |
| 200kΩ | 100Ω | ±(0.8%+3) |
| 20MΩ | 10kΩ | ±(1.0%+15) |
Overload protection: 250V DC/AC peak.
Diode & Continuity Test
| Test Condition | Forward DC current ~1mA, reverse (open-circuit) voltage ~3V |
| Continuity Threshold | Buzzer sounds when resistance is below approx. (70±30)Ω |
| Overload Protection | 250V DC/AC peak |
⚠️ Safety Precautions
- Never exceed the input limits shown in the specifications for each range.
- When measuring voltages higher than 36V DC or 25V AC, check that the probes make reliable contact, are correctly connected, and are well insulated, to avoid electric shock.
- Remove the probes from the test point before changing functions or ranges.
- Never apply voltage to the input while in resistance mode — this is absolutely prohibited, even though the meter has some voltage protection on this range.
- Never measure voltage while the dial is set to the Ω (resistance) position.
- Do not use the meter for testing if the battery is not properly installed or the back cover is not securely tightened.
- Before replacing the battery or fuse, remove the test probes from the test point and turn off the meter.
- Never perform resistance, continuity, or diode measurements on a live/energized circuit — confirm all power is off and capacitors are fully discharged first.
- This meter is rated CAT III 600V — suitable for many household and light commercial circuits, but not intended for CAT IV environments (utility service entrances) or high-energy industrial equipment.
🎯 Typical Uses
- Electronics hobbyist projects: Checking battery voltage, verifying circuit voltages, testing resistors
- DIY and home repair: Checking household outlet voltage, testing fuses and switches for continuity, diagnosing dead batteries and chargers
- Light manufacturing / assembly & test: Quick component verification, wiring harness continuity checks
- Automotive: Checking 12V battery and charging system voltage, testing fuses (vehicle off)
- On-the-go troubleshooting: Its compact ~5.4 x 2.8 x 1.4 inch size and ~5.3 ounce weight make it easy to keep in a tool pouch, toolbox side pocket, or glovebox for quick checks wherever you're working
🛠️ Maintenance
Battery Replacement
When the display shows the low-battery symbol, replace the 9V battery:
- Remove the test probes from any test point and turn the meter off.
- Loosen the battery door screw and remove the battery door.
- Remove the old battery and install a new 9V battery (NEDA 1604 / 6F22 or equivalent).
- Reattach the battery door and re-install the screw.
Fuse Replacement
Only perform this with the meter powered off and disconnected from any circuit.
- Remove the battery door screw and open the battery door.
- Remove the battery and open the back cover.
- Replace the blown fuse with one of the identical rating: 0.2A/250V for the mA jack, or 10A/250V for the 10A jack.
- Reassemble the case before use.
🛠️ Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Display won't turn on | Dead or missing battery, or battery door not closed properly | Check/replace the 9V battery and confirm the battery door is securely closed. |
| Display shows "1" only | Over range for the selected function | Turn the dial to a higher range for that function. |
| No current reading | Blown fuse, or wrong jack/range selected | Check the relevant fuse (0.2A for the mA jack, 10A for the 10A jack). Confirm you're using the correct jack for your expected current. |
| Resistance reading takes a while to settle | Normal behavior above 1MΩ | Wait a moment for the reading to stabilize — this is expected at high resistance values. |
| Continuity buzzer doesn't sound on a known-good connection | Resistance above the ~(70±30)Ω threshold | A connection with more resistance than the buzzer threshold may not trigger it even though it isn't fully open — check the actual resistance value instead. |
📋 Quick Reference Card
| Display | 3-1/2 digit LCD, max 1999 |
| DC Voltage | 200mV – 600V |
| AC Voltage | 200V – 600V (no low range) |
| DC Current | 20µA – 10A |
| Resistance | 200Ω – 20MΩ |
| Extra Functions | Diode test, continuity buzzer |
| Safety Rating | CAT III 600V |
| Power | Single 9V battery (included) |
| Fuses | 0.2A/250V (mA), 10A/250V (10A) |
| Size / Weight | 138 × 72 × 35mm, ~150g — compact and toolbox-friendly |
