📋 Overview
The XL4016 Step Down Buck Converter Module is a PWM-based DC/DC power supply that converts a higher DC input voltage down to a lower, adjustable DC output voltage. It accepts 4V to 38V input and provides a continuously adjustable output from 1.25V to 36V at up to 5A continuous (8A peak), with efficiency up to 94%.
A built-in 3-digit LED display shows the current output voltage in real time, and a multi-turn potentiometer allows precise voltage adjustment. The module also includes built-in thermal shutdown, current limiting, and short-circuit protection for safe, reliable operation.
This module is ideal for stepping down battery or power supply voltages to the levels required by electronic circuits — for example, converting a 12V car battery to 5V for USB-powered devices, or stepping 24V down to 3.3V for a microcontroller.
⚠️ Important: This is a buck (step-down) converter only. The input voltage must always be at least ~2V higher than the desired output voltage. It cannot boost a lower voltage to a higher one.
🛠️ What You'll Need
- DC Power Source — 4V to 38V DC (battery, power supply, solar panel, etc.)
- Wire — Appropriately rated for the current you plan to draw (e.g., 18 AWG or heavier for loads above 3A)
- Small Flathead Screwdriver — For the screw terminals and potentiometer adjustment
- Multimeter (recommended) — For verifying output voltage and calibrating the display
⭐ Key Features
- Wide Input Range (4V–38V DC) — Works with a variety of power sources including car batteries (12V), solar panels, laptop adapters, and industrial power supplies.
- Adjustable Output (1.25V–36V DC) — Set your exact output voltage using the onboard multi-turn potentiometer for precise control.
- High Current Capability — Delivers up to 5A continuous and 8A peak output current, supporting loads up to 200W.
- Built-in Digital Voltmeter — A 3-digit LED display shows the output voltage in real time, so you always know what voltage your load is receiving.
- High Efficiency (up to 94%) — Minimizes wasted energy and heat generation compared to linear regulators.
- Built-in Protection — Thermal shutdown, current limiting, and short-circuit protection help prevent damage to the module and your connected devices.
- Multi-Turn Potentiometer — The 10-turn adjustment pot allows fine, precise voltage setting — much more accurate than a single-turn pot.
- Calibratable Display — A separate trim potentiometer lets you calibrate the voltage display against a known-accurate meter.
- Screw Terminal Connections — Easy, secure, solderless connections for both input and output wiring.

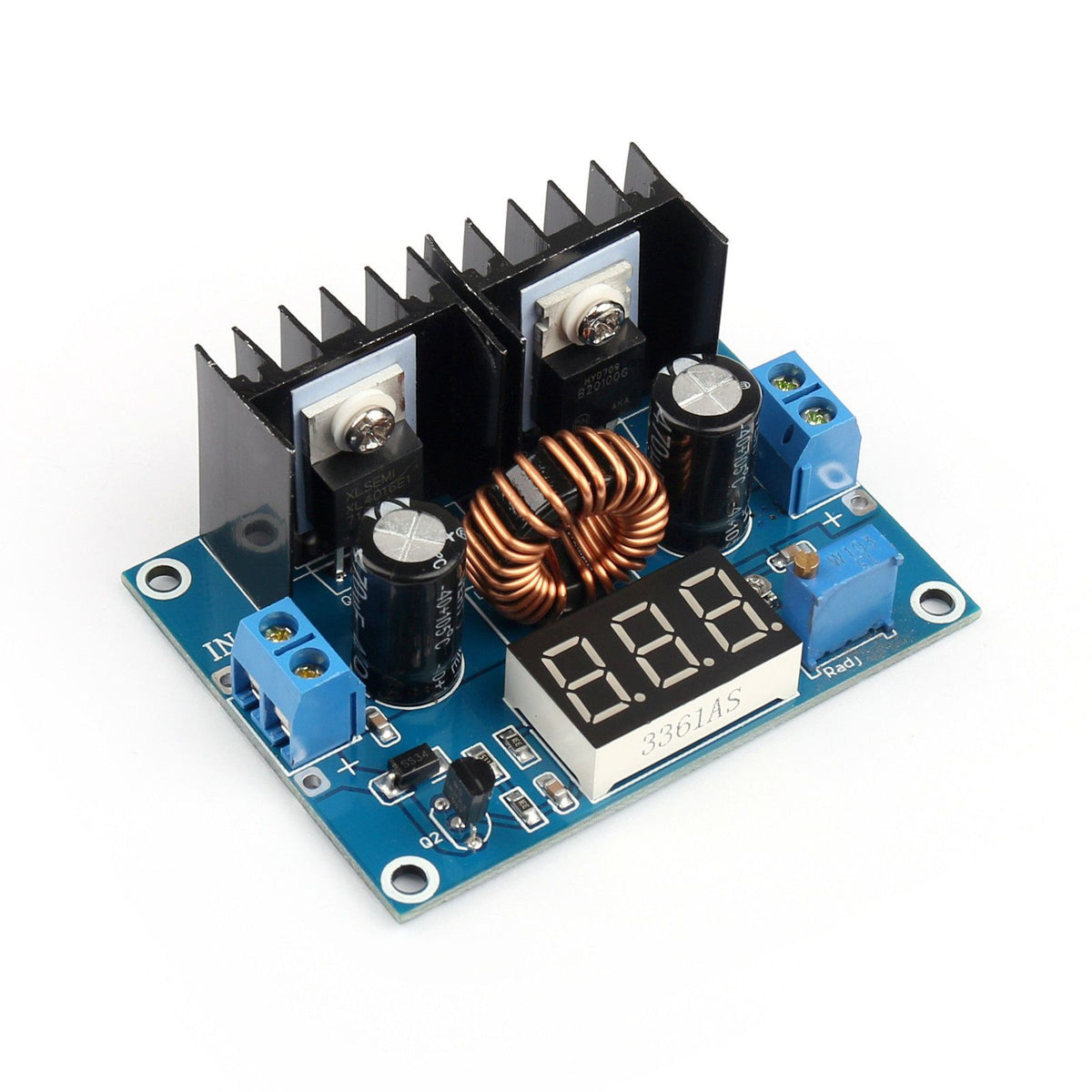

🔧 Board Overview
The module has a straightforward layout with clearly labeled components:
- IN+ / IN− Screw Terminals — Connect your DC input power source here. IN+ is positive, IN− is negative/ground.
- OUT+ / OUT− Screw Terminals — Connect your load (the device you're powering) here. OUT+ is positive, OUT− is negative/ground.
- Blue Multi-Turn Potentiometer — The large blue potentiometer adjusts the output voltage. Turn clockwise to increase voltage, counter-clockwise to decrease.
- Small Trim Potentiometer — A smaller potentiometer used to calibrate the voltage display. You should not need to adjust this unless the display reading doesn't match a known-accurate voltmeter.
- 3-Digit LED Display — Shows the current output voltage in real time.
- XL4016 IC — The main switching regulator chip, typically mounted to a heatsink on the board.
- Inductor — The large toroidal (donut-shaped) component that stores energy during the switching cycle.
🚀 Getting Started
Step 1: Set the Output Voltage (Before Connecting a Load)
⚠️ Important: Always set the output voltage before connecting your load. Connecting a sensitive device to an incorrectly set voltage can damage it.
- Turn off your input power source.
- Connect the input power source to the IN+ and IN− screw terminals, observing correct polarity. Ensure the input voltage is between 4V and 38V DC.
- Turn on the input power. The LED display will illuminate and show the current output voltage.
- Using a small flathead screwdriver, turn the blue multi-turn potentiometer to adjust the output voltage to your desired level:
- Clockwise = increase voltage
- Counter-clockwise = decrease voltage
- Verify the output voltage using a multimeter connected to the OUT+ and OUT− terminals for best accuracy.
💡 Tip: The multi-turn potentiometer has approximately 10 full turns of range. If you're at one end of the adjustment range, you may need to turn it several full revolutions before the output voltage begins to change. This is normal — the multi-turn design is what gives you precise control.
Step 2: Connect Your Load
- Turn off the input power.
- Connect your load (the device you want to power) to the OUT+ and OUT− screw terminals, observing correct polarity.
- Turn on the input power.
- Verify that the output voltage is still at the correct level. Under load, there may be a very slight voltage drop — this is normal.
Step 3: Calibrate the Display (Optional)
The built-in voltmeter is factory-calibrated, but if you notice the display reading doesn't match a known-accurate multimeter, you can calibrate it:
- Connect a calibrated multimeter to the OUT+ and OUT− terminals.
- With the input power on and the module producing an output voltage, compare the multimeter reading to the LED display.
- If they differ, use a small screwdriver to carefully adjust the small trim potentiometer until the LED display matches your multimeter reading.
🔌 Wiring
Basic Wiring
| Module Terminal | Connection |
|---|---|
| IN+ | Positive (+) terminal of your DC power source |
| IN− | Negative (−) / Ground of your DC power source |
| OUT+ | Positive (+) input of your load / device |
| OUT− | Negative (−) / Ground of your load / device |
Example: 12V Car Battery to 5V USB
| Module Terminal | Connection |
|---|---|
| IN+ | Car battery positive (+12V) |
| IN− | Car battery negative / chassis ground |
| OUT+ | USB device positive (VBUS, +5V) |
| OUT− | USB device ground (GND) |
Set the output voltage to 5.0V using the potentiometer before connecting the USB device.
Example: 24V Power Supply to 3.3V Microcontroller
| Module Terminal | Connection |
|---|---|
| IN+ | 24V power supply positive |
| IN− | 24V power supply negative / ground |
| OUT+ | Microcontroller VIN or 3.3V input |
| OUT− | Microcontroller GND |
Set the output voltage to 3.3V using the potentiometer before connecting the microcontroller.
💡 Common Output Voltage Settings
Here are some common output voltages and what they're typically used for:
| Output Voltage | Common Uses |
|---|---|
| 3.3V | ESP32, ESP8266, many sensors and low-power microcontrollers |
| 5V | Arduino, USB devices, Raspberry Pi, LED strips (some types) |
| 9V | Guitar pedals, some sensors, legacy devices |
| 12V | LED strips, fans, motors, automotive accessories |
🔋 Power & Thermal Considerations
Current and Power Limits
- Continuous current: Up to 5A
- Peak current: Up to 8A (short duration only — not sustained)
- Maximum output power: 200W
The actual maximum current depends on the voltage difference between input and output, and on cooling. Larger voltage drops at high current generate more heat.
Heat Management
At higher currents (above ~3A) or with large input-to-output voltage differences, the module will generate significant heat. The XL4016 IC includes built-in thermal shutdown protection, but you should take steps to manage heat for reliable operation:
- Ensure adequate airflow around the module — don't enclose it in a sealed box without ventilation.
- Add a small fan for sustained high-current applications (above 3–4A).
- Reduce the voltage differential when possible — a 24V-to-12V conversion generates less heat than 36V-to-3.3V at the same current.
- Monitor the module temperature during initial use to ensure it stays within safe limits.
💡 Tip: If the module shuts down unexpectedly during use, it's likely the thermal protection activating. Reduce the load current, improve airflow, or add a heatsink/fan.
📊 Specifications
| Regulator IC | XL4016 |
| Topology | PWM Buck (Step-Down) DC/DC Converter |
| Input Voltage | 4V to 38V DC |
| Output Voltage | 1.25V to 36V DC (adjustable via multi-turn potentiometer) |
| Output Current | 5A continuous, 8A peak |
| Maximum Output Power | 200W |
| Efficiency | Up to 94% |
| Voltage Display | 3-digit LED (output voltage), calibratable |
| Voltage Adjustment | 10-turn precision potentiometer |
| Minimum Dropout | ~2V (input must be at least ~2V above output) |
| Protection | Thermal shutdown, current limiting, short-circuit protection |
| Connections | Screw terminals (IN+, IN−, OUT+, OUT−) |
| Dimensions | Approx. 64 × 47 × 26 mm (2.5 × 1.9 × 1.0 inches) L × W × H |
| Weight | Approx. 45g |
⚠️ Important Notes
- Step-down only — This module can only reduce voltage. The input voltage must always be at least ~2V higher than the desired output voltage.
- Set voltage before connecting a load — Always adjust the output voltage to the correct level before connecting any device to the output terminals. Connecting a sensitive device to an incorrect voltage can cause permanent damage.
- Observe polarity — Connect IN+ to positive and IN− to negative/ground. Reversing polarity can damage the module.
- Do not exceed 38V input — Input voltages above 38V DC will damage the module.
- Current derating at high temperatures — At sustained high currents (above 3–4A), the module may need additional cooling. The built-in thermal shutdown will protect the module, but may cause unexpected power interruptions if cooling is inadequate.
- Not suitable for AC power — This module accepts DC input only. Do not connect it to AC mains power.
- Multi-turn potentiometer range — The voltage adjustment potentiometer has approximately 10 turns of range. If you're at one extreme, you may need to turn it several full revolutions before the voltage begins to change.
- Display accuracy — The built-in voltmeter is approximate. For critical applications, verify the output voltage with a calibrated multimeter.
🛠️ Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Display doesn't light up | No input power, or input voltage too low | Verify that the input voltage is between 4V and 38V DC and that the connections are correct and secure. Check polarity. |
| Output voltage is 0V or very low | Potentiometer turned fully counter-clockwise | Turn the blue potentiometer clockwise — it may take several full turns before the voltage begins to rise. |
| Output voltage won't go high enough | Input voltage too low | The output voltage can only be set to approximately 2V below the input voltage. Increase the input voltage or use a higher-voltage power source. |
| Display reading doesn't match multimeter | Display needs calibration | Adjust the small trim potentiometer while comparing the display to a calibrated multimeter. |
| Module shuts down under load | Thermal protection or overcurrent | Reduce the load current, improve airflow around the module, or add a fan. Check that the load isn't drawing more than 5A continuous. |
| Output voltage drops under load | Normal voltage drop, or load exceeds capacity | A small voltage drop under load is normal. If the drop is significant, the load may be drawing too much current. Reduce the load or use a higher-capacity converter. |
| Module is very hot | High current draw or large voltage differential | Add a heatsink or fan. Reduce the load current if possible. A large difference between input and output voltage at high current generates more heat. |
| Potentiometer turns but voltage doesn't change | At the end of the potentiometer's range | The 10-turn potentiometer may be at one extreme. Continue turning in the same direction — it may take several full revolutions before the voltage begins to change. |
🎯 Typical Applications
- Powering Arduino, Raspberry Pi, ESP32, or other microcontrollers from a higher-voltage source
- Converting 12V car battery power to 5V for USB devices (phones, tablets, dashcams)
- Stepping down 24V industrial power to 12V or 5V for control electronics
- Powering LED strips from a higher-voltage battery or power supply
- Solar panel voltage regulation for charging or powering devices
- Bench power supply for electronics prototyping and testing
- Battery-powered projects requiring a stable, adjustable voltage
- Replacing inefficient linear regulators (like the 7805) in high-current applications
