📋 Overview
The XL6009 is a versatile, high-efficiency step-up (boost) DC-DC converter module that accepts an input voltage from 5V to 32V and boosts it to an adjustable output of 6V to 48V. Based on the second-generation XL6009 chip, it delivers superior performance and higher efficiency compared to older first-generation LM2577-based solutions.

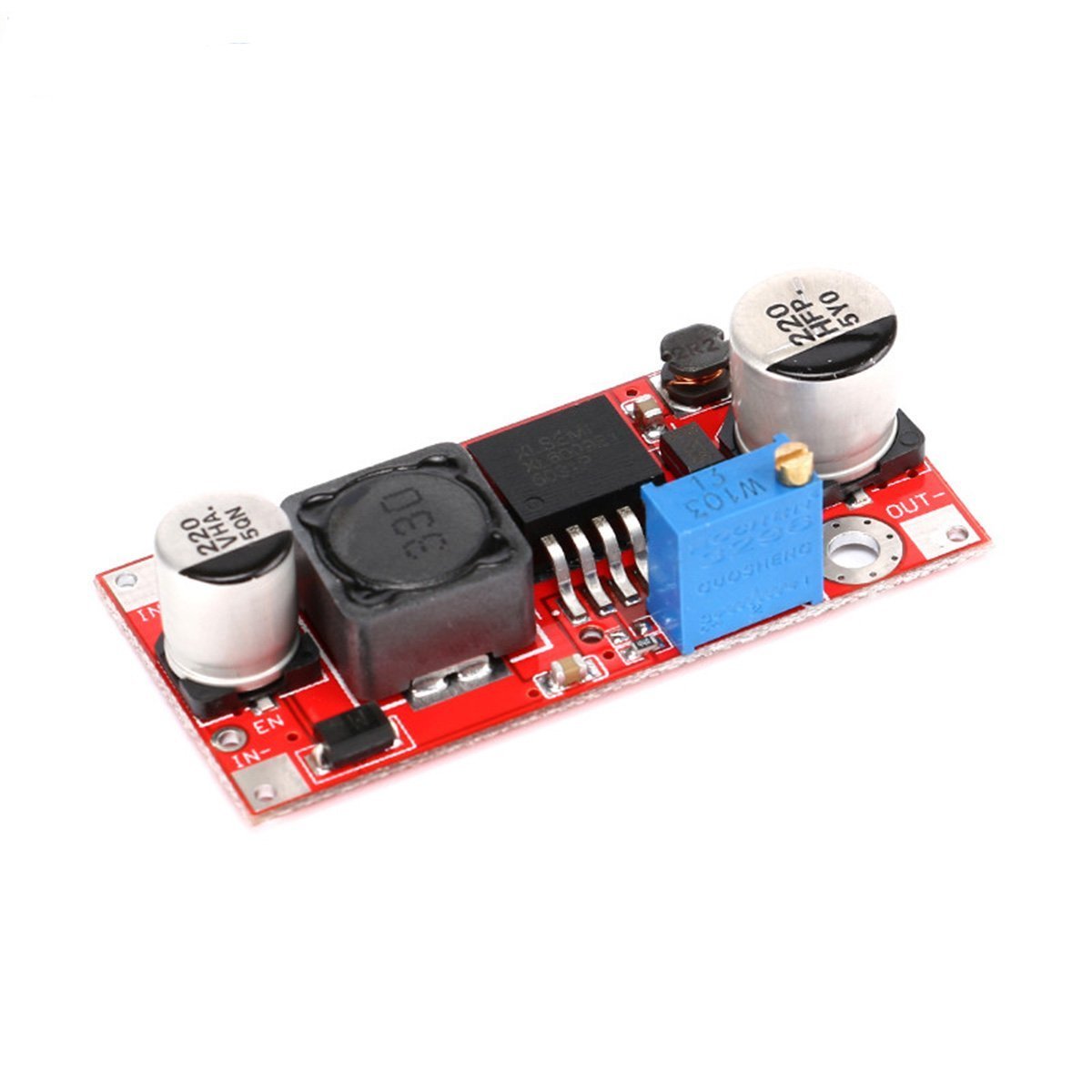

The module features clearly labeled solder pads for input (IN+ / IN−) and output (OUT+ / OUT−) connections, along with an onboard multi-turn potentiometer for precise output voltage adjustment. Its compact form factor and wide voltage range make it a great fit for battery-powered projects, LED drivers, motor power supplies, and many other applications where you need a higher voltage than your source provides.
⚠️ Important: This is a boost (step-up only) converter — the output voltage must always be at least 1.5V higher than the input voltage. Do not exceed 32V input or 48V output. This module does not include short-circuit protection — always install a fuse or protection circuit on the input side.
⭐ Key Features
- Wide Input Range: Accepts 5V to 32V DC input (functional down to 3V with reduced performance)
- Adjustable Output: Output voltage continuously adjustable from 6V to 48V via onboard potentiometer
- High Efficiency: MOSFET switching enables efficiency up to 94%, depending on input/output voltage and load current
- High Switching Frequency: 400KHz operation provides low output ripple and fast transient response
- Generous Current Capacity: Supports up to 4A input current and 2.5A output current (max)
- Compact Design: Small PCB footprint (approximately 43 × 21 × 14 mm) fits easily into tight enclosures
- Industrial Temperature Range: Rated for operation from −40°C to +85°C
📊 Specifications
| Converter Type | Non-isolated Step-Up (Boost) |
| IC Chip | XLSEMI XL6009 (2nd generation) |
| Input Voltage | 5V – 32V DC (functional from 3V) |
| Output Voltage | 6V – 48V DC (continuously adjustable) |
| Input Current | 4A max (no-load ~18mA) |
| Output Current | 2.5A max |
| Output Power | 15W (natural cooling) / 25W (with heatsink) |
| Conversion Efficiency | Up to 94% (varies with Vin, Vout, and load) |
| Switching Frequency | 400KHz |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Output Ripple | ~50mV (increases with higher voltage and current) |
| Short Circuit Protection | None — install external fuse or protection circuit |
| Operating Temperature | −40°C to +85°C (derate above 40°C ambient) |
| Full-Load Temp Rise | ~45°C |
| Board Dimensions | Approx. 43×21×14 mm (1.7 × 0.83 × 0.55 in) L×W×H |
📌 Pinout
The XL6009 boost converter module has four clearly labeled solder pads — two for input and two for output:
| IN+ | Positive input — connect to the positive terminal of your DC power source |
| IN− | Negative input (ground) — connect to the negative terminal of your DC power source |
| OUT+ | Positive output — connect to the positive terminal of your load |
| OUT− | Negative output (ground) — connect to the negative/ground terminal of your load |
The module also has an onboard multi-turn potentiometer (small blue or gold trimmer) used to adjust the output voltage. Turning it clockwise increases the output voltage; turning it counter-clockwise decreases it.
📏 Mechanical Drawing and Dimensions
CLICK HERE to download this XL6009 Boost Dimensional and Mechanical Drawing in PDF format.
🔌 Wiring
Basic Wiring
Wiring the XL6009 boost converter is straightforward — just connect your input power source and your output load:
- Connect your DC power source to the input pads: positive wire to IN+, negative wire to IN−.
- Connect your load (the device you want to power) to the output pads: positive wire to OUT+, negative wire to OUT−.
- Adjust the output voltage using the onboard potentiometer (see the Setup section below).
💡 Tip: It's a good practice to install an inline fuse on the input side (rated for your expected current draw) since this module does not have built-in short-circuit protection.
Wiring Summary
| Module Pad | Connect To |
| IN+ | Power source positive (+) |
| IN− | Power source negative (−) / Ground |
| OUT+ | Load positive (+) |
| OUT− | Load negative (−) / Ground |
🔧 Setup & Output Voltage Adjustment
Before connecting your target device, you should set the output voltage to the desired level. Here's how:
- Connect your input power source to IN+ and IN− (make sure it's within the 5V–32V range).
- Leave the output disconnected from your load for now.
- Connect a multimeter to OUT+ and OUT− and set it to DC voltage mode.
-
Turn the onboard potentiometer slowly with a small Phillips or flathead screwdriver:
- Clockwise = increase output voltage
- Counter-clockwise = decrease output voltage
- Adjust until your multimeter reads the desired output voltage.
- Connect your load to OUT+ and OUT−.
- Verify the output voltage again under load — it may shift slightly, so fine-tune the potentiometer as needed.
💡 Tip: The potentiometer is multi-turn, so don't be surprised if it takes several full rotations to reach your target voltage. This is by design — it gives you finer control over the output.
⚠️ Important: Always set the output voltage before connecting your load device. Connecting a device to an incorrectly set output could damage sensitive electronics.
🎯 Typical Applications
- Boosting battery voltage for portable electronics and field equipment
- Powering LED strips or LED drivers that require higher voltages
- Stepping up 12V automotive power to 24V or higher for accessories
- Providing adjustable bench power supply voltage from a fixed source
- Solar panel voltage boosting for charge controllers or inverters
- Powering motors, solenoids, or relays that need a higher supply voltage
- DIY and hobby electronics projects requiring voltage step-up
💡 Tips & Best Practices
- Mind the voltage gap: The output voltage must be at least ~1.5V higher than the input voltage. For example, if your input is 12V, the minimum useful output is about 13.5V.
- Watch your power budget: Maximum output power is 15W with natural air cooling and up to 25W with a heatsink. Calculate your power needs (Voltage × Current) and stay within these limits.
- Add a heatsink for heavy loads: If you're drawing more than about 1A continuously at high boost ratios, consider adding a small heatsink to the inductor and/or the XL6009 IC to prevent thermal shutdown.
- Use short, thick wires: Especially on the input side, use appropriately sized wires to minimize voltage drop and maximize efficiency.
- Install input protection: Since the module lacks short-circuit protection, always use a fuse or a resettable polyfuse on the input. A fuse rated at 1.5× your expected maximum input current is a good starting point.
- Avoid extreme boost ratios: Efficiency drops significantly when the output voltage is many times higher than the input. For best efficiency, keep the boost ratio (Vout ÷ Vin) below about 4:1.
- Secure the potentiometer: Once you've dialed in your desired output voltage, you can apply a small drop of nail polish or thread-lock compound to the potentiometer to prevent it from shifting due to vibration.
- Derating at high temperatures: If the ambient temperature exceeds 40°C, reduce the load or add forced-air cooling to stay within safe operating limits.
🚫 Limitations
- Boost only: This module can only step voltage up. It cannot reduce (buck) voltage. If you need both step-up and step-down capability, look at the XL6009 Boost/Buck version instead.
- No short-circuit protection: A short on the output can damage the module. Always use an external fuse.
- Not suitable for sensitive analog circuits: The 400KHz switching frequency produces ~50mV of output ripple, which increases under heavy load. If you're powering sensitive analog or audio circuits, add additional filtering (LC filter or linear post-regulator).
- Current derating at high boost ratios: While the module is rated for 2.5A output, achieving this at very high boost ratios (e.g., 5V in → 48V out) is not practical due to thermal and efficiency constraints. At extreme ratios, expect usable output current to be significantly lower.
- No reverse polarity protection: Connecting the input with reversed polarity can permanently damage the module.
🛠️ Troubleshooting
| Problem | Possible Cause & Solution |
| No output voltage | Check that input polarity is correct (IN+ to positive, IN− to negative). Verify input voltage is within 5V–32V range. Check for blown fuse if one is installed. |
| Output voltage too low or won't reach target | Turn the potentiometer clockwise. Ensure the input voltage is at least 1.5V below your target output. Check that your load isn't drawing more current than the module can supply. |
| Output voltage unstable or fluctuating | Check for loose solder connections on the input and output pads. Ensure your power source can deliver sufficient current. Add a capacitor (100–470µF electrolytic) across the input terminals. |
| Module gets very hot | You may be exceeding the module's power rating. Reduce the load current, add a heatsink, or provide forced-air cooling. Check that the boost ratio isn't excessively high. |
| High output ripple or noise | This is normal at higher currents and boost ratios. Add an LC filter or additional capacitance on the output. Consider a linear post-regulator for noise-sensitive loads. |
| Module stopped working after a short circuit | The XL6009 IC or the MOSFET may be damaged — the module has no built-in short-circuit protection. The module will need to be replaced. Always use an input fuse to prevent this. |
📦 What's in the Box
