CHIPSEN BoT-cDA110SC Bluetooth v5.1 SPP Class2 (+4dBm) SMD + Chip Antenna

Please CONTACT US for OEM and Quantity Discounts.

The CHIPSEN BoT-cDA110SC Serial Port Profile (SPP) Bluetooth module is an OEM-style, cost-effective, true system-on-chip (SoC) for classic Bluetooth applications with an internal chip antenna in a surface-mount (SMD) package. The BoT-cDA110SC complies with Bluetooth specification version 5.1 and integrates the RF and Baseband controller in a small package. This Bluetooth module uses an MCU with Bluetooth functions included in the chipset.

BoT-cDA110SC Features

• BT Version: Complies with Bluetooth Core Specification v5.1
• Built in Chip Antenna
• Supports Basic Rate (BR), Enhanced Data Rate (EDR) 2&3 Mbps
• TX RF Power: 4dBm
• RX sensitivity: -91dBm(BR)
• 96-MHz Arm Cortex-M4 microcontroller unit MCU
• 1MB Flash, 512KB RAM
• 1x peripheral UART
• Hardware security engine
• 16 GPIOs
• Wide operating voltage range: 2.7V to 3.6V
• Operating temperature range (-30℃ ~ 85℃)

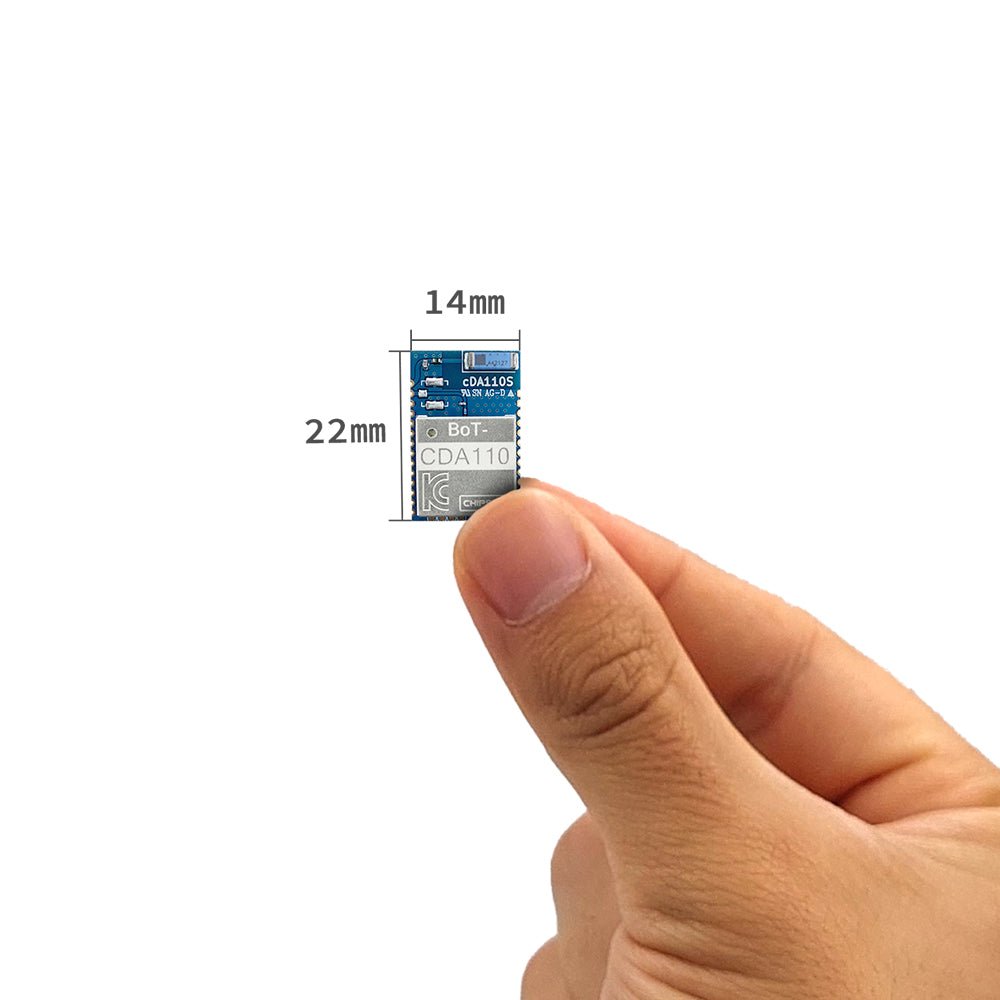

• Size: 14mm x 22mm x 2.4mm, 27Pin
• Certifications: SIG, KC (including wireless EMC), FCC, CE RED with ROHs, TELEC

Applications

• Bluetooth data communication
• Laptop / Handheld Device
• Bluetooth access point
• Industrial automation
• Remote meter reading system
• POS / Mobile printer

Documentation and Downloads

BoT-cDA110SC/SU Datasheet, Dimensions and Installation Documentation (PDF)

BoT-cDA110 FCC Certification (PDF)

BoT-cDA110 CE RED Certification (PDF)
