Super Bright White LED 3mm 3V 20mA Water Clear Transparent - 10x 25x 50x 100x Pkgs

  • Rebaja
  • Precio regular $5.19
  • Estará disponible después de

These bright white 3mm through-hole LEDs are very bright at 12000 mcd, typical forward voltage is 3.0-3.2Vdc, and drive current is 20mA. The lens is clear (transparent), 3mm in diameter with a 30° viewing angle. The two-pin legs are the positive and negative leads of the LED; the longer of the two leads is the positive side (Anode).

Features & Specifications:

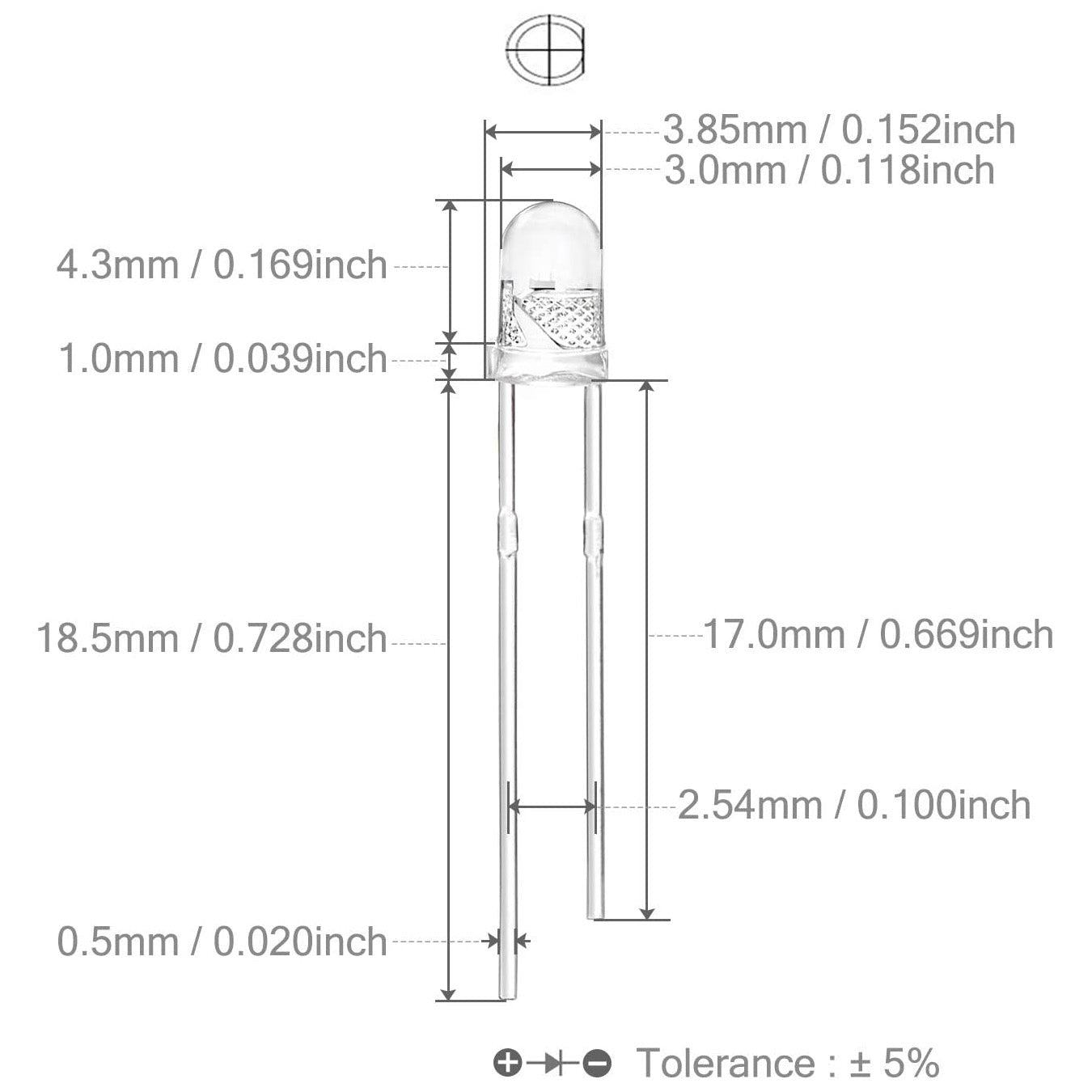

  • Dimensions: 3mm
  • Emitting Color: White (8000k - 10000k)
  • Package: Clear (Transparent)
  • Pin spacing: 2.54mm
  • Forward Voltage: 3.0-3.2V
  • Forward Current: 20mA
  • Viewing Angle: 30 Degrees (50% power angle)
  • Luminous Intensity: 12000 mcd
  • Lead Length: ~26mm (~1 inch)
  • Polarity: Anode (+): Long Lead | Cathode (-): Short Lead

Package includes:

10, 25, 50, or 100 pieces Clear Bright White 3mm LED - select quantity in pulldown
