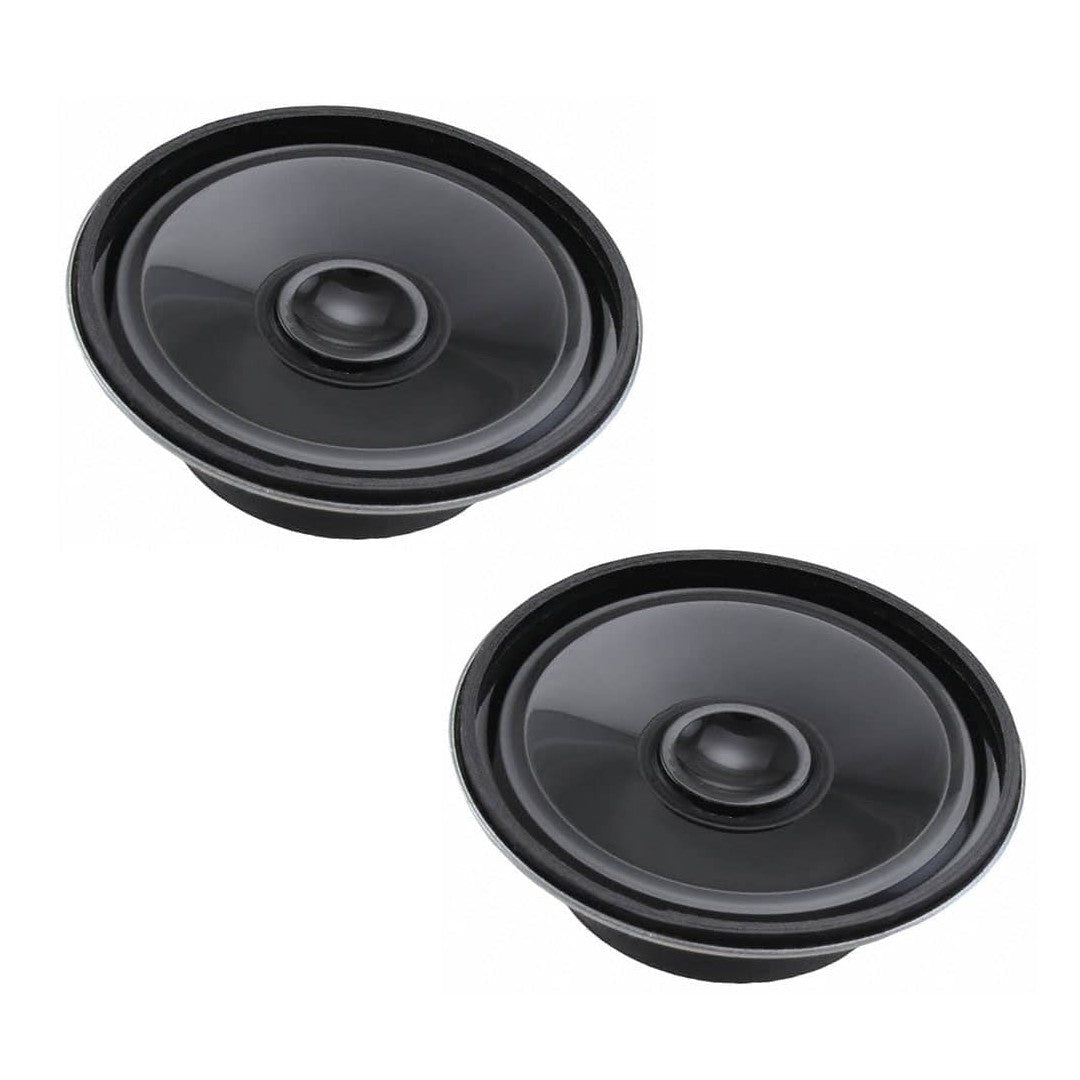

This Visaton K50 8 Ohm 2" (5 cm) miniature speaker features a plastic diaphragm and metal basket. Thanks to its compact dimensions, it is suitable for applications where size and form factor are critical: flat panel HDTVs, computer desktop or laptop speakers, entryway and room intercom systems, DIY audio players, point-of-purchase displays, etc. Additionally, you can combine multiples of this mini speaker for a line array.
Features
- Plastic: Mylar (diaphragm)
- Functionally at cold according to EN 60068-2-1/EN 50155
- Metal frame
- UV-resistant
Specifications
- Rated power: 2 W
- Maximum power: 3 W
- Nominal impedance Z: 8 Ohm
- Frequency response: 250–10000 Hz
- Mean sound pressure level: 83 dB (1 W/1 m)
- Opening angle: (-6 dB) 180°/4000 Hz
- Excursion limit: +/−0.5 mm
- Resonance frequency fs: 400 Hz
- Height of front pole-plate: 2 mm
- Voice coil diameter: 14 mm
- Height of winding: 3 mm
- Cutout diameter: 45 mm
- Net weight: 0.05 kg
- Connections: Solder lugs
- Protective system: IP 65 *
- Temperature range: −40 ... 80 °C
* IP protection class for front side when built into a sealed enclosure
