This UHF to SMA RF Coaxial Connector Adapter Kit lets you quickly connect UHF Male (PL-259) and UHF Female (SO-239) connectors to SMA Male and SMA Female connector combinations by simply screwing two connectors together, with no soldering or crimping required. These universal UHF to SMA couplers are perfect for working with telecom, broadcast, amateur handheld HTs, SDRs, wireless LAN devices, coaxial cables, LMR, CCTV, VHF/UHF antennas, Wifi, radios, microwave applications, test equipment, and digital communication systems.

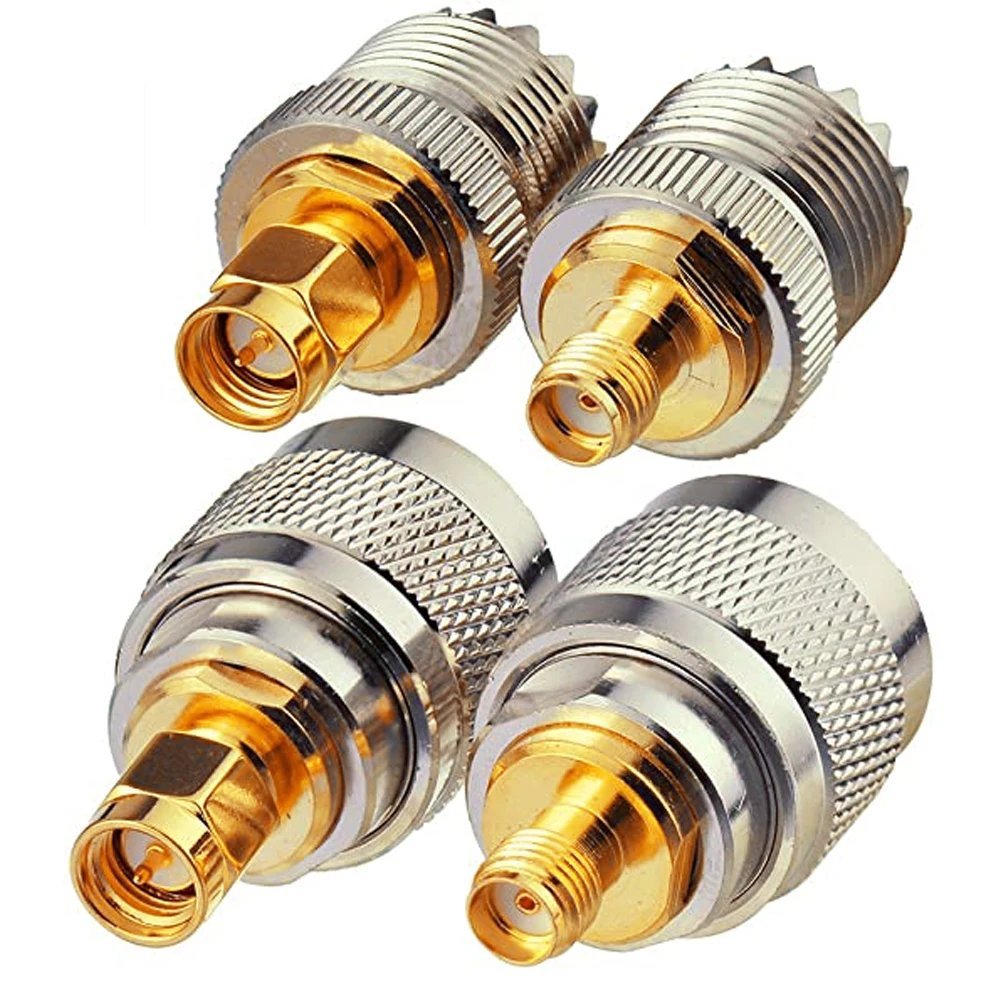

This kit contains 4 pieces, one of each of the following SMA to UHF adapters:
- UHF Male PL259 to SMA Male (Pin to Pin) Series RF Coaxial Adapter Connector
- UHF Male PL259 to SMA Female (Pin to Socket) Series RF Coaxial Adapter Connector
- UHF Female SO239 to SMA Male (Socket to Pin) Series RF Coaxial Adapter Connector
- UHF Female to SMA Female (Socket to Socket) Series RF Coaxial Adapter Connector
Technical Description
- Impedance: 50 Ohms
- Body Material: Brass or Steel (Depending on Adapter)
- Body Plating: Nickel
- Insulator: Delrin
- Inner Conductor: Copper, Gold Plated
- Operating Temperature: -40 to +85C
- RoHs (2002/95/EC): Compliant by exemption
- Dimensions:
- UHF Male to SMA Male: 37.6mm x 20mm LxW (1.48in x 0.78in)
- UHF Male to SMA Female: 33.7mm x 20mm LxW (1.32in x 0.78in)
- UHF Female to SMA Male: 29.2mm x 17mm LxW (1.15in x 0.66in)
- UHF Female to SMA Female: 27.1mm x 17mm LxW (1.06in x 0.66in)
