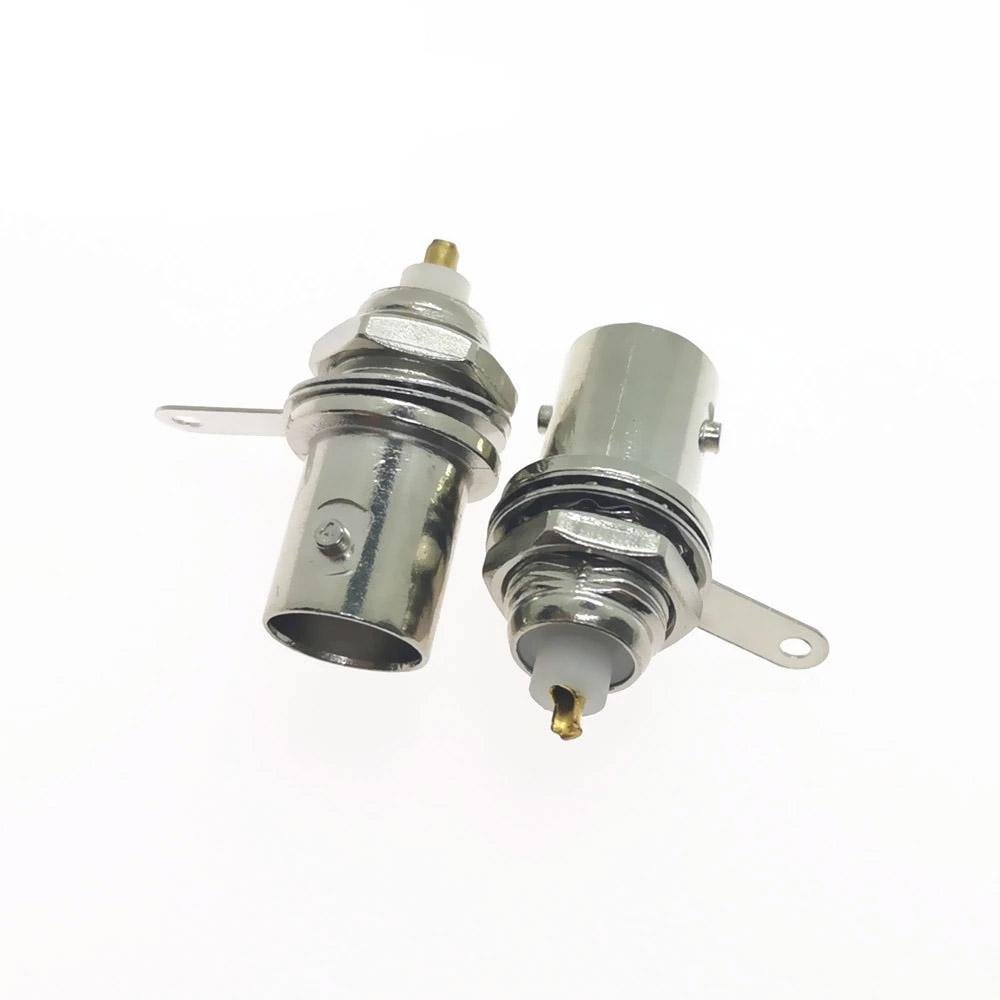

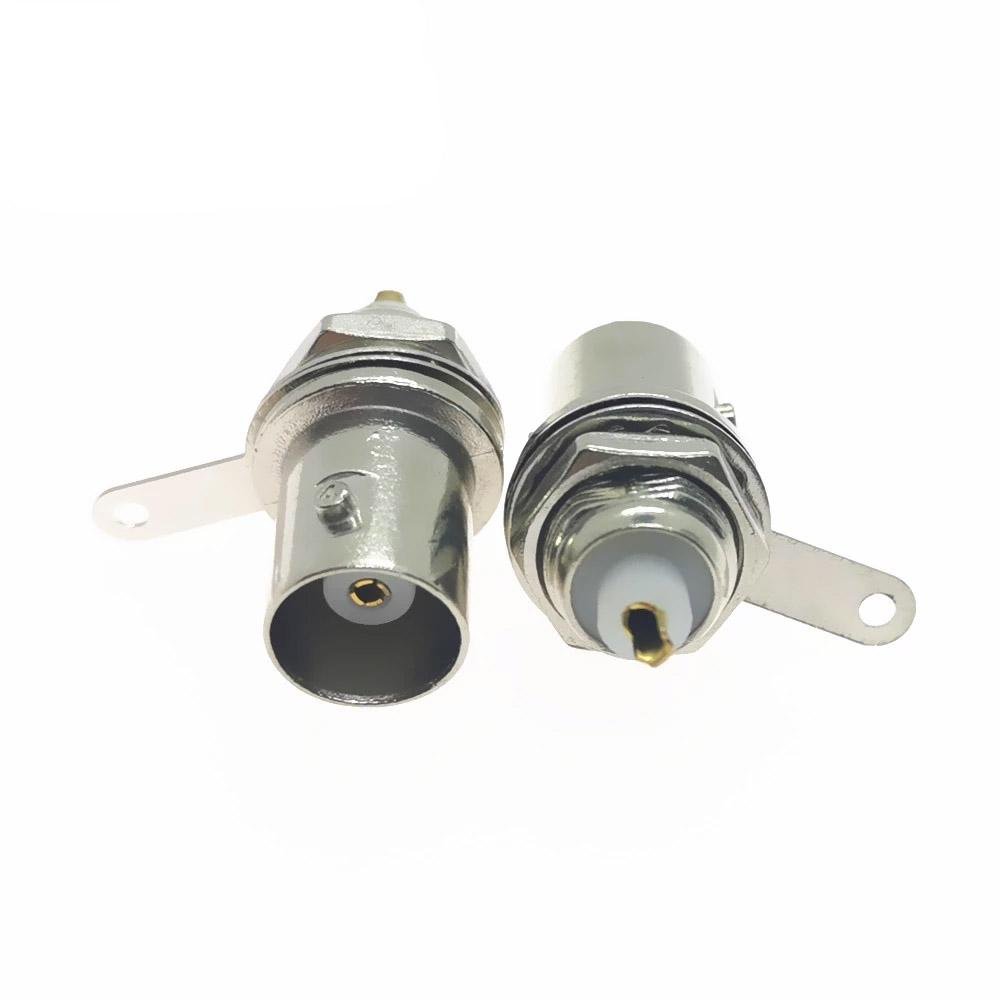

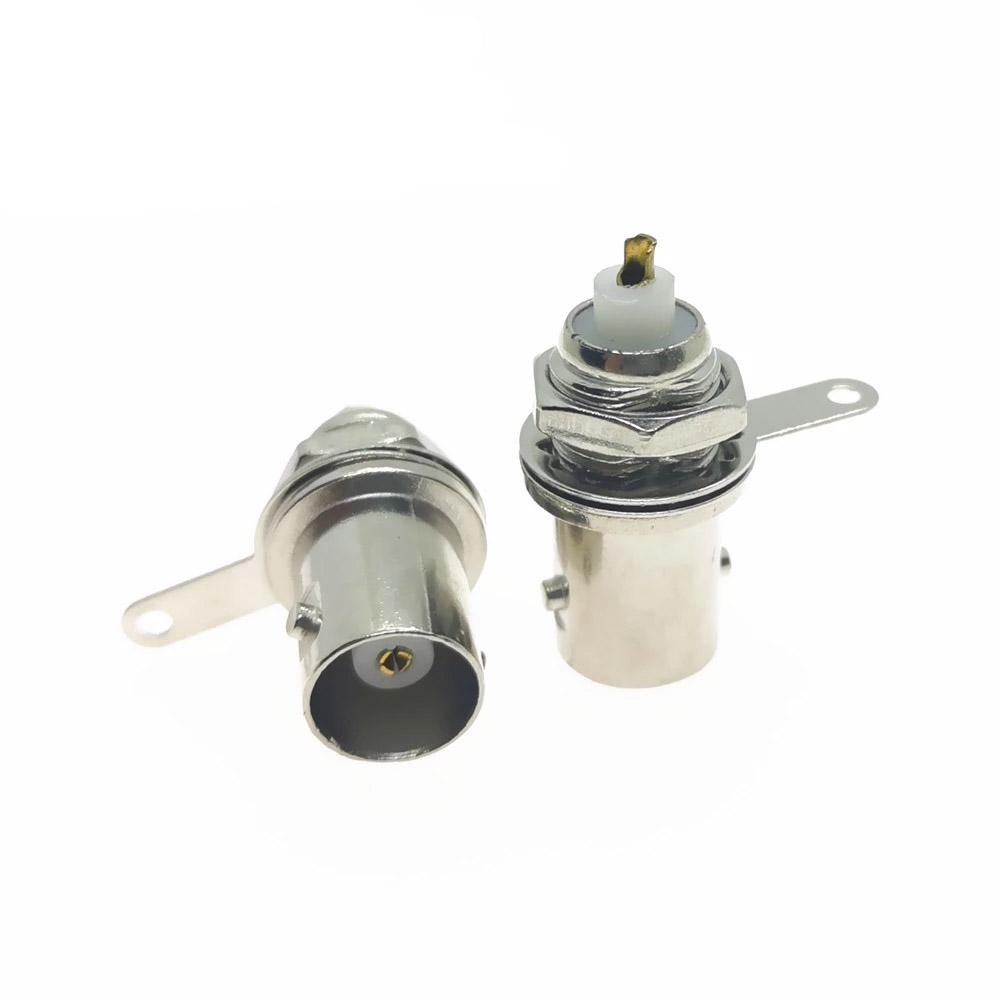

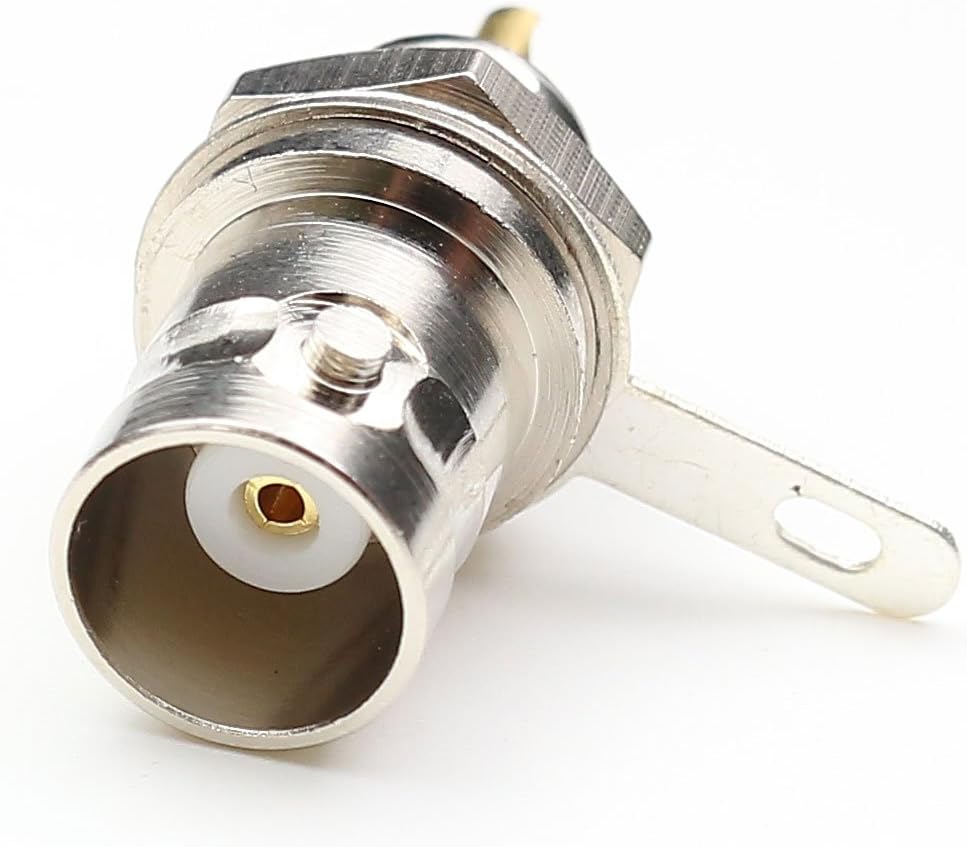

BNC Female Jack Straight Bulkhead Mount Solder Cup RF Connector (1/2/5/10 packs)

📋 Overview

This BNC female jack bulkhead connector provides a reliable, panel-mountable RF connection point for your projects. Featuring a solder cup terminal on the rear, it's designed for direct wire attachment — making it ideal for custom cable assemblies, test equipment panels, and radio setups. The nickel-plated brass body and PTFE dielectric insulator ensure excellent signal integrity and long-term durability. Available in convenient 1, 2, 5, or 10-piece packs to suit any project size.

⭐ Key Features

• Bulkhead Panel Mount — Mounts securely through a chassis or enclosure panel with the included nut and lock washer
• Solder Cup Terminal — Rear solder cup connection allows direct soldering of wire conductors for a permanent, low-loss connection
• 50Ω Impedance — Standard 50-ohm impedance for compatibility with most RF and communications equipment
• Nickel-Plated Brass Body — Durable, corrosion-resistant construction for reliable long-term performance
• PTFE Dielectric Insulator — High-quality PTFE (Teflon) insulation provides excellent electrical performance up to 4 GHz
• Straight Orientation — Standard straight-through design for clean, direct panel connections
• Includes Hardware — Each connector comes with a mounting nut, lock washer, and solder tab for secure panel installation

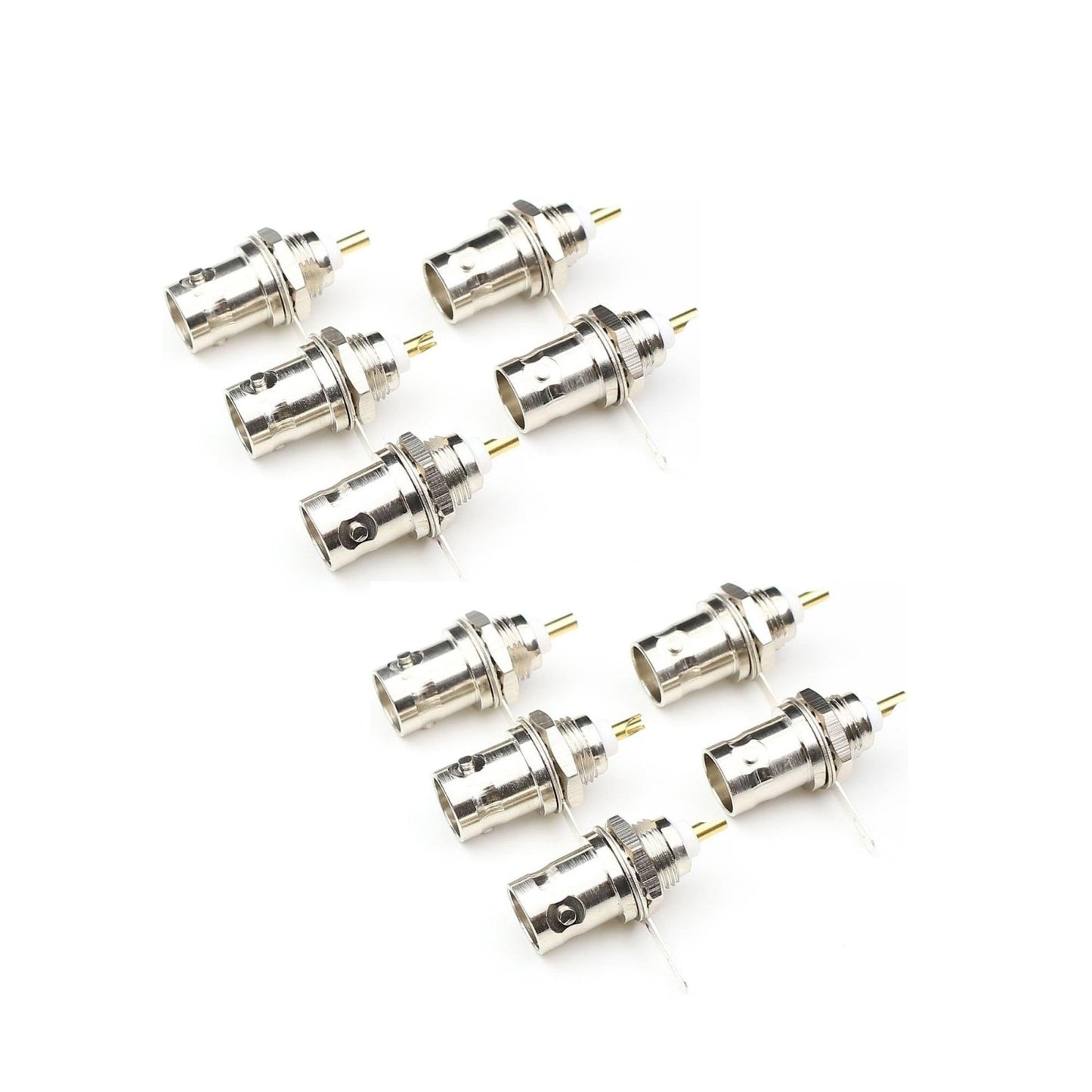

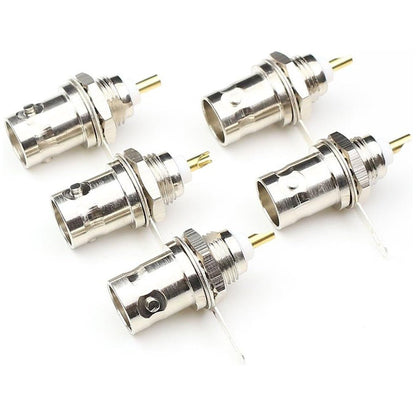

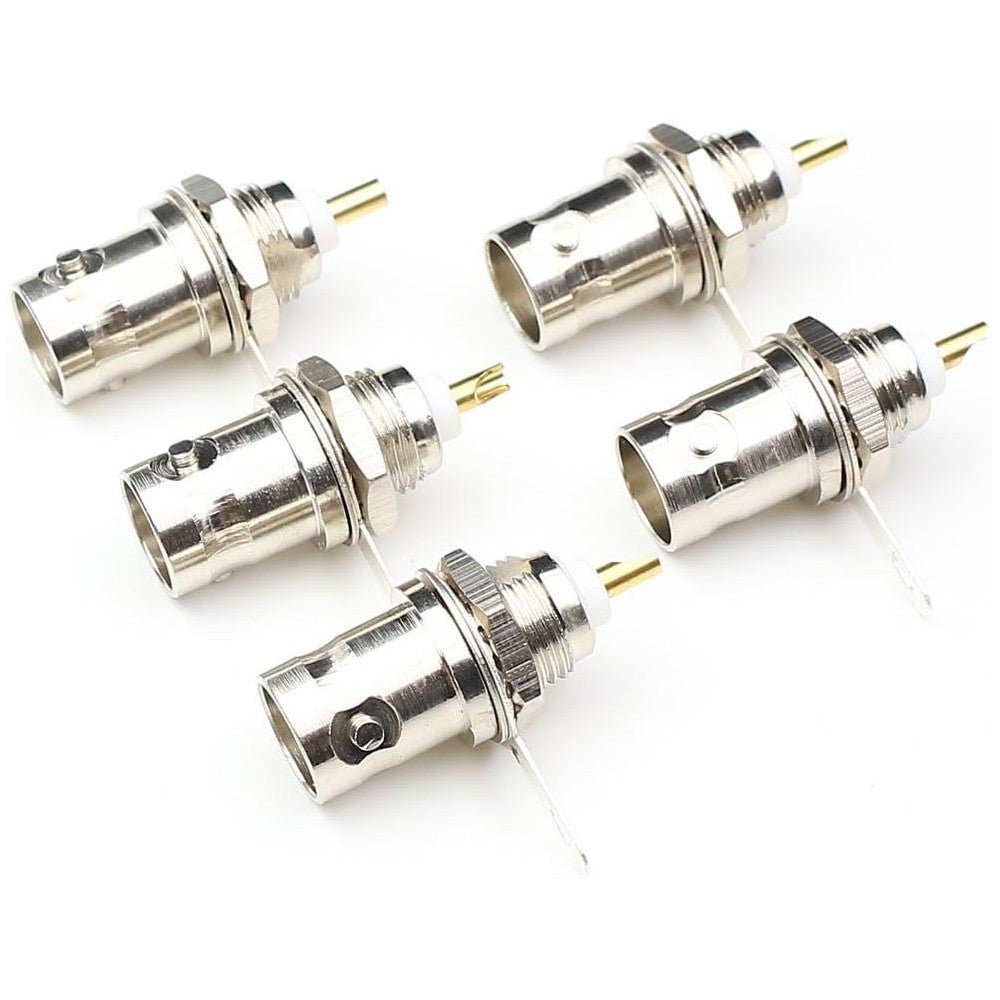

• Multi-Pack Options — Available in 1, 2, 5, or 10-piece packs

📊 Specifications

🎯 Applications

• CB and HAM radio antenna panel connections
• Test equipment and instrument panels
• CCTV and security camera systems
• RF signal routing through enclosures
• Custom cable assembly termination points
• Amateur radio projects and repeater builds
• Lab and prototyping equipment
• Video and audio signal distribution panels

📦 What's in the Box

• BNC Female Jack Bulkhead Solder Cup Connector(s) — quantity per selected pack size (1, 2, 5, or 10)
• Mounting nut, lock washer, and solder tab included with each connector

💡 Tips

• Panel Hole Size: Drill a 3/8-inch (9.5 mm) hole in your panel or chassis for a proper fit. Deburr the hole edges before mounting.
• Soldering: Use a soldering iron rated at 25–40W. Tin the solder cup and wire separately before joining for the best connection. Avoid excessive heat to protect the PTFE insulator.
• Weatherproofing: For outdoor installations, apply a small amount of dielectric grease or use heat-shrink tubing over the solder cup area to protect against moisture.
• Torque: Hand-tighten the mounting nut, then snug with pliers — avoid over-tightening, which can crack the panel or damage the connector.
• Grounding: The connector body provides a ground path through the panel. Ensure the mounting surface is clean and free of paint or coating for a solid ground connection.

🔌 Compatible With

• Standard BNC male plugs and cables (50Ω)
• RG-58, RG-59, and RG-174 coaxial cables (via solder cup)
• BNC-to-SMA, BNC-to-N, and other BNC adapter types
• Most CB, HAM, and communications radio equipment with BNC interfaces

⚠️ Important Notes

• This is a 50Ω connector. For 75Ω video applications, it will physically connect but may introduce slight impedance mismatch at higher frequencies.
• The solder cup terminal is designed for direct wire soldering — this connector does not crimp onto coaxial cable.
• Panel thickness should not exceed approximately 3 mm (1/8 inch) for proper nut engagement and secure mounting.
