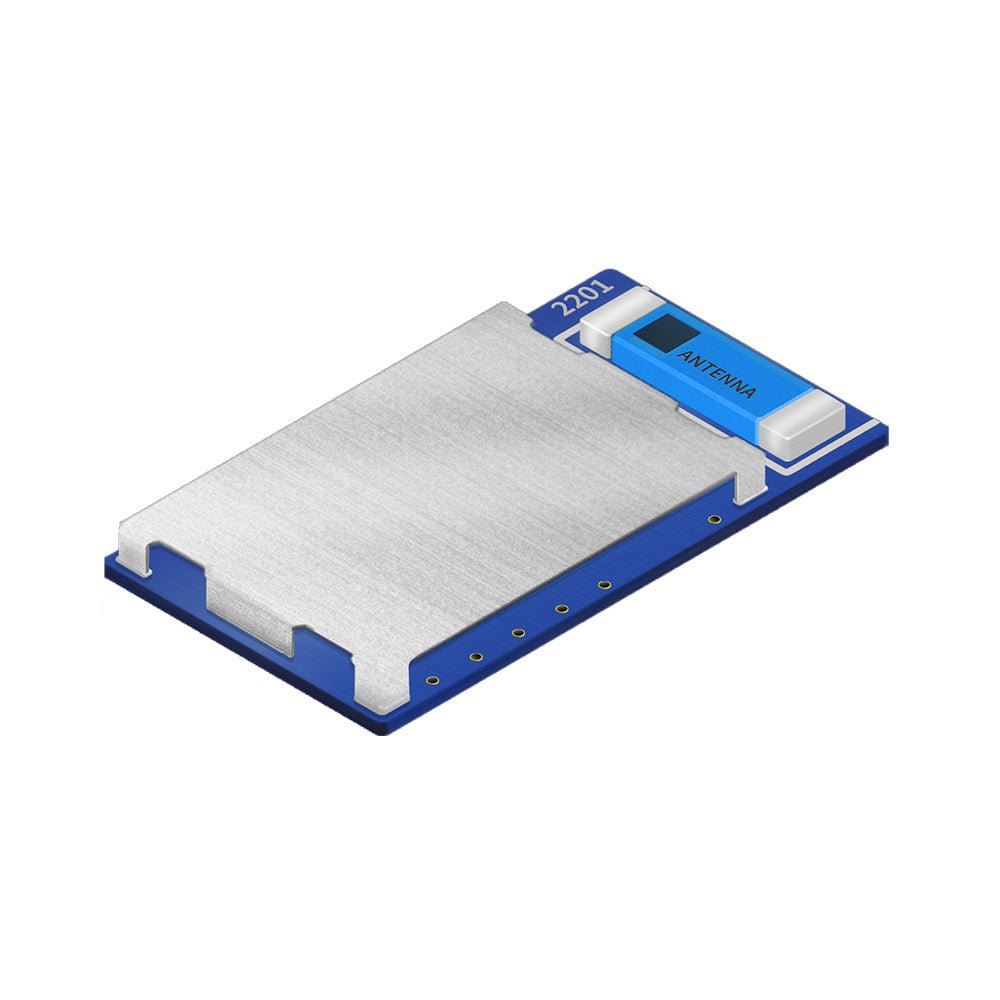

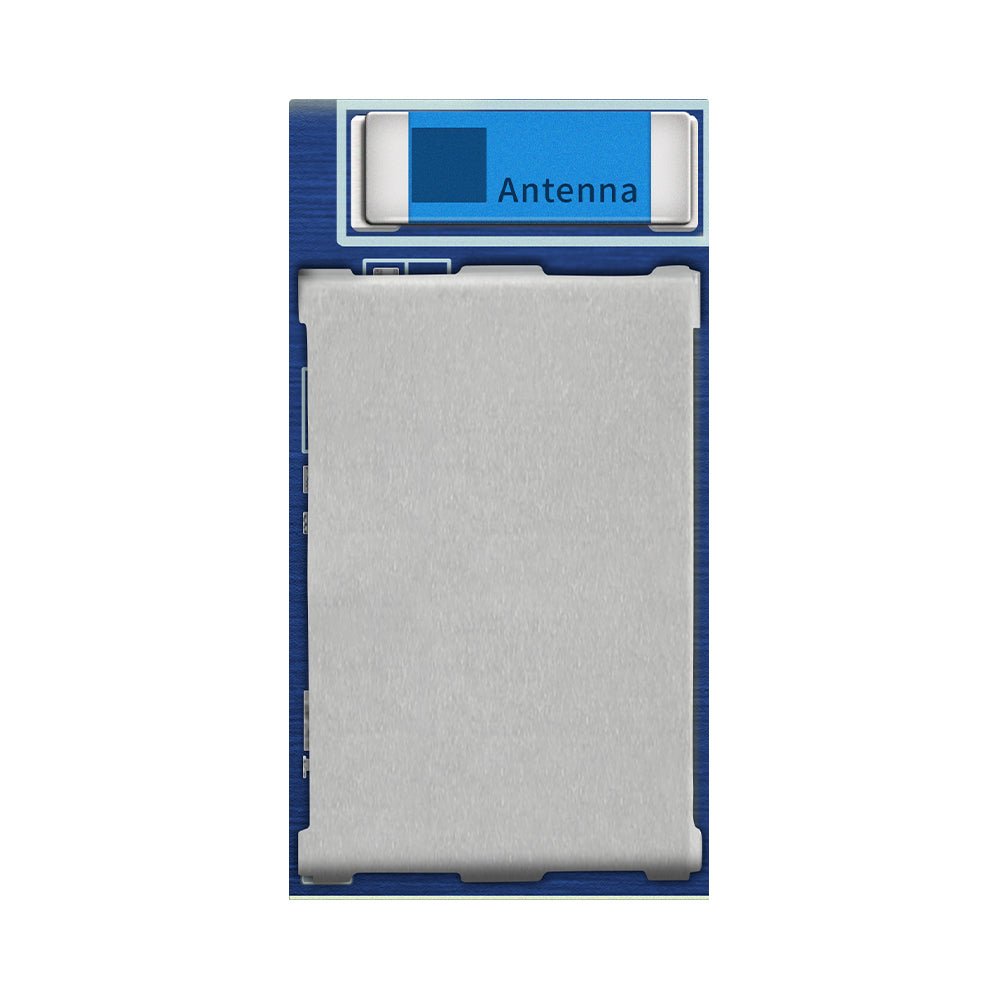

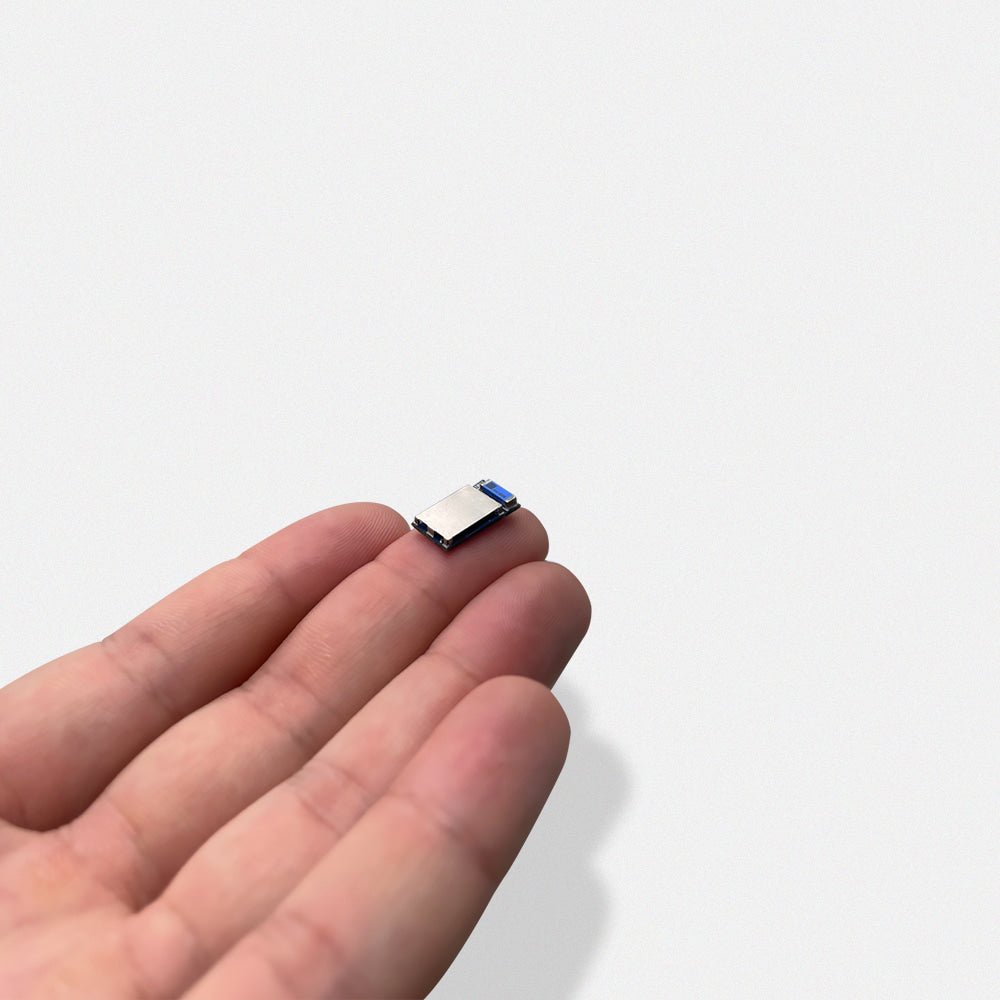

CHIPSEN BoT-nLE521 Bluetooth v5.0 BLE Class2 (+4dBm) SMD Slave Module w/ Chip Antenna
CHIPSEN BoT-nLE521 Bluetooth v5.0 BLE Class2 (+4dBm) SMD Slave Module w/ Chip Antenna
Couldn't load pickup availability
Please CONTACT US for OEM and Quantity Discounts.
The CHIPSEN BoT-nLE521 module is an OEM-style, cost-effective, low-power, true system-on-chip (SoC) for Bluetooth Smart (Bluetooth low energy) BLE applications. Integrating the BoT-nLE521 into your design enables robust BLE slave nodes to be built with very low total bill-of-material costs while greatly simplifying and streamlining the design and certification process.
BoT-nLE521 combines an excellent RF transceiver with an industry-standard enhanced Cortec-M4 CPU, in-system programmable flash memory, 24kB RAM, and many other powerful supporting features and peripherals.
The BoT-nLE521 is suitable for systems where very low power consumption is required. Very low-power sleep modes are available. Short transition times between operating modes further enable low power consumption.
BoT-nLE521 Features
- BT Version: Bluetooth Low Energy (BLE) V5
- Built in Antenna
- ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz
- Memory: 192 kB Flash / 24 kB RAM
- RF Output Power: MAX +4 dBm (-20 ~ 4 dBm)
- RF Receive Sensitivity: -96 dBm
- Type 2 near field communication (NFC-A) tag with wakeup-on-field and touch to-pair capabilities
- Fully automatic LDO and DC/DC regulator system (Uses LDO by Default)
- Temperature Sensor
- UART (CTS/RTS) with EasyDMA, SPI, and I2C data interfaces
- 12-Bit 200 ksps ADC with - 8 configurable channels with programmable gain

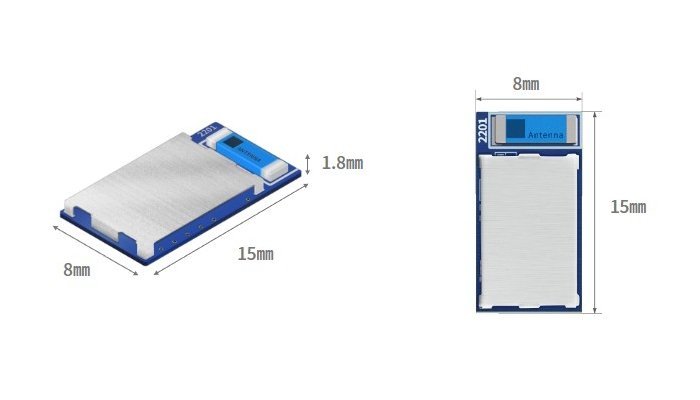

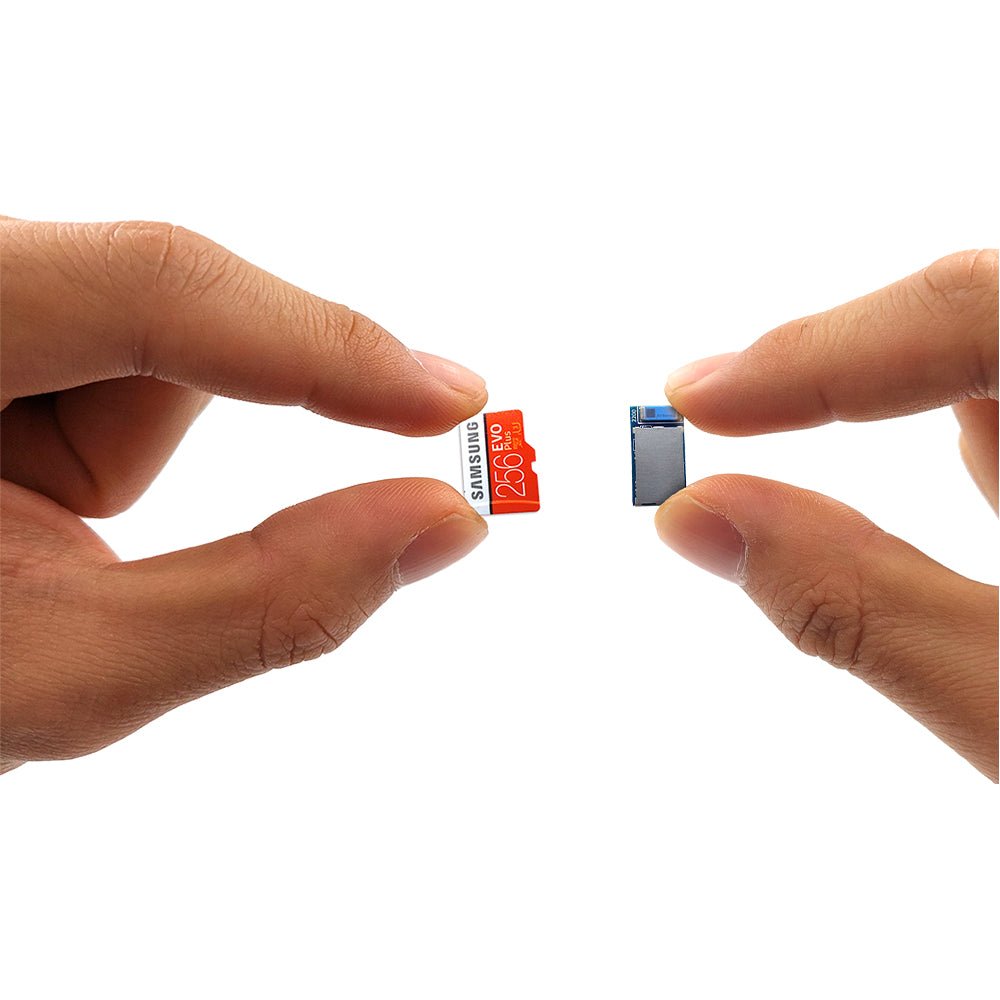

- Size: 15 mm x 8 mm x 1.8 mm
- Operating Voltage: 1.7V to 3.6V
- Operating Temperature: -40 to +85℃
- RoHS compliant 1.4
- Certifications: SIG, KC (including wireless EMC), IC, FCC, CE, TELEC
Applications
- Computer peripherals and I/O devices
- Mouse
- Keyboard
- Multi-touch trackpad
- Interactive entertainment devices
- Remote control
- Gaming controller
- Beacons
- Personal Area Networks
- Health/fitness sensors and monitoring devices
- Medical devices
- Key-fobs
- Wrist watches
- Remote control toys
RF Certification Fee Exemption
If you create a wireless product using an uncertified module, you must obtain your own wireless certification. The BoT-nLE521 already has multiple certifications (SIG, KC (including wireless EMC), FCC, CE and TELEC), reducing the cost and certification process of manufacturing your wireless products.
| Uncertified Bluetooth Module | BoT-nLE521 |
| Complex authorization process | KC+EMC, FCC, CE & TELEC certified |
| Wireless RF certification cost | Wireless certification exempt |
| Certification cost by country when exporting | Certified in the US, Europe & Japan |
| If authentication fails, replace the entire module | |
| Bluetooth logo not available | Bluetooth SIG certification completed |
| No technical support during the certification process | Certified samples and CHIPSEN technical support |
Low Power Consumption
The table below shows the BoT-nLE521's typical current draw in microamps (uA).
Bluetooth Connection Methods
BoT-nLE521 Master and Slave Modules
A BoT-nLE521 slave module can communication with a BoT-nLE521M master module.
In this configuration the BoT-nLE521 Master will attempt to connect to the BoT-nLE521 Slave. If the Slave accepts the request, the connection is successful.
When communicating between modules there must be a Master and Slave pair. Modules of the same role cannot communicate with each other, i.e. two Slaves cannot communication with each other.
Smartphones and other Bluetooth Masters to BoT-nLE521 Slave Modules
The BoT-nLE521 Slaves will advertise their device information. They can be searched for by smartphones and other master devices, and and connection attempts are received.
Documentation and Downloads
BoT-nLE521 Datasheet and Installation Documentation (PDF)
BoT-nLE521 Dimensions and Mechanical Specifications (PDF)
BoT-nLE521 FCC Certification (PDF)
