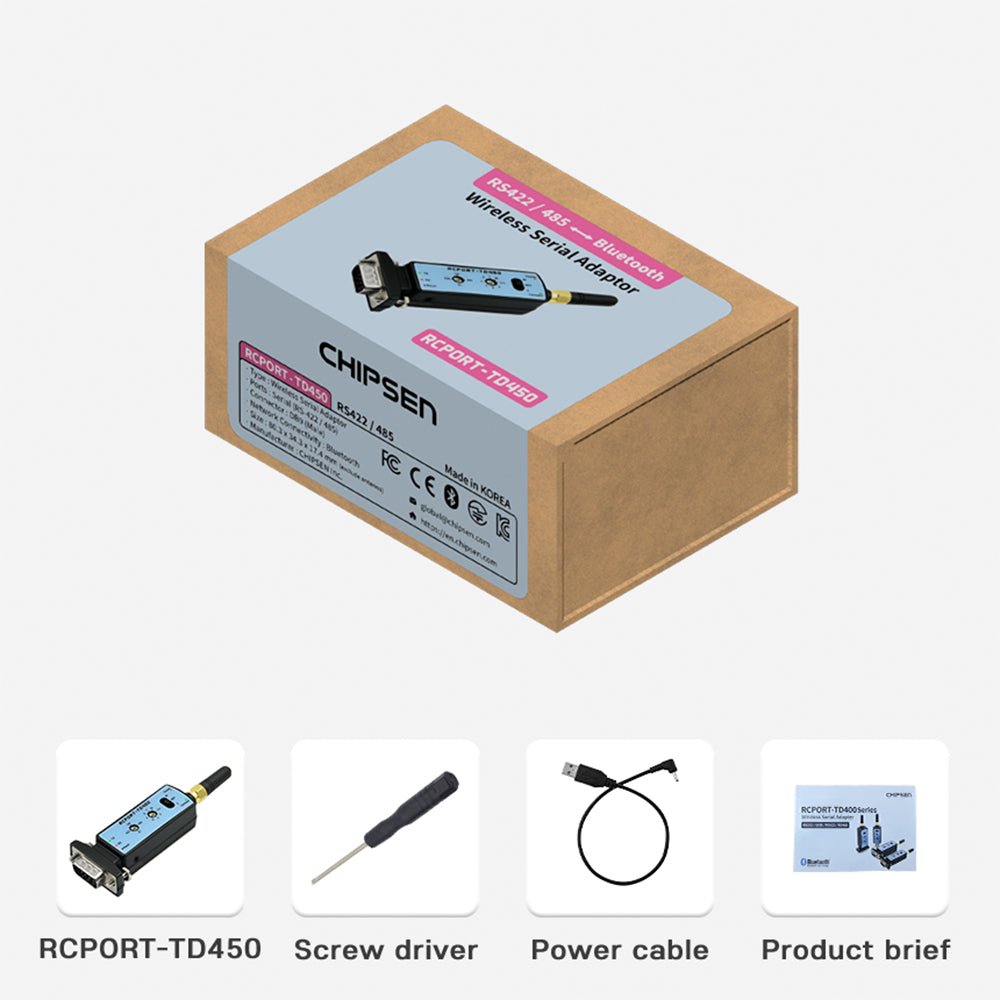

CHIPSEN RCPORT-TD450 Long Range Bluetooth Wireless RS422/485 Serial Adapter D-SUB9 (M)

Name: CHIPSEN RCPORT-TD450 Long Range Bluetooth Wireless RS422/485 Serial Adapter D-SUB9 (M)
Brand: CHIPSEN
SKU: EM-COMMS-0044
Price: 94.50 USD
Availability: InStock

$94.50

Sale Sold out

Quantity

Please CONTACT US for OEM and Quantity Discounts.

The CHIPSEN RCPORT-TD450 Bluetooth Class 1 Wireless RS422/485 Serial Adapter with a DSUB9 Male connector converts RS422 or RS485 serial data to Bluetooth and transmits and receives it wirelessly to other compatible devices.

The RCPORT-TD450 uses Bluetooth Low Energy (BLE) v5.3, the latest Bluetooth standard. Featuring long-distance Class 1 (+20dBm) capability, it supports 1,000 feet of wireless transmit distance and can be extended up to 4,000 feet using optional antennas.

CHIPSEN RCPORT TD450 Bluetooth to RS422/485 Serial Adapter 1000 feet transmit range

Any TD400 Series device can communicate with any other TD400 Series device. For example, a TD450 (with a DSUB connector) can be attached to a piece of test equipment, and communicate with a TD420 (with a USB connector) attached to a PC.

Features and Specifications

Bluetooth Low Energy (BLE) v5.3 Class1 (Max+20dBm)
RS422/485 Wireless communication replaces serial cables
1,000ft of wireless transmit distance with the default antenna (open fields)
4,000ft of wireless transmit distance with optional antennas
Three operating modes: 1:1 Auto-Pairing, 1:1 Node-Switching and 1:7 Multi Connection (multiple simultaneous communication with up to 7 devices)
DSUB9 (Male) Connector
Serial Port: RS422/485, supports 9600 to 115,200bps baud rate
Input Voltage: 5V to 24V DC
Operating Temperature: -20C to +85C
Dimensions (without antenna): 80.3 x 34.3 x 17.4 mm (3.16 x 1.35 x 0.69 inches)
Supports Android OS, iOS, Windows and Linux
Certifications: Bluetooth SIG, CE, FCC, JAPAN MIC , KC

Operating Modes

The TD450 adapter offers three operating modes: 1:1 Auto-Pairing, 1:1 Node-Switching and 1:7 Multiconnection.

1:1 Auto-Pairing

One TD400-Series adapter in Master Mode can auto-pair with one in Slave Mode simply by setting one to Master and one to Slave and keeping them near each other until they automatically connect. No configuration software is needed.

Please see the video below for more details.

1:1 Node-Switching

When one TD400-Series adapter is set to Master Mode and multiple adapters are set to Slave mode using the TD400 Configuration Software, the Master device can individually communicate with any of the Slave devices by selecting the Slave device number on the Master's Device Selection Dial.

Please see the video below for more details.

1:7 Multi Connection

When one TD400-Series adapter is set to Master Mode and multiple adapters are set to Slave mode using the TD400 Configuration Software, the Master device can communicate with all of the Slaves simultaneously by setting the Master's Device Selection Dial to "M".
