Clear Yellow Ultra Bright LED 5mm T1-3/4 - 10x 25x 50x 100x Piece Packages

Clear Yellow Ultra Bright LED 5mm T1-3/4 - 10x 25x 50x 100x Piece Packages

$2.39
$2.39
Sale Sold out
Quantity

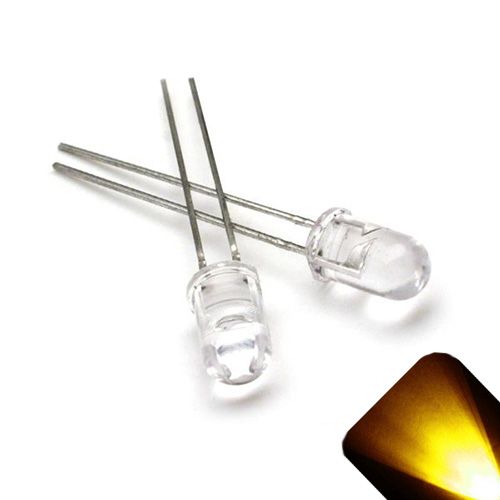

These 5mm clear yellow LEDs are very bright at 4000+ mcd and have a wide 30° viewing angle. Typical forward voltage is 2.0-2.2Vdc and drive current is 20mA. The lens is clear (transparent). They can be installed in a breadboard or through-hole PCB and are ideal for DIY projects, perfect for decoration, illumination, indicators, flashlights, and traffic lights.

Specifications

  • Size: 5mm T1-3/4
  • Emitting Color: Yellow (588-595nm)
  • Package: Clear
  • Pin spacing: 2.54mm
  • Forward Voltage: 2.0-2.2V
  • Forward Current: 20mA
  • Viewing Angle: 30 Degrees
  • Luminous Intensity: 4000-6000 mcd
