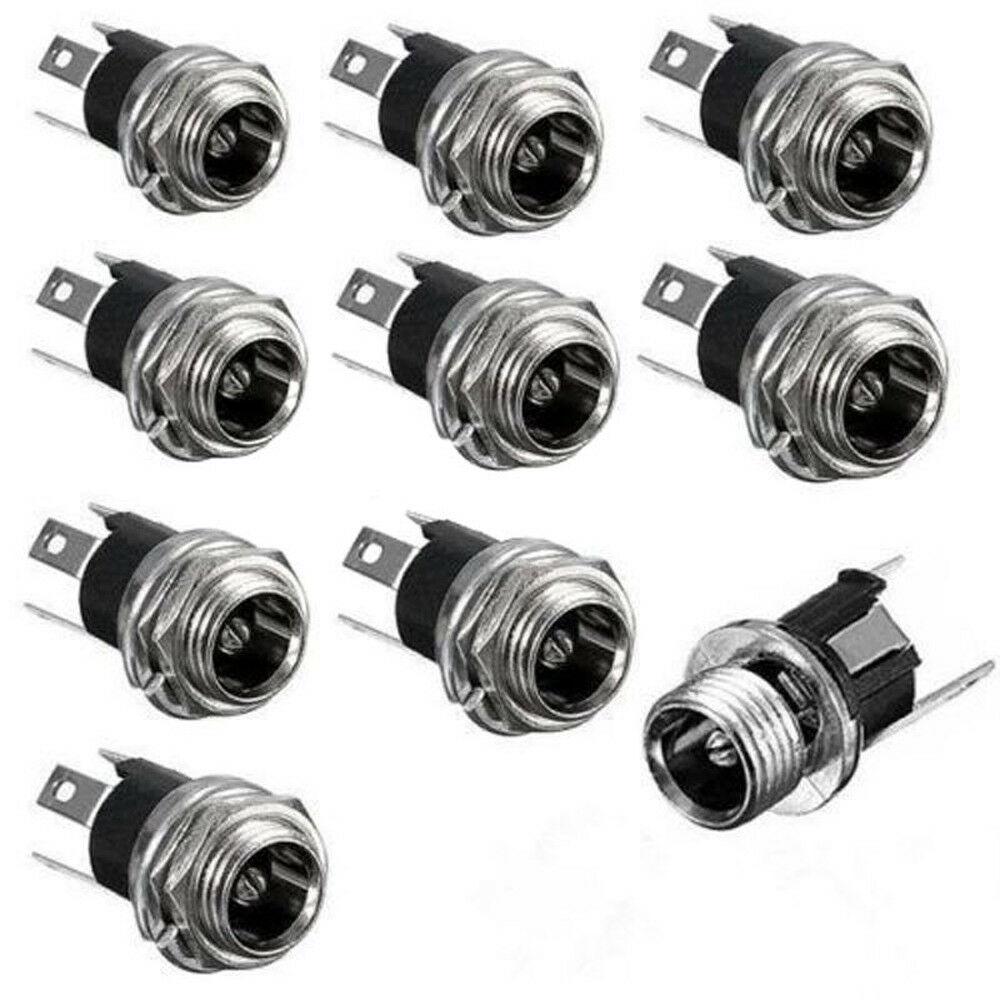

DC Power Supply Metal Jack Socket Female Panel Mount Connector 5.5 x 2.1mm 2/5/10 Pcs

DC Power Supply Metal Jack Socket Female Panel Mount Connector 5.5 x 2.1mm 2/5/10 Pcs

Regular price $3.29
Regular price Sale price $3.29
Sale Sold out
Package Quantity

2.1mm x 5.5mm Metal DC Power Supply Jack Socket Female Panel Mount Connectors
2, 5, or 10 Piece Quantities

Features:

  • Metal panel mounting plastic/metal 2.1mm x 5.5mm DC socket
  • Metal case and threads
  • 2 terminal style - positive (inner conductor) & negative
  • Outer conductor is electrically connected to shield (non-isolated ground)
  • Mounting hole: 7.8mm - 8mm
  • Includes locking nut
  • Accepts 3.2mm push-on wire connectors or solder connections
  • Requires total clearance behind panel of 14mm

Specifications:

  • Contact rating: 3A 12V DC maximum
  • Connector size: 2.1mm x 5.5mm x 9mm
  • Overall size: 11mm x 11mm x21mm
  • Max panel thickness: 3mm

Package includes:

2x/5x/10x DC Power Supply Metal Female Panel Mount Connector 2.1mm x 5.5mm
Locking nut

Contact us for Quantity/OEM discounts.
