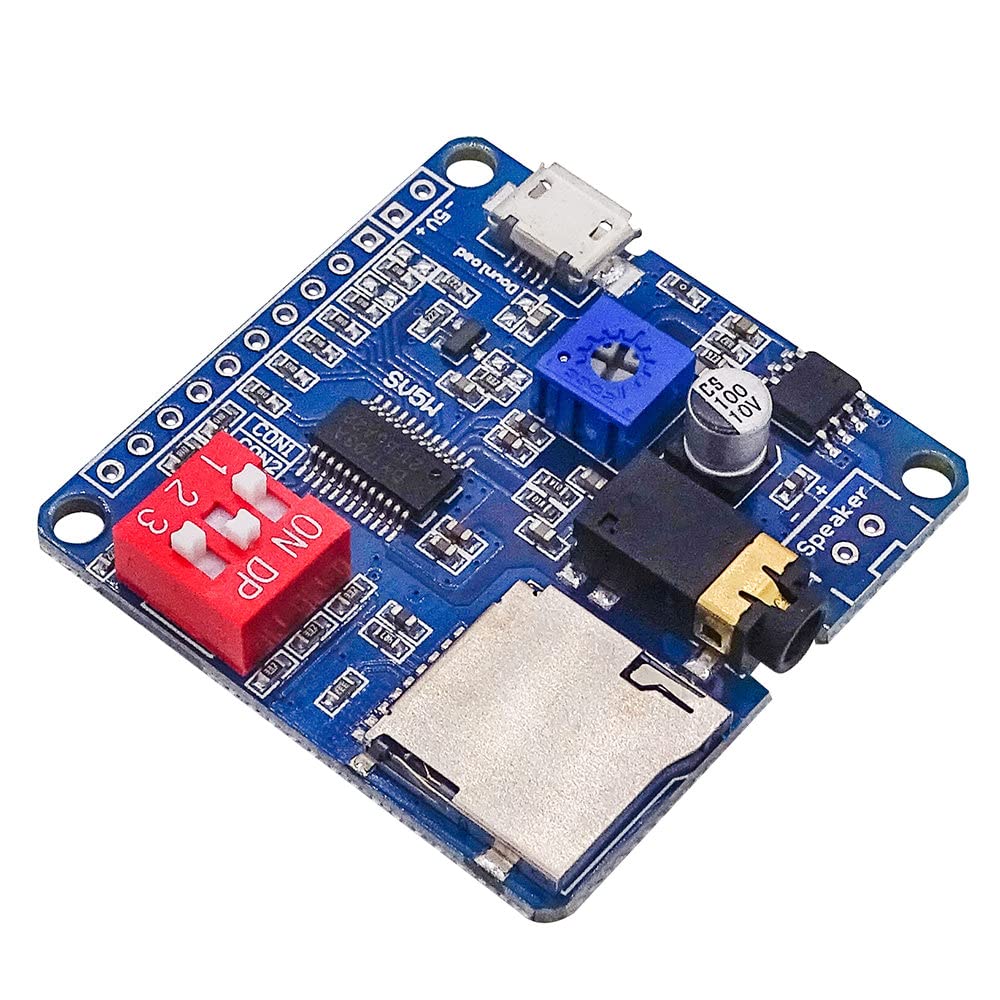

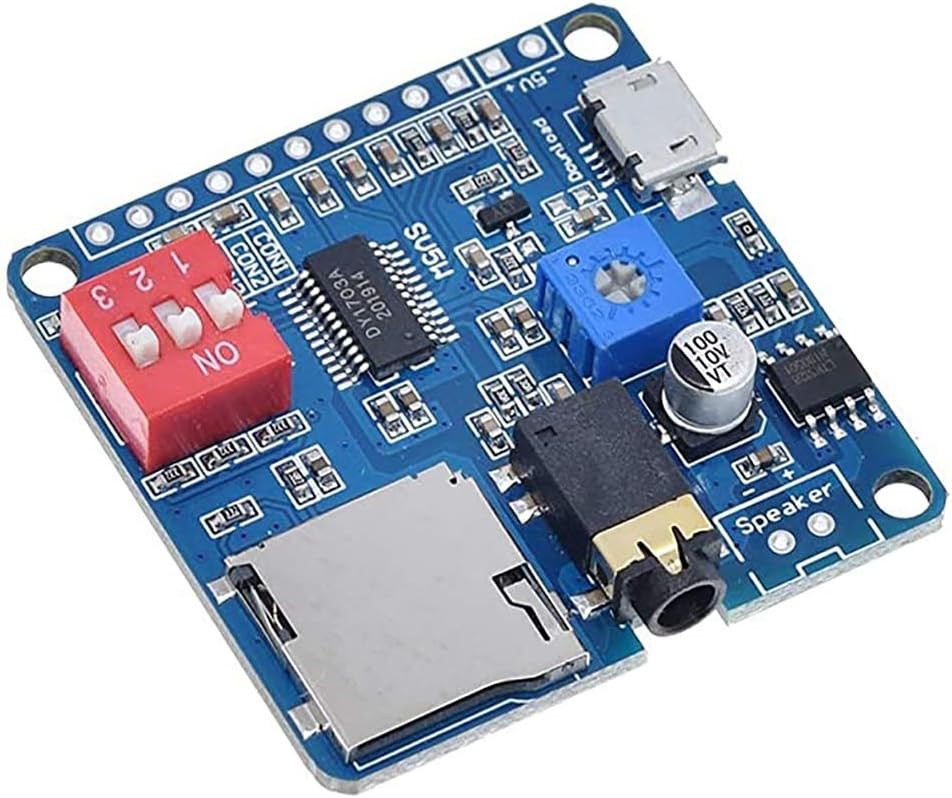

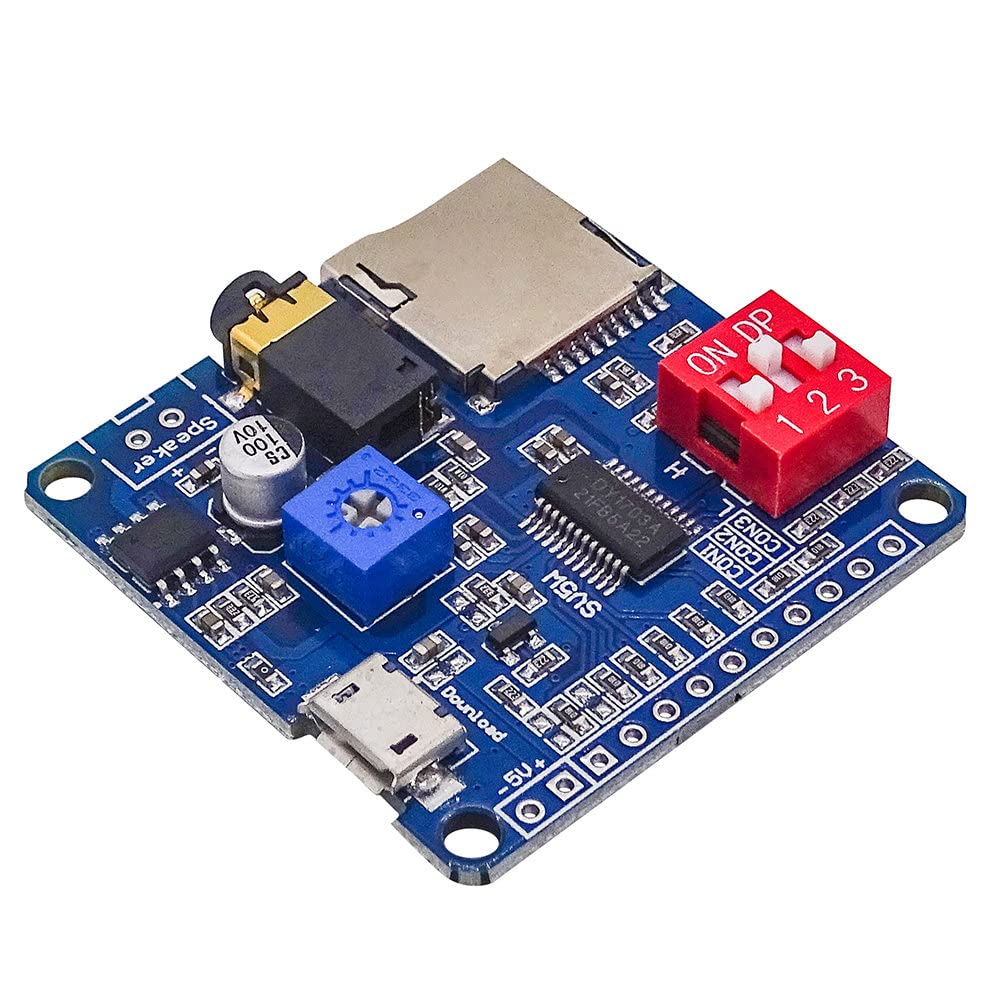

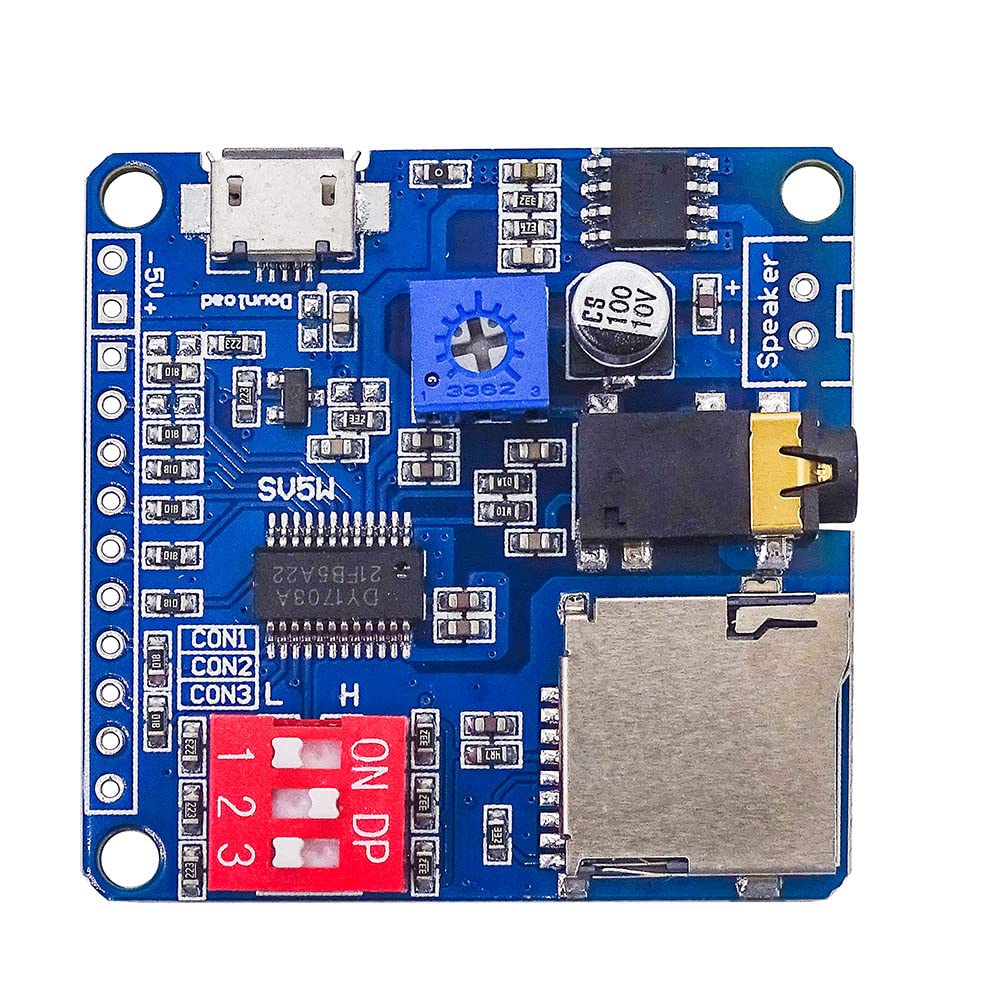

DY-SV5W Voice Playback MP3 Music Player Amplifier Module 5W SD/TF Card UART I/O

(The DY-SV5W is an intelligent and versatile voice playback module, perfect for a wide range of audio applications. This module integrates multiple control methods, including I/O subsection triggering, UART serial port control, and ONE_line single bus serial port control, offering flexibility in your projects.

With an onboard 5W Class D amplifier, it can directly drive 4ohm 3~5W speakers, providing clear and powerful audio output.

It supports MP3 and WAV decoding formats and can accommodate up to 32Gbit (4MByte) TF card memory. Update the TF card with audio files easily by connecting to a computer via USB.

The module also features a 3.5mm audio interface, U disk interface, Micro USB download interface, and button mode for added convenience.

Key Features

• Multiple Control Modes:
  • I/O Triggering: Easily trigger playback using I/O pins for simple, direct control. Supports combination and independent modes.
  • UART Serial Port Control: Advanced control via UART serial communication. Control playback, pause, volume, track selection, and more. (Baud rate: 9600 bps)
  • ONE_line Single Bus Serial Port Control: Streamlined control using a single data line.
• Powerful Audio Output: Onboard 5W Class D amplifier capable of directly driving 4Ω 3-5W speakers for clear and loud audio.
• Extensive Audio Format Support: Supports both MP3 and WAV decoding for maximum compatibility.
• High-Quality Audio: Features a 24-bit DAC output with a dynamic range of 90dB and an SNR of 85dB for excellent sound fidelity.
• Large Storage Capacity: Supports FAT16/FAT32 file systems with maximum support for 32GB (4MByte) TF cards and U-disks.
• Flexible Connectivity:
  • 3.5mm audio interface for headphone or external amplifier connection.
  • U disk interface for direct playback from USB storage.
  • Micro USB download interface for easy audio file updates.
• Wide Sampling Frequency Support: Supports sampling frequencies (KHz): 8/11.025/12/16/22.05/24/32/44.1/48.

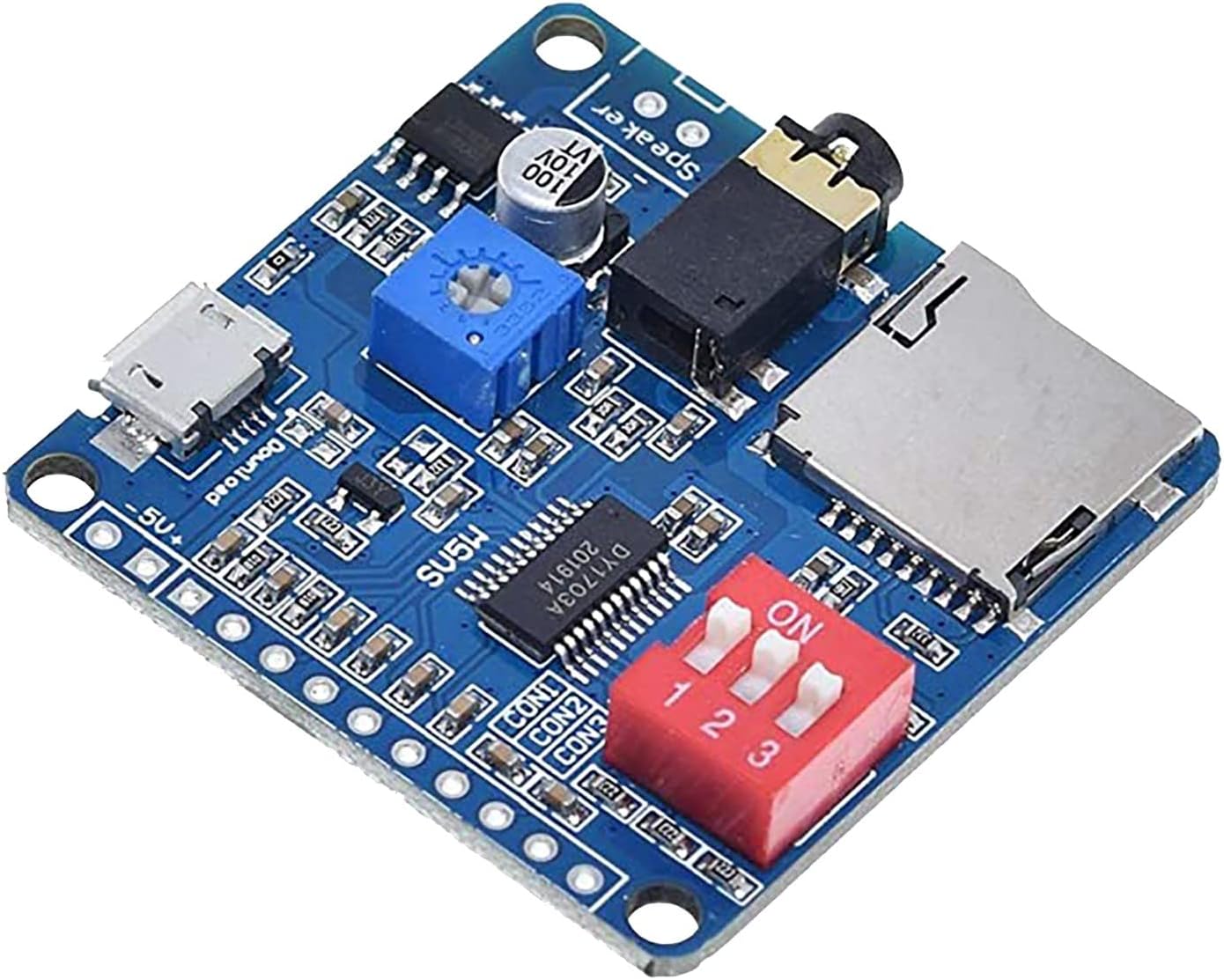

• DIP Switch Configuration: Easily switch between 7 operating modes using the onboard DIP switch.
• Compact Design: Small form factor for easy integration into your projects.

Detailed Specifications

• Decoding Format: MP3, WAV
• Sampling Frequencies (KHz): 8/11.025/12/16/22.05/24/32/44.1/48
• DAC Output: 24-bit
• Dynamic Range: 90dB
• SNR: 85dB
• File System Support: FAT16, FAT32
• Maximum Storage: 32GB (TF Card/U-Disk)
• Amplifier: 5W Class D
• Speaker Impedance: 4Ω (3-5W)
• Communication: UART Serial, ONE_line Single Bus
• Baud Rate (UART): 9600 bps
• Power Supply: 5V
• Dimensions: 40mm x 40mm

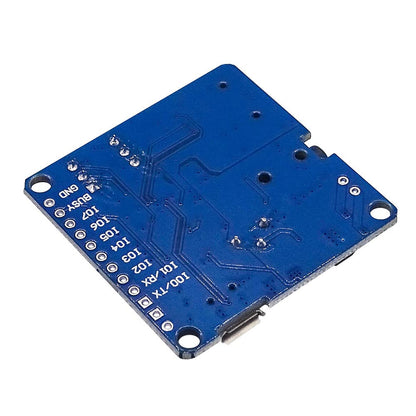

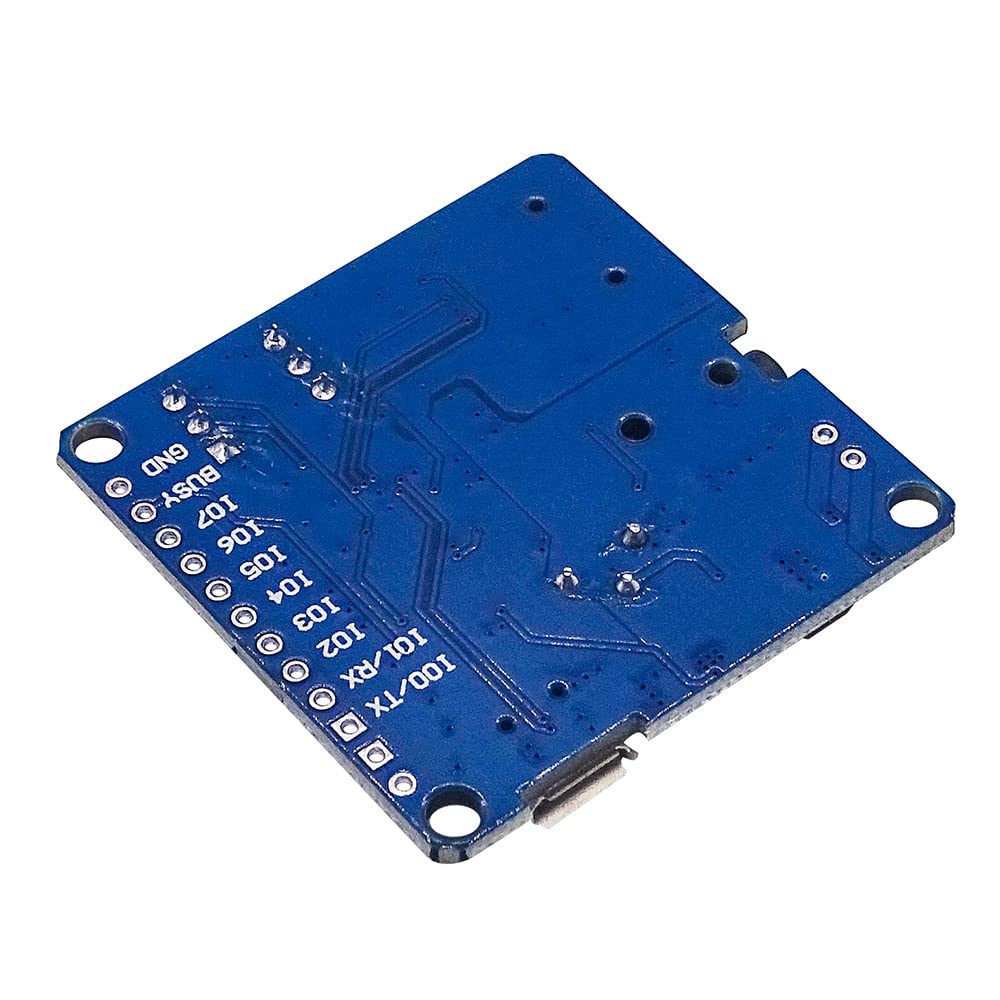

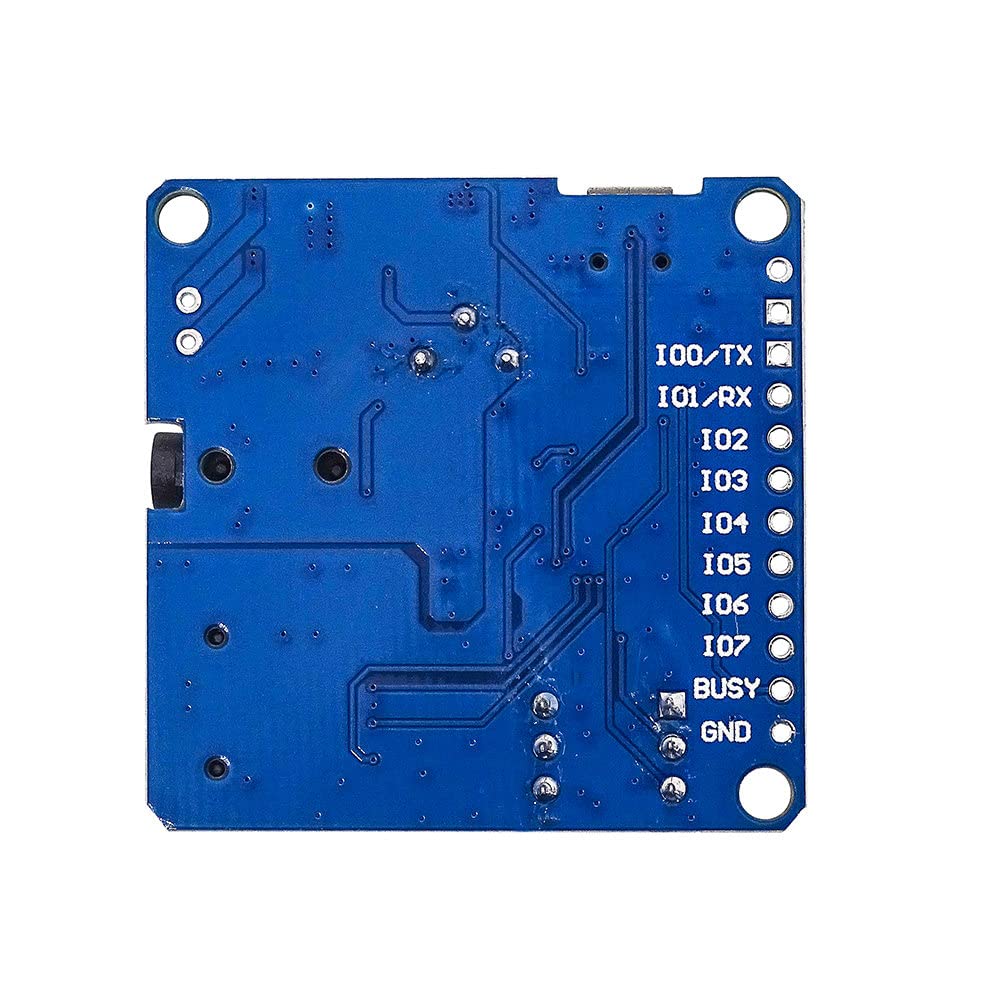

Pin Definitions

• VCC: 5V Positive Pole
• GND: Power Negative Pole
• TXD/IO0: IO trigger mode is input IO0; UART mode is TX.
• RXD/IO1: IO trigger mode is input IO1; UART mode is RX.
• IO2: IO trigger mode input IO2.
• IO3: IO trigger mode input IO3.
• IO4/ONE_LINE: IO mode input IO4; One_Line mode data receiver pin.
• IO5: IO trigger mode input IO5.
• IO6: IO trigger mode input IO6.
• IO7: IO trigger mode input IO7.
• BUSY: Output low level signal (0V) when playing and output high (3.3V) after playing.
• GND: Ground

Applications

• DIY Audio Projects
• Voice Prompts and Notifications
• Educational Tools
• Interactive Exhibits
• Custom Music Players


Package Includes

• 1 x DY-SV5W Voice Playback Module

Additional Information

DY-SV5W Voice Playback MP3 Music Player Amplifier Module PDF Datasheet (Click to download)

DY-SV5W MP3 Player Tutorial on the Digital Town Website
