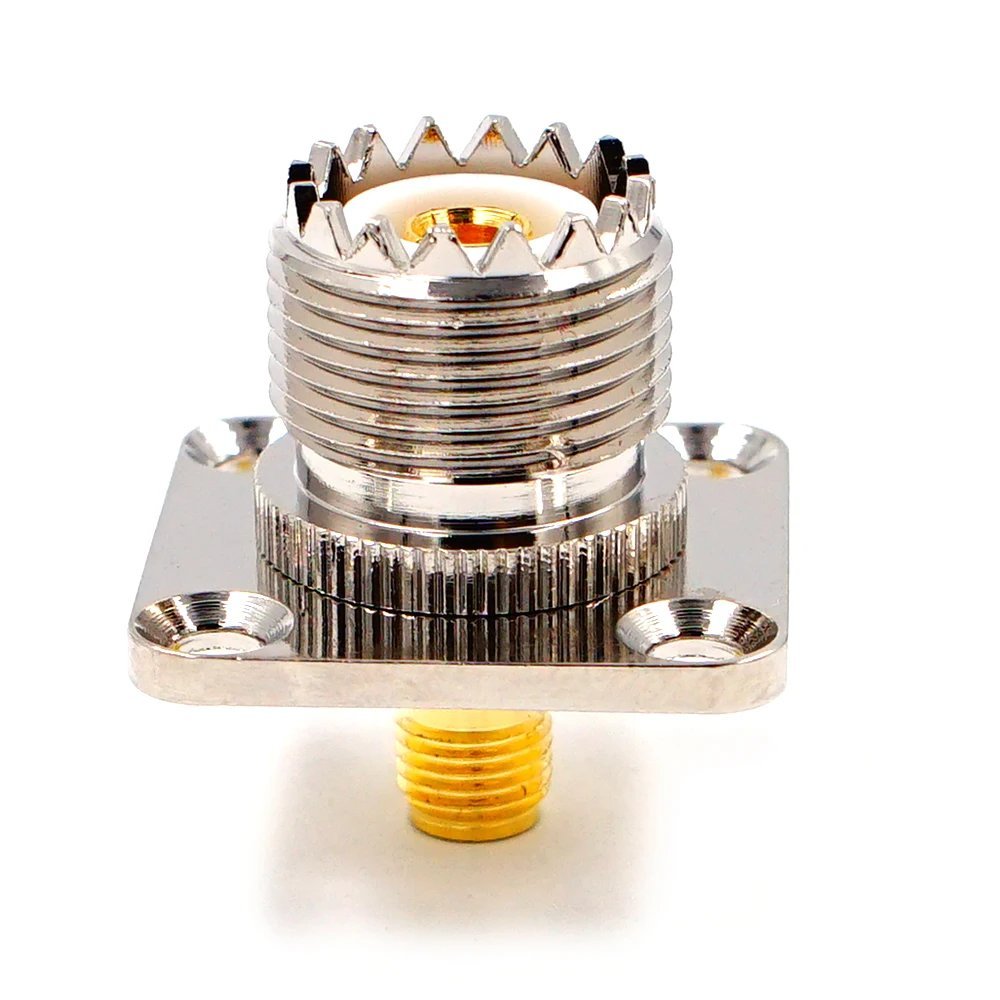

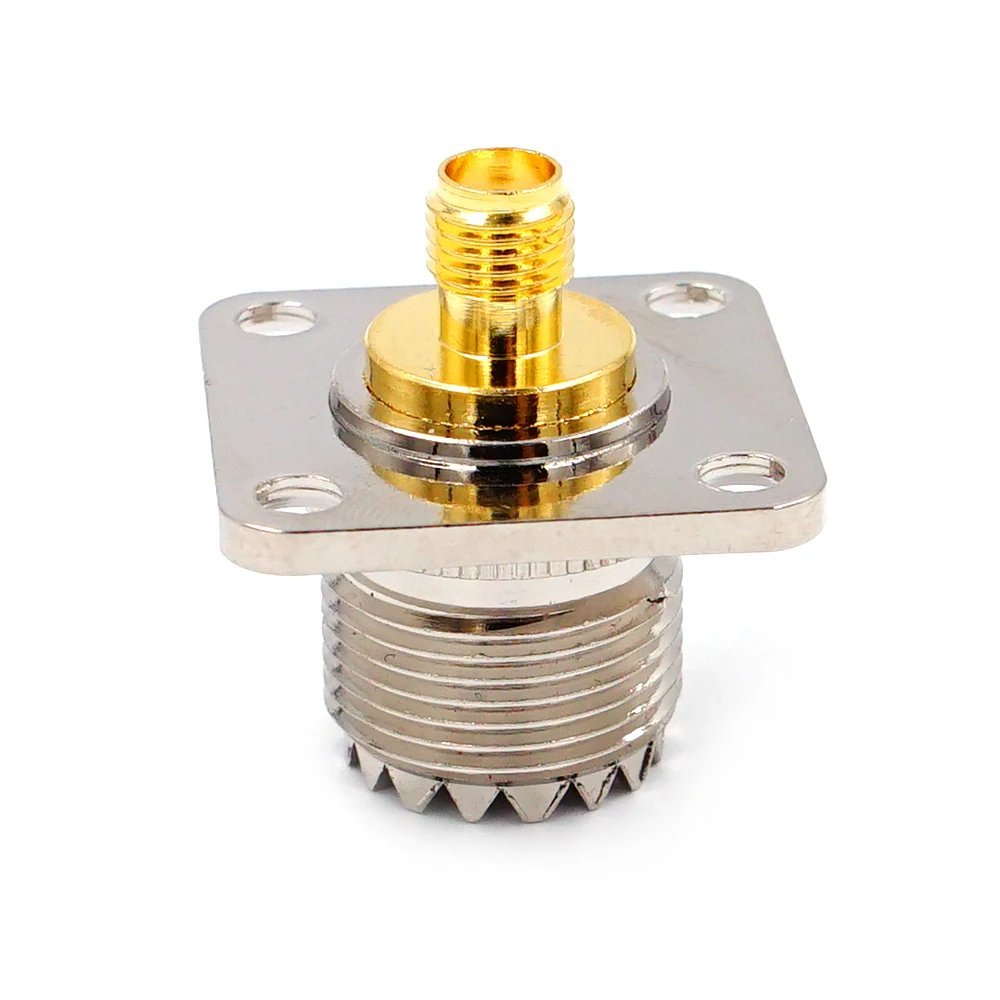

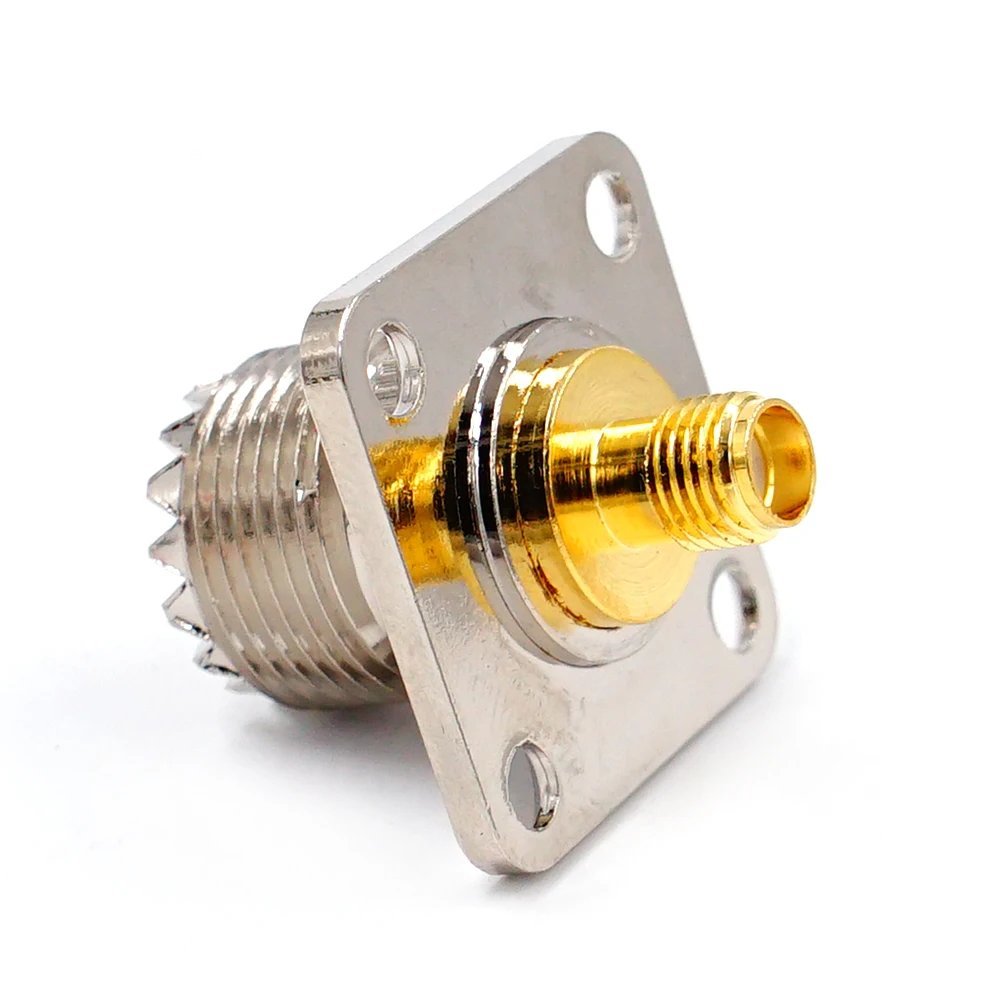

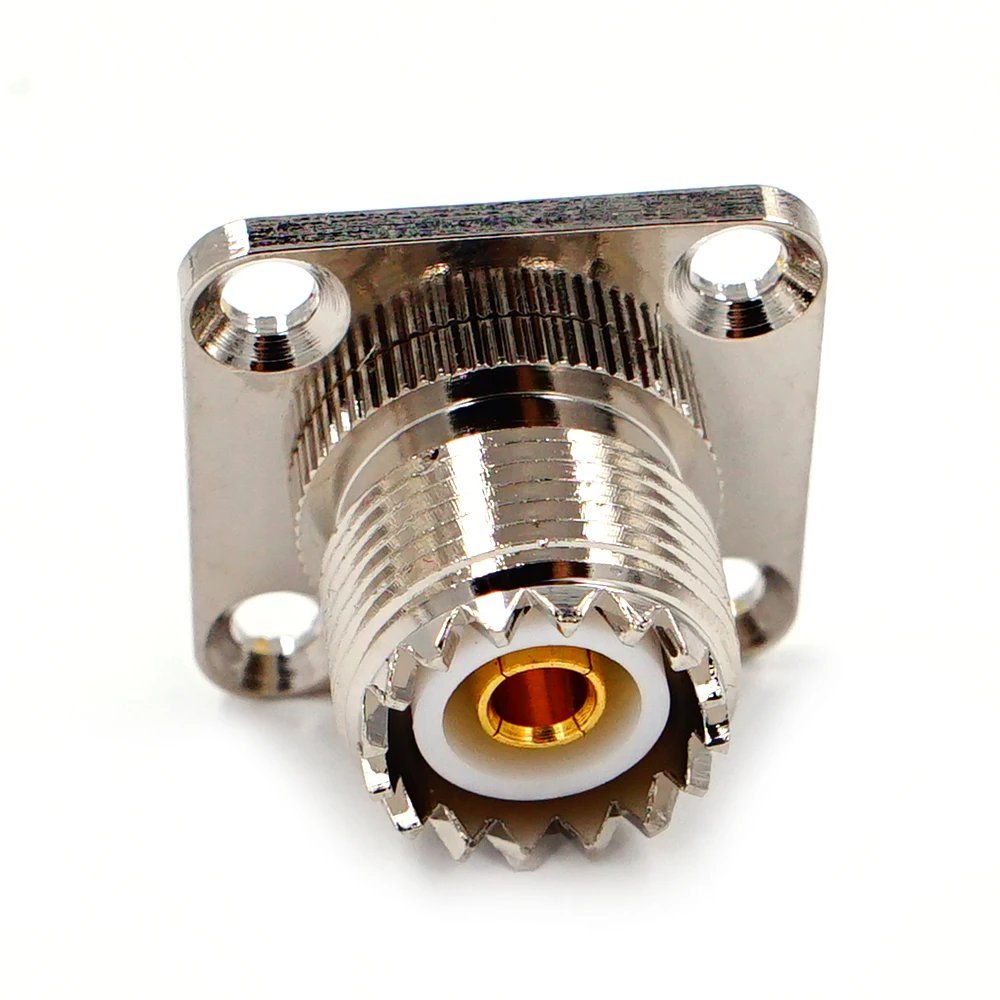

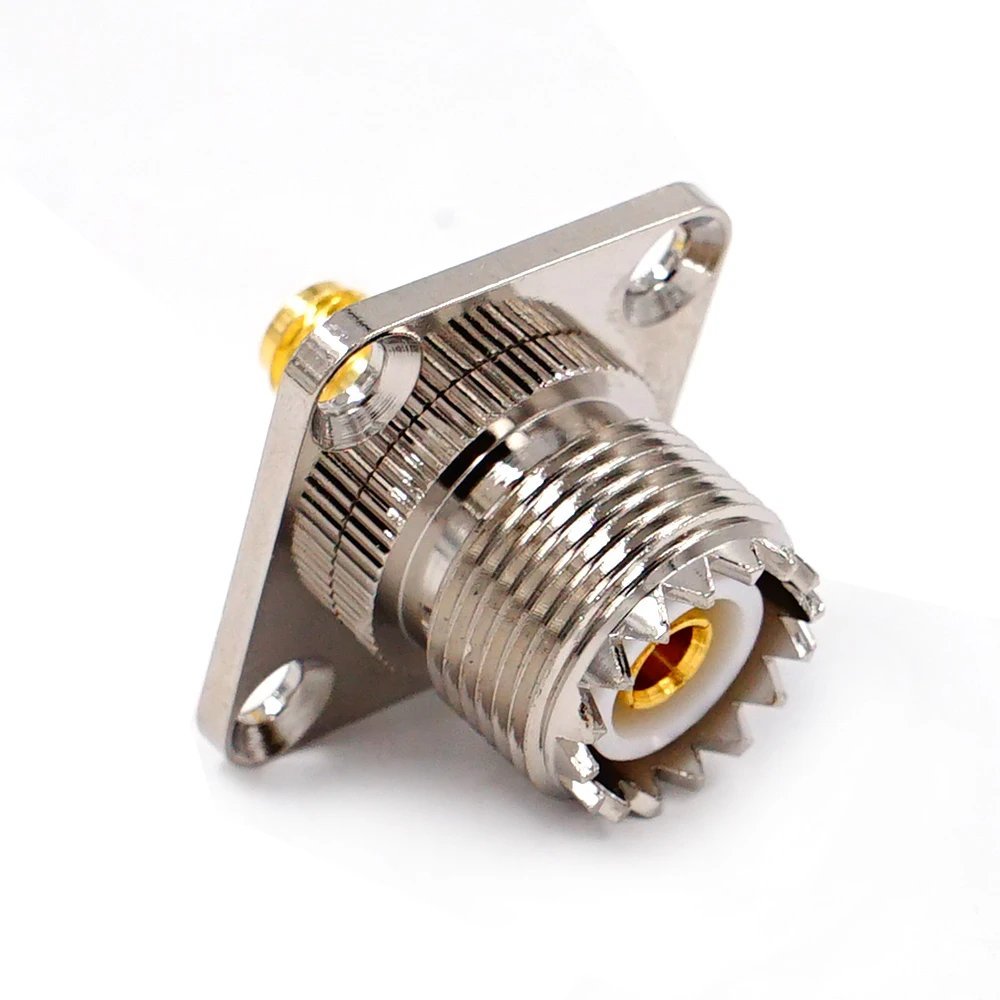

Flange Mount SO239 UHF Female Jack to SMA Female Jack RF Panel Connector 4 Hole

  • Sale
  • Regular price $5.69

This flange mount SO-239 UHF female jack to SMA female jack bulkhead connector is ideal for connecting to jumpers or cables in multiple applications including CB, GMRS, and Amateur (Ham) radio, antennas, broadcast, radios, wi-fi, telecom, coaxial cable, LMR, wireless LAN devices, CCTV, microwave applications, and digital communication systems.

High-quality brass (copper alloy) housing, nickel-plated.

Technical Specifications:

  • Connector 1: SO239 UHF Female Jack
  • Connector 2: SMA Female Jack
  • Body material: Nickel-plated Brass (Copper Alloy)
  • Insulator: Delrin
  • Inner Conductor: Phosphor Bronze
  • Impedance: 50 Ohm
  • Frequency Range: DC – 1 GHz
  • Durability (mating): ≥1000 cycles
  • Temperature range: -40~+85°C

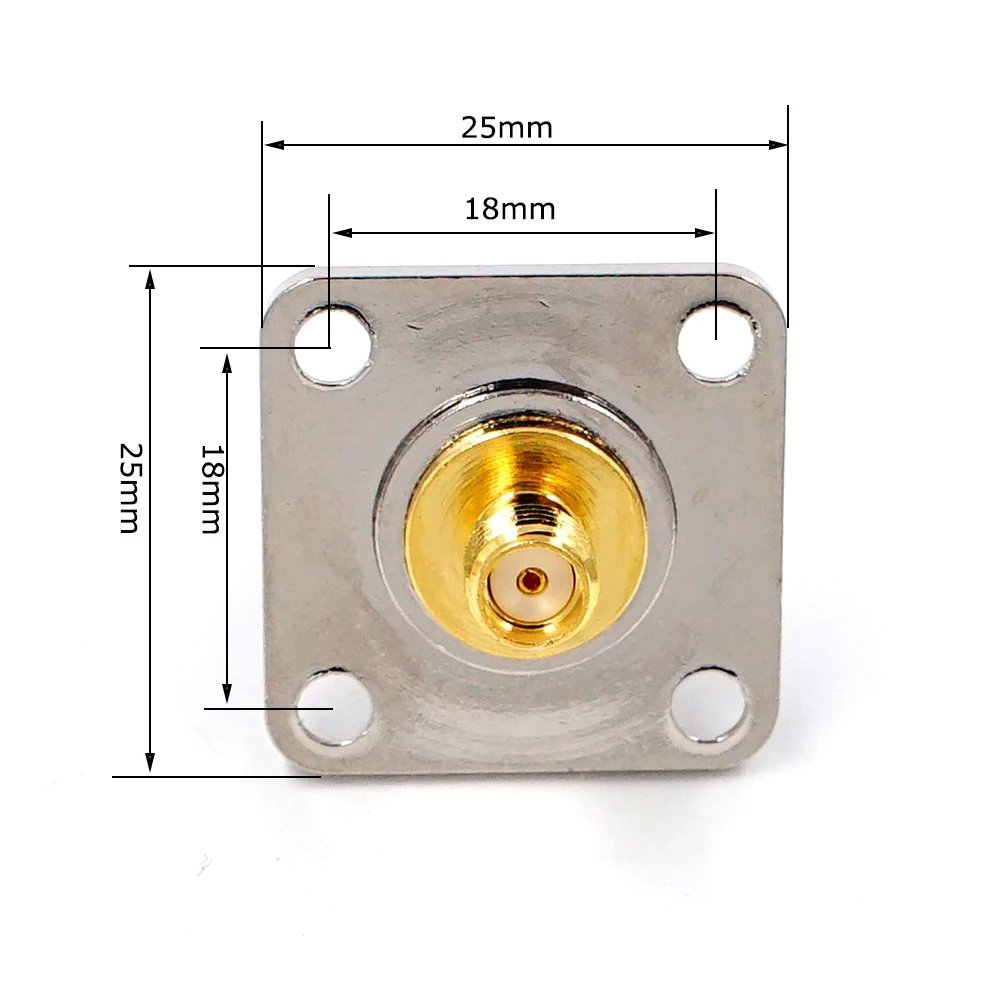

  • Dimensions: 27mm L x 25mm W (1.05 in x 0.98 in)
  • RoHs (2002/95/EC): Compliant by exemption

    Package Includes:

    1X (1 Piece) SO-239 UHF Female to SMA Female Flange Mount Bulkhead Connector
