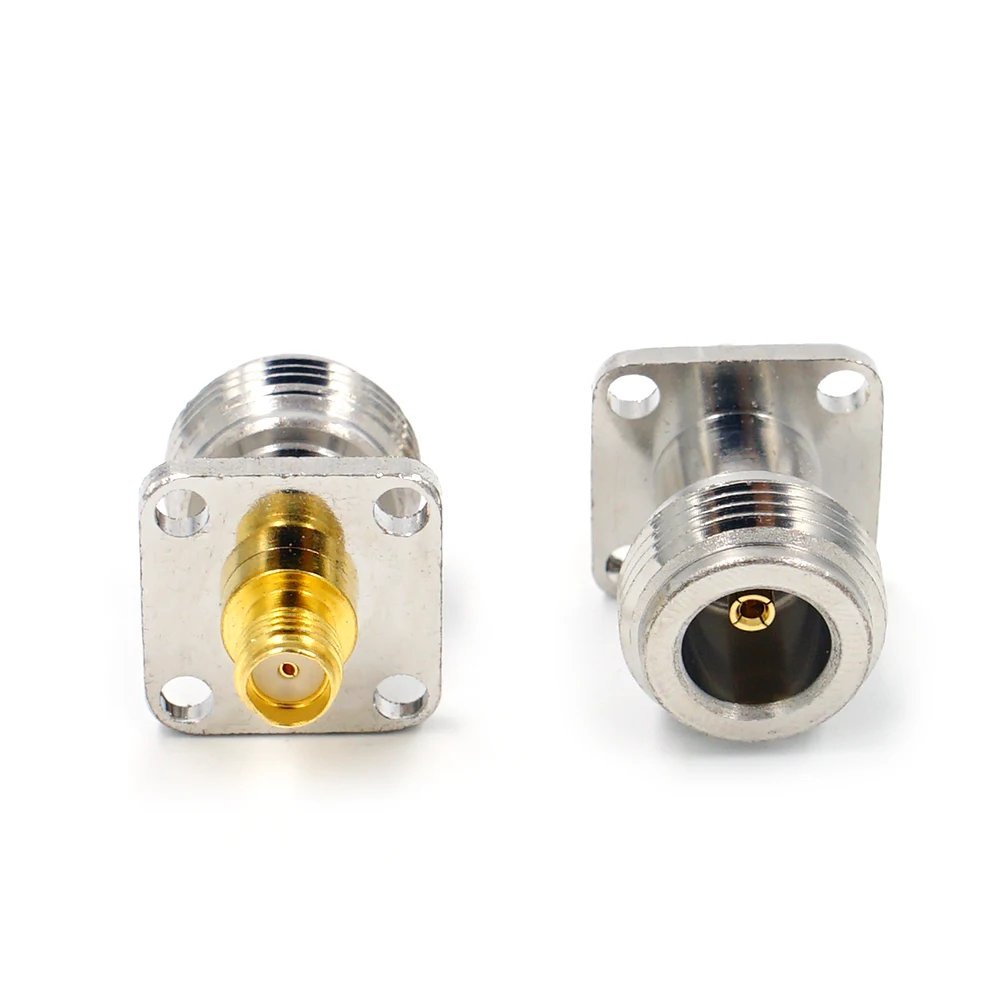

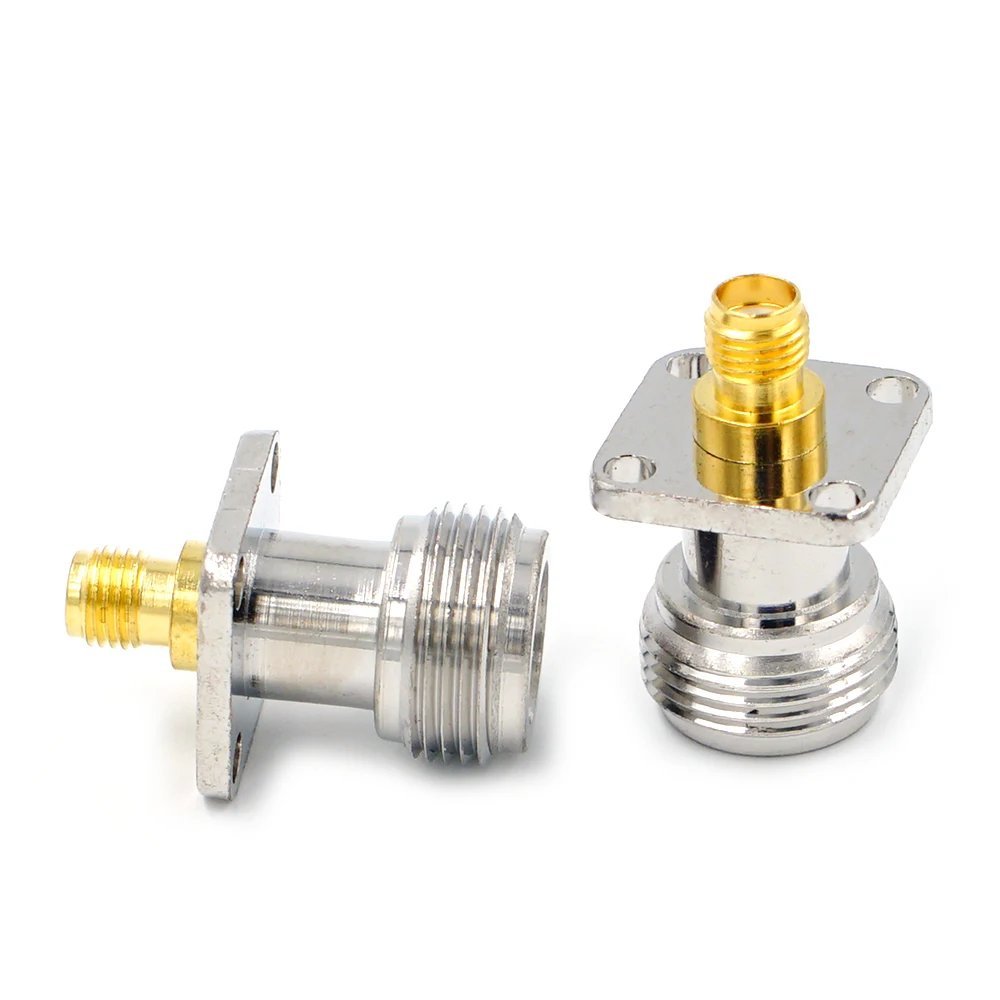

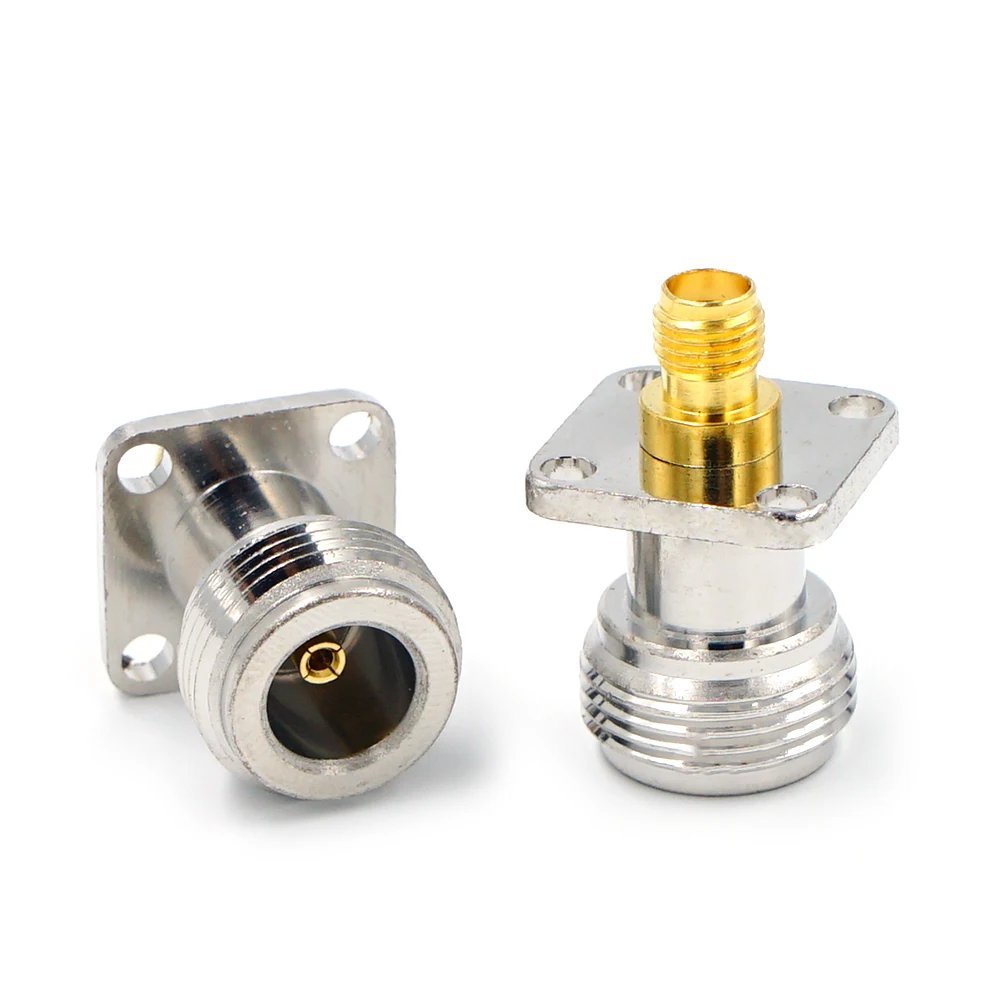

Type N Female to SMA Female 4-Hole Flange Mount Bulkhead Connector | 50 Ohm Panel Mount Adapter

Upgrade your RF system with this professional-grade Type N Female to SMA Female bulkhead adapter – engineered for reliable signal transmission in demanding environments. This 4-hole flange mount panel connector provides secure installation and superior performance across DC to 11 GHz frequencies.

🔧 Key Features & Benefits

✅ Dual Connector Compatibility – Type N Female Jack to SMA Female Jack configuration for versatile system integration
✅ Wide Frequency Range – DC to 11 GHz coverage supports modern wireless, microwave, and digital communication systems
✅ Premium Construction – Nickel-plated brass (copper alloy) body ensures excellent conductivity and corrosion resistance
✅ PTFE Insulation – Low-loss dielectric material maintains signal integrity across the entire frequency spectrum
✅ Industrial Durability – Rated for 1000+ mating cycles with extended temperature range (-40°C to +85°C)
✅ 50 Ohm Impedance – Industry-standard impedance matching minimizes signal reflection and loss
✅ Secure Panel Mount – 4-hole flange design provides stable, vibration-resistant installation

📡 Perfect For Multiple Applications

This versatile RF bulkhead connector is ideal for:

• Amateur Radio (Ham Radio) – HF, VHF, UHF band equipment connections
• Commercial Radio Systems – CB radio, GMRS, FRS, and business band installations
• Wireless Networks – Wi-Fi routers, access points, wireless LAN equipment
• Broadcast Equipment – Radio and television transmission systems
• Telecommunications – Cellular, microwave, and digital communication infrastructure
• Antenna Systems – Base station antennas, repeaters, and antenna distribution
• CCTV & Security – Video surveillance system RF connections
• Test & Measurement – RF test equipment, spectrum analyzers, signal generators
• Coaxial Cable Assemblies – LMR, RG-series cable terminations

📋 Technical Specifications

• Connector 1: Type N Female Jack (Panel Side)
• Connector 2: SMA Female Jack
• Body material: Nickel-plated Brass (Copper Alloy)
• Insulator: PTFE
• Impedance: 50 Ohm

• Frequency Range: DC – 11 GHz
• Durability (mating): ≥1000 cycles

• Temperature range: -40～+85°C

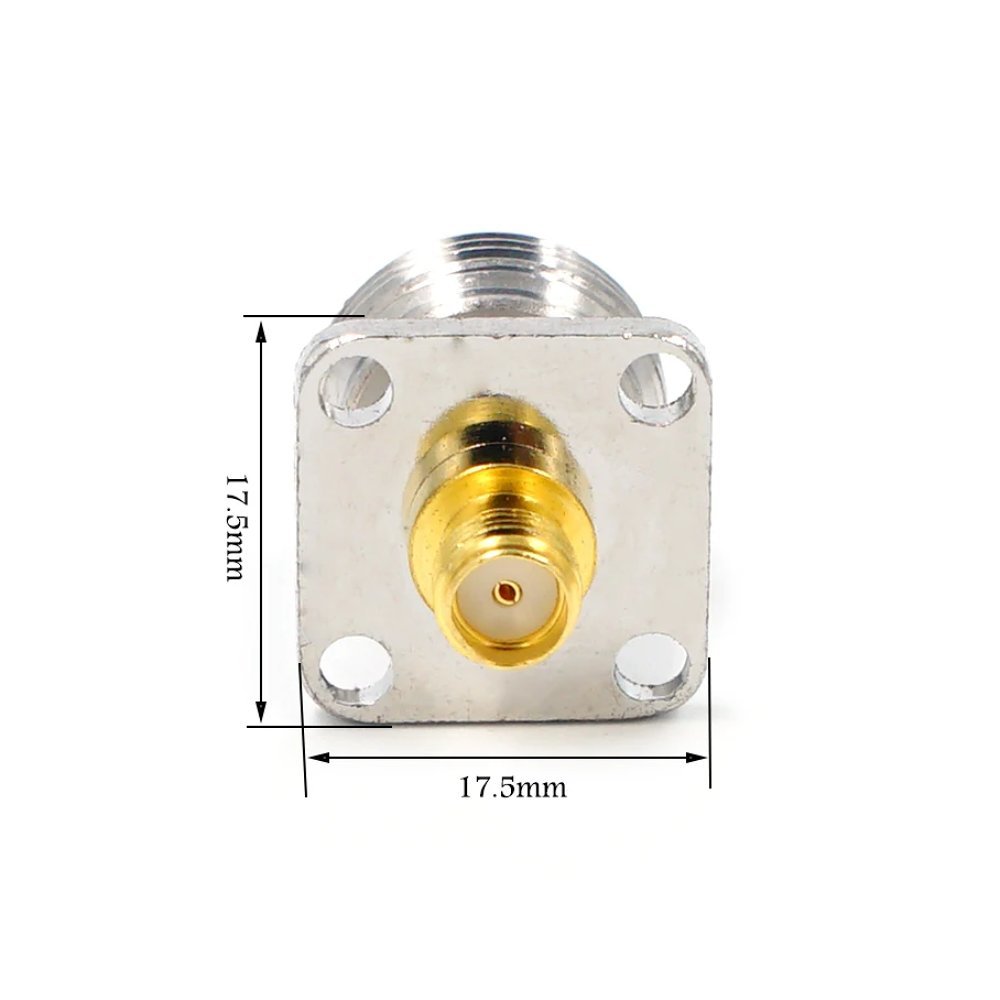

• Dimensions: 28mm L x 17.5mm W (1.1 in x 0.69 in)
• RoHs (2002/95/EC): Compliant by exemption

🛠️ Installation & Compatibility

This panel mount RF adapter features a 4-hole flange for secure bulkhead installation through equipment panels, enclosures, or mounting plates. The compact footprint (28mm × 17.5mm) fits standard panel cutouts while providing robust mechanical stability.

Compatible with

• Type N male connectors (Connector 1 side)
• SMA male connectors (Connector 2 side)
• Standard coaxial cables: LMR-195, LMR-240, LMR-400, RG-58, RG-8, RG-213
• Professional and amateur radio equipment

📦 Package Contents

1X (1 Piece) Type N Female to SMA Female Flange Mount Bulkhead Connector
