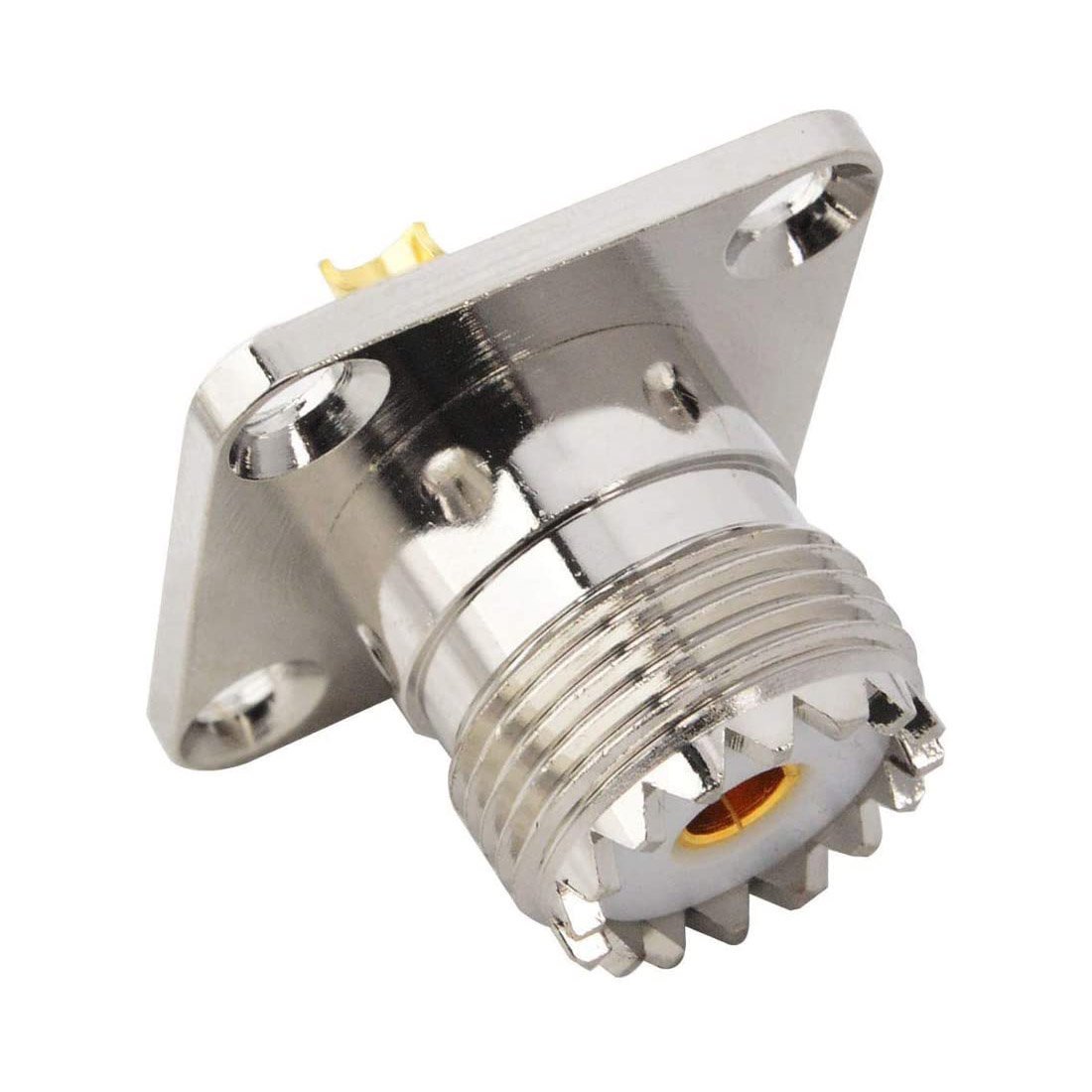

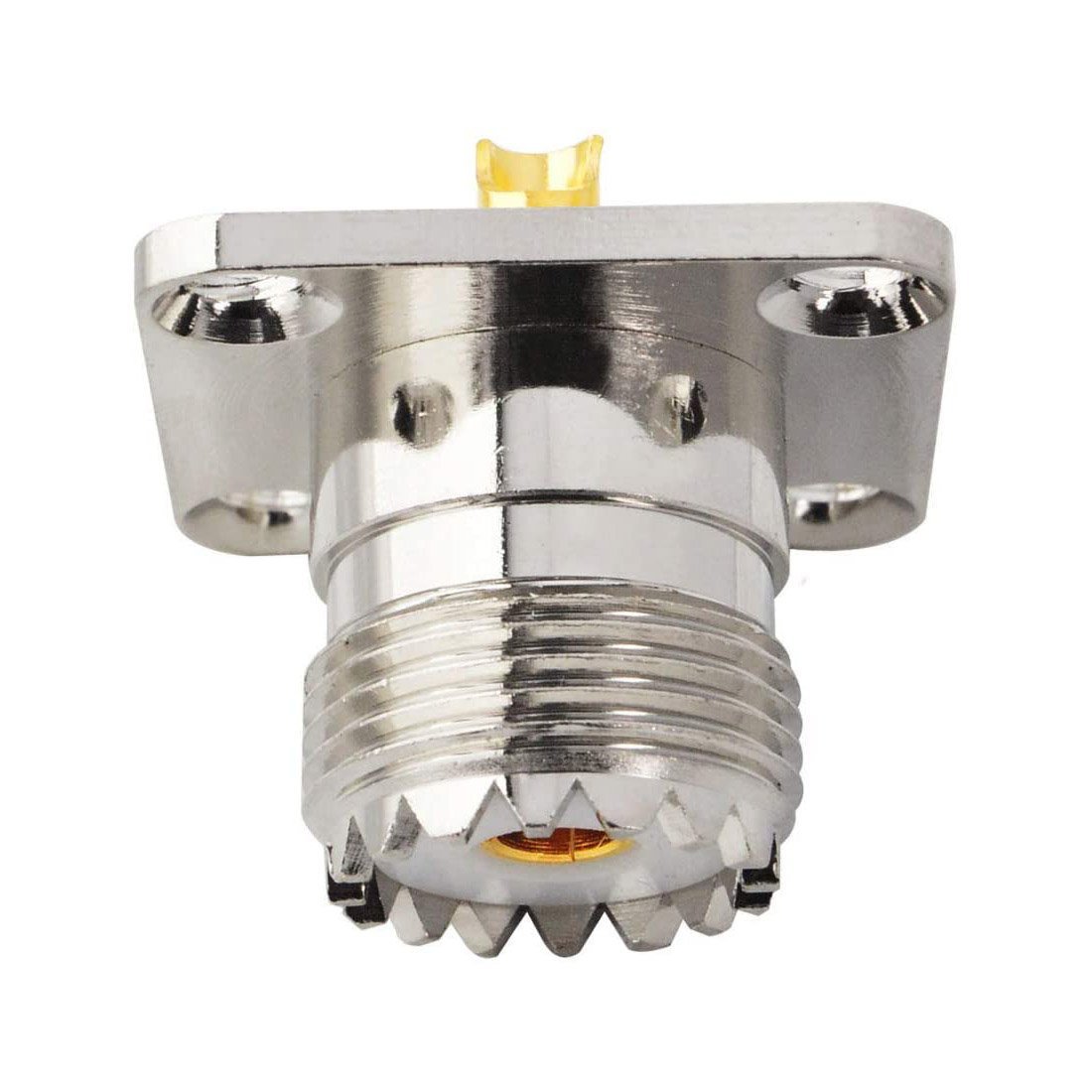

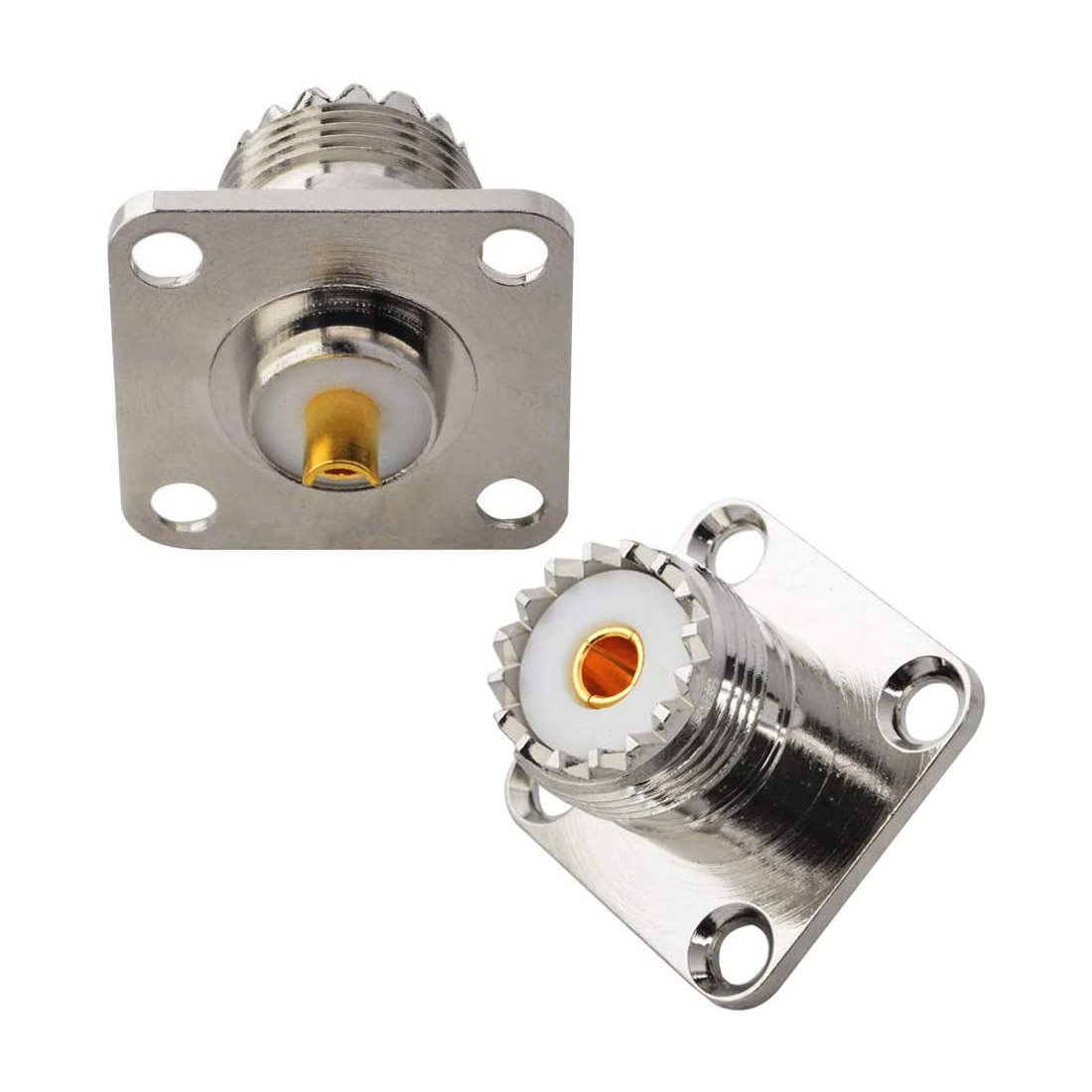

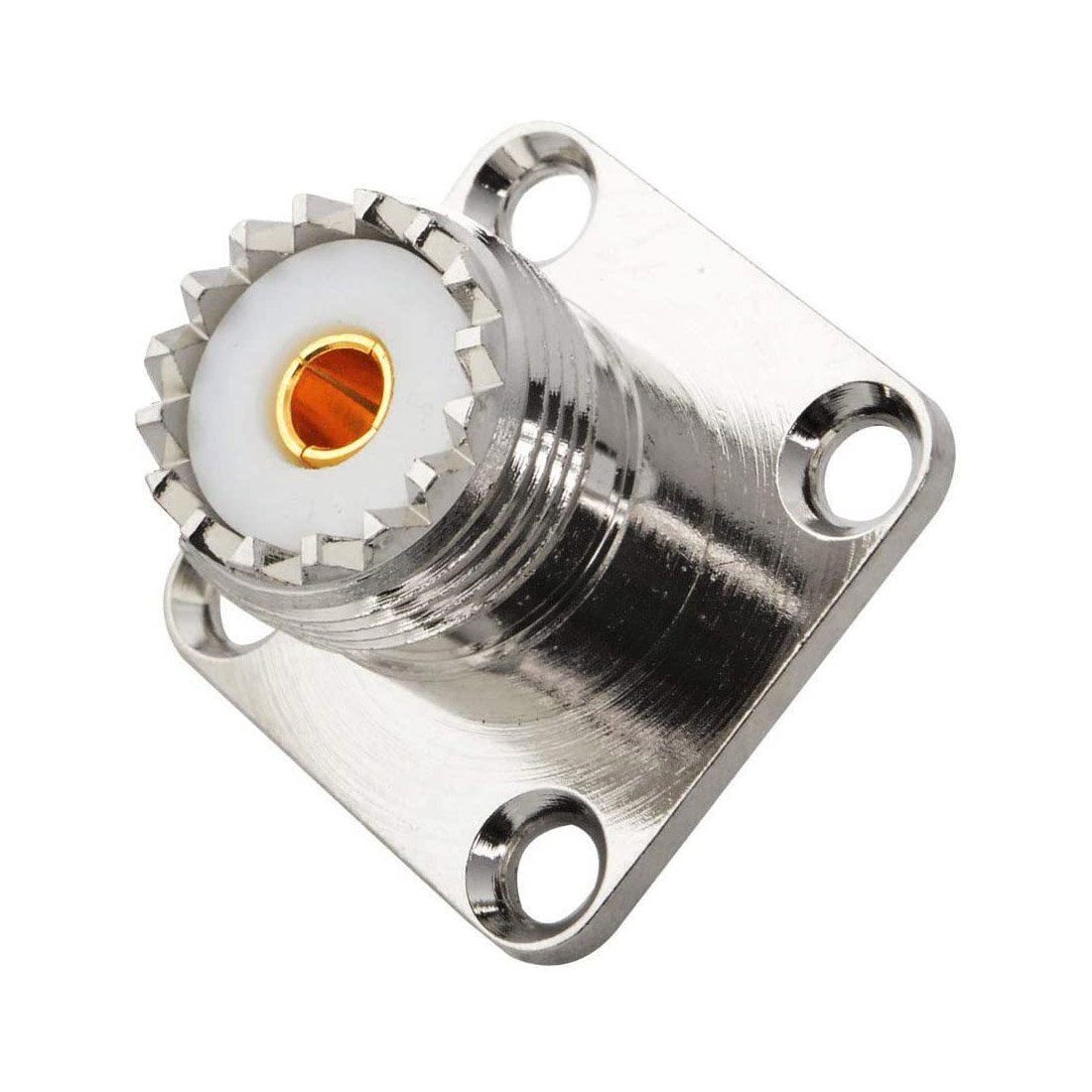

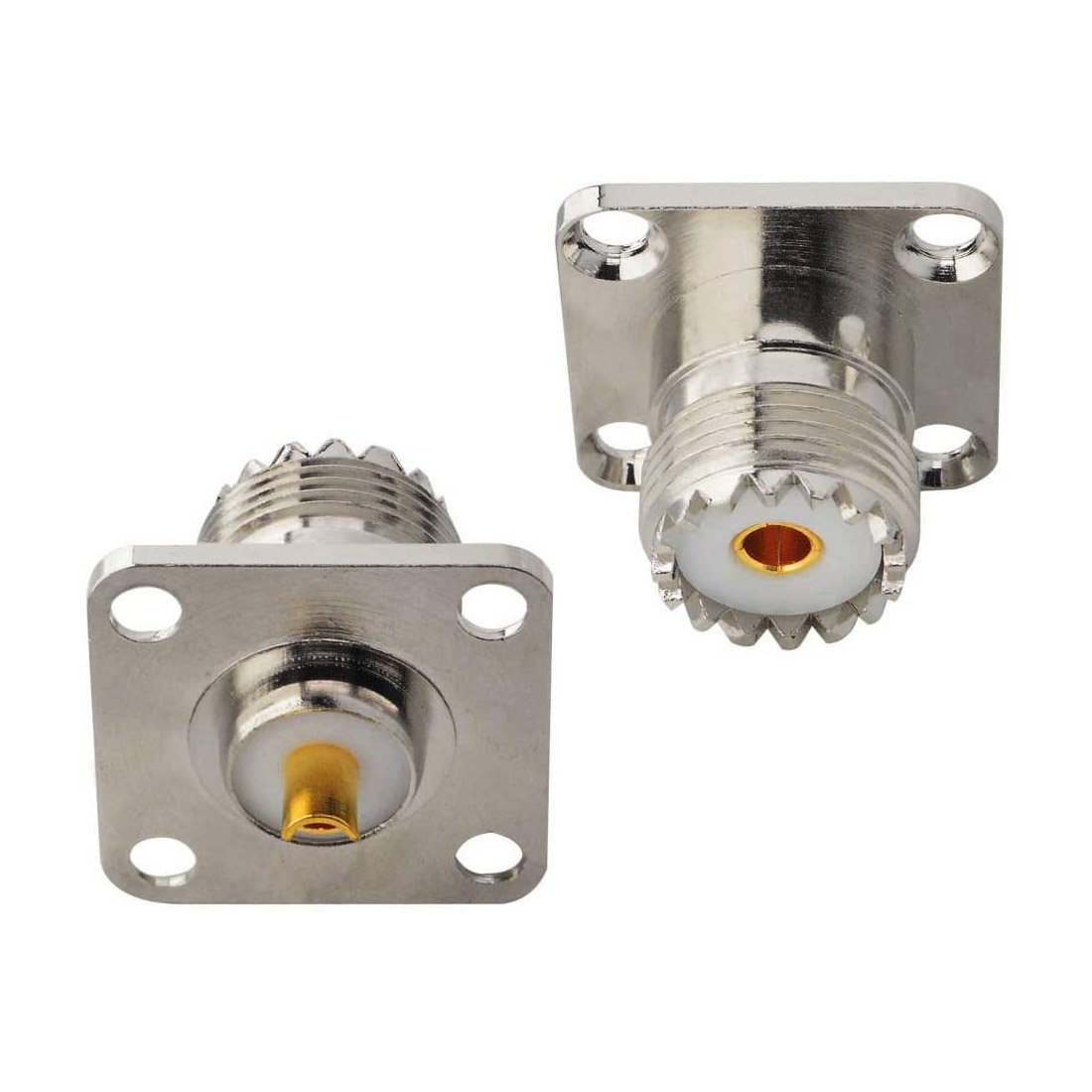

Flange Mount UHF SO-239 Female Jack RF Panel Connector 4 Hole Solder Cup

  • Sale
  • Regular price $2.29


This flange mount SO-239 UHF female jack bulkhead connector is ideal for connecting to jumpers or cables for CB or HAM radio setups.

High quality, brass housing, nickel-plated.

SO-239 Female Jack Flange-Mount Bulkhead Connector Specifications:

  • Body material: Brass, nickel-plated
  • Insulator: PTFE
  • Inner Conductor: Phosphor Bronze
  • Impedance: 50 Ohm
  • Frequency Range: DC – 6GHz
  • Working Voltage: 750V RMS, 50Hz @ sea level
  • Break-down Voltage: >2000V RMS, 50Hz @ sea level
  • Contact resistance: ≤5 MilliOhm inner contact
  • Durability (mating): ≥500 cycles
  • Temperature range: -40~+85°C

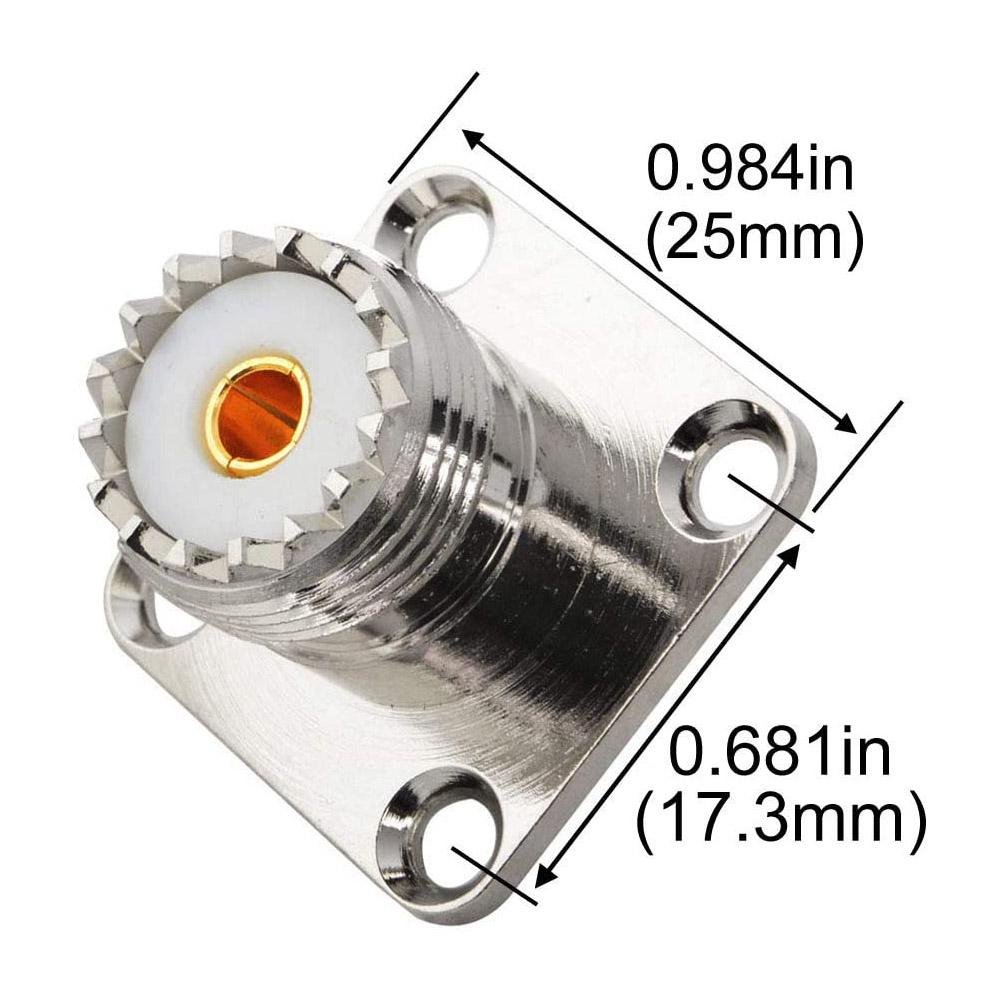

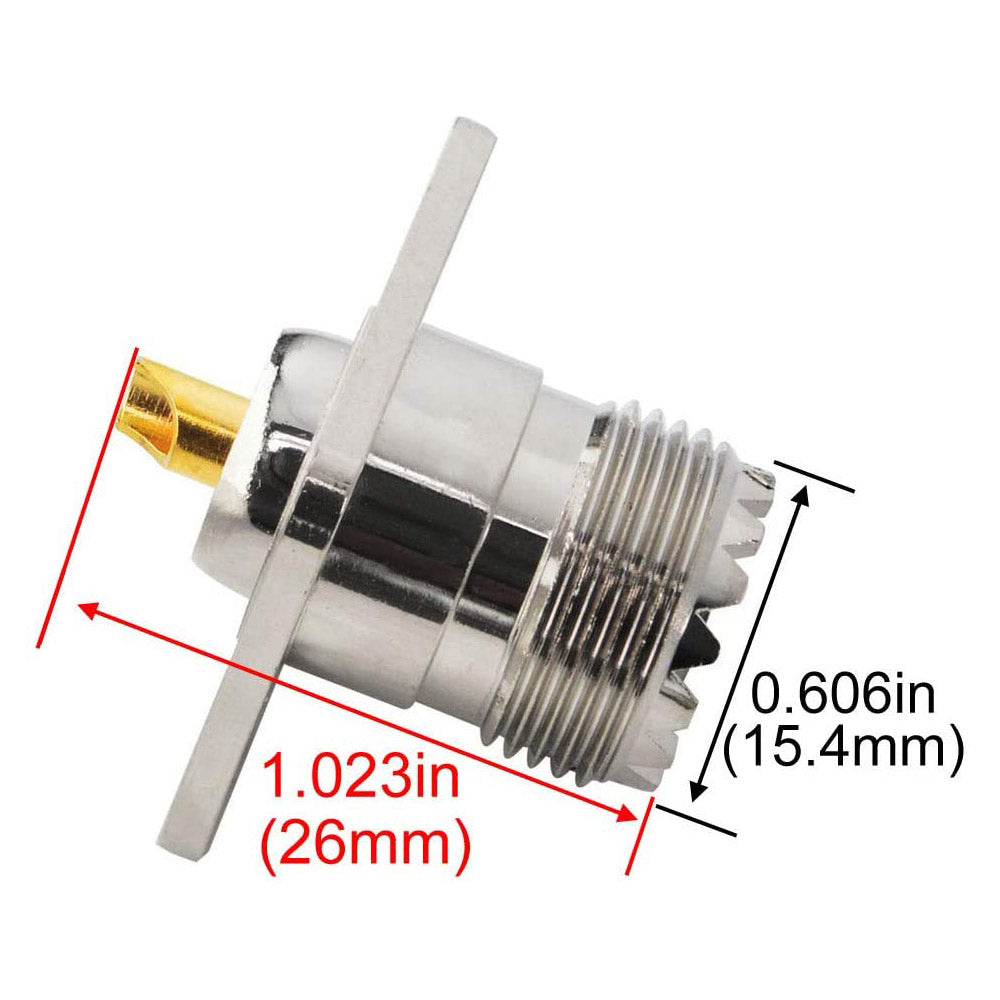

  • Dimensions: 26mm L x 25mm W (1.02 in x 0.98 in)
  • RoHs (2002/95/EC): Compliant by exemption

    Packages Includes:

    1X (1 Piece) SO-239 UHF Flange Mount Female Jack Bulkhead Connector
