The SystemBase uGate-400S is a 4-port industrial USB hub that supports 5Gbps Super-Speed. USB Super-Speed is known as USB 3.2 Gen 1×1 or USB 3.1 Gen 1 or USB 3.0 and provides high-speed data communication with up to 5 Gbps of bandwidth.
The high-performance uGate-400S is a highly reliable USB Hub that supports USB 3.2 Gen 1×1 with an industrial temperature spec -40℃ to 85℃, excellent protection against external surges, and up to 48VDC power input widely used in industrial sites. It is also Battery Charge Specification v1.2 compatible, supporting a variety of charging modes, and the power supply capability of up to 5V/2A per port allows any USB device to be used without trouble.
Multi-transaction translator (MTT) can be supported instead of single transaction translator (STT) supported by low-cost USB Hubs to take advantage of the best USB performance. The uGate-400S provides excellent compatibility with existing USBs and generally provides excellent compatibility with any USB device in the popular USB 2.0 or lower standard.
Features
- Industrial USB 3.2 Gen 1×1, 4-Port USB Hub
- Communication speed: Up to 5Gbps (Super Speed)
- Supports Industrial Grade Temperature: -40 ~ 85°C
- ESD Protection: ±15 KV
- IEC 61000-4-3(EFT) port protection
- IEC 61000-4-4(Surge): 350W port protection
- Offers up to 5V/2A power supply per port
- Overvoltage, Overcurrent Protection
- Supports USB (Battery Charging Specification) BC v1.2
- Maximum performance with MTT support
- Supports USB 1.1, 2.0 backward compatibility
Excellent reliability
The uGate-400S, an industrial USB Hub, provides excellent protection against noise and Surge generated in industrial sites. It complies 61000-4.2, 61000-4.3, 61000-4.4 of KC and IEC specifications and protects up to 15kV ESD Level 4 classes per port. In addition, the uGate-400S, developed through parts that provide high reliability based on technology of SystemBase, provides excellent reliability that cannot be compared to existing low-cost USB Hubs.
Support for industrial temperature, humidity, and a wide range of power options
The uGate-400S from SystemBase provides stable operation under operating conditions of industrial temperature specification -40°C to 85°C and humidity of 5 to 90%, and can be used according to the user environment through power specifications and input options available in various industrial sites.
Provides BC v1.2 and up to 2A power
The uGate-400S supports various charging modes of the battery charging specification v1.2 and provides up to 5V/2A power supply per port for USB devices to be used without power issues. You can also use this power supply if the upstream port cable is disconnected.
Maximum performance and a wide range of power options with MTT support
The Systembase uGate-400S supports Multi-Transaction Translator (MTT) rather than low-spec Hubs that support STT used in low-cost USB Hubs, providing the best performance under the user experience. It is also a multi-functional, high-performance device that provides excellent compatibility with any existing USB 2.0 or lower standard USB device.

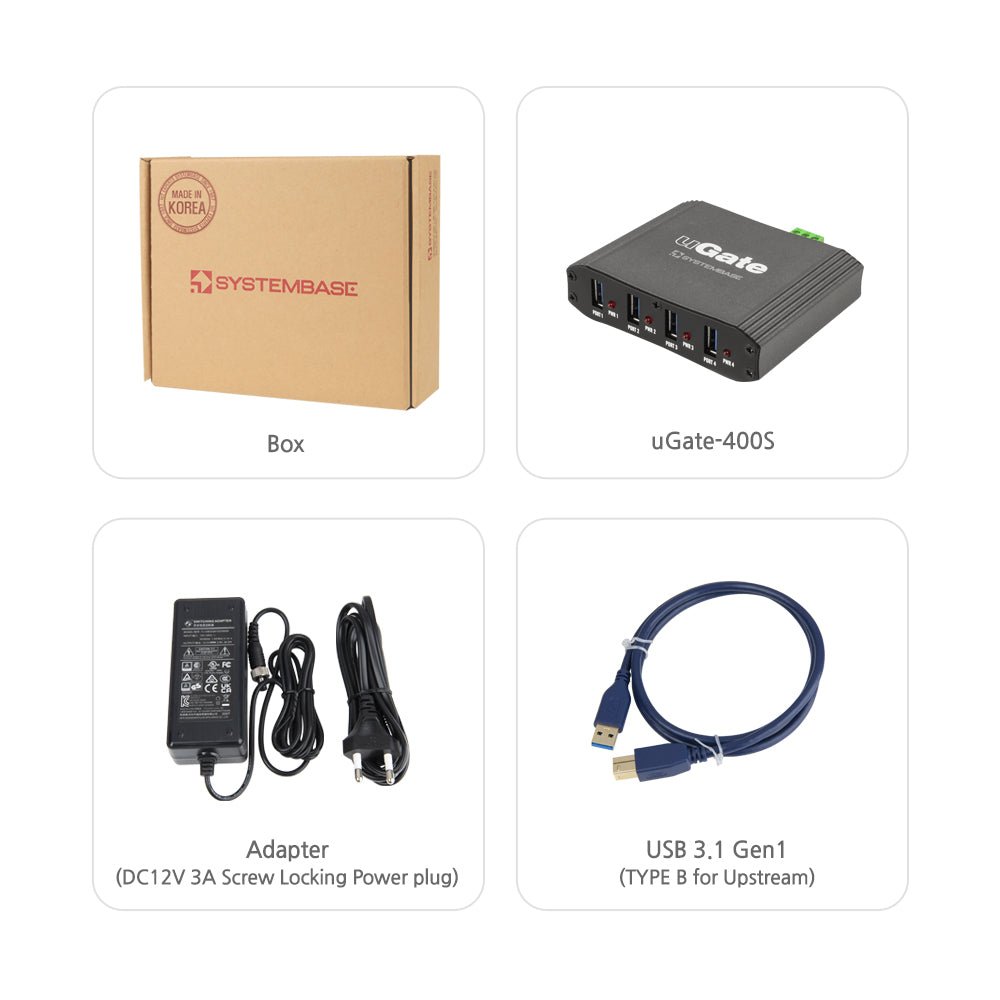

Package Includes:
1X uGate-400S USB Hub, USB Cable, and 12V DC Power Supply
Download Guide, Warranty Policy
Delivery is stock to 2 weeks.
Additional Resources:
uGate-400S Industrial USB Hub Manual and Specifications (SystemBase Website)
