Mini Rocker Switch - Black KCD117S SPST ON/OFF, 2-Pin, 125VAC/6A, Miniature 15mm × 10mm (½" × ⅜") - 2/5/10 Pack

Need a reliable ON/OFF switch that fits in tight spaces? The KCD117S Miniature Rocker Switch packs full-size electrical performance — 6A at 125VAC / 3A at 250VAC — into a compact snap-in package that's barely half an inch long. Its SPST (Single Pole, Single Throw) 2-pin design makes wiring simple: two terminals, one circuit, on or off.

The snap-in mounting design presses directly into a rectangular panel cutout (13.5mm × 9mm) with no screws or hardware needed — just cut the hole, push the switch in, and the retention clips hold it securely in place.

⚡ Key Features

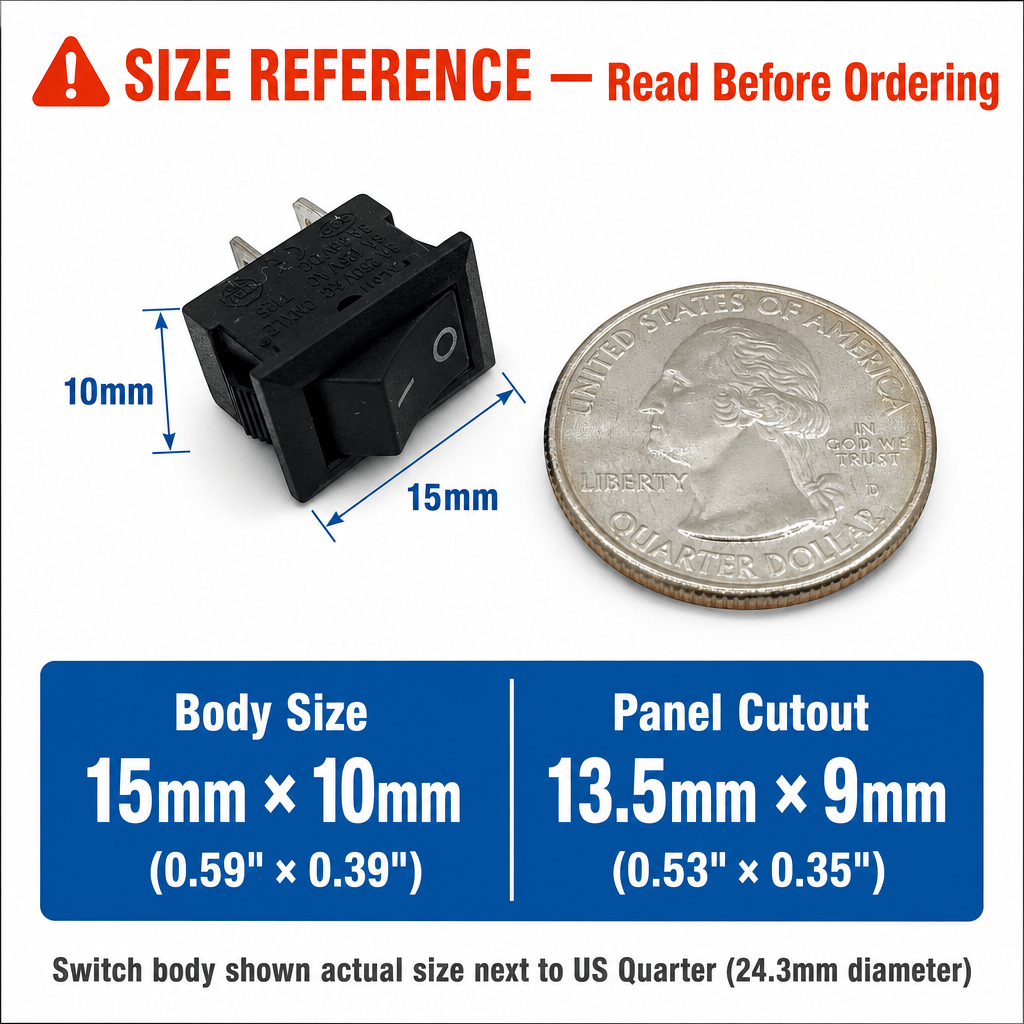

• Miniature form factor: Just 15mm × 10mm face (½" × ⅜") — fits where standard rocker switches can't.
• Full-size electrical rating: 125VAC / 6A and 250VAC / 3A — handles real loads despite its small size.
• Simple SPST operation: 2-pin ON/OFF — one circuit, no complicated wiring.
• Latching On/Off Action: Stays in position once switched — no need to hold it down (not a momentary/pushbutton switch)
• Snap-in panel mount: Press-fit into a 13.5mm × 9mm rectangular cutout. No screws or mounting hardware required.
• Tactile rocker action: Positive click feel confirms switching state.
• Multi-pack value: Available in 2-pack, 5-pack, and 10-pack quantities.

📐 Specifications

• Switch type: SPST (Single Pole, Single Throw) — ON/OFF
• Switching action: Latching (maintains ON or OFF position)
• Terminals: 2-pin solder lug
• Electrical rating: 125VAC / 6A — 250VAC / 3A
• Overall dimensions: 14.8 × 10.3 × 16.5mm (0.58" × 0.40" × 0.65") L × W × H
• Panel cutout: 13.5 × 9mm (0.53" × 0.35")
• Model: KCD117S
• Color: Black
• Material: Plastic body, metal contacts
• Mounting: Snap-in (press-fit retention clips)

🎯 Perfect For

• Small electronics enclosures and project boxes
• Arduino, ESP32, and Raspberry Pi project housings
• LED strip and lighting control panels
• Automotive and marine accessory switches
• DIY battery packs and portable power devices
• RC vehicles and hobby electronics
• Control panels and instrument enclosures
• Any application where space is limited and a standard rocker switch is too large

📦 Package Contents

• 2, 5, or 10 × KCD117S Black Mini Rocker Switch (select quantity above)
