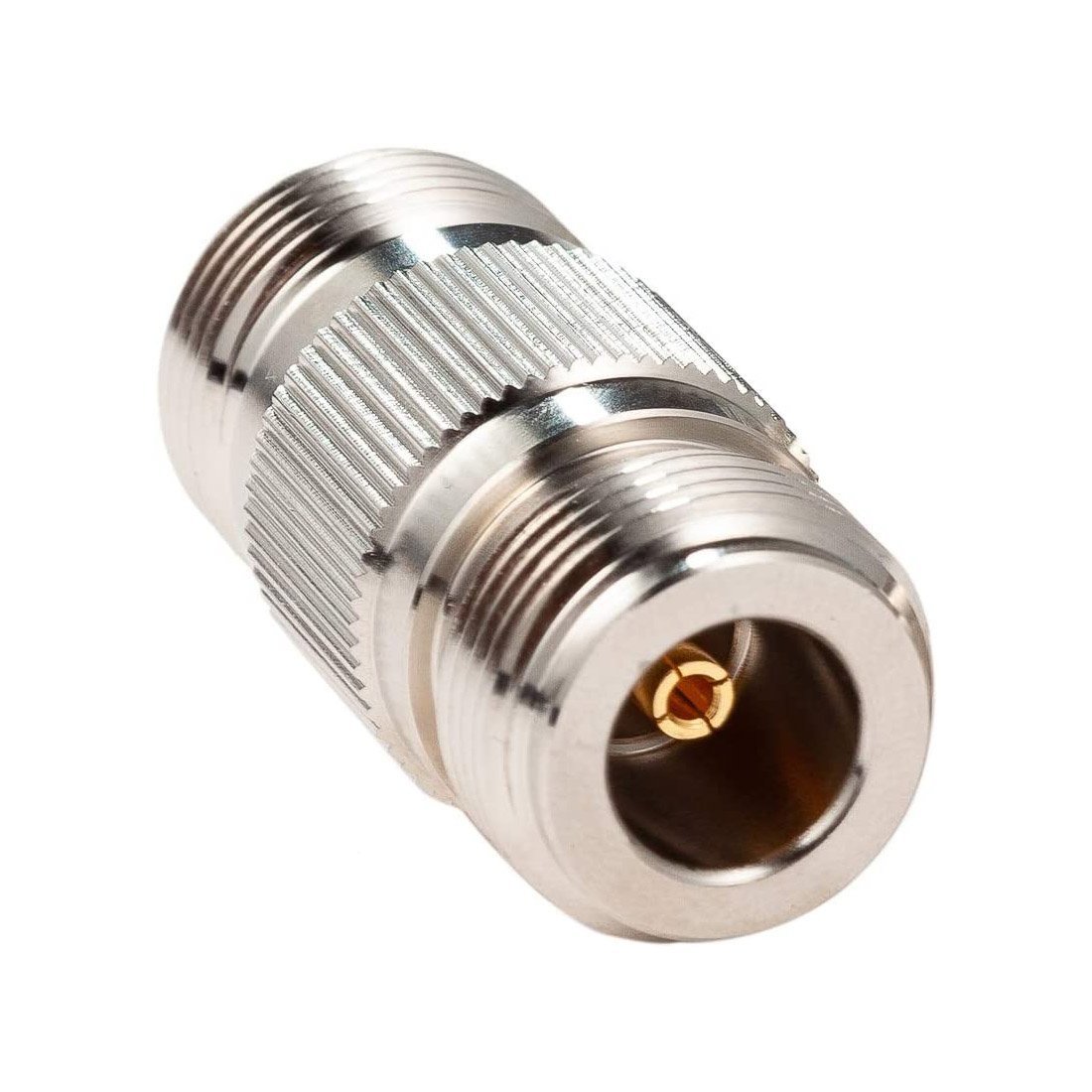

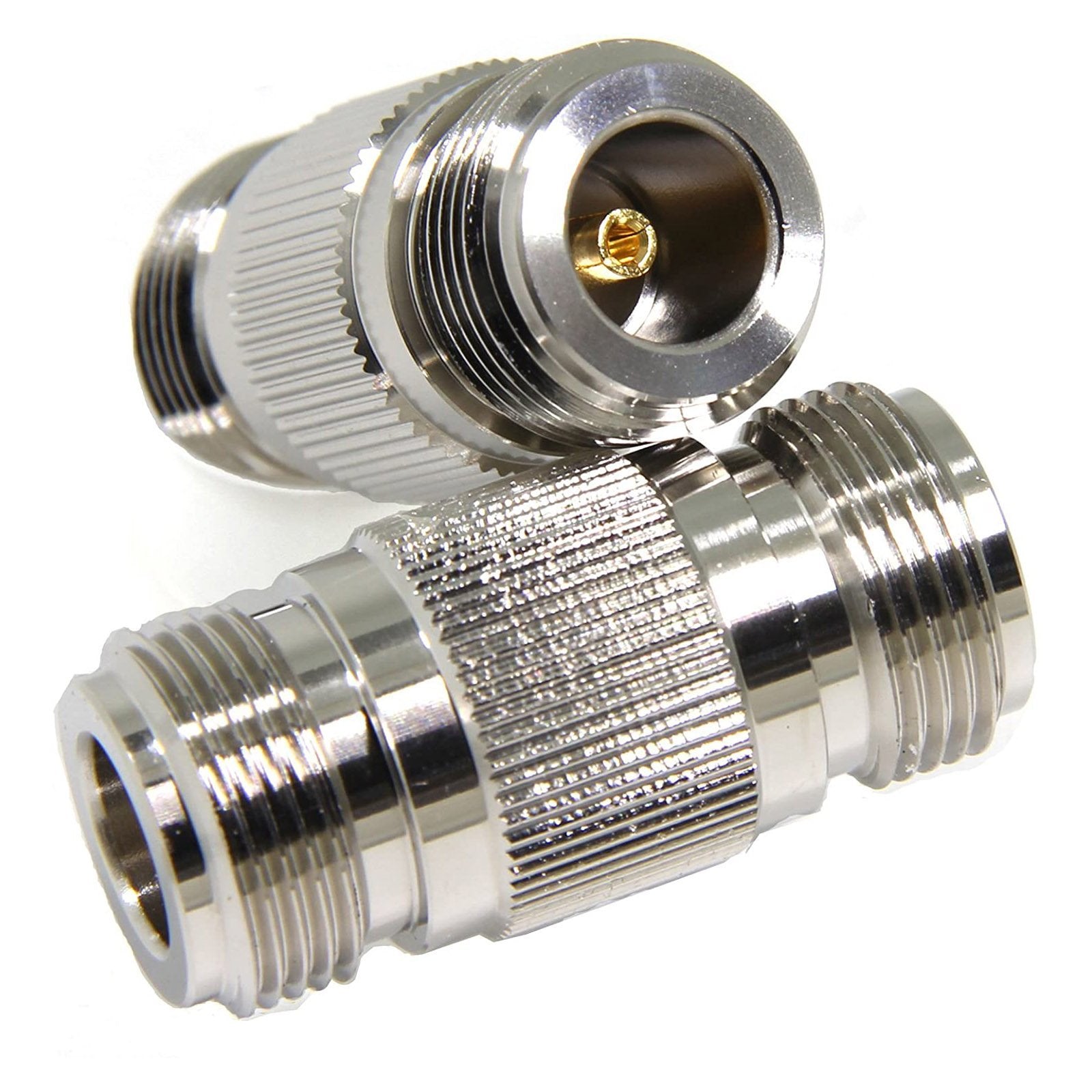

N-Type Female Jack to N Female Jack RF Adapter Barrel Connector

  • Sale
  • Regular price $3.49


This female N-Type jack to N-Type jack adapter is ideal for joining jumpers or cables in CB or HAM radio setups.

It is used for connecting two N-Type male plug connectors.

High quality, brass copper metal housing, nickel-plated.

N-Type Female Jack Adapter Specifications:

  • VSWR: ≤ 1.1 typical @ DC - 3000MHz
  • Impedance: 50 Ohm
  • Body Material: Brass
  • Body Plating: Nickel
  • Insulator: PTFE
  • Inner Conductor: Copper, gold-plated
  • Dimensions: 34mm L x 17mm Diameter (1.33 in x 0.67 in)
  • Weight: 31 grams (1.1 ounces)
  • Operating Temperature: -40 to +85C
  • RoHs (2002/95/EC): Compliant by exemption

Packages Includes:

1x (1 Piece) N-Type Female Jack to N-Type Female Jack RF Coaxial Adapter
