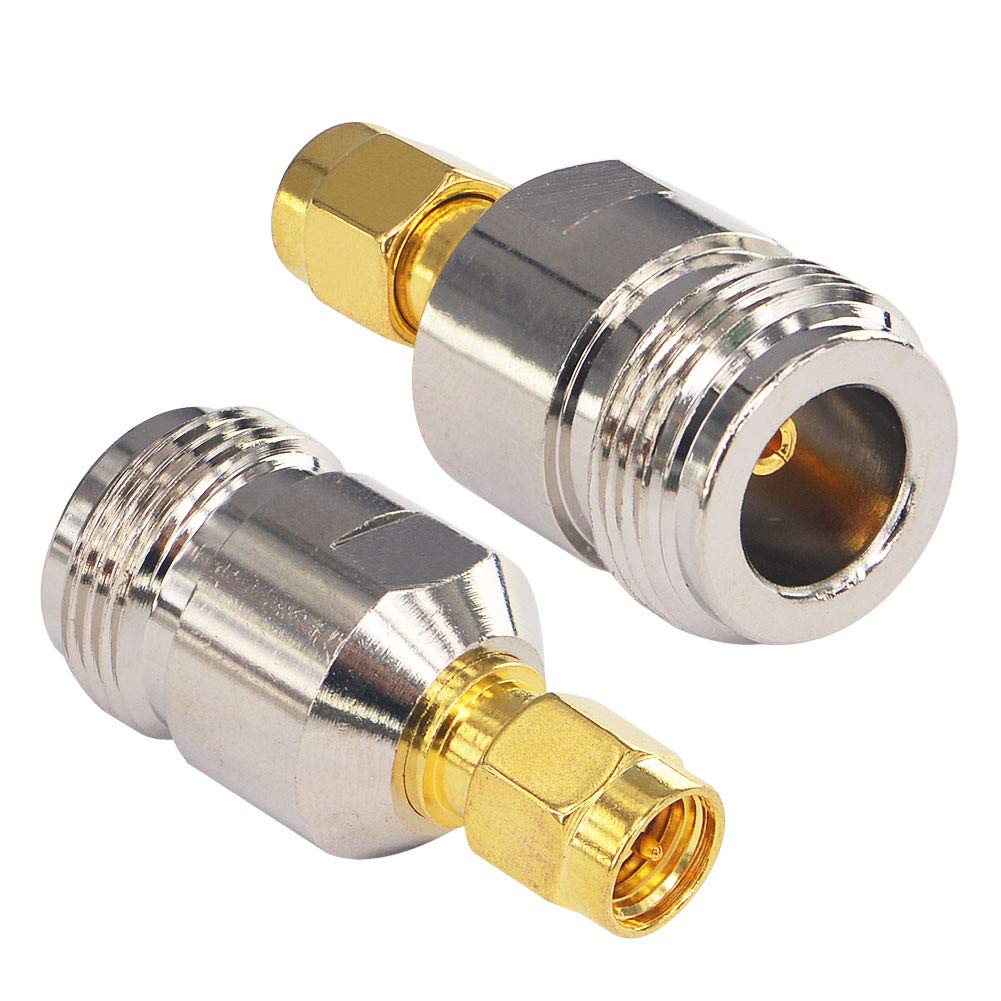

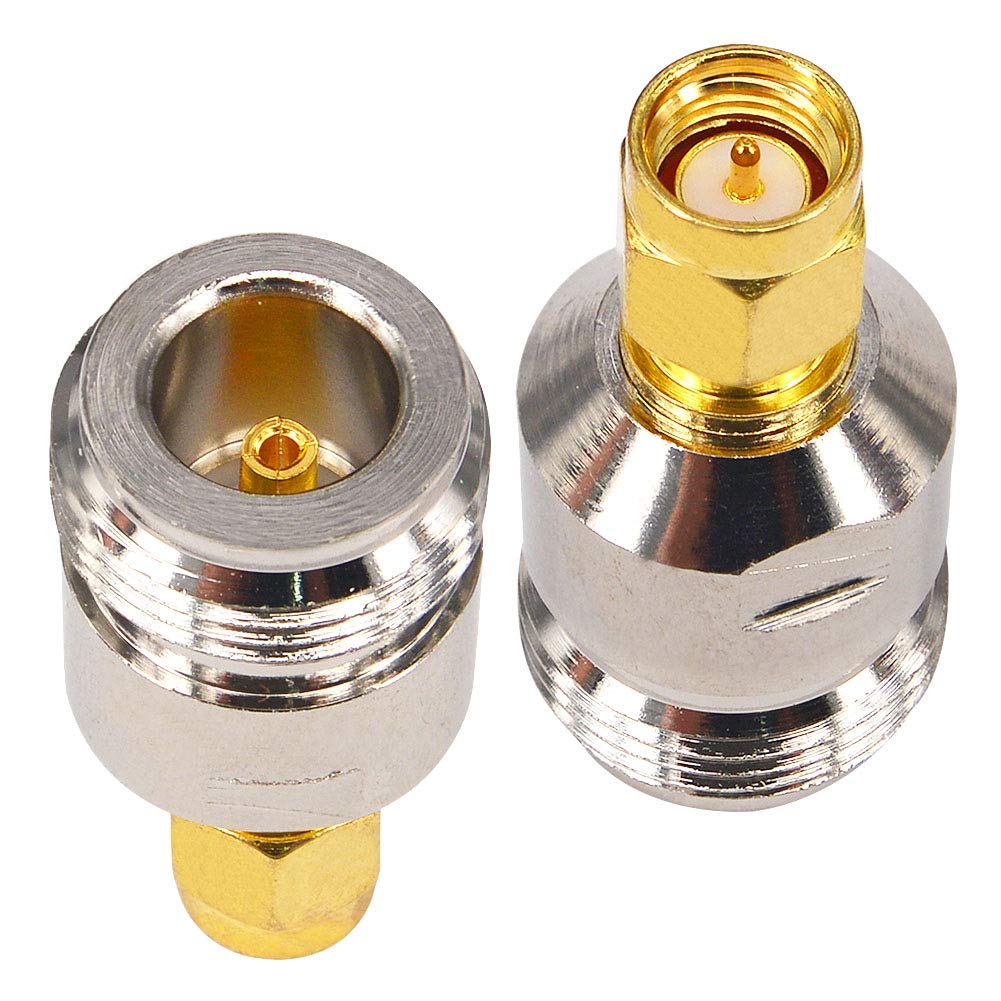

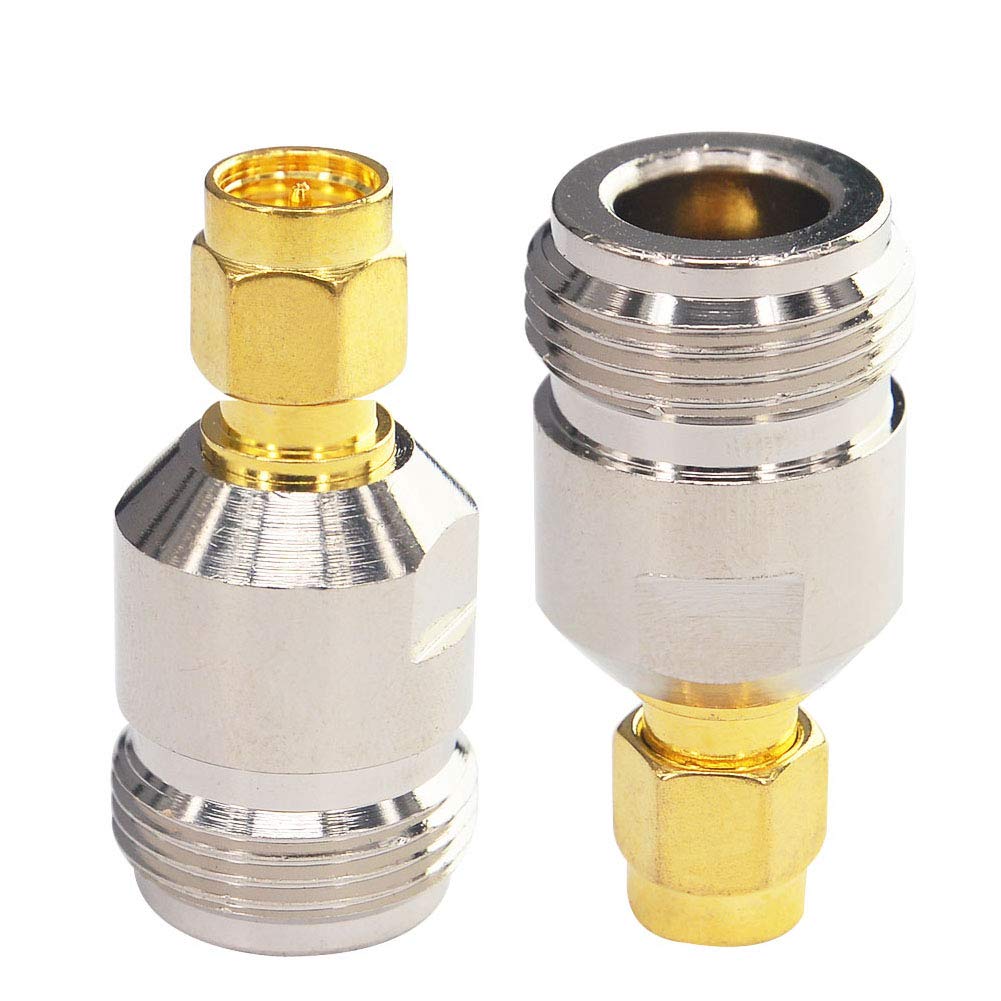

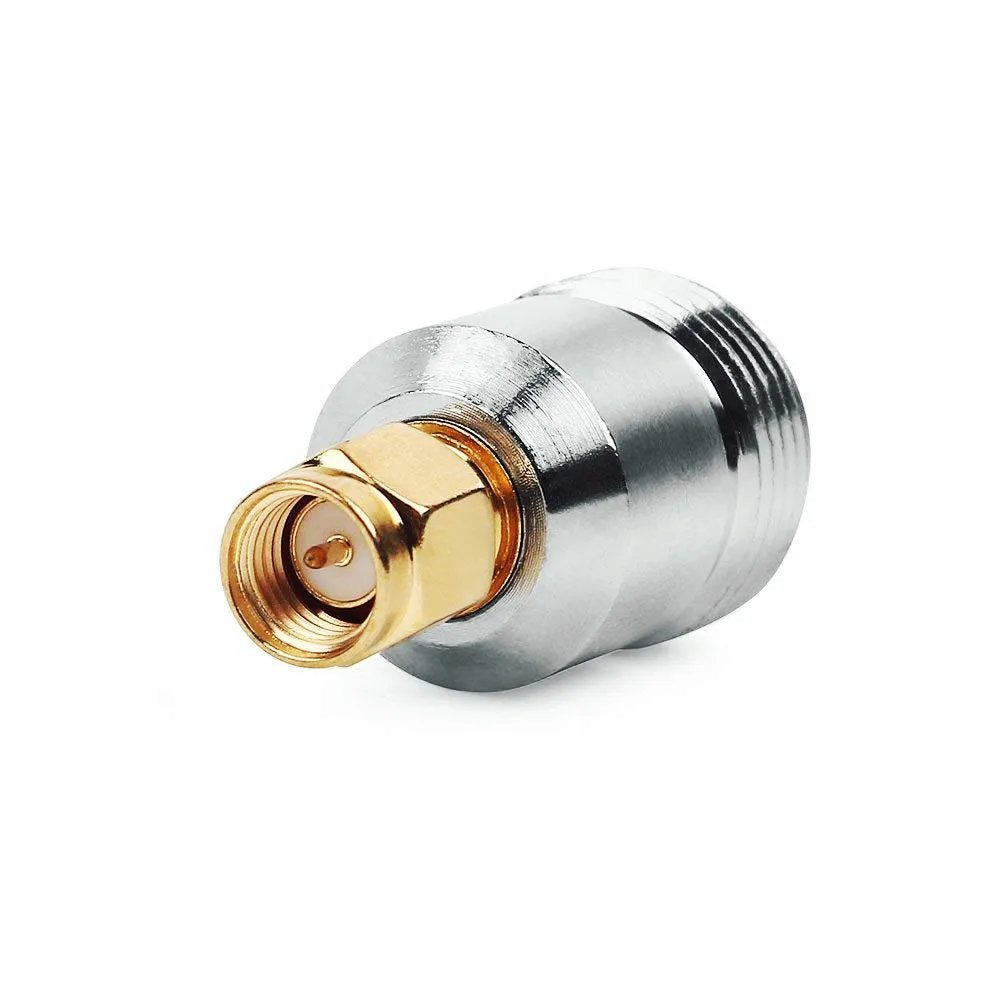

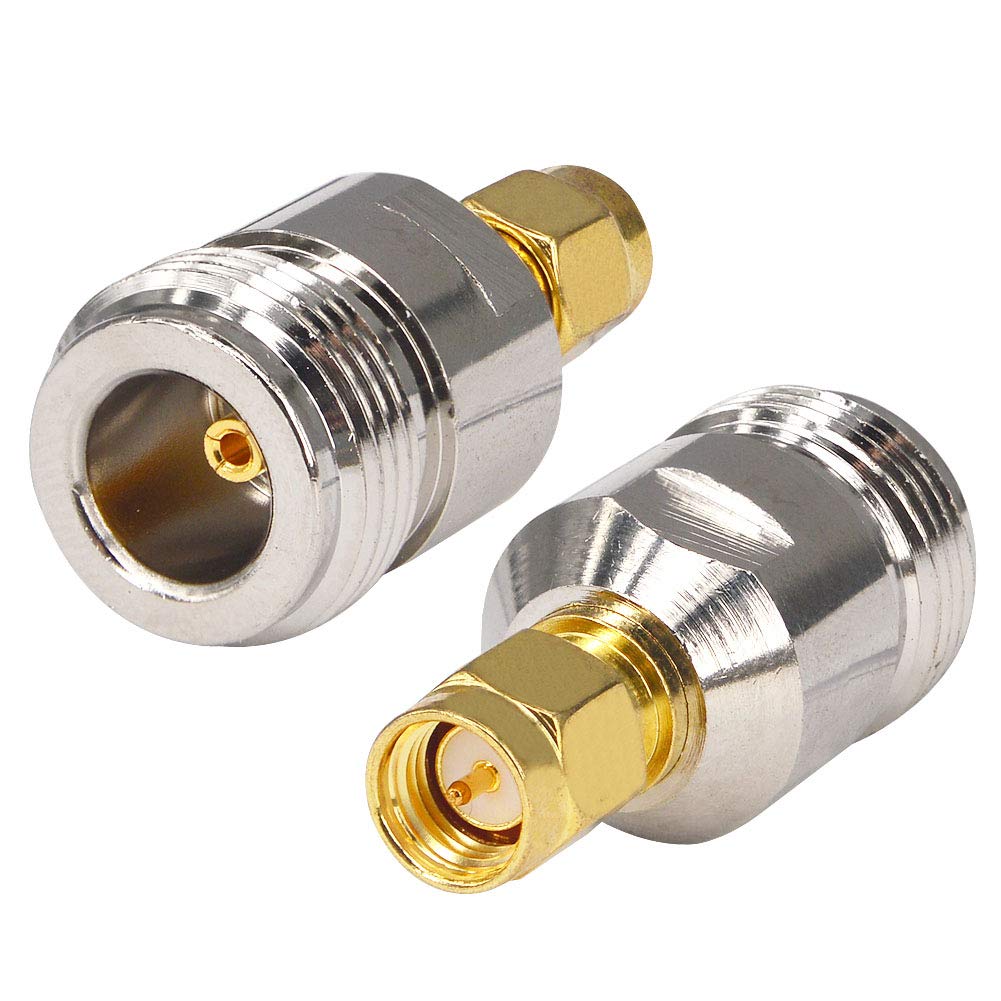

N-Type Female RF Jack to SMA Male Jack RF Adapter Barrel Connector

  • Sale
  • Regular price $6.59


This SMA male plug to RF Type N female jack adapter is used for connecting a Type N male RF plug to an SMA Female plug connector.

It is ideal for connecting to jumpers or cables in multiple applications including CB, GMRS, and Amateur (Ham) radio, antennas, broadcast, radios, wi-fi, telecom, coaxial cable, LMR, wireless LAN devices, CCTV, microwave applications, and digital communication systems.

High quality, brass copper metal housing, nickel-plated.

N-Type Female Jack to SMA Male Plug Adapter Specifications:

  • Impedance: 50 Ohm
  • Body Material: Brass
  • Body Plating: Nickel
  • Insulator: POM Plastic
  • Inner Conductor: Copper, gold-plated
  • Dimensions: 33mm L x 17mm Diameter (1.3 in x 0.67 in)
  • Weight: 29 grams (1.0 ounces)
  • Operating Temperature: -40 to +85C
  • RoHs (2002/95/EC): Compliant by exemption

Packages Includes:

1x (1 Piece) N-Type Female Jack to SMA Male Plug RF Coaxial Adapter
