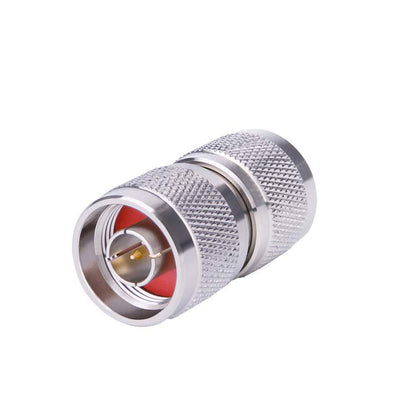

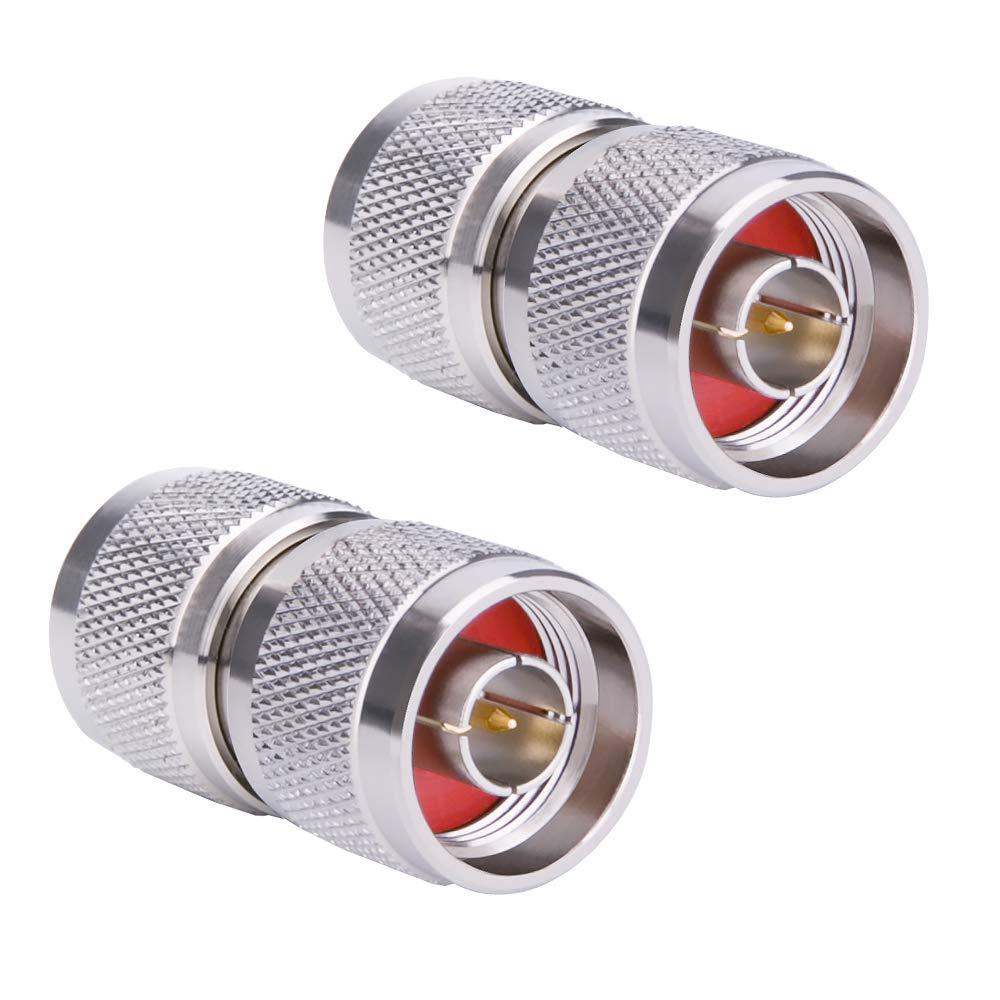

N-Type Male Plug to N Male Plug RF Adapter Barrel Connector

  • Sale
  • Regular price $3.49


Ideal for joining jumpers or cables in CB or HAM radio setups.

Used for connecting two N-Type Female Jack connectors together.

High-quality, brass copper metal housing.

Nickel Plated.

Specifications:

  • VSWR: ≤ 1.02 typical @ DC - 3000MHz, ≤ 1.06 typical @ 6000MHz
  • Impedance: 50 Ohm
  • Body Material: Brass
  • Body Plating: Nickel
  • Insulator: PTFE
  • Inner Conductor: Copper, gold-plated
  • Dimensions: 34mm L x 19.7mm Diameter (1.33 in x 0.78 in)
  • Weight: 20 grams (0.7 ounces)
  • Operating Temperature: -40 to +85C
  • RoHs (2002/95/EC): Compliant by exemption

Package Includes:

1x (1 Piece) N-Type Male Plug to N-Type Male Plug RF Coaxial Adapter
