PHPoC Black Ethernet Wired LAN Programmable IoT Development Board P4S-341

  • Sale
  • Regular price $65.50
  • 4 available


PHPoC Black (P4S-341) is a wired LAN programmable IoT development board embedded with a PHPoC interpreter. It supports various interfaces to connect with sensors and equipment. With PHPoC Black, you can monitor and control your equipment from a remote site via a web browser, a smart phone or with an Amazon Echo. Also, it is designed to be stackable for you to implement additional functions with PHPoC expansion boards.

PHPoC Black Features:

  • PHPoC (PHP on Chip) interpreter embedded
  • Uploading and debugging codes via USB
  • 10Base-T/100Base-TX Ethernet (RJ45)
  • 10 x digital input/output ports
  • 14 x sharing ports (Digital Input/Output, SPI, I2C, UART)
  • 6 x analog input ports
  • HTTP/SSH/Websocket server
  • Web page customization available (accessible with smart devices)

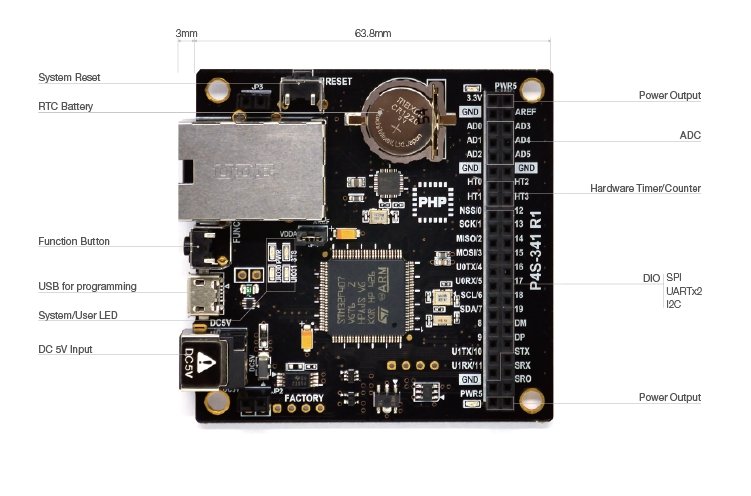

PHPoC Black Programmable IoT Development Board with Annotations

Specifications:

Processor
Core: Cortex-M4 168MHz
Flash: System-512K Bytes, User-512K Bytes
SRAM: 192K Bytes

Power Input
Input Voltage: 5V±10%
Input Port: DC Jack or USB device port
Max Current: DC Jack : 1.5A, USB device port : 500mA

Network Interface
Ethernet: 10 Base-T/100Base-TX Ethernet

USB Interface
USB Host: USB Host interface for expansion board
USB Device: PC interface for programming

DIO
Type: 3.3V CMOS level digital I/O
Ports: 22 Ports Maximum
Mode: Input/Output, push-pull/open-drain, pull-up/pull-down

Communication
UART: 2 ports (RXD, RXD, RTS, CTS) with hardware flow control
SPI: 1 port
I2C: 1 port (100Kbps or 400Kbps)

ADC
Resolution: 12bits
Channels: 6

Hardware Timer/Counter
Mode: PWM output, Pulse output, Toggle output, Capture
Unit: Milliseconds or microseconds
Channels: 4

RTC
Battery: CR1225 Coin Battery (48mAh)
Peripherals: Realtime Clock, 4KB Backup SRAM

LED
System LED: Power, Status, 3.3V, PWR5
User LED: uio0.30, uio0.31

Power Output
3.3V Max Current: 1A
PWR5 + 3.3V Max Current: 1.5A

Dimensions
Dimensions: 63.8mm X 66.5mm X 13mm
Weight: 30g


Package Includes:

1x P4S-341 PHPoC Black Wired Programmable IoT Development Board



Use this USB to 5.5mm/2.1mm DC plug cable to facilitate powering this PHPoC board from your computer USB connector, USB hub, a standard USB power supply or power bank.

Delivery is stock to 2 weeks, if the item is out of stock, please contact us for availability.

Documentation & Resources:


Videos:

PHPoC Black Introduction



Programmable IoT Platform Solution Guide



Cocktail Machine with PHPoC (Alexa Version)
