Infrared (IR) Emitter 880nm 1.7V 100mA 70mW/sr @ 100mA 16° Radial, 5mm Dia (T 1 3/4) QED123

  • Sale
  • Regular price $5.29


The QED123 is an 880nm AlGaAs infrared (IR) LED emitter encapsulated in a clear peach tinted, plastic T−1 3/4 package. When paired with a QSD124 IR detector, the pair can be used in applications such as presence detectors, counters, and wireless communications.

Features

  • Wavelength: 880 nm
  • Chip Material: AlGaAs

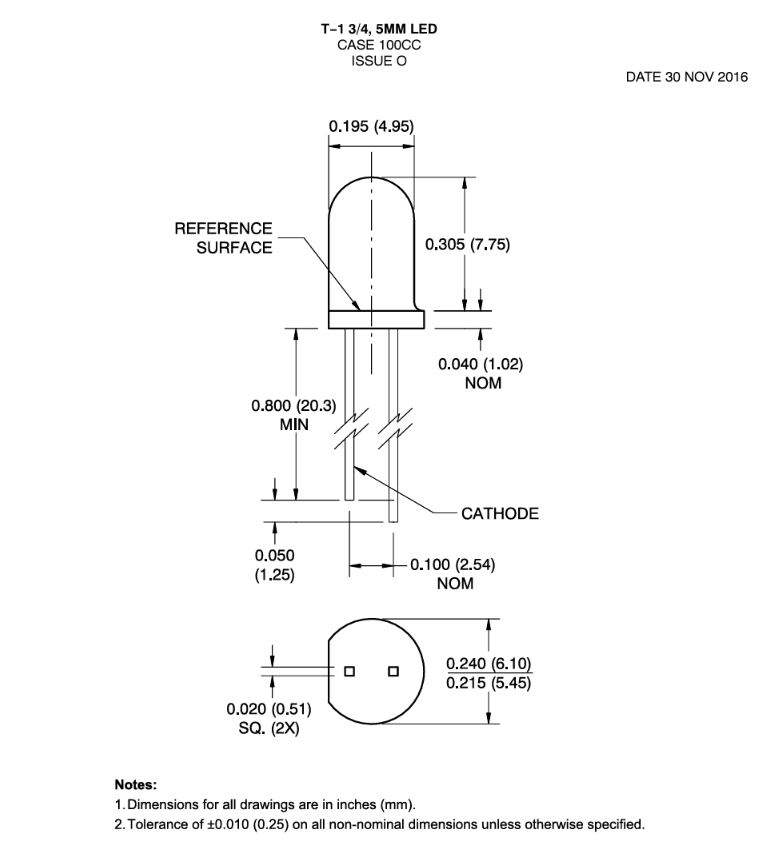

  • Package Type: T−1 3/4 (5 mm lens diameter)
  • Matched Photosensor: QSD124
  • Emission Angle: 16°
  • Output Power:  Typical 60mW/sr, Minimum 50mW/sr
  • Continuous Forward Current: 100mA
  • Package Material and Color: Clear, Peach Tinted, Plastic
