RS-232 To Bluetooth Converter / Adapter Pair WCS-232 V6.0

  • Sale
  • Regular price $209.00
  • 1 available

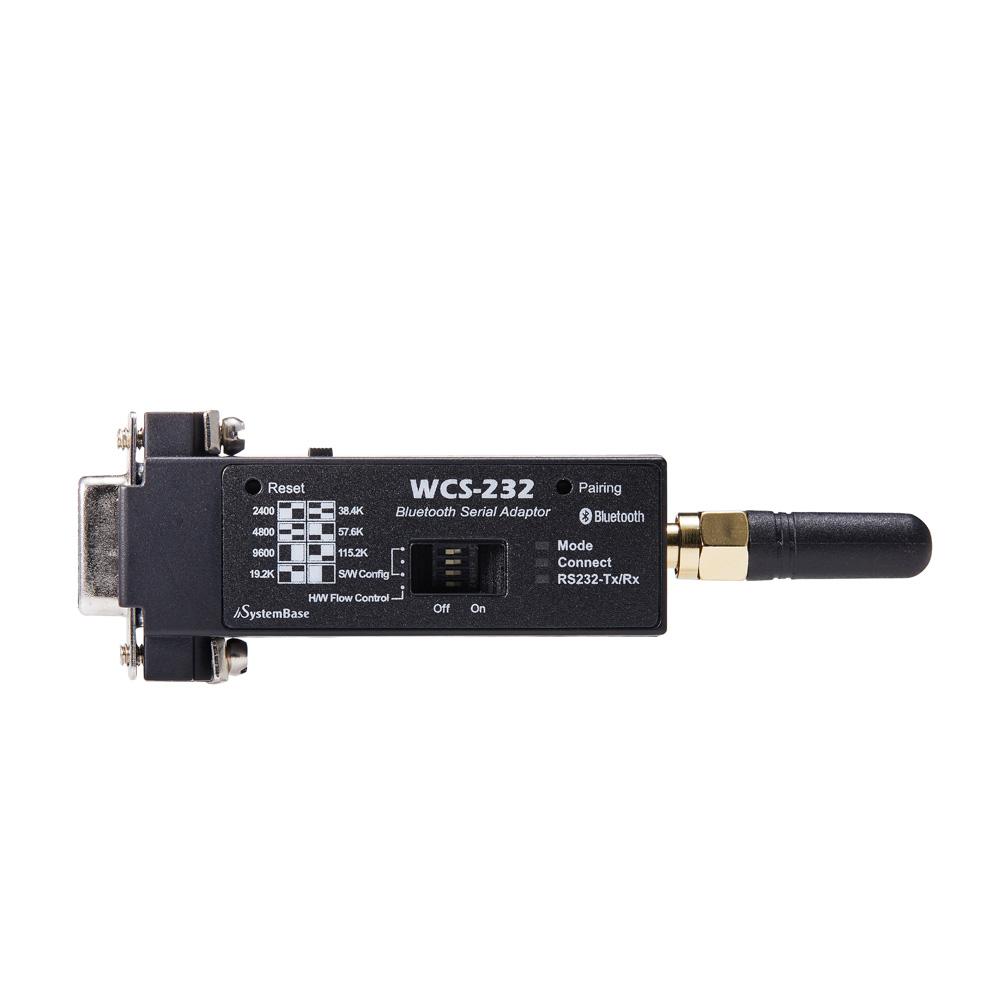

WCS-232 converts RS-232 signals to Bluetooth and Bluetooth to RS-232. If two devices both use a WCS-232, wireless 1:1 data communication between the devices is available. The compact design allows it to be easily connected to a PC, laptop, PDA, or other device and is fully compatible with the serial COM ports in PCs.

Features

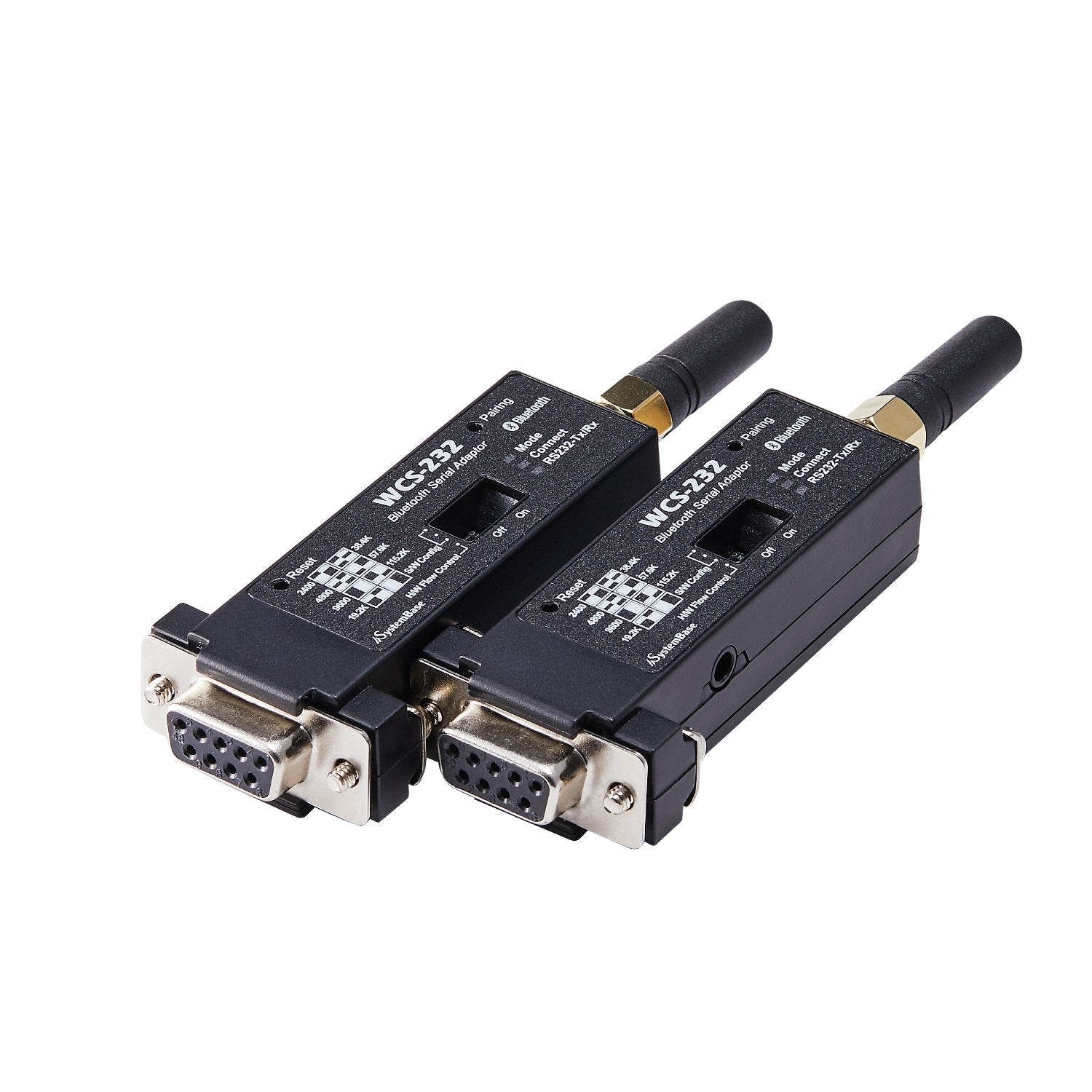

  • 'RS232 to Bluetooth’ and ‘Bluetooth to RS232’ Converter Pair
  • Serial Communication speed: Up to 921.6kbps
  • Maximum Distance: 100m
  • Bluetooth Specification: v.2.0 + EDR
  • Power: 5~12V, 80mA

Enhanced Communication Distance

Bluetooth is an industry-standard for short-range wireless communication for personal use. At the time when it was first developed, the distance was approximately 10m. However, using the Bluetooth connection to a variety of devices based on the communication range is classified into three kinds of classes. Class 1 offers a communication distance up to 100m, Class 2 is 30m, Class 3 supports communications up to 10m.

Bluetooth v2.0 + EDR

‘EDR’ stands for ‘Enhanced Data Rate’. THE EDR allows fast data transfer technology in Bluetooth communication. Bluetooth is initially developed to support the communication speed up to 1Mbps, but when the EDR function is used, the maximum communication speed is increased up to 3Mbps.

Specifications

Bluetooth

  • Specifications: Ver 2.0 + EDR
  • Maximum Distance: 100m
  • Maximum Speed: 3Mbps
  • Air Interface: 2.402 ~ 2.480 GHz (79 channels)
  • Modulation Scheme: Gaussian Frequency Shifting Key Modulation

Serial

  • Maximum Speed: 921.6 Kbps

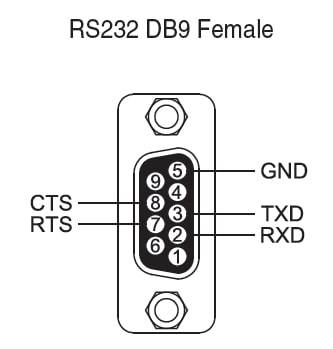

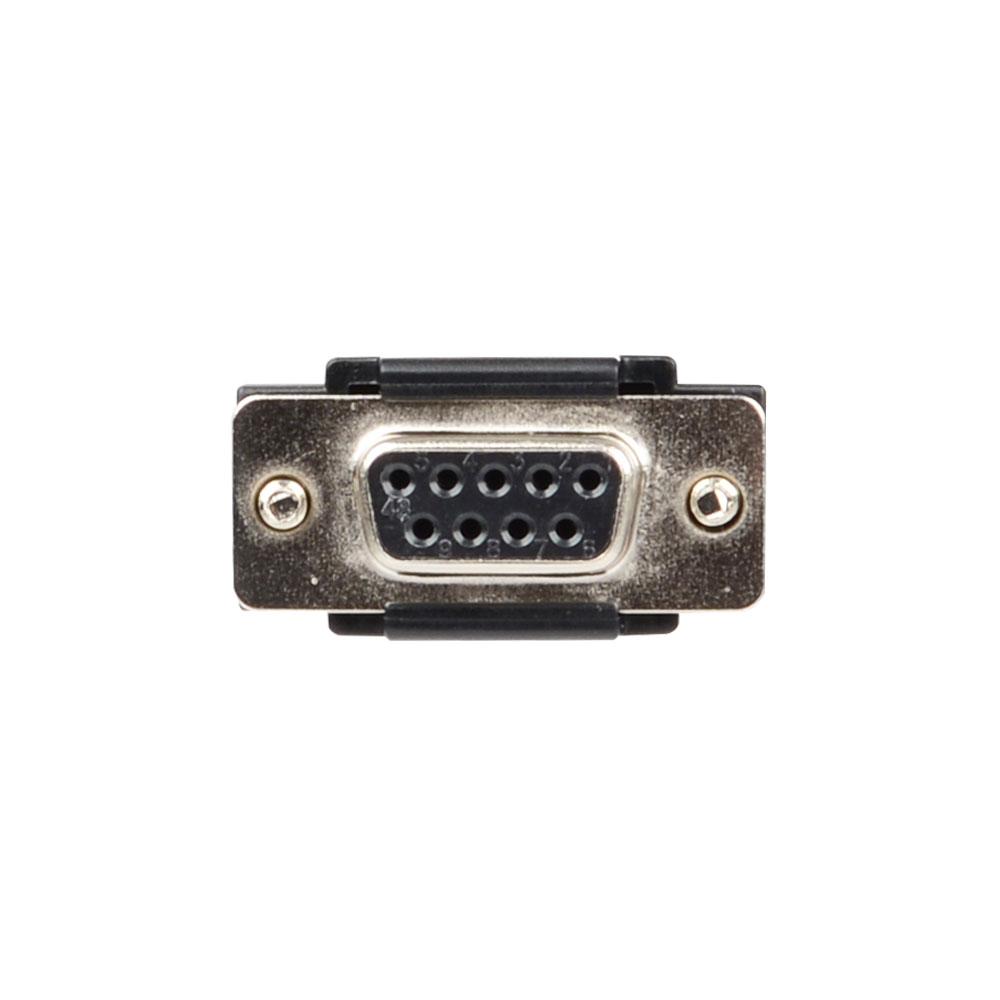

  • Connector RS232: DE-09S (DB-9 Female)
  • Signal Lines RS232: TXD, RXD, RTS, CTS, DTR, DSR

Hardware

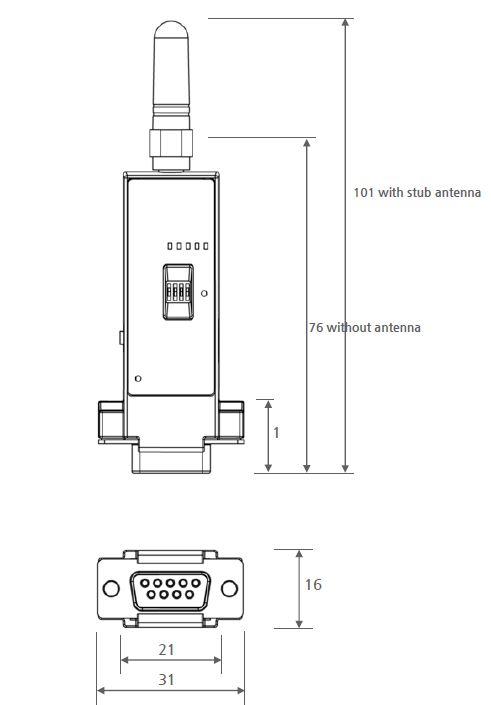

  • Dimensions (W x L x H): 30 x 75 x 16 mm (1.18 x 2,95 x 0.63 inches)
  • Weight: 40g / 1.41oz

Operating Environment

  • Operating Temperature: 40 ~ 85 °C
  • Storing Temperature: -40 ~ 85 °C
  • Humidity: 5 ~ 90% Non-Condensing

Certifications

  • Certifications: CE, FCC, KC, Japan MIC

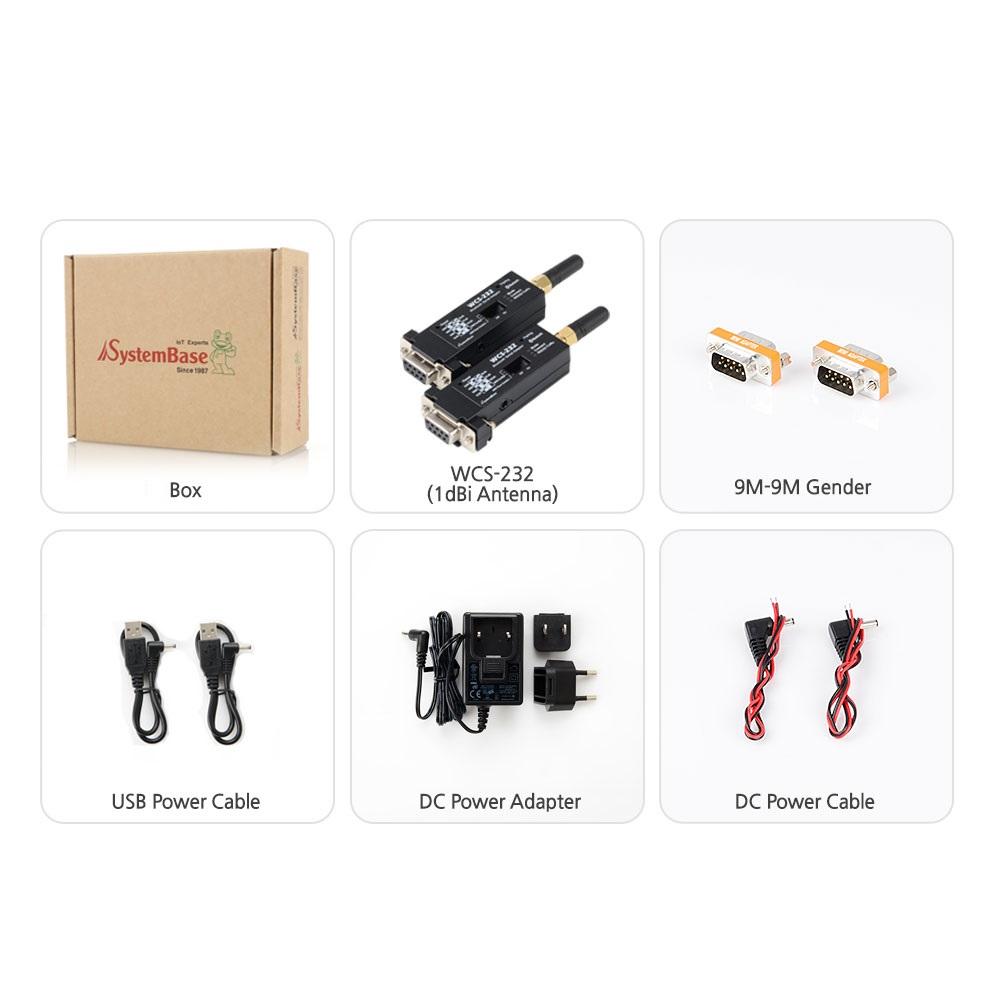

Package Includes:

2X (1 Pair) WCS-232 v6.0,
2X 9V/1A DC Adapter,
2X USB Power Cable (USB to DC Jack),
2X DC Power Cable (DC Jack to Strip),
2X 9M-9M Gender Changer,
Download Guide, Warranty Policy

Additional Resources:

WCS-232 V6.0 RS-232 To Bluetooth Adapter Pair Manual, Utilities and Specifications Downloads (SystemBase Website)
