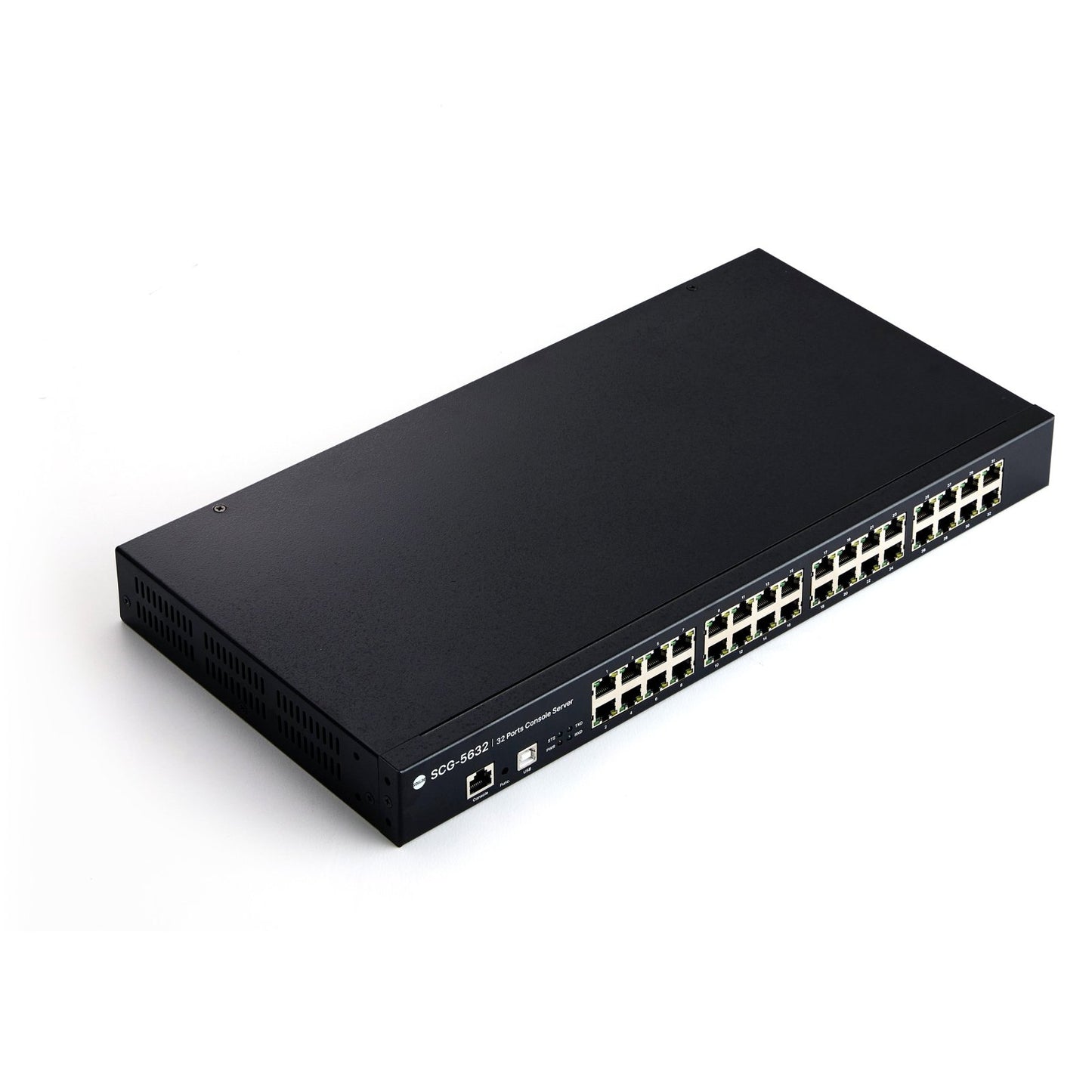

SCG-5632 32-Port RS232 Console Server

SCG-5632 32-Port RS232 Console Server

$1,780.00
$1,780.00
Sale Sold out

The ezTCP SCG-5632 Console Server by Sollae Systems is equipped with 32 RS232 ports (RJ45) and an Ethernet port (RJ45) for seamless network management. Ideal for data centers and remote offices, it offers secure, remote access with encryption and user authentication. Simplify configuration and troubleshooting with a user-friendly interface and robust performance. Enhance network resilience with environmental monitoring and power management. Upgrade your network management with SCG-5632, the 32-port Console Server.

SCG-5632 Features:

  • 32x RS232 ports
  • Supports console and GUI configuration
  • Supports COM port scanning function
  • Supports ACL (Access Control List) function
  • Supports batch configuration

SCG-5632 32-Port Console Server Specifications:

Serial Physical Interface

  • Serial Interface:    32x RS232 ports
  • RXD, TXD, RTS, CTS, DTR, DSR, GND
  • Connectors:    32 x 8-pin RJ45 Connectors

Serial Port Properties

  • Baudrate:    2,400 ~ 115,200 bps
  • Data Bits:    8 bits, 7 bits with parity
  • Parity:    None, Even, Odd, Mark, Space
  • Stop Bit:    1, 2
  • Flow Control:    None, RTS/CTS

Network Physical Interface

  • Ethernet:    10Base-T/100Base-TX Ethernet (RJ45)
  • Ethernet Speed Auto Sense
  • 1:1 or Cross-over Cable Auto Sense

Software Function

  • Protocols:    TCP, IP, TLS, SSH, ICMP, ARP, TELNET, DHCP, mDNS
  • Security:    Password for Configuration
  • Communication Mode:    TCP Server

Indicators

  • LEDs:    PWR, STS, TXD, RXD

Management

  • spFinder:    Configuration Tool for Windows

Dimensions

  • Size:    43.7cm x 4.4cm x 22.8cm (17.2 x 1.73 x 9 inches) W x H x D
  • Weight:    About 2.7Kg (6 lbs)

Operating Environment

  • Input Voltage:    AC 90V ~ 264V
  • Power Consumption:    Typically, 22W
  • Operating Temperature:    -20℃ ~ +60℃
  • Storage Temperature:    -20℃ ~ +60℃

Certifications

  • KC:    Registration (KS C 9832, KS C 9835)
  • FCC:    FCC 15 Subpart B Class A

Package includes:

1X SCG-5632 32-Port RS232 Console Server

The delivery of this item is stock to 2 weeks. Please contact us prior to placing your order for a specific delivery time.

Documentation & Resources:

SCG-5632 ezTCP 32-Port Console Server Web Page
