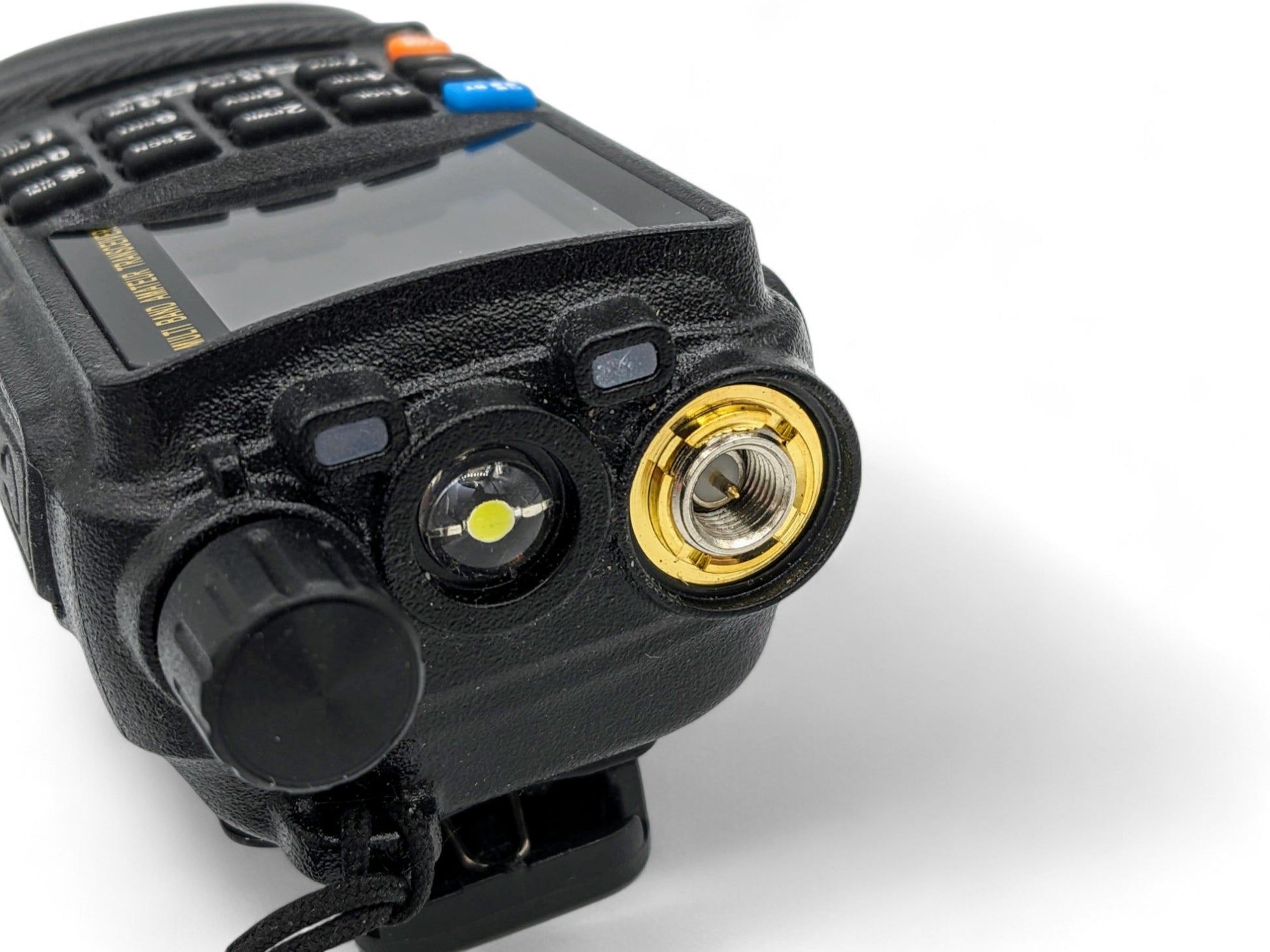

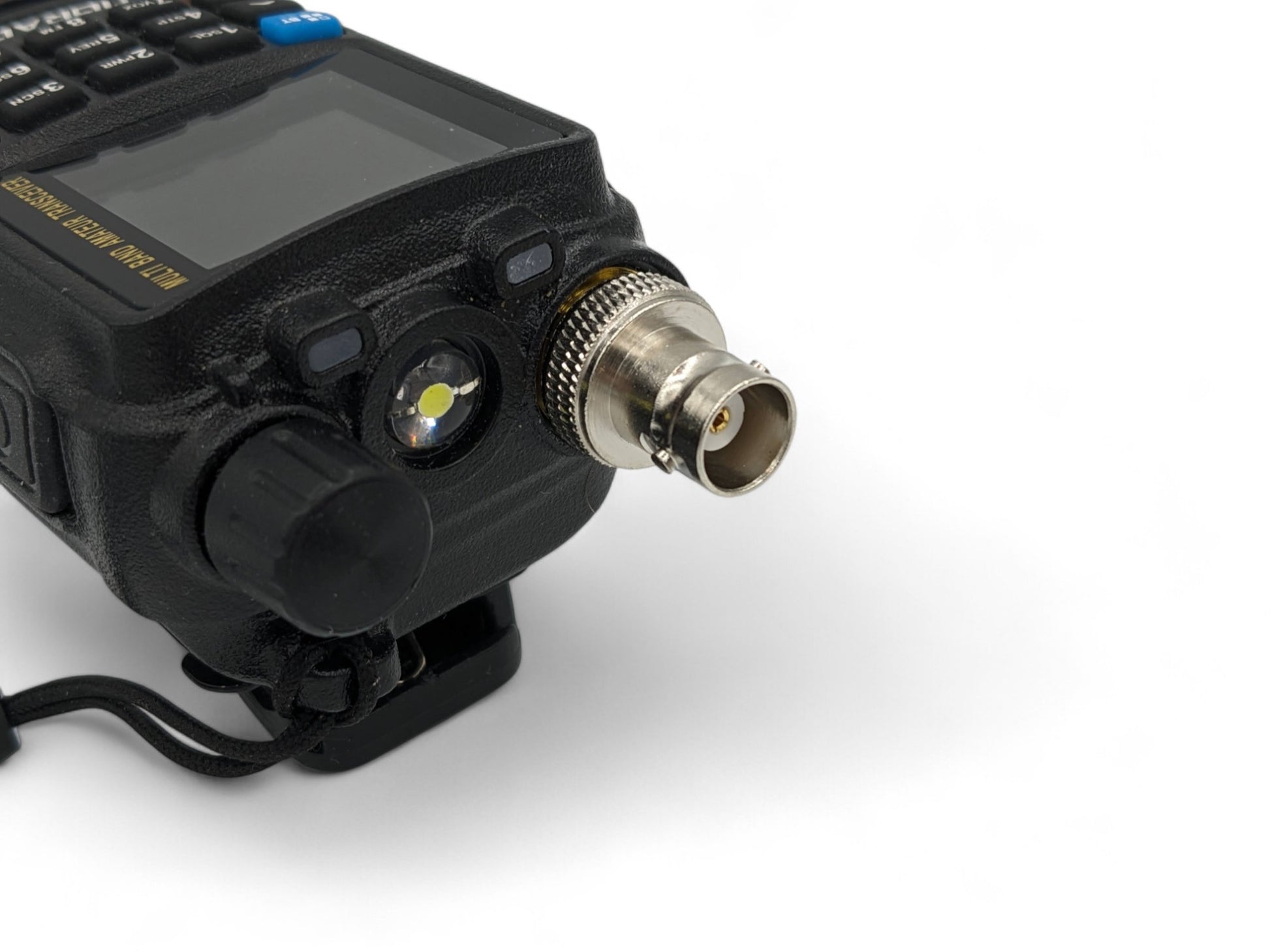

This SMA female jack to BNC female jack RF adapter connects an SMA male plug to a BNC male plug connector. It is ideal for connecting the male antenna connector of a handheld Ham or GMRS radio to a BNC male antenna or RF cable. Note that the gender is determined by the center conductor, not the threads. If it has a pin in the center it is a male plug.
The SMA-Female to BNC-Female adapter fits:
Alinco: DJ-MD5 and many others, check the pictures!
Most Anytone HTs
Baofeng: UV-5R, UV-5X3 and other UV-5 variants, GT-3, UV-82, UV-B5 and most others. It DOES NOT fit the UV-3R
Kenwood: TK-2107, TK-3107, TK-2260, TK-3260, TK-3160, TK-278, TK-378 and some others
Quangsheng UVK5 and UVK6
Tidradio: TD-H3, TD-H8
Wouxun: UV6D, UV2D, UVD1P. Most newer models use SMA-Male, but any model could have either, so check!
Yaesu: FT-65, FT-25, FT-4VR, FT-4XR
High quality, brass housing, nickel-plated.
Specifications:
Body Material: Brass (Copper Alloy)
Body Plating: Nickel
Insulator: PTFE
Inner Conductor: Copper, Gold Plated
Impedance: 50 Ohms
Dimensions: 16mm L x 14mm Diameter (0.63 in x 0.55 in)
