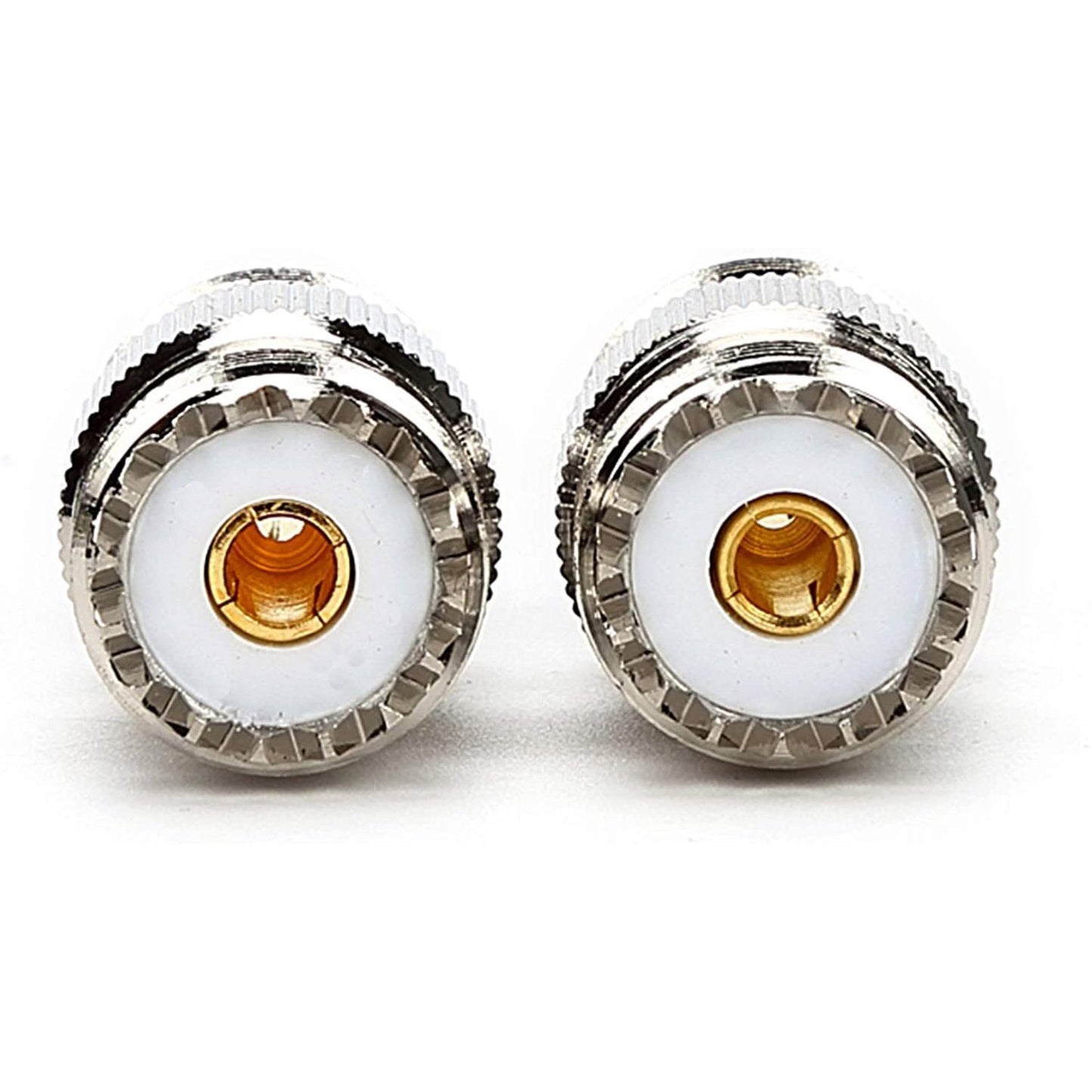

SO-239 UHF Female to Female Jack Coupler RF Coaxial Adapter Barrel Connector for PL-259 Plugs

  • Sale
  • Regular price $3.29


This SO-239 to SO-239 adapter is ideal for joining jumpers or cables in CB or HAM radio setups.

It is used for connecting two PL-259 UHF jack connectors.

High quality, brass copper metal housing, nickel plated.

SO239 Adapter Specifications:

  • Frequency Range: 0~6GHz
  • VSWR: ≤ 1.2 typical @ DC - 3000MHz
  • Working Voltage: 750V RMS, 50Hz, at sea level
  • Dielectric Withstanding Voltage: ≥2000V RMS, 50Hz, at sea level
  • Dielectric Resistance: ≥5000MΩ
  • Contact Resistance: Center Contact ≤5mΩ, Outer Contact ≤5 mΩ
  • Durability: >500 cycles
  • Body Material: Brass
  • Body Plating: Nickel
  • Insulator: PTFE
  • Inner Conductor: Phosphor Bronze
  • Dimensions: 34mm L x 17mm Diameter (1.33 in x 0.67 in)
  • Operating Temperature: -40 to +85C
  • RoHs (2002/95/EC): Compliant by exemption

Packages Includes:

1x (1 Piece) SO-239 to SO-239 RF Coaxial Adapter
