UNO R4-Compatible WiFi Board — RA4M1 & ESP32-S3, Wi-Fi, Bluetooth, USB-C, CAN Bus, 12-Bit DAC, LED Matrix

UNO R4-Compatible WiFi Board — RA4M1 & ESP32-S3, Wi-Fi, Bluetooth, USB-C, CAN Bus, 12-Bit DAC, LED Matrix

Regular price $16.49
Regular price Sale price $16.49
Sale Sold out
Shipping calculated at checkout.
Quantity

📋 Overview

The UNO R4-Compatible WiFi Board is a UNO-format development board built around the same core chipset found in certain officially branded UNO R4 WiFi boards: a 32-bit Renesas RA4M1 microcontroller paired with an ESP32-S3 module for Wi-Fi and Bluetooth. This is a compatible board, not a genuine Arduino-branded product — but because it uses the identical RA4M1 and ESP32-S3 chipset, it runs the same sketches, libraries, and board packages used across the maker community.

Under the hood, this board uses a dual-MCU design: the RA4M1 runs your sketch and controls all onboard peripherals, while a separate dual-core ESP32-S3 coprocessor handles Wi-Fi and Bluetooth 5 wireless connectivity. On top of that, you get a built-in 12x8 LED matrix, a 12-bit DAC, an onboard op-amp, USB-C, a Qwiic I2C connector, and CAN bus support — all while keeping the classic 5V UNO operating voltage and pin layout for shield compatibility.


⭐ Key Features

  • Renesas RA4M1 Microcontroller — 32-bit Arm Cortex-M4 at 48 MHz with FPU, 256 kB flash, 32 kB SRAM, 8 kB EEPROM
  • ESP32-S3 Wi-Fi & Bluetooth Coprocessor — Dual-core module with Wi-Fi 4 (802.11 b/g/n, 2.4 GHz) and Bluetooth 5 LE built in, no shield required
  • Built-In 12x8 LED Matrix — 96 programmable red LEDs for animations, scrolling text, and live sensor readouts
  • 12-Bit DAC & Onboard Op-Amp — Generate analog waveforms and buffer or amplify analog signals directly on the board

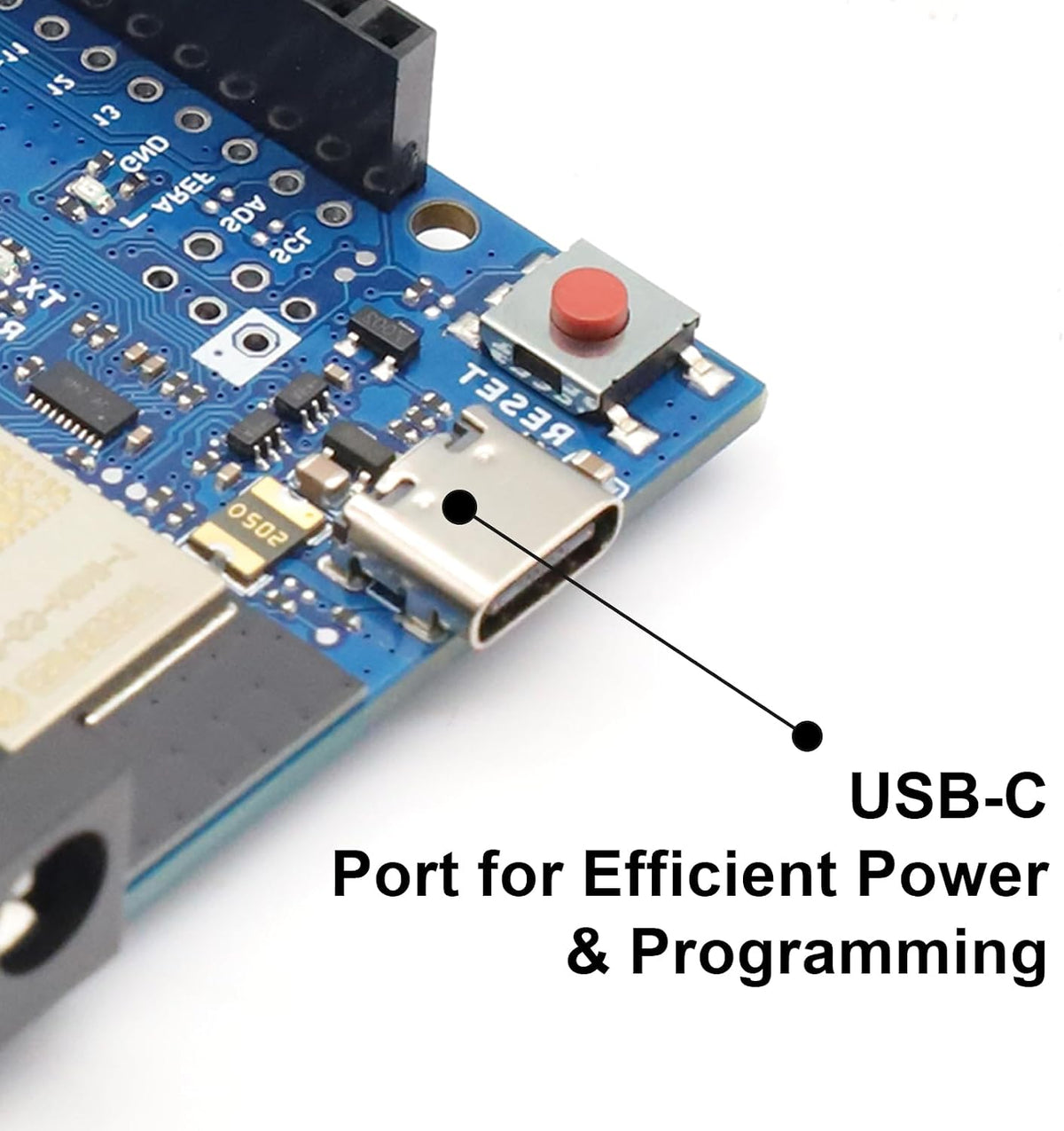

  • USB-C, Qwiic I2C & CAN Bus — Modern USB-C programming port, plug-and-play Qwiic connector, and a CAN controller for automotive and industrial projects (external transceiver required)
  • Full UNO Shield Compatibility — Same 5V operating voltage and pin layout as classic UNO boards, so most existing shields and accessories still work

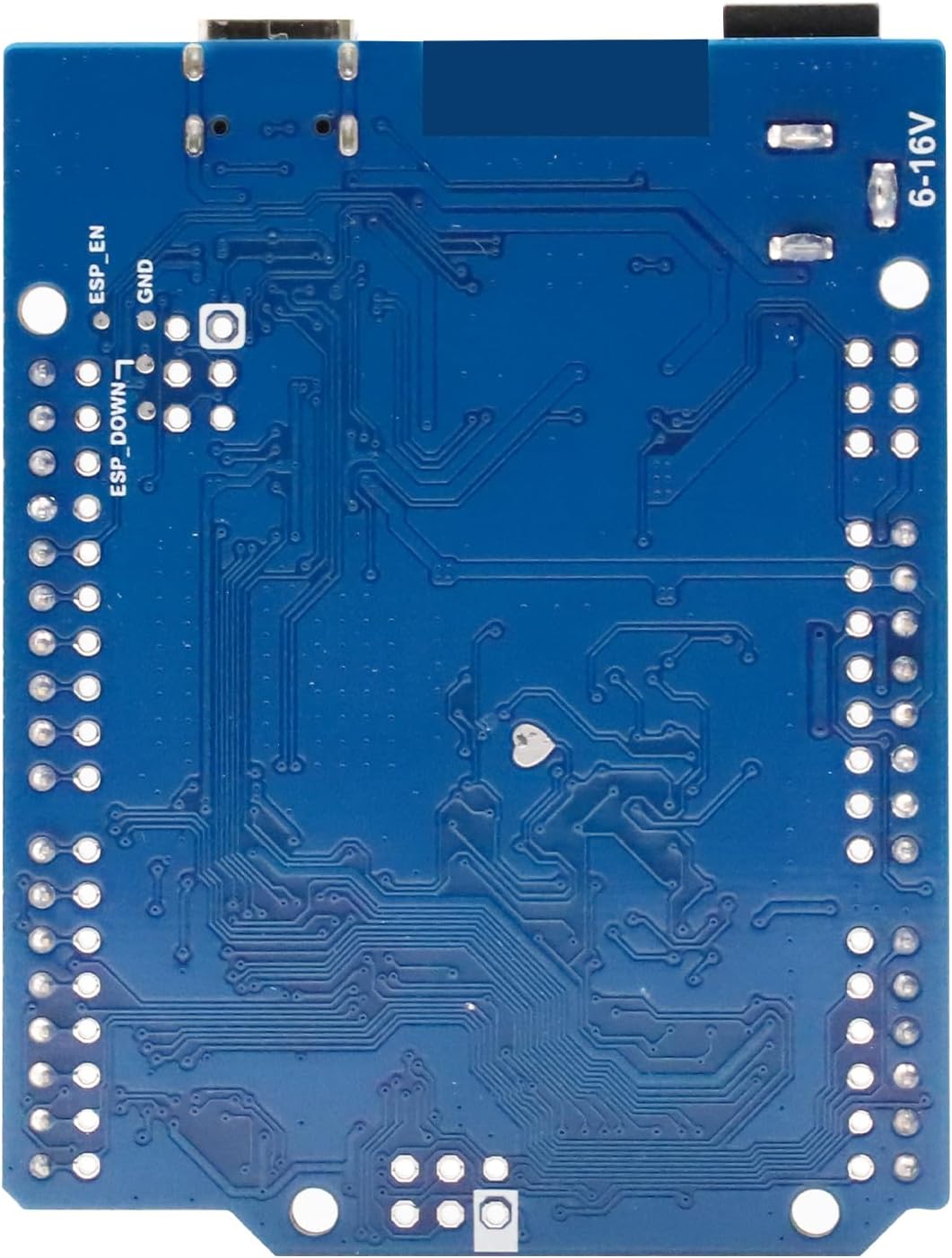

📌 Module Pinout

Looking at the board from the top, with the USB-C port and DC jack at the top-left and the digital header along the top edge:

Pin Label Function
D0 / D1 RX / TX UART Serial Receive / Transmit
D2, D3 Digital / Interrupt GPIO with external interrupt support
D3, D5, D6, D9 PWM (~) PWM-capable digital pins
D4 Digital General purpose GPIO
D10 CANTX0 CAN Bus Transmit (requires external transceiver)
D11–D13 SPI / SCK SPI Controller Out/In, Clock (D13 doubles as CANRX0)
D13 CANRX0 CAN Bus Receive (requires external transceiver)
SDA / SCL Digital header I2C Standard I2C bus (also on A4/A5)
A0 Analog In / DAC Analog input 0 or 12-bit DAC output
A1 / A2 / A3 OPAMP+ / OPAMP− / OPAMP Out Onboard operational amplifier connections
A4 / A5 SDA / SCL Standard I2C bus (shared with digital header)
Qwiic Connector SCL / SDA / 3V3 / GND Secondary I2C bus, 3.3V only
VIN Power In 6–24V input (barrel jack or header)
USB-C Power / Data 5V power, programming, and serial communication
+5V / +3V3 Power Out Regulated power rails for external components

⚠️ Important: The ESP32-S3 coprocessor, its dedicated header, and the Qwiic connector operate at 3.3V and are not 5V tolerant. Never connect a 5V signal to these — doing so can permanently damage the ESP32-S3 module.

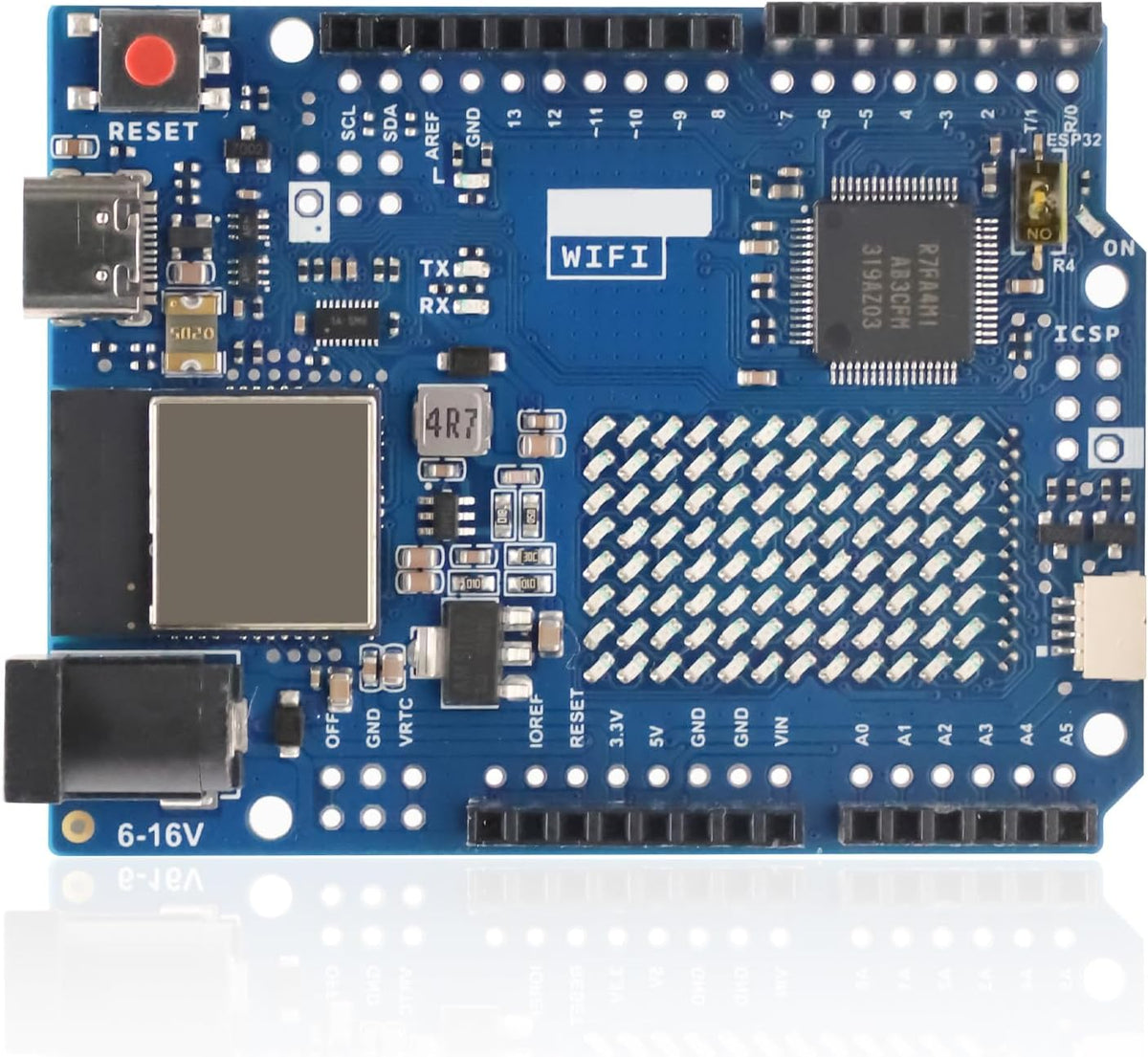

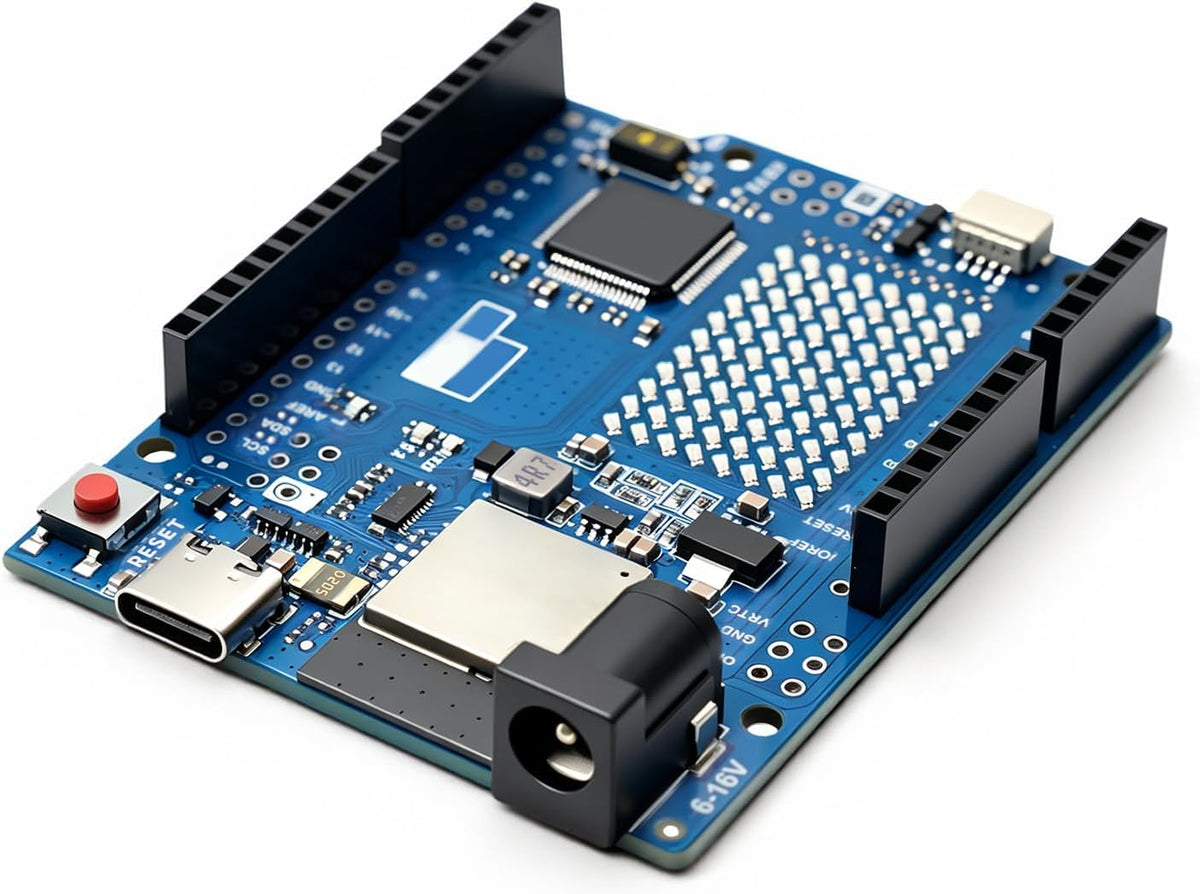

Arduino Uno R4-compatible Wifi Microcontroller Top View

📊 Specifications

Main Microcontroller Renesas RA4M1 (R7FA4M1AB3CFM), 48 MHz Arm Cortex-M4 with FPU
Wireless Module ESP32-S3-MINI-1-N8, dual-core Xtensa LX7, Wi-Fi 4 (2.4 GHz) & Bluetooth 5 LE
Flash / SRAM / EEPROM 256 kB / 32 kB / 8 kB
Operating Voltage 5V (RA4M1) / 3.3V (ESP32-S3, internal only)
Input Voltage (VIN) 6–24V (barrel jack or header)
USB Input Voltage 4.8–5.5V via USB-C (do not exceed 5V)
Digital I/O Pins 14, each rated up to 8 mA max
Analog Input Pins 6 (A0–A5)
DAC Resolution Up to 12-bit (on pin A0)
LED Matrix 12x8 (96 LEDs), red, charlieplexed
Communication 1x UART, 1x SPI, 2x I2C (incl. Qwiic), 1x CAN (external transceiver required)
USB Connector USB-C
Operating Temperature -40°C to +85°C

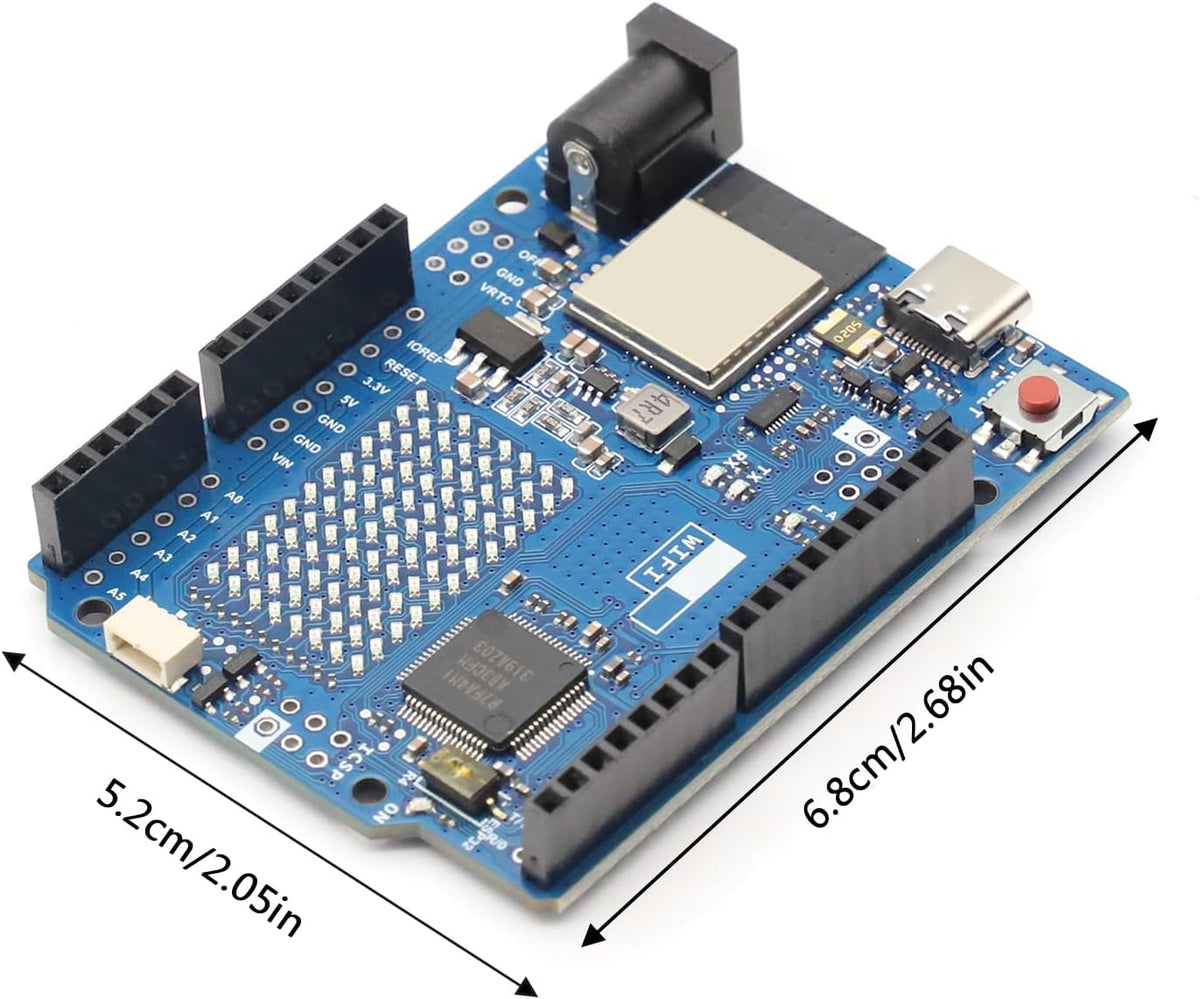

Board Dimensions Approx. 68.6 × 53.3 × 15 mm (2.70 x 2.10 x 0.59 inches) L × W × H

🔌 CAN Bus Wiring

The RA4M1's CAN controller is built into the microcontroller but has no onboard transceiver. You'll need an external CAN transceiver module (such as an SN65HVD230) to connect to an actual CAN bus network.

Board Pin CAN Transceiver Pin
D13 (CANRX0) CAN RX
D10 (CANTX0) CAN TX
3.3V VIN
GND GND

📝 Note: A CAN transceiver is required for this board to communicate on a real CAN bus network — the pins alone will not work without one.


📦 What's in the Box

  • 1x UNO R4-Compatible WiFi Board

USB-C cable, jumper wires, and shields are not included.


🔌 Compatible With

  • Arduino IDE (Desktop) and Arduino Cloud Editor, using an RA4M1-compatible board package
  • Existing 5V UNO-format shields and accessories
  • Qwiic-standard I2C sensor and actuator modules (3.3V only)
  • External CAN transceiver modules (e.g., SN65HVD230)

🎯 Typical Applications

  • IoT and smart home projects using built-in Wi-Fi and Bluetooth
  • Visual feedback and status displays using the onboard LED matrix
  • Audio signal generation and simple analog projects using the 12-bit DAC
  • Automotive, robotics, or industrial prototyping using CAN bus
  • STEM education and general-purpose learning projects
  • Upgrading existing 8-bit UNO shield-based projects to more memory and speed

⚠️ Important Notes

  • Do not power the board with more than 5V through the USB-C port
  • Never connect a 5V signal to the ESP32-S3 header or the Qwiic connector — both are 3.3V only and not 5V tolerant
  • Digital GPIO pins are rated for a maximum of 8 mA — use an external driver or power supply for higher-current loads like motors or servos
  • A4/A5 are shared with the main I2C bus — avoid using them as analog inputs while I2C devices are active on that bus
  • CAN bus functionality requires an external transceiver module; it will not work with the pins alone
  • Operating temperature range is -40°C to +85°C; USB input should stay within 4.8–5.5V
