USB to RS-422/RS-485 DB9 Serial Adapter/Converter Multi-1/USB COMBO

The SystemBase Multi-1/USB Combo lets you easily and quickly add additional serial ports to your system through the USB port. The Multi-1/USB delivers maximum performance up to 921.6Kbps. Combined with the need for fewer components and you get cost-effective and reliable connections to your serial devices.

The USB to Serial Multi-1 supports most Windows and Linux operating systems and includes 15,000-volt surge suppression, eliminating blown ports. The Multi-1/USB includes a 1 port panel with a DB9 connector and is available in two models, RS232 and RS422/RS485. Simply plug in the USB connector and you have a COM port to connect modems, printers, bar-code scanners, or other serial devices.

Features

• USB to 1 port DB9 Serial (male) Adapter/Converter
• RS422/RS485 Interface

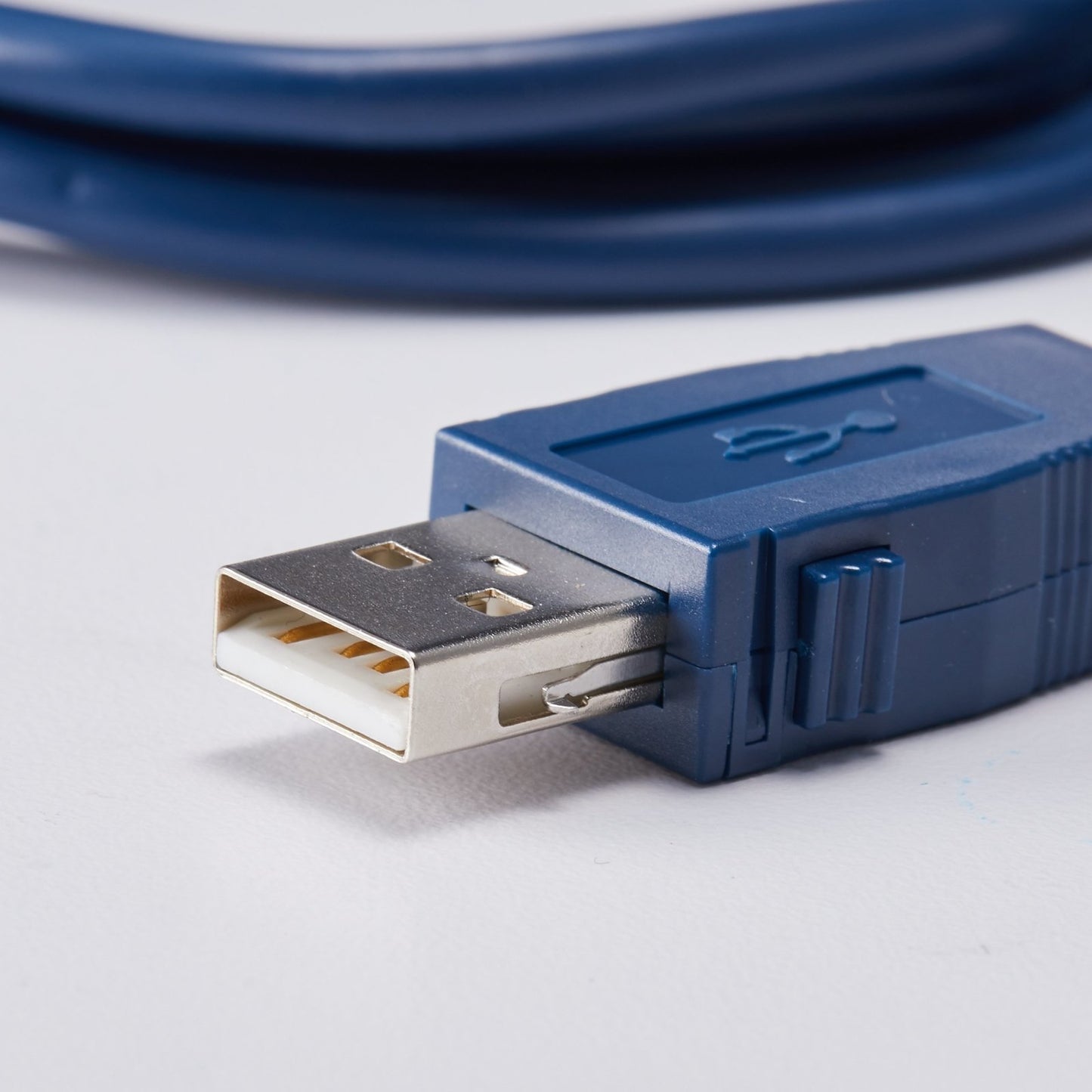

• Latches on the USB Connector prevents accidental detachment
• Supports USB Rev. 2.0 (Full speed)
• Communication Speed: Up to 921.6kbps
• Display communication status via TX/RX LED
• ±15kV Surge protection
• Auto Togging: Automatic control of BUS I/O for RS422/RS485
• Slew-Rate limit control

Connector Panel

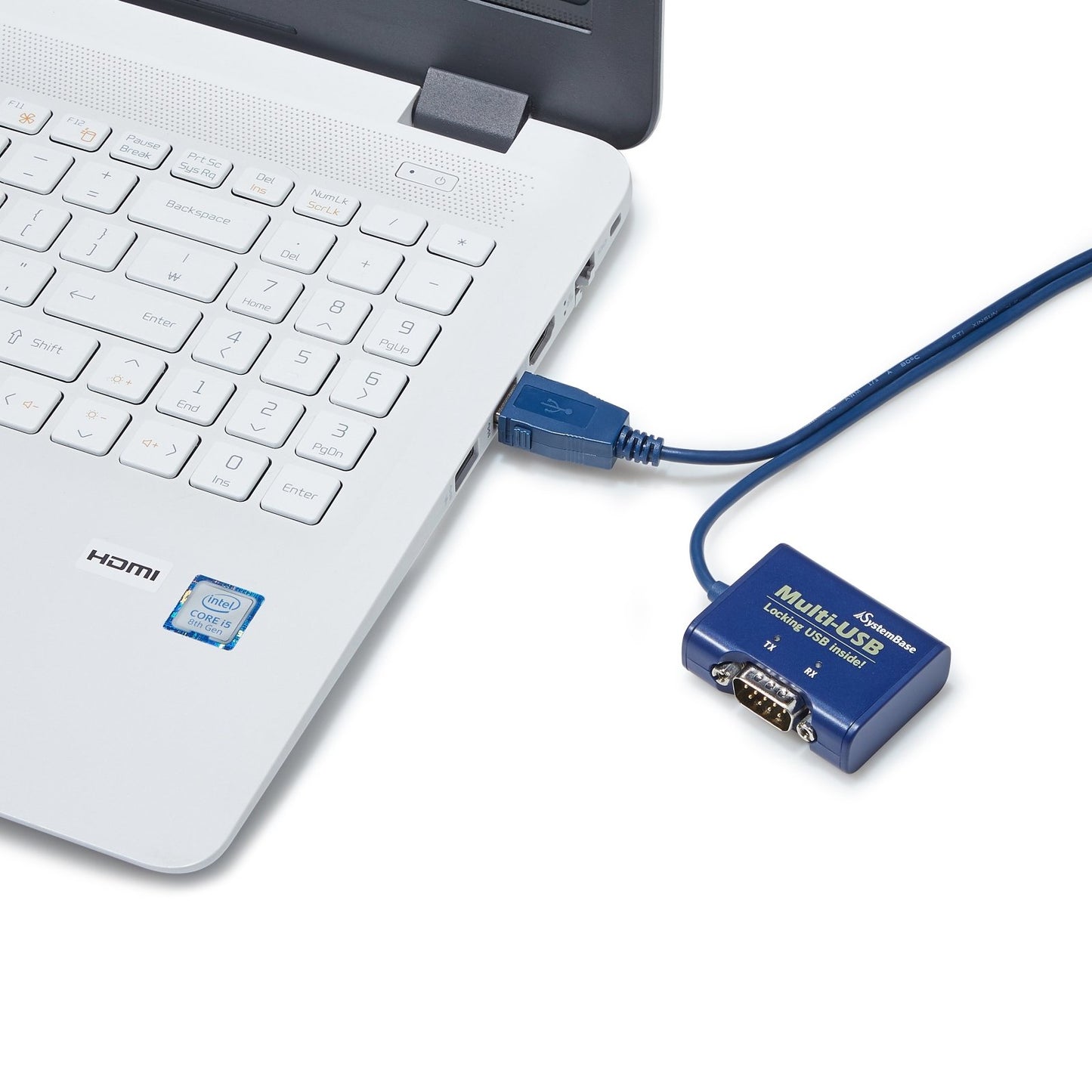

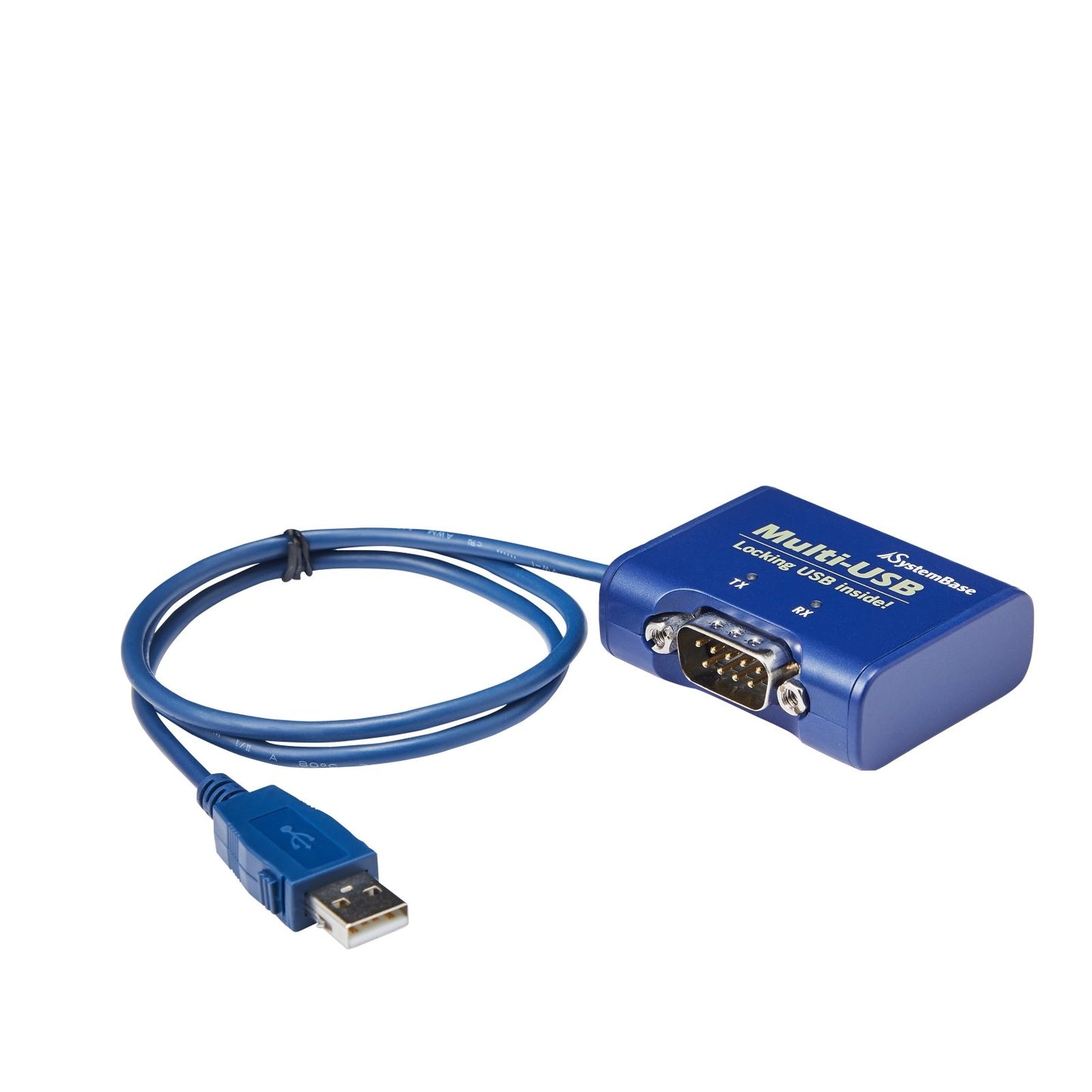

The Multi-1/USB plugs into the USB port on your system. The connector panel has a DB9 male connector and is available with support for either RS232 or RS422/RS485. LEDs next to the connector provide a visual communication status of the ports. No additional power supply is required.

Supports USB Specification Revision 2.0

The Multi-1/USB supports revision 2.0 and is compatible with revision 1.1

15KV Surge Protection – Built-in

Don’t risk blown ports and downtime. The Multi-1/USB has built-in 15,000-volt surge suppression to protect against electrical spikes and blown ports giving you more reliable communications.

Specifications

Interface Type

• USB Specification Rev. 2.0, Full-Speed

Serial

• Interface: RS422/RS485 (Combo)
• Number of ports: 1 DB9
• Maximum Speed: 921.6 kbps
• Signal Lines:
• RS422: TXD+, TXD-, RXD+, RXD-
• RS485: TRXD+, TRXD-
• Surge Protection: 15KV
• Flow Control: RTS/CTS, XON/XOFF
• Data crash prevention: Auto Toggling

Hardware

• Controller: FT232R
• Connector: DE-09P (DB-9 Male)

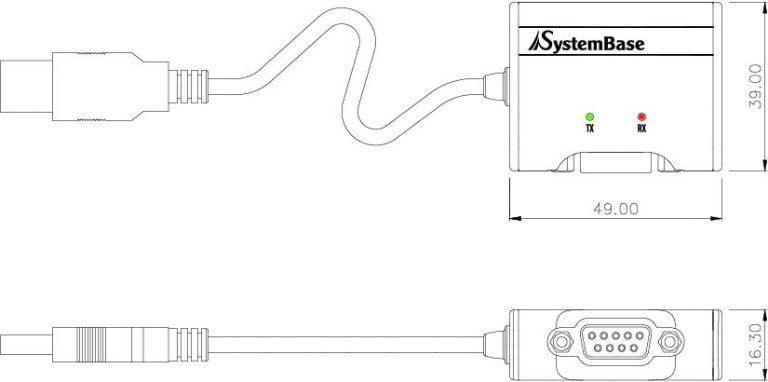

• Dimensions (W x L x H): 39 x 49 x 16.3 mm (1.54 x 1.93 x 0.64 inches)
• Weight: 40g / 1.41oz


Software

• Supported OS:
• Windows 7/8/8.1/10
• Windows Server 2008/2012
• Linux
• Utility: TestView

Operating Environment

• Operating Temperature: 0 ~ 50 °C
• Storing Temperature: -20 ~ 80 °C
• Humidity: 5 ~ 90% Non-Condensing

Certifications

• Certifications KC, FCC, CE

Package Includes:

1X Multi-1/USB COMBO,
Download Guide, Warranty Policy

Additional Resources:

Multi-1/USB COMBO USB to RS-422 / RS-485 DB9 Serial Adapter/Converter Manual, Utilities and Specifications Downloads (SystemBase Website)
