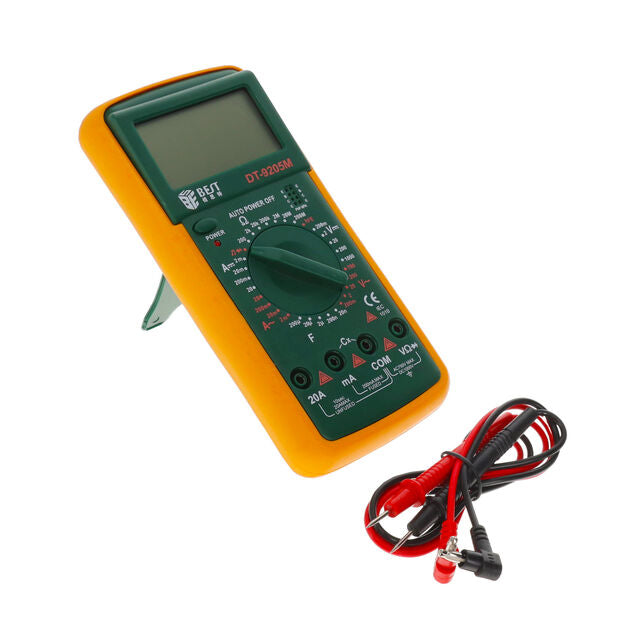

This guide covers setup, controls, and use of the BEST DT-9205M Digital Multimeter — an affordable, full-featured handheld multimeter with a large 3-1/2 digit LCD display. It measures AC/DC voltage, AC/DC current, resistance, capacitance, and includes diode testing, audible continuity testing, and transistor (hFE) testing — everything most hobbyists, DIYers, and home repair users need in one tool.
Whether you're just learning how to use a multimeter for the first time or you've used one for years and want a quick reference for this specific model, this guide walks through every function on the dial, how to read the display, and how to stay safe while doing it.
⚠️ SAFETY NOTE: This meter is rated for Category II installations up to 1000VDC / 700VAC. It is not rated for Category III/IV environments — do not use it on utility mains distribution panels, industrial equipment, or any circuit where a fault could produce a high-energy arc. See the full Safety section below.
💡 What Is This Multimeter?
A digital multimeter (DMM) is a single tool that replaces a voltmeter, ammeter, and ohmmeter — plus a few bonus functions. The DT-9205M uses a single rotary dial to select both the function (what you're measuring) and the range (how large a value you expect), and displays the result on its 3-1/2 digit LCD (meaning it can display up to "1999" before it needs a higher range).
What This Meter Can Do
- DC Voltage (V⎓): Batteries, DC power supplies, Arduino/microcontroller circuits, automotive electrical systems
- AC Voltage (V∿): Household outlets, appliance wiring, transformer secondaries
- DC Current (A⎓): Current draw in battery-powered or DC circuits
- AC Current (A∿): Current draw in AC-powered circuits
- Resistance (Ω): Resistors, wiring, sensors, switches
- Continuity test: Audible beep to quickly check if a wire, fuse, or connection is intact
- Diode test: Checks diode forward voltage drop and orientation
- Capacitance (F): Measures capacitor values from 20nF to 200μF
- Transistor hFE test: Estimates the gain of NPN or PNP transistors
📋 Specifications
General
| Display | LCD, 3-1/2 digit, 1999 counts, updates every 2–3 seconds |
| Measuring Method | Dual-slope integration A/D converter |
| Max Voltage (terminals to earth ground) | 1000VDC or 700VAC (Category II installations) |
| Overrange Indication | Only figure "1" shown on display |
| Polarity Indication | "−" displayed automatically for negative readings |
| Low Battery Indication | Battery icon appears on display |
| Power | Single 9V battery, type NEDA 1604 or 6F22 (not included) |
| Fuse | F 200mA / 250V — protects the mA jack only; 20A jack is unfused |
| Operating Environment | 0°C to 40°C |
| Storage Temperature | −10°C to 50°C |
| Dimensions | Approx. 189 × 91 × 31.5 mm (7.44 x 3.58 x 1.24 inches) L × W × H |
| Weight | Approx. 280g |
DC Voltage
| Range | Resolution | Accuracy |
|---|---|---|
| 200mV | 100µV | ±(0.5%+2) |
| 2V | 1mV | ±(0.5%+2) |
| 20V | 10mV | ±(0.5%+2) |
| 200V | 100mV | ±(0.5%+2) |
| 1000V | 1V | ±(0.8%+2) |
Overload protection: 250V rms for the 200mV range; 1000V DC or rms AC for all other ranges.
AC Voltage
| Range | Resolution | Accuracy |
|---|---|---|
| 200mV | 100µV | ±(1.2%+3) |
| 2V | 1mV | ±(0.8%+3) |
| 20V | 10mV | ±(0.8%+3) |
| 200V | 100mV | ±(0.8%+3) |
| 700V | 1V | ±(1.2%+3) |
Overload protection: 250V rms for the 200mV range; 1000V DC or rms AC for all other ranges. Frequency range 40Hz–400Hz, average-responding, calibrated in rms of a sine wave.
DC Current
| Range | Resolution | Accuracy |
|---|---|---|
| 2mA | 1µA | ±(1.2%+2) |
| 20mA | 10µA | ±(1.2%+2) |
| 200mA | 100µA | ±(1.4%+2) |
| 20A | 10mA | ±(2.0%+2) |
Overload protection: 250V DC or rms AC. Protected by F 200mA/250V fuse (20A range is unfused).
AC Current
| Range | Resolution | Accuracy |
|---|---|---|
| 2mA | 1µA | ±(1.2%+3) |
| 20mA | 10µA | ±(1.2%+3) |
| 200mA | 100µA | ±(1.8%+3) |
| 20A | 10mA | ±(3.0%+7) |
Overload protection: 250V DC or rms AC for all ranges. Frequency range 40Hz–400Hz.
Resistance
| Range | Resolution | Accuracy |
|---|---|---|
| 200Ω | 0.1Ω | ±(1.0%+2) |
| 2kΩ | 1Ω | ±(0.8%+2) |
| 20kΩ | 10Ω | ±(0.8%+2) |
| 200kΩ | 100Ω | ±(0.8%+2) |
| 2MΩ | 1kΩ | ±(1.2%+2) |
| 20MΩ | 10kΩ | ±(1.2%+2) |
| 200MΩ | 100kΩ | ±(5.0%+10) |
Maximum open-circuit voltage: 3.2V. Overload protection: 250V DC or rms AC for all ranges.
Capacitance
| Range | Resolution | Accuracy |
|---|---|---|
| 2nF | 1pF | ±(4.0%+5) |
| 20nF | 10pF | ±(4.0%+5) |
| 200nF | 100pF | ±(4.0%+5) |
| 2µF | 1nF | ±(4.0%+5) |
| 20µF | 10nF* | ±(4.0%+5)* |
| 200µF | 100nF | ±(4.0%+5) |
🚀 Getting Started
Step 1: Install the Battery
- Locate the battery compartment on the back of the meter (secured with a screw-down or slide cover).
- Install one standard 9V battery, matching the polarity of the snap connector.
- Close the compartment securely before use.
Step 2: Connect the Test Leads
The meter has four input jacks along the bottom edge:
| Jack | Label | Used For |
|---|---|---|
| 20A | 20A, unfused, 10 sec max | High-current DC/AC measurements up to 20A |
| mA | 200mA max, fused | Low-current DC/AC measurements up to 200mA |
| COM | Common / return | Always connect the black test lead here for every measurement |
| VΩ→| | AC750V max / DC1000V max | Voltage, resistance, continuity, diode test, and hFE — connect the red test lead here for these functions |
Important: The red lead moves between the VΩ→| jack (for voltage, resistance, continuity, diode) and either the mA or 20A jack (for current measurements), depending on what you're measuring. The black lead stays in COM at all times.
Step 3: Turn It On and Select a Function
- Press the POWER button. The red LED next to it should light up.
- Rotate the dial to the function and range you need (see the sections below for each measurement type).
- If you're not sure how large the value you're measuring will be, always start on the highest range for that function and work your way down until you get a stable, non-"1" reading.
🎛️ Understanding the Dial and Display
The rotary dial is divided into color-coded sections on this model:
- Blue/white markings: DC voltage, DC current, resistance, and capacitance ranges
- Pink/red markings: AC voltage, AC current, and the hFE transistor test position
Going around the dial, the functions are: Resistance (Ω) → Continuity buzzer → hFE (transistor test) → DC Voltage (V⎓) → AC Voltage (V∿) → AC Current (A∿) → Capacitance (F) → DC Current (A⎓), connecting back around to Resistance.
The display shows up to 4 digits (max reading "1999"). If the display shows only the digit "1" on the far left, this means over range — the value you're measuring exceeds the selected range, and you need to turn the dial to a higher range.
🔌 How to Measure DC and AC Voltage
- Connect the black lead to COM and the red lead to VΩ→|.
- Rotate the dial to the DC voltage (V⎓) or AC voltage (V∿) range that covers your expected reading. Available DC ranges: 200mV, 2V, 20V, 200V, 1000V. Available AC ranges: 200mV, 2V, 20V, 200V, 700V.
- Touch the probes across the two points you want to measure (in parallel with the circuit, not in series).
- Read the value on the display. For DC voltage, a negative sign will appear automatically if the red lead is on the more negative point.
⚠️ Important: Never exceed 1000V DC or 700V AC on this meter. This meter has no printed CAT rating — avoid using it on high-energy circuits such as utility mains panels.
🔌 How to Measure DC and AC Current
- Turn off power to the circuit before connecting the meter in series with it.
- For currents up to 200mA: connect the black lead to COM and the red lead to mA.
- For currents above 200mA (up to 20A): move the red lead to the 20A jack instead.
- Rotate the dial to the matching DC current (A⎓) or AC current (A∿) range.
- Break the circuit at the point you want to measure and connect the meter in series (current must flow through the meter).
- Restore power and read the display.
⚠️ Important: The 20A jack is unfused — there is no protection if you exceed 20A. Limit measurements on the 20A range to 10 seconds maximum to avoid overheating the meter's internal shunt. The mA jack is fused at 200mA (0.2A/250V) — exceeding this will blow the fuse (see Maintenance below for replacement).
🔌 How to Measure Resistance
- Make sure the circuit or component is completely powered off and disconnected from any voltage source before measuring resistance.
- Connect the black lead to COM and the red lead to VΩ→|.
- Rotate the dial to the Ω range that covers your expected value: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ, or 200MΩ.
- Touch the probes across the resistor or component and read the display.
📝 Note: If the display shows "1" (over range) with the probes not touching anything, that's normal — it indicates an open circuit. If you get "1" while measuring a component, try a higher resistance range.
🔊 How to Use the Continuity Buzzer
- Connect the black lead to COM and the red lead to VΩ→|.
- Rotate the dial to the continuity/buzzer position (marked with the speaker/note-like symbol next to the 200Ω range).
- Touch the probes across the wire, fuse, or connection you want to test.
- The meter will beep if there is a low-resistance (continuous) path between the probes — useful for quickly checking fuses, cables, and switches without reading an exact resistance value.
⚠️ Important: Only test continuity on a de-energized circuit. Never use continuity or resistance mode on a live/powered circuit.
🔺 How to Test a Diode
- Connect the black lead to COM and the red lead to VΩ→|. On this range, the red lead is the positive (+) terminal.
- Rotate the dial to the diode test position (same position as continuity on many meters in this family — check your dial for the diode symbol).
- Touch the red probe to the diode's anode and the black probe to its cathode (the forward direction). The display will show the approximate forward voltage drop (typically 0.5–0.7V for silicon diodes).
- Reverse the probes — a good diode should show "1" (over range/no conduction) in this direction.
⚡ How to Measure Capacitance
- Fully discharge the capacitor first by shorting its leads together with a resistor (never bare wire on larger capacitors) — never test a charged capacitor.
- Rotate the dial to the "F" (capacitance) range that covers your expected value: 20nF, 200nF, 2μF, 20μF, or 200μF.
- Wait for the display to auto-zero before connecting the capacitor.
- Insert the capacitor's leads directly into the Cx socket (not the test lead jacks) and read the display.
⚠️ Important: Never apply voltage to the Cx socket, and never test a charged capacitor — this can damage the meter.
🔧 How to Test a Transistor (hFE)
- Rotate the dial to the hFE position.
- Determine whether your transistor is NPN or PNP (check its datasheet).
- Insert the transistor's three legs into the correct E-B-C socket holes for its type (NPN or PNP), matching the Emitter, Base, and Collector pins to the labeled holes.
- Read the approximate hFE (gain) value on the display.
📝 Note: This is a rough approximation of gain under fixed test conditions, useful for sorting/matching transistors or a quick go/no-go check — not a substitute for a full component datasheet test.
⚠️ Safety Precautions
- Never exceed the protection limit values indicated in the specifications for each range.
- Do not touch unused terminals while the meter is connected to a measurement circuit.
- Never measure voltages above 1000V DC or 700V AC above earth ground. This meter is rated for Category II installations at these levels — it is not rated for Category III/IV environments such as utility service panels, distribution equipment, or industrial machinery.
- When the value to be measured is unknown, set the range selector to the highest position first and work down until you get a stable reading.
- Disconnect test leads from the circuit under test before rotating the range selector to change functions.
- Use extra caution around TVs or switching power supplies — these can have high-amplitude voltage pulses at test points that may damage the meter.
- Always use caution when working with voltages above 60V DC or 30V AC rms. Keep your fingers behind the probe finger guards while measuring.
- Disconnect test leads from any measurement circuit before inserting a transistor into the hFE socket.
- Never connect components to the hFE socket while making voltage measurements with the test leads.
- Never perform resistance, continuity, capacitance, or diode measurements on a live/energized circuit.
- Inspect test leads before every use — do not use leads with damaged, cracked, or exposed insulation.
- Fully discharge capacitors before testing them — never test a charged capacitor.
- Remove the battery if the meter will be stored for an extended period, to avoid leakage damage.
🎯 Typical Uses
- Electronics hobbyist projects: Checking battery voltage, verifying Arduino/microcontroller circuit voltages, testing LEDs and resistors
- DIY and home repair: Checking household outlet voltage, testing fuses and switches for continuity, diagnosing dead batteries and chargers
- Light manufacturing / assembly & test: Quick component verification (resistors, capacitors, diodes, transistors) during assembly or rework, continuity checks on wiring harnesses
- Automotive: Checking 12V battery and charging system voltage, testing fuses (with the vehicle off)
- General troubleshooting: Sorting/matching transistors by hFE, verifying capacitor values, tracing wiring faults
🛠️ Maintenance
Battery Replacement
When the display shows a low-battery indicator (or readings become unreliable), replace the 9V battery:
- Disconnect the test leads and turn the meter off.
- Open the battery compartment on the back of the case.
- Replace with a fresh standard 9V battery, matching the snap connector polarity.
- Close the compartment securely before further use.
Fuse Replacement
If current measurements stop working on the mA range (but voltage/resistance still work), the 200mA fuse has likely blown:
- Disconnect the test leads and turn the meter off.
- Open the case following the battery compartment / case screws.
- Replace with an identical 200mA (0.2A) / 250V fast-blow fuse. Do not substitute a higher-rated fuse — this removes the protection the fuse is designed to provide.
- Reassemble the case before use.
🛠️ Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Display won't turn on | Dead or missing battery | Check/replace the 9V battery. Verify the power button is fully pressed. |
| Display shows "1" only | Over range for the selected function | Turn the dial to a higher range for that function. |
| No current reading | Blown fuse on the mA jack, or wrong jack/range selected | Check the fuse (see Maintenance above). Verify you're using the correct jack (mA vs. 20A) for your expected current. |
| Voltage reading unstable or inaccurate | Poor probe contact, low battery, or wrong range | Ensure firm probe contact. Replace the battery. Try a different range. |
| Continuity buzzer doesn't sound on a known-good connection | Wrong dial position, or resistance above the buzzer's threshold | Confirm the dial is on the continuity/buzzer position, not plain resistance. Very slightly resistive connections may not trigger the buzzer even though the meter shows a low resistance value. |
| hFE reading seems off | Transistor inserted in wrong E-B-C holes, or wrong NPN/PNP side used | Double-check the transistor's pinout against its datasheet and re-insert in the correct socket side. |
📋 Quick Reference Card
| Display | 3-1/2 digit LCD, max 1999 |
| DC Voltage | 200mV – 1000V |
| AC Voltage | 200mV – 700V |
| DC/AC Current | 2mA – 200mA (fused), up to 20A (unfused, 10 sec max) |
| Resistance | 200Ω – 200MΩ |
| Capacitance | 20nF – 200μF |
| Extra Functions | Continuity buzzer, diode test, hFE transistor test |
| Power | Single 9V battery |
| Fuse | 200mA (0.2A) / 250V |
| Safety Rating | No CAT rating printed — low-voltage/electronics use only |
