📋 Overview

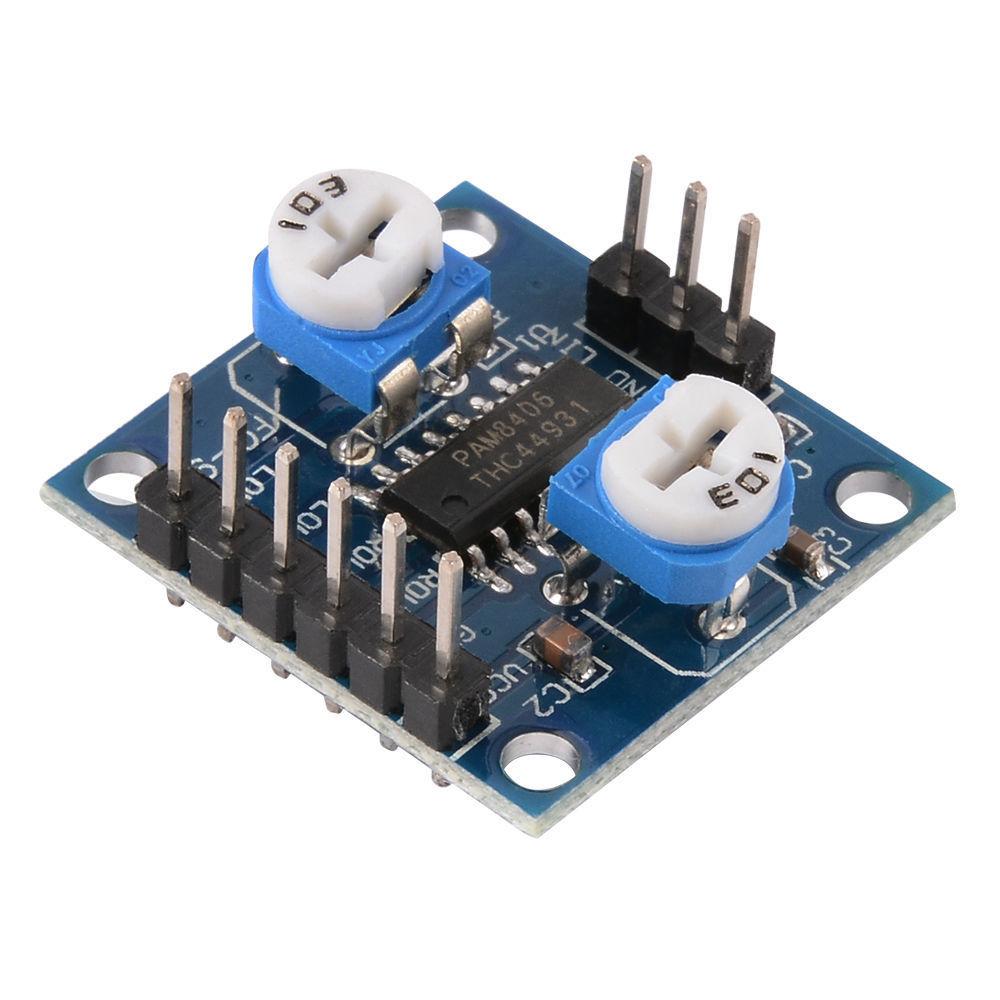

The PAM8406 is a miniature Class D stereo audio power amplifier module that delivers up to 5 watts per channel from a compact board you can hold between two fingers. It uses a filterless, fully differential output architecture — meaning it drives speakers directly without needing output filter capacitors or DC blocking capacitors, which saves cost and board space. The module runs from a standard 5V USB supply or battery pack and includes independent volume control potentiometers for the left and right channels, making it easy to drop into almost any DIY audio project.
⚠️ Important — Bridged (BTL) Output: The PAM8406 uses a fully differential (bridged) speaker output. Each speaker connects between its two output pins (e.g., LOUT+ and LOUT−). Do not connect either speaker terminal to ground — doing so will short the output and may damage the module or your power supply.
⭐ Key Features
- 5W per channel output (into 2Ω at 5V); scales down to 3W at 4Ω and 2W at 8Ω
- Operates from 2.5V–5.5V — compatible with USB power banks, phone chargers, and Li-ion/LiPo batteries
- Up to 90% power efficiency — minimal heat, longer battery life compared to Class AB designs
- Filterless Class D architecture — no output inductors or DC blocking caps required
- Low THD+N (Total Harmonic Distortion + Noise) and high SNR for clean audio reproduction
- Independent left and right channel volume control potentiometers built in
- Built-in short-circuit protection and thermal (over-temperature) shutdown
- Tiny form factor — fits easily into portable enclosures, robots, and IoT devices
- Through-hole header pins on 0.1″ (2.54 mm) centers for breadboard and perfboard compatibility
📊 Specifications
| Parameter | Value |
|---|---|
| Amplifier IC | PAM8406 |
| Amplifier Class | Class D (filterless, fully differential output) |
| Operating Voltage | 2.5V – 5.5V (recommended: 5V) |
| Output Power — 2Ω load | 5W per channel (at 5V, 10% THD+N) |
| Output Power — 4Ω load | 3W per channel (at 5V) |
| Output Power — 8Ω load | 2W per channel (at 5V) |
| Speaker Load (impedance) | 2Ω – 8Ω |
| Efficiency | Up to 90% |
| Volume Controls | Independent left and right channel potentiometers |
| Connector Pitch | 0.1″ (2.54 mm) |
| Protection | Short-circuit, over-temperature (thermal shutdown) |
| Dimensions | Approx. 24 × 23 × 10.5 mm (0.94 × 0.91 × 0.41 inches) L × W × H |
| Weight | 3g (Approx 0.1 ounces) |
🔧 How It Works
Class D amplifiers work very differently from the more traditional Class A or Class AB designs. Rather than continuously varying the output voltage to follow the audio waveform, a Class D amplifier rapidly switches its output transistors fully ON and fully OFF at a very high frequency (typically several hundred kHz). The ratio of on-time to off-time — called Pulse Width Modulation (PWM) — is what encodes the audio signal. When this switching signal drives a speaker, the speaker's own coil inductance naturally smooths the switching pulses and reproduces the intended audio waveform. This is what "filterless" means: the speaker itself acts as the filter.
Because the transistors are either fully on or fully off (never in between), very little power is wasted as heat — hence the up-to-90% efficiency. The fully differential (bridged) output means the positive and negative terminals of each speaker are both being driven actively, effectively doubling the voltage swing across the speaker and allowing more power delivery from a low supply voltage like 5V.
📌 Pin Layout
The PAM8406 FC-99 module has two rows of solder pads / header pins. Verify the labels against the silkscreen printed on your board, as pin order can vary slightly between production batches. The typical pin assignments are:
| Pin Label | Function | Notes |
|---|---|---|
| VCC | Power supply positive | 2.5V – 5.5V; 5V recommended |
| GND | Power supply ground | Also audio signal reference ground |
| L-IN (LINP) | Left channel audio input | Feeds left channel volume pot |
| R-IN (RINP) | Right channel audio input | Feeds right channel volume pot |
| LOUT+ (L+) | Left speaker output — positive terminal | Bridged output — do NOT tie to GND |
| LOUT− (L−) | Left speaker output — negative terminal | Bridged output — do NOT tie to GND |
| ROUT+ (R+) | Right speaker output — positive terminal | Bridged output — do NOT tie to GND |
| ROUT− (R−) | Right speaker output — negative terminal | Bridged output — do NOT tie to GND |
💡 Note: Always verify pin labels against the silkscreen on your specific board before wiring. The volume potentiometers are already wired internally between the input pins and the PAM8406 IC — you do not need to wire them separately.
🔌 Wiring / Connections
What You'll Need
- PAM8406 module (this board)
- 5V power supply — USB power bank, phone charger, or regulated 5V supply
- One or two speakers, 2Ω–8Ω impedance
- Audio source with line-level or headphone output (phone, Raspberry Pi, MP3 player, etc.)
- Hookup wire and soldering equipment, or breadboard jumper wires
Step 1 — Connect Power
Connect your 5V supply positive to the VCC pin and the supply negative (ground) to the GND pin. A USB power bank is an ideal source — simply use a USB breakout board or cable with exposed 5V and GND wires.
⚠️ Caution: Do not exceed 5.5V. Higher voltages will damage the module.
Step 2 — Connect Your Audio Source
Connect the left channel audio signal wire to the L-IN pin and the right channel signal wire to the R-IN pin. Connect the audio signal ground (the sleeve or common ground of your audio cable) to the module's GND pin. For a standard 3.5mm stereo headphone jack:
- Tip (left channel) → L-IN
- Ring (right channel) → R-IN
- Sleeve (ground) → GND
💡 Tip: The PAM8406 is designed for line-level or headphone-level audio inputs. If your source is very quiet, the output volume will be limited. If your source is very loud (overdrive), you may hear distortion — use the volume pots to reduce the level.
Step 3 — Connect Speakers
Connect your left speaker between LOUT+ and LOUT−, and your right speaker between ROUT+ and ROUT−. Speaker polarity (which wire goes to + vs −) determines the phase; if both speakers are wired the same way relative to their + and − pins, the stereo image will be correct.
⚠️ Critical: This is a bridged (BTL) output. Never connect LOUT−, ROUT−, or either speaker terminal to ground. Both output pins are actively driven and connecting them to ground will damage the module.
Step 4 — Adjust Volume
The two small potentiometers (knobs or trimmer screws) on the board independently control the left and right channel volume. Turn them clockwise to increase volume and counter-clockwise to decrease it. Start with them at mid-position and adjust to taste once powered on.
Wiring Summary
| Module Pin | Connect To |
|---|---|
| VCC | 5V supply positive |
| GND | 5V supply negative / audio signal ground |
| L-IN | Left channel audio signal (e.g., 3.5mm Tip) |
| R-IN | Right channel audio signal (e.g., 3.5mm Ring) |
| LOUT+ / LOUT− | Left speaker (across both terminals — not to GND) |
| ROUT+ / ROUT− | Right speaker (across both terminals — not to GND) |
🚀 Getting Started
- Solder header pins (if not pre-soldered) to the module pads, or use the pads directly with hookup wire.
- Wire the power supply — connect 5V and GND as described above. Do not power up yet.
- Wire your audio source — connect L-IN, R-IN, and audio GND.
- Connect the speakers — wire each speaker across its respective LOUT+/LOUT− or ROUT+/ROUT− pair.
- Set volume pots to low — turn both potentiometers fully counter-clockwise before applying power to avoid an unexpected loud burst.
- Apply power — connect your 5V supply. The module has no power LED, but it should be ready immediately.
- Play audio — start your audio source and slowly increase the volume pots until you reach a comfortable listening level.
💡 Quick Start Tip: A USB power bank is the easiest power source for initial testing. Simply use a USB Type-A breakout board or cut an old USB cable to access the 5V (red) and GND (black) wires.
💡 Tips
- Match speaker impedance to your power needs. 2Ω speakers give the highest output (5W) but draw the most current (~1A per channel). 4Ω and 8Ω speakers produce less power but are more efficient and generate less heat — a good choice for battery-powered builds.
- A phone charger or USB power bank works perfectly. Both can easily supply the 5V/2A needed for full stereo output. No special power supply is required.
- 3.7V LiPo batteries also work — but output power will be reduced (approximately 2–3W per channel at 3.7V). For best performance, use a 5V regulated supply or a 1-cell LiPo with a 5V boost converter.
- Keep the wires between the module and speakers short. Long, thin speaker wires add resistance and can slightly reduce output power and efficiency.
- The module runs cool at normal volumes. If it feels hot to the touch, check that your speaker impedance is not below 2Ω and that the supply voltage is not above 5.5V.
- For mono use, you can bridge both channels by feeding the same audio signal to both L-IN and R-IN and connecting a single speaker to either output pair.
- Ground loop hum? If you hear a 60Hz hum when connecting to a computer or phone, try isolating the audio ground from the power ground, or use a small audio isolation transformer on the input.
🎯 Applications
- DIY Bluetooth speaker (pair with a Bluetooth audio receiver module)
- Raspberry Pi or BeagleBone audio output amplifier
- Arduino-based audio project amplifier stage
- Portable USB-powered desktop speaker system
- Battery-powered FM radio amplifier
- Retro gaming console audio amplifier
- Robotics — voice output or alarm audio
- IoT devices requiring compact audio output
🚫 Limitations
- Maximum supply voltage is 5.5V — do not use 9V, 12V, or other higher-voltage supplies without a regulator. The IC will be permanently damaged.
- Minimum speaker impedance is 2Ω — do not connect speakers below 2Ω. This can cause excessive current draw, overheating, and damage.
- No audio input connector — you must solder or wire the audio input directly to the board pads.
- Filterless Class D output can cause RF interference — the high-frequency switching signal radiates from the speaker wires. Keep speaker leads short and avoid routing them near sensitive radio receivers.
- Not suitable for headphone use — the bridged output is not compatible with standard headphones. Use speakers only.
- No standby or mute control — the module is always active when powered. There is no software-controlled mute or enable pin exposed on this module variant.
🛠️ Troubleshooting
| Symptom | Possible Cause | Solution |
|---|---|---|
| No sound from either channel | No power or incorrect wiring | Verify 5V is present on VCC and GND. Check all solder joints. Confirm audio source is playing and connected to L-IN / R-IN. |
| No sound from one channel | Volume pot fully counter-clockwise, broken solder joint, or faulty speaker | Turn the affected channel's volume pot clockwise. Recheck solder connections on that channel's input and output pins. Test the speaker independently. |
| Sound is distorted or buzzy | Input signal too loud (overdrive) or speaker impedance too low | Reduce the input source volume or turn down the module's volume pot. Confirm speaker impedance is 2Ω or higher. |
| Module shuts off / cuts out | Thermal shutdown triggered | Reduce volume, check speaker impedance, and ensure the module has adequate airflow. The module will automatically restart once it cools down. |
| 60Hz or 50Hz hum | Ground loop between audio source and power supply | Ensure audio source ground and power supply ground share a single common point. Try a USB audio isolator or audio isolation transformer on the input. |
| Low volume even at full pot | Audio source signal level too low, or supply voltage below 5V | Verify the supply is providing close to 5V under load. Increase the output level of the audio source if possible. |
| Power supply shuts down / trips current limit | Speaker impedance too low or short circuit | Disconnect speakers and re-check for wiring shorts. Verify speaker impedance is 2Ω or higher. Do not connect speaker outputs to GND. |
