📋 Overview
The PAM8610 is a compact, 2-channel Class D stereo audio power amplifier module that delivers up to 10W per channel (10W + 10W) from a small 1.6" x 1.6" (40 × 40 mm) board. Powered by the PAM8610 amplifier IC, it runs at up to 90% efficiency — making it an excellent choice for battery-powered and portable audio applications. It includes a built-in volume control potentiometer, screw terminals for easy speaker connections, and robust protection features right out of the box.
⚠️ Important — Read Before Powering On: Always connect your speakers before applying power. Attach the included heat sink to the amplifier IC before first use. Do not connect the negative (−) terminals of the left and right speaker channels together — this will damage the module.
⭐ Key Features
- Class D Amplification: Up to 90% efficiency — ideal for battery-powered projects and portable speakers.
- 10W + 10W Stereo Output: Delivers ample power for most small to medium-sized speakers (at 8Ω, 12V).
- Wide Operating Voltage: Works from 7.5V to 15V DC — compatible with standard 9V and 12V power supplies.
- Onboard Volume Control: Rotary potentiometer lets you adjust audio output without any external components.
- Easy Speaker Connection: Screw terminals for quick, secure wiring — no soldering required for speakers.
- 3.5mm Stereo Audio Input: Connects directly to phones, tablets, computers, and other standard audio sources.
- Pop-Free Operation: Built-in circuitry suppresses the click/pop sounds common during power on and off.
- Built-in Noise Cancellation: Minimizes unwanted hiss and interference for clean audio reproduction.
- External Switch Support: Optional connectors for an external power switch and mute switch (SPST).
- Protection Features: Short-circuit protection, under-voltage lockout, and over-temperature shutdown.
- Compact Form Factor: 1.6 x 1.6 inch (40 × 40 mm) footprint makes it easy to integrate into enclosures and DIY builds.
📊 Specifications
| Parameter | Value |
|---|---|
| Amplifier IC | PAM8610 |
| Amplifier Class | D |
| Output Power | 10W + 10W (at 8Ω load, 12V supply) |
| Frequency Response | 20 Hz – 50 kHz |
| Efficiency | Up to 90% |
| Operating Voltage | 7.5V – 15V DC |
| Recommended Supply | 12V DC at 2A |
| Quiescent Current | 20 mA |
| Speaker Impedance | 4–8Ω (8Ω recommended) |
| Audio Input Connector | 3.5mm stereo headphone jack |
| DC Power Connector | 5.5mm / 2.1mm barrel jack (center positive) |
| Speaker Connectors | Screw terminals (left and right channels) |
| Mute Switch Connector | JST-style, 2.54mm (0.1") pin pitch |
| Dimensions (board only) | Approx. 40 × 40 × 22 mm (1.6 × 1.6 × 0.9 inches) L × W × H |
| Dimensions (with knob) | Approx. 55 × 40 × 22 mm (2.2 × 1.6 × 0.9 inches) L × W × H |
| Weight | 24g (0.85 ounces) |
📌 Module Overview

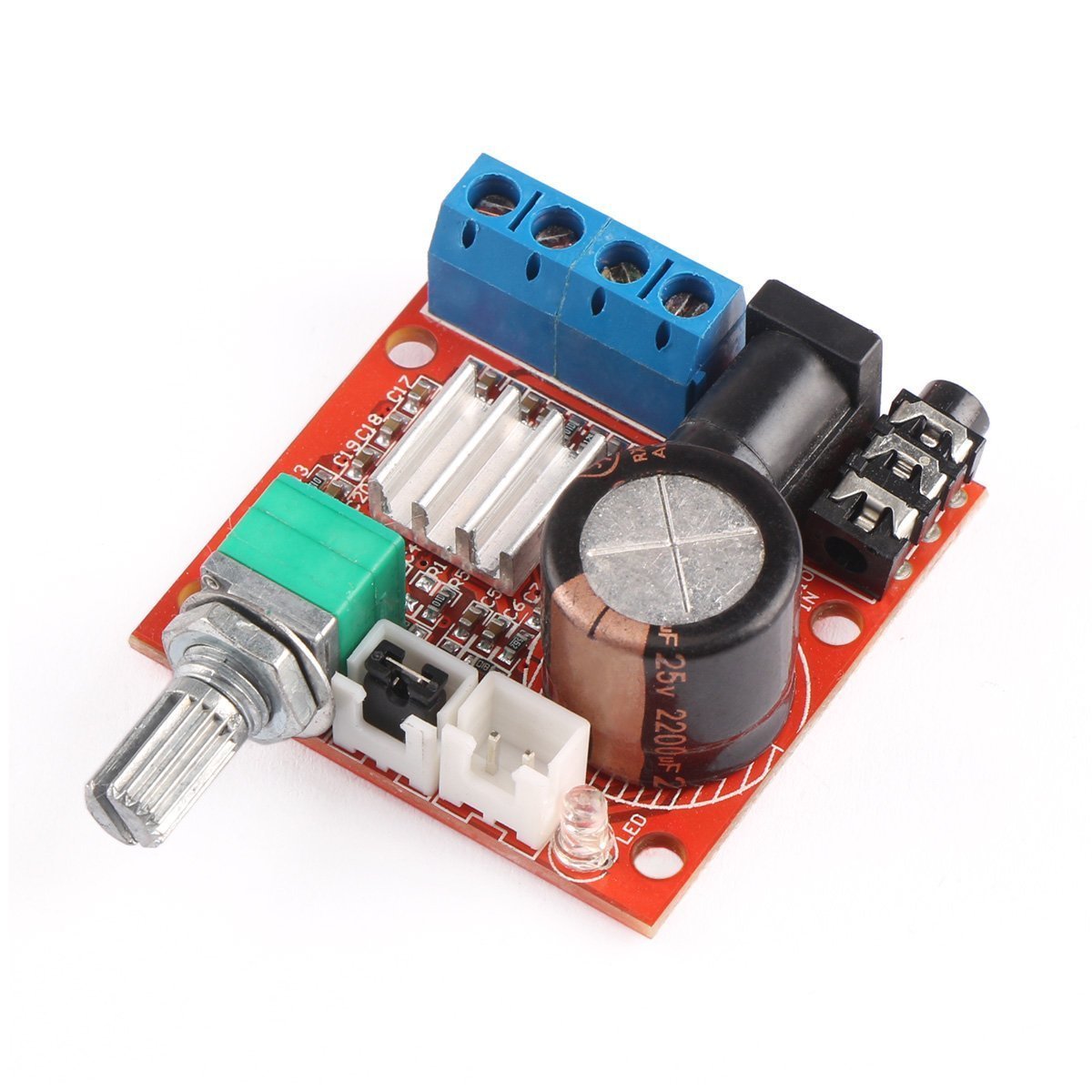

The image below identifies the key connectors and components on the PAM8610 module. Familiarize yourself with each part before starting your installation.
Key Components
- Audio Input Jack: 3.5mm stereo jack. Connect your audio source (phone, computer, media player, etc.) here using a standard 3.5mm stereo cable.
- DC Power Jack: 5.5mm / 2.1mm barrel connector. Connect your DC power supply here. Center pin is positive (+).
- Left Speaker Terminals (L+ / L−): Screw terminals for the left speaker. Observe polarity — connect the positive wire to L+ and the negative wire to L−.
- Right Speaker Terminals (R+ / R−): Screw terminals for the right speaker. Observe polarity — connect the positive wire to R+ and the negative wire to R−.
- Volume Potentiometer: Rotary knob for adjusting the audio output level.
- Power LED: Lights up when the module is powered on.
- Power Switch Connector: 2-pin connector for an optional external SPST power switch. A jumper is included — keep the jumper installed if you are not using an external switch.
- Mute Switch Connector: 2-pin JST-style connector for an optional external SPST mute switch. Closing the switch mutes the audio output; opening it restores audio.
- Amplifier IC (PAM8610): The main amplifier chip on the top of the board. The included heat sink must be attached here before powering the module.
📦 What's in the Box
- 1 × PAM8610 10W+10W Class D Stereo Audio Power Amplifier Module with Volume Control
- 1 × Self-adhesive heat sink (for the amplifier IC)
- 1 × Power switch jumper (pre-installed on the Power Switch connector)
💡 Tip: The heat sink ships in a small plastic bag alongside the module. Check the packaging carefully before discarding anything — it's easy to miss!
🚀 Getting Started
Before You Begin — Important Precautions
- Connect speakers first. Always connect your speakers to the screw terminals before applying power to the module. Running the amplifier without a speaker load can cause damage.
- Do not bridge the negative terminals. Never connect the L− and R− speaker terminals together. The PAM8610 uses a bridge-tied load (BTL) output design — bridging the negatives will short the outputs and damage the IC.
- Attach the heat sink. Before applying power for the first time, peel the backing from the self-adhesive heat sink and press it firmly onto the PAM8610 IC. Running the module without a heat sink risks overheating at moderate to high volumes.
- Use the right power supply. Use a 7.5V–15V DC supply rated at least 2A. A 12V / 2A regulated supply is ideal. The center pin of the barrel connector is positive (+).
- Check polarity. Reversed power supply polarity may permanently damage the module. Double-check before connecting.
Step-by-Step Setup
- Attach the heat sink. Peel the backing from the self-adhesive heat sink and press it firmly onto the PAM8610 amplifier IC on the top of the board. Press and hold for a few seconds to ensure a good bond.
- Connect the speakers. Using the screw terminals, connect your left speaker wires to the L+ and L− terminals, and your right speaker wires to the R+ and R− terminals. Tighten the screws snugly. Recommended speaker impedance is 8Ω; do not use speakers below 4Ω.
- Connect the audio source. Plug a standard 3.5mm stereo audio cable from your audio source (smartphone, computer, tablet, or other device) into the 3.5mm audio input jack.
-
Configure the power switch.
- No external switch (most common): Leave the supplied jumper installed on the Power Switch connector. The module will power on as soon as DC power is applied.
- External SPST switch: Remove the jumper and connect your switch to the Power Switch connector. Closing the switch powers the module on; opening it powers it off.
- Turn the volume down. Before connecting power, rotate the volume potentiometer fully counter-clockwise to the minimum position. This prevents loud startup pops and protects your speakers.
- Connect the power supply. Plug a 12V DC / 2A power supply (center positive) into the 5.5mm barrel jack. The Power LED should illuminate.
- Adjust the volume. Play audio from your source and slowly rotate the volume knob clockwise to your desired level.
- Optional — Mute switch: If you want an external mute control, connect an SPST switch to the Mute Switch connector. Closing the switch will mute the audio; opening it restores it.
🔌 Wiring Reference
Speaker Connections
| Terminal | Connect To |
|---|---|
| L+ | Left speaker positive (+) |
| L− | Left speaker negative (−) |
| R+ | Right speaker positive (+) |
| R− | Right speaker negative (−) |
⚠️ Critical: Do not connect L− and R− to each other or to any common ground. This will damage or destroy the amplifier. Each channel uses a bridge-tied load (BTL) output — neither output terminal is at ground potential.
Power Connection
| Connector | Specification |
|---|---|
| Type | 5.5mm outer / 2.1mm inner barrel jack |
| Polarity | Center pin = Positive (+); Outer sleeve = Negative (−) |
| Voltage | 7.5V – 15V DC (12V recommended) |
| Current | 2A minimum recommended |
Optional External Switch Connectors
| Connector | Switch Type | Function |
|---|---|---|
| Power Switch | SPST (momentary or toggle) | Close = Power ON; Open = Power OFF. Install jumper if not using. |
| Mute Switch | SPST | Close = Mute audio; Open = Audio active. |
🎯 Typical Applications
- DIY desktop computer speakers
- Portable Bluetooth speaker builds (paired with a Bluetooth audio receiver module)
- Battery-powered PA or monitor speakers
- Amplified speaker enclosures for embedded projects (Raspberry Pi, etc.)
- Ham radio audio amplification and speaker driver
- Replacement amplifier for vintage or repaired audio equipment
- Workshop or workbench audio monitor
💡 Tips
- Power supply quality matters. For the cleanest audio, use a regulated DC power supply rather than a cheap unregulated adapter. Noise on the power rail will show up in your audio output.
- 8Ω speakers sound best. While 4Ω speakers will work, 8Ω gives better efficiency and runs cooler. Avoid speakers below 4Ω entirely.
- The volume knob is sensitive. Most of the useful volume range is in the lower half of the pot's travel. For finer control at low volumes, consider adding an external 10kΩ potentiometer in series with the audio input signal.
- Screw terminal tips. If the screw terminals feel stiff or difficult to turn, try using a small flat-head screwdriver rather than a Phillips. Alternatively, you can solder speaker wires directly to the pads on the underside of the board.
- Heat sink is not optional at high volumes. At maximum volume or with 4Ω speakers, the PAM8610 IC can get warm. If the heat sink is not attached, the module's thermal protection will shut it down. Always attach the heat sink before first use.
- Turn volume down before power cycling. Getting into the habit of turning the volume to minimum before cutting power will extend the life of your speakers and avoid sudden loud pops.
🛠️ Troubleshooting
No Sound from Either Speaker
- Verify the DC power supply is connected and within the 7.5V–15V range. Check the Power LED — it should be lit.
- Confirm the Power Switch jumper is installed (if not using an external switch), or that your external switch is in the closed (ON) position.
- Check that the audio source is playing and the volume is turned up — both on the source device and on the module's volume knob.
- Verify the 3.5mm audio cable is fully seated in the input jack.
- Check that the Mute Switch is open (disconnected), or that any external mute switch is not in the closed (muted) position.
Sound from One Speaker Only
- Confirm the audio source is outputting stereo — some sources may be set to mono or may only output on one channel.
- Check the speaker wiring on the silent channel. A loose screw terminal or broken wire is the most common cause.
- Test by swapping the left and right speakers. If the problem follows the speaker, the speaker may be faulty. If the problem stays on the same channel, re-inspect that channel's wiring.
Distorted or Clipping Sound
- Reduce the volume level on the module and/or on the audio source device.
- Verify the speaker impedance is 4Ω or higher. Speakers below 4Ω can overload the amplifier.
- Check the power supply voltage and current rating. A power supply that cannot deliver enough current will sag under load, causing distortion.
Humming or Buzzing Noise
- Try a different power supply. Switching-mode (SMPS) power supplies can inject noise — a linear regulated supply will be quieter.
- Keep the audio input cable away from the power supply cable and any switching electronics (DC-DC converters, motor controllers, etc.).
- Ensure a good quality 3.5mm cable is used. Cheap or damaged cables are a common noise source.
Module Shuts Down or Gets Very Hot
- Confirm the heat sink is attached to the PAM8610 IC. The module will activate its thermal shutdown if the IC overheats.
- Reduce the volume level — sustained high-volume playback generates the most heat.
- Check that the speaker impedance is not below 4Ω. Low-impedance loads draw more current and generate more heat.
- Ensure the module has adequate ventilation in its enclosure.
Popping Sound During Power On/Off
- The PAM8610 includes pop-suppression circuitry, but a small click may still occur at high volume settings. Turn the volume down before powering on or off.
⚠️ Safety & Important Notes
- Do not expose the module to moisture, condensation, or liquids.
- Do not operate outside the rated voltage range (7.5V–15V DC). Over-voltage will permanently damage the module.
- Always connect the speaker load before applying power.
- Never connect the L− and R− speaker terminals together.
- Disconnect the power supply before making any wiring changes.
- Do not disassemble or modify the module.
- Keep the module away from flammable materials when operating at high power levels.
- This module is intended for hobbyist, educational, and prototyping use. It is not intended for use in life-safety or critical systems.
