This guide covers setup, wiring, mounting, and use of the 650nm 5mW Red Dot/Point Laser Diode Module — a compact, pre-wired laser module in a 12mm brass housing that projects a focused red dot (not a line). It uses an APC (Automatic Power Control) drive circuit, so you can connect it directly to a 3V–6V DC power source with no additional components needed.
This module is ideal for pointing, targeting, precision alignment reference points, laser tripwires, and any application where you need a single focused point of light rather than a spread line. If you need a line laser instead, see our 650nm Red Line Laser Module User Guide.
⚠️ LASER SAFETY WARNING: This module emits a visible laser beam. Never point a laser at anyone's eyes, face, or at animals. Never aim at aircraft, vehicles, or reflective surfaces. Even at 5mW, direct or reflected laser light can cause eye injury. Always treat this module with the same caution as any laser device. See the full Safety section below.
💡 What Is This Module?

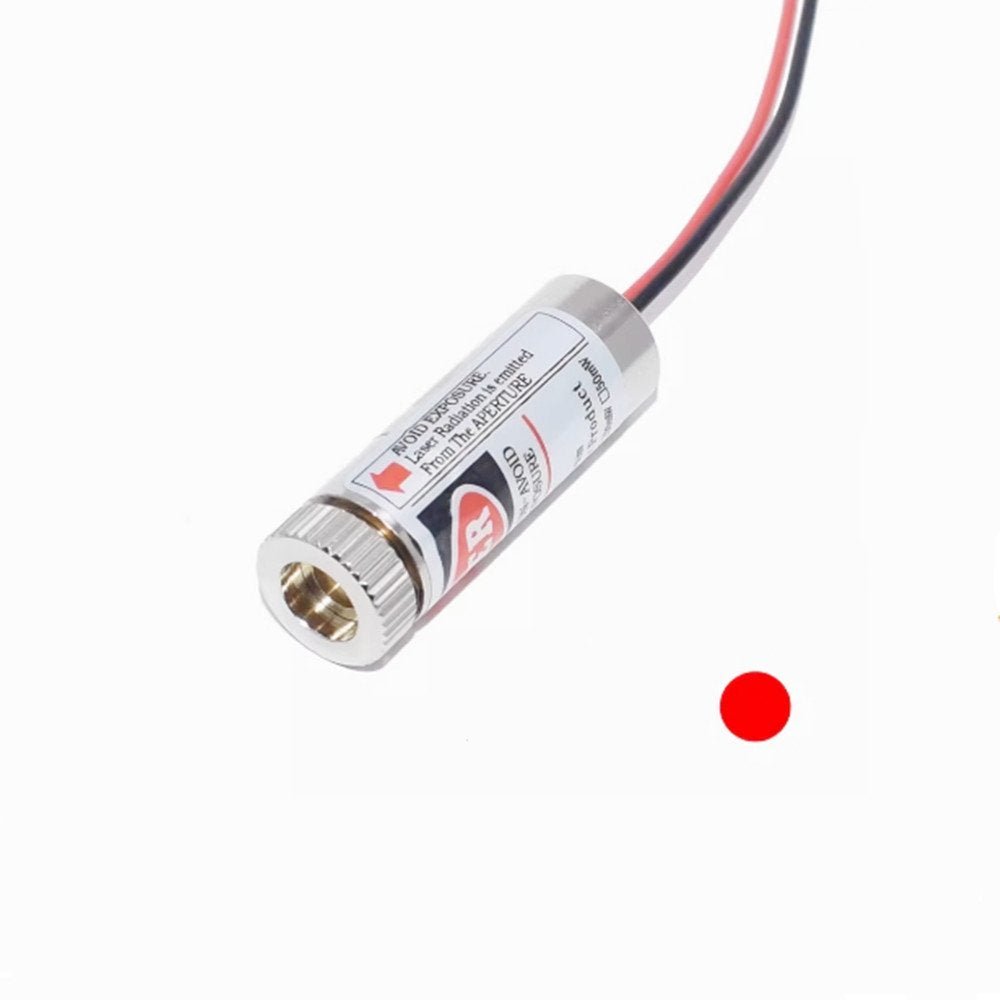

This is a dot laser diode module — it produces a tightly focused single point of red laser light rather than a spread line. It uses an APC (Automatic Power Control) drive circuit, which actively monitors and regulates the laser diode's output current to keep brightness stable and consistent even as supply voltage and temperature fluctuate. This is a more sophisticated approach than a simple fixed resistor, and it helps protect the diode from voltage fluctuations across its DC3V–6V operating range.
How a Dot Laser Differs from a Line Laser
| Feature | This Dot Laser (12mm) | Line Laser (12mm) |
|---|---|---|
| Beam pattern | Single dot | 120° line |
| Best for | Pointing, targeting, tripwires | Alignment, leveling, cutting guides |
| Lens type | Spherical (focuses to a point) | Cylindrical (spreads into a line) |
| Housing | 12mm × 35mm brass | 12mm × 35mm chrome-plated brass |
| Operating voltage | DC3V – 6V | 3.0V – 5.0V |
| Max current draw | 40mA | ~30mA |
| Drive circuit | APC (Automatic Power Control) | Built-in (fixed) |
| Lead length | ~135mm (5") | ~135mm (5") |
| Case isolated? | No — case tied to anode | No — case tied to anode |
⚠️ Critical: Case Isolation Warning
This is the most important thing to understand about this module before you use it:
The metal case is NOT electrically isolated. The brass housing is internally connected to the laser diode's anode (positive terminal). This means the case is "live" — it carries the same voltage as your power supply's positive rail.
What This Means in Practice
- If the case touches any grounded metal surface (chassis, heatsink, mounting bracket, aluminum enclosure, breadboard ground rail), it will short-circuit the laser diode and likely destroy it instantly.
- If you mount the module in a metal bracket or clip, you must insulate the case from the bracket.
- If you hold the module with metal tweezers or pliers while it's powered, you risk shorting it through your tool.
How to Mount Safely
| Method | How | Best For |
|---|---|---|
| Heat-shrink tubing | Slide a 12mm heat-shrink tube over the case, leaving the lens exposed. Shrink with a heat gun. | Quick insulation for any mounting method |
| Nylon/plastic clip | Use a 12mm nylon cable clip or 3D-printed holder. No metal contact. | Non-conductive mounting to any surface |
| Rubber grommet | Press the module through a 12mm rubber grommet in a panel hole. | Panel mounting with vibration dampening |
| 3D-printed bracket | Print a custom holder in PLA/PETG with a 12mm bore. | Custom angles and positions |
| Hot glue | Glue the module directly to a surface. The glue acts as insulation. | Quick prototyping, permanent installations |
| Electrical tape wrap | Wrap the case in 1–2 layers of electrical tape before inserting into a metal holder. | Temporary or prototype setups |
Test before powering: After mounting, use a multimeter in continuity mode to verify there is no continuity between the laser case and your circuit's ground. If there is continuity, the case is grounded and the module will be damaged when powered.
⭐ Features
- Precision dot beam: Spherical lens focuses the laser into a sharp point — ideal for pointing, targeting, and single-point alignment.
- APC drive circuit: Automatic Power Control keeps output stable and consistent, compensating for temperature and voltage changes across the DC3V–6V range.
- Adjustable focus: Rotate the threaded lens ring to fine-tune dot size and sharpness for different working distances.
- Ready to use: Built-in APC driver circuit — no external resistor or driver needed. Just connect power and ground.
- Pre-wired: ~135mm (5") leads already soldered — no soldering required.
- Compact brass housing: 12mm diameter × 35mm long — durable, corrosion-resistant, excellent heat dissipation.
- Wide operating range: Runs on DC3V–6V, giving flexibility across battery packs, regulated supplies, and microcontroller-friendly voltages.
📋 Specifications
| Parameter | Value |
|---|---|
| Laser Wavelength | 650nm (red) |
| Optical Power | Max 5mW |
| Laser Class | Class IIIa / 3R |
| Beam Pattern | Dot (point) |
| Operating Voltage | 3V – 6V DC |
| Max Operating Current | 40mA |
| Drive Circuit | APC (Automatic Power Control) |
| Focus | Manually adjustable (threaded lens ring) |
| Housing Material | Chrome Plated Brass |
| Housing Dimensions | Approx. 12 × 35 mm (0.47 x 1.38 inches) Diameter × Length |
| Lead Length | ~135mm (5") |
| Weight | 13.5g (0.48 oz) |
| Case Isolation | NOT isolated — case tied to laser diode anode |
🔌 Wiring and Setup
Basic Connection (Direct to Power Supply)
- Connect the positive wire to the positive (+) terminal of your DC3V–6V power source.
- Connect the negative wire to the negative (−) / ground terminal.
- The laser dot turns on immediately.
- Do not allow the metal case to touch any grounded surface.
Suitable power sources:
- USB port or USB charger (via breakout board or cut cable)
- Arduino 5V pin or digital output pin
- 2–4× AA/AAA batteries in series (3–6V depending on count)
- Any regulated DC3V–6V supply
Important: Do not exceed 6V. Higher voltages can damage or destroy the laser diode, even with the APC circuit in place.
Arduino Connection (On/Off Control)
Because the module draws a maximum of ~40mA, it can be powered directly from an Arduino digital output pin (which can source up to 40mA):
| Laser Wire | Arduino Pin |
| Positive (+) | Digital pin (e.g., D7) |
| Negative (−) | GND |
Using a Transistor (Recommended for Raspberry Pi and Higher-Current Setups)
If your microcontroller can't source 40mA from a GPIO pin (like the Raspberry Pi), or if you want to switch the laser from a separate supply:
- Connect the laser's positive wire to your DC3V–6V supply positive.
- Connect the laser's negative wire to the collector (or drain) of an NPN transistor (e.g., 2N2222) or N-channel MOSFET.
- Connect the emitter (or source) to ground.
- Connect the base (or gate) to your microcontroller's GPIO pin through a 1KΩ resistor.
- Setting the GPIO pin HIGH turns the laser on; LOW turns it off.
Note on PWM dimming: Because this module uses an APC circuit that actively regulates output power, it may respond to PWM dimming differently than a simple resistor-driven laser — the APC circuit can partially compensate for reduced average voltage, so brightness may not scale as linearly as expected. Digital on/off control is the most reliable and predictable way to operate this module.
💻 Arduino Example Code
Example 1: Simple On/Off Control
const int laserPin = 7; // Laser connected to digital pin 7
void setup() {
pinMode(laserPin, OUTPUT);
}
void loop() {
digitalWrite(laserPin, HIGH); // Laser ON
delay(2000); // On for 2 seconds
digitalWrite(laserPin, LOW); // Laser OFF
delay(1000); // Off for 1 second
}
Example 2: Dot Laser Tripwire with LDR Sensor
This example uses the laser module paired with a photoresistor (LDR) to create a simple laser tripwire. When the beam is broken, the serial monitor reports the event.
const int laserPin = 7; // Laser on digital pin 7
const int ldrPin = A0; // LDR (photoresistor) on analog pin A0
int threshold = 500; // Adjust based on your ambient light
void setup() {
pinMode(laserPin, OUTPUT);
digitalWrite(laserPin, HIGH); // Turn laser on
Serial.begin(9600);
delay(1000); // Allow LDR to stabilize
// Auto-calibrate threshold
int baseline = analogRead(ldrPin);
threshold = baseline / 2; // Trip when light drops below 50%
Serial.print("Baseline: ");
Serial.print(baseline);
Serial.print(", Threshold: ");
Serial.println(threshold);
}
void loop() {
int ldrValue = analogRead(ldrPin);
if (ldrValue < threshold) {
Serial.println("*** BEAM BROKEN! ***");
// Add your alarm action here (buzzer, LED, relay, etc.)
delay(500); // Debounce
}
delay(50);
}
Example 3: Laser Target Practice with Multiple Sensors
const int laserPin = 7;
const int numTargets = 3;
const int targetPins[numTargets] = {A0, A1, A2};
int score = 0;
void setup() {
pinMode(laserPin, OUTPUT);
digitalWrite(laserPin, HIGH);
Serial.begin(9600);
}
void loop() {
for (int i = 0; i < numTargets; i++) {
int reading = analogRead(targetPins[i]);
if (reading > 700) { // Adjust threshold for your LDR/photodiode setup
score++;
Serial.print("Hit on target ");
Serial.print(i);
Serial.print("! Score: ");
Serial.println(score);
delay(300); // Debounce
}
}
}
🔧 Focusing the Dot
- Power on the laser and aim it at a surface at your intended working distance.
- Gently rotate the threaded lens ring at the front of the module.
- Turn slowly in either direction until the dot appears as small and sharp as possible.
- The lens may be slightly stiff — use gentle finger pressure. Do not use pliers, which can damage the housing.
Note: The exact dot size at a given distance will vary between individual modules due to normal manufacturing tolerances in the lens and diode alignment. Focus and test each module at your actual working distance rather than relying on a fixed number.
🎯 Project Ideas & Applications
- Laser tripwire / security beam: Pair with a photoresistor (LDR) or photodiode to detect when the beam is broken. Trigger an alarm, buzzer, or notification.
- Distance/alignment reference point: Use as a fixed visual reference for alignment, leveling, drilling, or positioning in DIY projects.
- Laser target practice game: Combine with LDR sensors on targets to detect hits and keep score with an Arduino.
- Pointing and presentations: A simple, precise laser pointer for demonstrations and presentations.
- Robotics: Use as a visual indicator of where a robot is pointing or aiming, or for basic targeting feedback.
- Optics experiments: Demonstrate reflection, refraction, and diffraction with mirrors, prisms, and diffraction gratings.
- CNC/3D printer alignment: Use as a visual crosshair for positioning the work piece or print bed.
- Arduino and STEM projects: Teach digital output, sensor integration, and optical principles.
🔌 Compatibility
- Arduino (Uno, Mega, Nano, Leonardo) — connect directly to a digital or PWM pin (draws up to 40mA, at the edge of the pin's rated limit — a transistor is recommended if driving other loads simultaneously)
- ESP32 / ESP8266 — 3.3V is within the module's DC3V–6V range and should light the laser, though a transistor/MOSFET switching a separate 5–6V supply is recommended for full, consistent brightness
- Raspberry Pi — use a transistor or MOSFET to switch power from the Pi's 5V rail. Do not connect directly to GPIO (3.3V, current-limited)
- Any 3V–6V DC source — USB power banks, USB chargers, battery packs, regulated supplies
⚠️ Laser Safety
This module is classified as a Class IIIa / 3R laser product (max 5mW at 650nm). While it is low power, it can still cause eye injury with direct or reflected beam exposure.
Mandatory Safety Rules
- Never look directly into the laser beam. Even brief exposure can cause retinal damage.
- Never point the laser at anyone's eyes or face — including your own, other people, and animals.
- Never aim at aircraft, vehicles, or traffic. This is a federal crime in the United States (14 CFR § 91.11) and many other countries.
- Avoid reflective surfaces. Mirrors, polished metal, glass, and glossy surfaces can redirect the beam unpredictably. Be aware of what is behind and around your target.
- Never leave the laser powered on unattended where people or pets could be exposed.
- Supervise children at all times. This is not a toy. Children should only use laser modules under direct adult supervision.
Best Practices
- Always know what is in the beam path and what is behind your target.
- Work in well-lit environments — your pupils are smaller in bright light, reducing the amount of laser light that can enter your eye.
- When testing, aim the laser at a non-reflective surface (matte white paper or cardboard works well).
- If using with pets, never shine directly at the animal — keep the dot on the floor/wall and avoid reflective surfaces.
- Store unused modules with the leads disconnected or insulated to prevent accidental activation.
🛠️ Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Laser doesn't turn on | Wires reversed, no power, or dead module | Verify polarity. Measure voltage at the leads with a multimeter. Check that the case is not touching a grounded surface. |
| Laser died immediately after powering on | Case shorted to ground | The non-isolated case likely contacted a grounded surface. The laser diode is destroyed. Use a new module and insulate the case before mounting. See the Case Isolation section above. |
| Dot is large or unfocused | Lens not adjusted | Gently rotate the threaded lens ring to focus. Some variation between modules is normal. |
| Dot shape is irregular (not round) | Lens misalignment or manufacturing variation | Try gently rotating the lens. Some modules may produce a slightly oval or irregular dot — this is normal for this class of module. |
| Laser is very dim | Supply voltage too low | Ensure supply is at least 3V. Check for voltage drop across long wires or breadboard connections. |
| Laser flickers | Loose connection or intermittent case short | Check all wire connections. Verify the case is not intermittently touching a grounded surface. |
| PWM dimming doesn't behave like an LED | APC circuit compensating for reduced average voltage | This is expected — the APC circuit actively regulates output. Use digital on/off control for predictable behavior instead of PWM dimming. |
| Laser works on Arduino but not on ESP32/Raspberry Pi | 3.3V insufficient or GPIO current-limited | Use a transistor/MOSFET to switch power from a 5–6V supply. See the Compatibility section above. |
📋 Quick Reference Card
| Wavelength | 650nm (red) |
| Power | Max 5mW |
| Beam Pattern | Dot (point) |
| Supply Voltage | DC3V – 6V |
| Max Current Draw | 40mA |
| Drive Circuit | APC (Automatic Power Control) |
| Housing | 12mm × 35mm brass |
| Case Isolated? | NO — do not ground the case! |
| Arduino Compatible | Yes — direct to digital pin |
| Safety Rule #1 | NEVER look into the beam or point at eyes |
