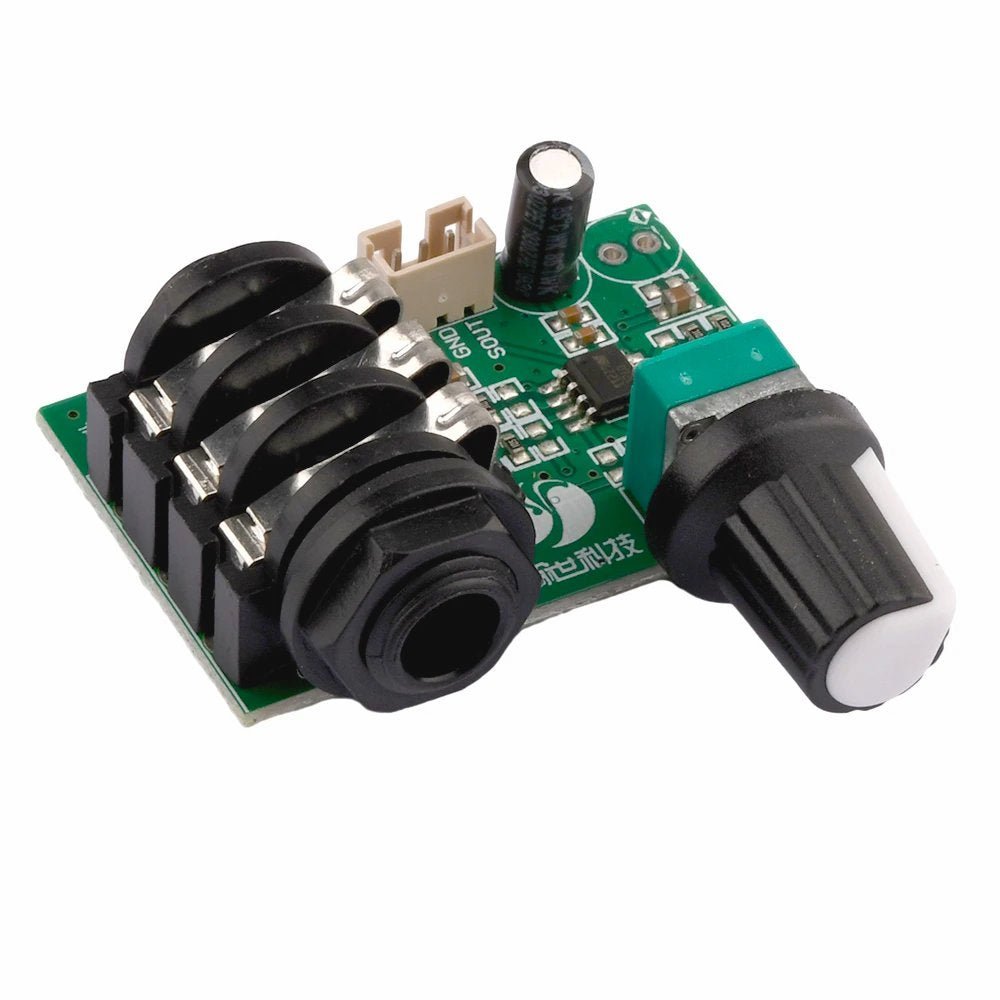

The TL072 High-Impedance Guitar and Microphone Preamp Module is a compact audio preamplifier designed for electric guitars, bass guitars, and other high-impedance instruments, as well as microphones. Built around the Texas Instruments TL072 dual JFET operational amplifier, it provides clean signal amplification with low noise. This module operates on a single positive supply (+9V to +15V DC) and delivers a fixed 10x (20dB) gain with a flat frequency response across the full audio spectrum.
⚠️ Important: This module accepts unbalanced audio input only. The microphone connector uses two pins: Ground (tip) and + Signal. Do not attempt to connect a balanced audio source.
⭐ Key Features
- High Input Impedance: 1MΩ — ideal for passive pickups and microphones
- Fixed Gain: 10x amplification (20dB)
- Single Supply Operation: +9V to +15V DC (typically 12V)
- Low Noise: JFET input stage minimizes noise
- Unbalanced Input: Microphone connector accepts Ground (tip) and + Signal only
- Onboard Volume Control: Potentiometer adjusts output level
- Compact Design: Easy integration into pedals, instruments, and enclosures
📊 Specifications
Electrical Characteristics
| IC Chip | TL072CP (Dual JFET Op-Amp) |
| Power Supply | +9V to +15V DC (single positive supply only) |
| Recommended Voltage | +12V DC |
| Current Consumption | 5–10mA typical, 15mA maximum |
| Input Impedance | 1MΩ |
| Input Type | Unbalanced (Ground + Signal) |
| Voltage Gain | 10x (20dB) fixed |
| Frequency Response | 20Hz – 20kHz |
| Input Noise | <10µV typical |
| THD | <0.01% @ 1kHz |
| Maximum Input Level | ~1Vrms before clipping |
| Output Impedance | <100Ω |
📌 Pin Configuration
3-Pin Header (Power & Output)
- +VCC/+V: Positive power supply (+9V to +15V)
- GND: Ground/common reference, shared with +VCC and VOUT
- VOUT: Audio signal output (low impedance)
Microphone Connector (Audio Input)
This module accepts an unbalanced audio input only through the 1/4" microphone jack connector. The connector uses two pins:
- Tip: Ground
- + Signal (Sleeve): Audio signal input
Connect your instrument cable or microphone cable to these two pins. Do not use balanced (XLR or TRS) sources directly — this module does not support differential/balanced input.
🔌 Single-Supply Operation
Important: This module operates on a single positive voltage only — it does not use dual ±V supplies.
- The circuit creates a "virtual ground" at approximately half the supply voltage
- Input and output signals are AC-coupled via capacitors
- DC blocking prevents DC offset from affecting connected equipment
🔋 Power Supply Requirements
Voltage & Current
- Minimum: +9V DC
- Recommended: +12V DC
- Maximum: +15V DC
- Current: 5–10mA typical, 15mA maximum
Power Supply Options
For Guitar Pedals:
- 9V battery (6F22/PP3)
- 9V or 12V DC wall adapter
- Regulated power supply (preferred for lowest noise)
For Instrument Integration:
- 9V battery compartment
- Internal regulated supply from instrument's existing power
Power Quality
- Use regulated DC supplies for best performance
- For additional filtering, add 100µF electrolytic + 100nF ceramic capacitors across power pins
- Avoid noisy switching supplies without proper filtering
⚠️ Polarity Warning
CRITICAL: Verify power supply polarity before connecting! Reverse polarity will permanently damage the TL072 IC.
🔧 Installation Guide
Step 1: Power Connection
- Connect ground first — solder black wire to GND
- Connect positive supply — solder red wire to VCC/+V
- Add bypass capacitors if not already present (optional):
- 100µF electrolytic (+ to VCC, − to GND)
- 100nF ceramic (in parallel)
Step 2: Input Connection
This module accepts unbalanced input only. Use the microphone connector or the 1/4" jack:
- Use shielded cable for the input connection
- Microphone connector: Connect Ground to the tip pin and your audio signal to the + Signal pin
- 1/4" jack: Connect signal to the jack tip and ground to the sleeve
- Connect the cable shield to ground at the input end only
- Keep input wiring as short as possible to minimize noise pickup
Step 3: Output Connection
- Use shielded cable for the output
- Connect the signal wire to the VOUT pin on the 3-pin header
- Connect the shield to ground
- Route output wiring away from power wiring
Step 4: Testing
- Visual inspection: Check all solder joints for cold joints or bridges
- Continuity test: Verify no shorts between power rails
- Power test: Measure voltage at the VCC pin (should read +9V to +15V)
- Signal test: Input a test signal and verify amplified output
🚀 Operation
Signal Flow & Gain
The module provides fixed 10x gain amplification:
- Input: 100mV → Output: 1V
- Input: 50mV → Output: 500mV
- Input: 10mV → Output: 100mV
Adjust the onboard potentiometer to set the appropriate output volume level. Note that the potentiometer adjusts the output level, not the gain — the gain remains fixed at 10x (20dB).
Typical Pickup Levels (After 10x Gain)
- Single-coil: 50–150mV → 500mV–1.5V
- Humbucker: 150–500mV → 1.5V–5V (may clip at higher levels)
- Active pickups: 200–1000mV → 2V–10V (will clip — reduce input level)
Headroom
With a 12V supply, the maximum clean output is approximately 8–10V peak-to-peak. To avoid clipping:
- Reduce input level from high-output pickups using the instrument's volume control
- Use a volume control or attenuator before the preamp input
- Consider using a 9V supply for hot pickups to intentionally limit headroom
Frequency Response
The module provides a flat response across the full audio spectrum (20Hz–20kHz) with no tonal coloration.
🎯 Applications
Guitar Pedal Building
- Clean Boost: 10x gain for driving amps and pedals harder
- Buffer: High-impedance input prevents tone loss in long cable runs
- Preamp Stage: Amplify weak signals before effects processing
Instrument Modification
- Passive Guitar/Bass: Install in the instrument cavity with a 9V battery
- Acoustic Guitar: Amplify piezo pickup signals
- Vintage Instruments: Add modern output levels to older instruments
Microphone Preamplification
- Dynamic Microphones: Boost low-level microphone signals via the microphone connector (unbalanced input only)
- Contact Microphones: Amplify piezo contact mic elements
Recording
- DI Enhancement: Boost signal level before an audio interface
- Re-amping: Amplify recorded tracks for re-amping setups
Other Uses
- Headphone Amp Driver: Provide signal boost for headphone amplifier circuits
- Multi-Effects Input: Optimize signal levels for digital effects processors
🛠️ Troubleshooting
No Output Signal
Check the following:
- Power supply voltage and polarity — verify +9V to +15V at the VCC pin
- Input and output wire continuity
- Solder joints for cold joints or breaks
- TL072 IC for damage (replace if necessary)
Distorted Output
Possible causes:
- Input overload: Reduce the input signal level
- Insufficient supply voltage: Increase to 12V for more headroom
- Output clipping: Reduce the input level or lower the output potentiometer
Excessive Noise or Hum
Try these solutions:
- Verify star grounding configuration — avoid ground loops
- Use shielded cables for all audio connections
- Add or increase power supply filtering capacitors
- Ground cable shields at one end only to prevent ground loops
- Keep audio wiring physically separated from power wiring
Weak Output
Check the following:
- Power supply voltage (should be +9V to +15V)
- Battery condition (replace if voltage is low)
- Resistor values in the gain network
- Replace the TL072 IC if output remains weak after other checks
Diagnostic Tests
- Power: Measure VCC pin (should read +9V to +15V)
- DC Bias: Measure DC voltage at input and output — should be approximately half the supply voltage
- Signal: Inject a 100mV test signal and expect approximately 1V at the output
- Frequency: Sweep 20Hz–20kHz and verify consistent 10x gain across the range
⚠️ Safety Guidelines
Electrical Safety
Before working on the module:
- Disconnect all power sources
- Discharge any capacitors
- Verify power is off with a multimeter
During installation:
- Never exceed +15V DC input
- Always verify polarity before connecting power
- Avoid short circuits between power rails and signal lines
Component Handling
- The TL072 is static-sensitive — use anti-static precautions when handling
- Solder at 300–350°C and minimize heat exposure time on IC pins
- Consider using an IC socket for easy replacement
Audio Safety
- Test at low volumes initially
- Gradually increase to the desired level
- Protect your hearing and equipment from sudden loud signals
