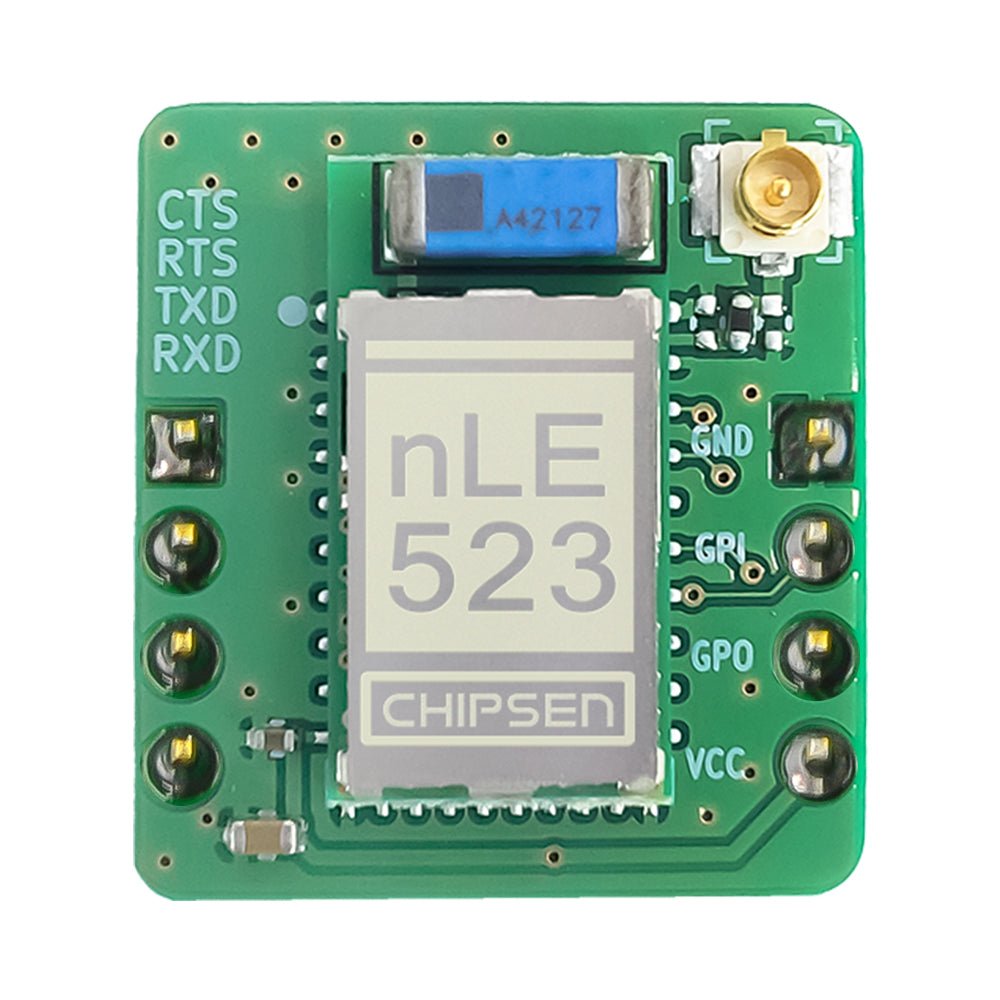

CHIPSEN BoT-nLE523DU Bluetooth v5.3 BLE Class1.5 (+7dBm) DIP Master/Slave Module w/ Chip + U.FL Antenna

Name: CHIPSEN BoT-nLE523DU Bluetooth v5.3 BLE Class1.5 (+7dBm) DIP Master/Slave Module w/ Chip + U.FL Antenna
Brand: CHIPSEN
SKU: EM-COMMS-0026
Price: 11.89 USD
Availability: InStock

$11.89

Oferta Agotado

Cantidad

Please CONTACT US for OEM and Quantity Discounts.

The CHIPSEN BoT-nLE523DU module features a BoT-nLE523 SMD master/slave module mounted on a DIP carrier with 2.54mm headers pins and a U.FL antenna connector. This module can be installed in through-hole PCBs, mounted in 2.54mm sockets for easy removal, or can be plugged into the CHIPSEN BoT-USB-TB Test Board to easily connect the module to a PC's USB port.

The electrical and performance specifications for this module are the same as the BoT-nLE523. See the BoT-nLE523 OEM Bluetooth module product page for full specifications.

CHIPSEN BoT-nLE521DU Slave Bluetooth DIP+U.FL Module Size

BoT-nLE523DU Features

Bluetooth Processor: BoT-nLE523 (Master/Slave Mode)
BT Version: Bluetooth Low Energy (BLE) V5 .3
Antenna: Chip Antenna + U.FL Antenna Connector (U.FL antenna is not included)
ARM® Cortex® M4 32 bit processor with FPU, 64 MHz
Memory: 512 kB Flash / 128 kB RAM
RF Output Power: MAX + 7 dBm ( 20 ~ 7 dBm)
RF Receive Sensitivity: -93.5 dBm w/ Dirty Tx enable, 1Mbps Bluetooth Low Energy mode
Type 2 near field communication (NFC A) tag with wakeup on field and touch to pair capabilities
On chip LDO and DC/DC converter system (Used LDO by Default)
Temperature Sensor
UART (CTS/RTS) with EasyDMA, SPI, and I2C data interfaces
12 Bit 200 ksps ADC with 7 configurable channels with programmable gain
Size: 15 mm x 8 mm x 1.8 mm
Operating Voltage: 2 7 V to 3. 6V
Operating Temperature: -40 to +85℃
RoHS compliant
Certifications: SIG, KC (including wireless EMC), FCC, CE, TELEC

BoT-nLE523DU Header Pins, Pinout and U.FL Antenna

The BoT-nLE523DU is supplied with unsoldered 2.54mm header pins. The board can be wired into the circuit through the connection pads, or the header pins can be soldered in to plug the board into another PCB, plugged into a BoT-USB-TB Test Board.

The BoT-nLE523DU by default uses the built-in chip antenna. To use an antenna connected to the U.FL connector, install the jumper across the open pads directly below the antenna connector. This will connect the U.FL connector to the output of the Bluetooth module.
