12V DC 80mm 2Pin 80x80x25mm CPU Cooling Computer PC Case 8025 Fan
12V DC 80mm 2Pin 80x80x25mm CPU Cooling Computer PC Case 8025 Fan
Couldn't load pickup availability
Brushless DC cooling fan 12V 2Pin 80mm 80x80x25mm (3.15 x 3.15 x 1 inches). Improve airflow in your system. Extend the life and improve the performance of your computer, 3D printer or other electronic systems. Rated Voltage: DC 12V; Rated Current: 0.2Amp ±10% ; Rated Speed: 2800 RPM; Air flow: 43.6CFM; Noise: 31dBA.
Specifications:
- Dimensions: 80x80x25mm (3.15 x 3.15 x 1 inches)
- Rated Voltage: 12V DC
- Rated Current: 0.2Amp±10%
- Bearing: Sleeve Bearing

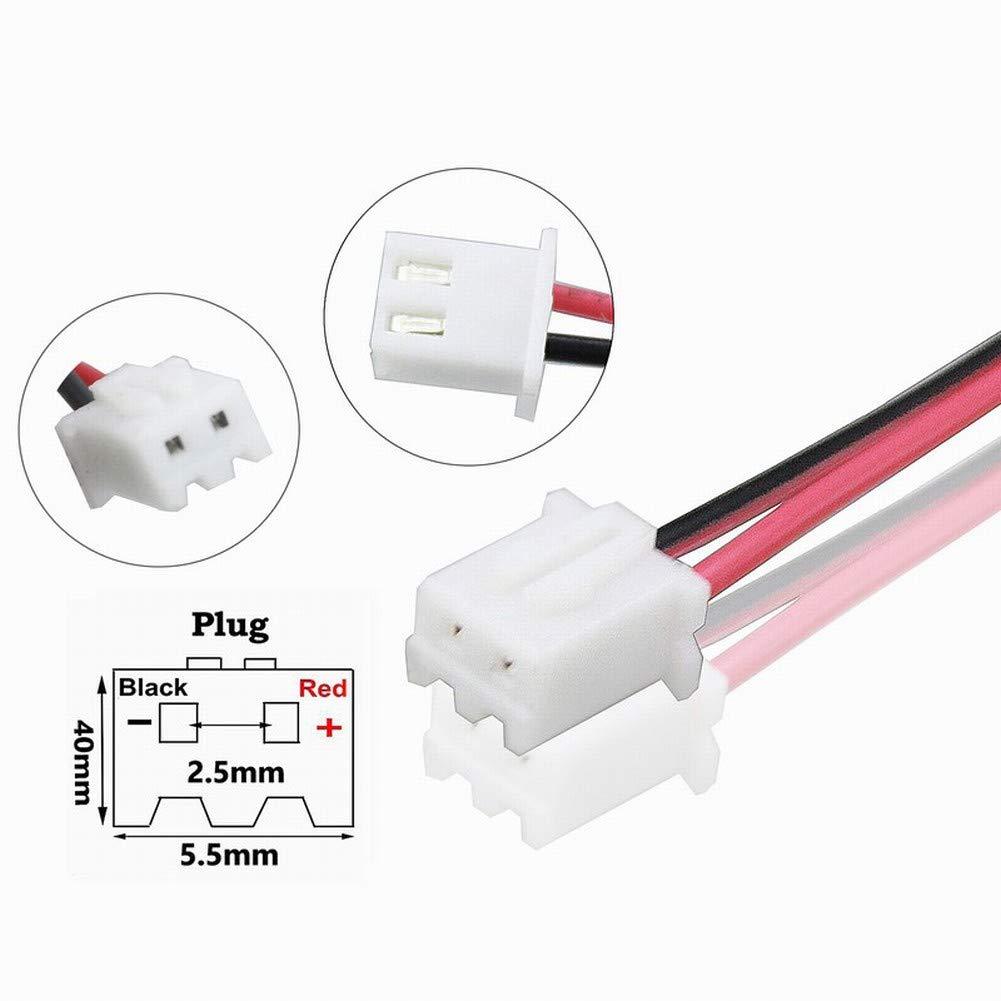

- Connector: XH2.54-2Pin
- Rated Speed: 2800±10%rpm
- Noise Level: 31dBA±10%
- Air flow: 43.6CFM
- Cable Length: ~30cm
- Life: 35000 hours
- Weight: 62g
Package Includes:
1x (1 piece) 8025 80mm 12V 2-Pin Fan
Share
- 5 stars: 1 (100%)
- 4 stars: 0 (0%)
- 3 stars: 0 (0%)
- 2 stars: 0 (0%)
- 1 star: 0 (0%)
Basic 2-wire 12VDC powered BLDC fan that works well at a fixed speed for the price . Relatively quiet for the amount of airflow generated. As an aside, I noted that the RPM is moderately affected by the actual voltage. This could be exploited to lower fan speed, if desired (i.e. note--PWM chopping of the power rail to control the speed of a two-wire BLDC fan is not always safe for the embedded BLDC controller.) However, operation at lower speeds may need a power-on circuit that starts at 12VDC and then decays slightly in voltage to ensure reliable starts while maintaining a lower speed (I.e. I have not yet characterized starts at lower voltages).
