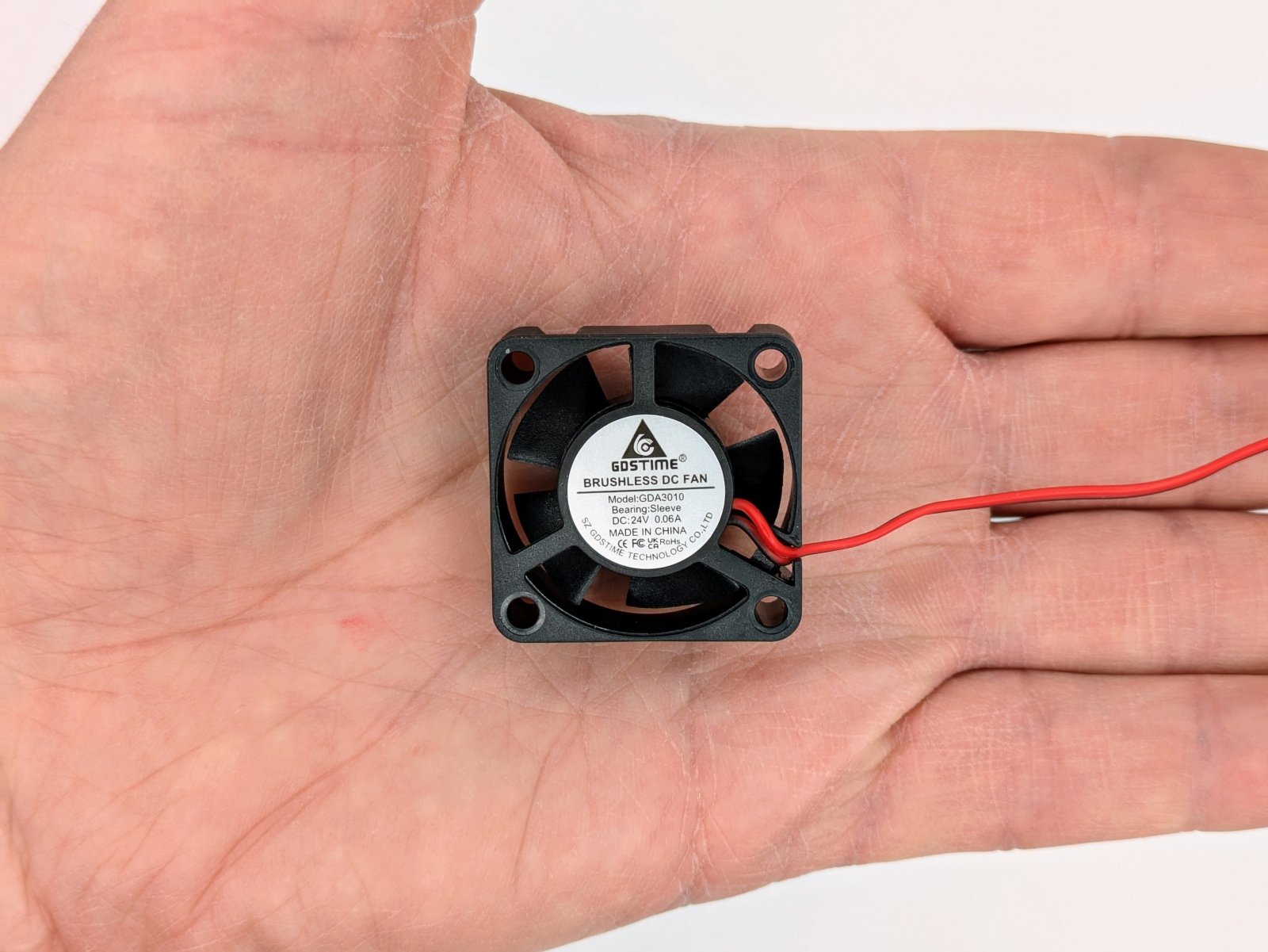

⚠️ VERY SMALL FAN — PLEASE CHECK DIMENSIONS BEFORE ORDERING
This fan measures just 30mm × 30mm × 10mm (1.2" × 1.2" × 0.4") — Please review the dimensions carefully to confirm it fits your project or enclosure before purchasing.
📋 Overview

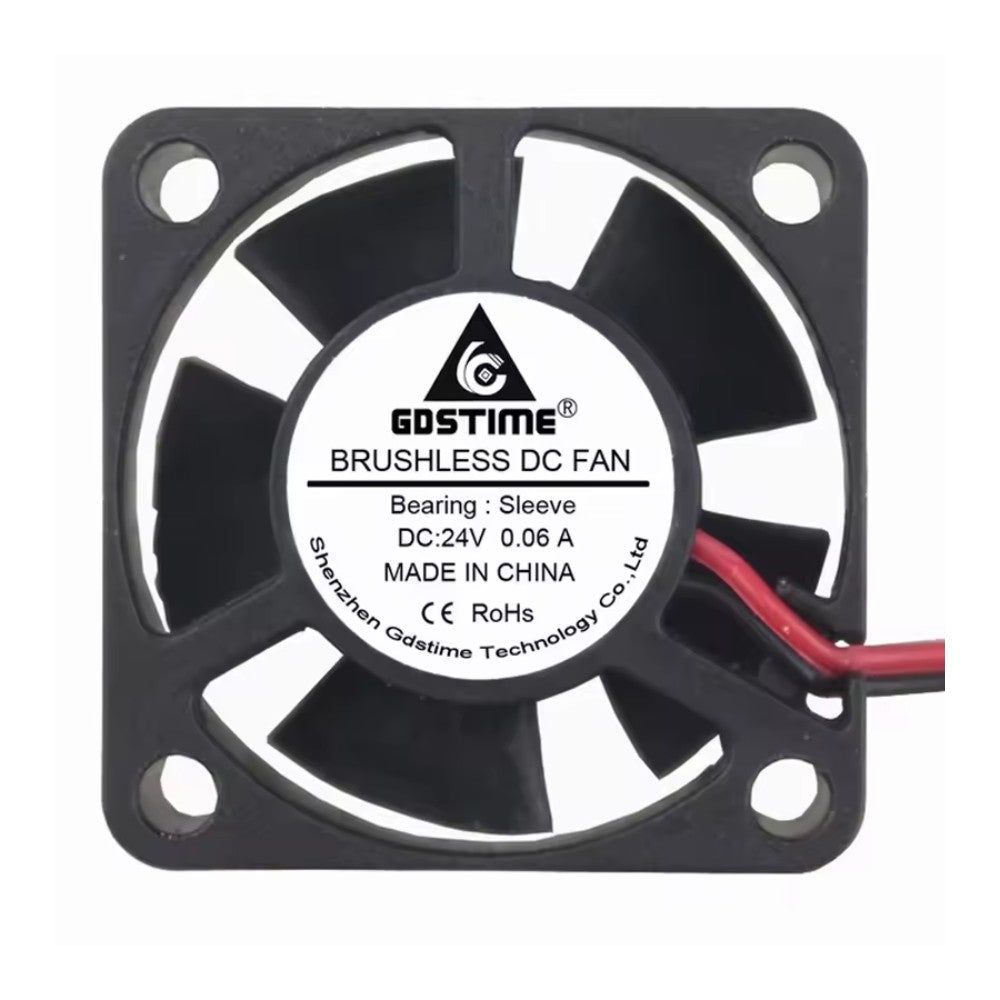

Keep your electronics running cool with this GDSTime 30mm x 30mm x 10mm (1.2 x 1.2 x 0.4 inches) 3010S 24V 5-Blade brushless DC cooling fan. This micro fan improves airflow in computers, CPU coolers, 3D printers, laser engravers, and other electronic enclosures — extending the life and performance of your equipment.
This listing is available in two connector options. Please select your preferred connector type from the variant options above before adding to cart:
- 2-Pin PH2.0 (2.0mm pitch)
- 2-Pin XH2.54 (2.54mm pitch)
⭐ Key Features
- Compact 30x30x10mm (1.2 x 1.2 x 0.4 inch) footprint fits tight spaces
- 5-blade design for efficient airflow at 4.7 CFM
- Durable sleeve bearing rated for 35,000 hours of life
- Quiet operation at approximately 28dBA
- Available with your choice of 2-Pin PH2.0 or XH2.54 connector
- ~15cm (6 inch) wire lead for flexible mounting
🔌 Connector Options
This fan is offered in two connector variations to match your existing wiring or project needs:
- PH2.0 (2mm pitch): A compact 2-pin connector commonly used on smaller control boards where space is limited.
- XH2.54 (2.54mm pitch): A standard 2-pin connector commonly used on Arduino-style boards, 3D printer controllers, and general electronics projects.
Use the variant selector above to choose the connector that matches your application.

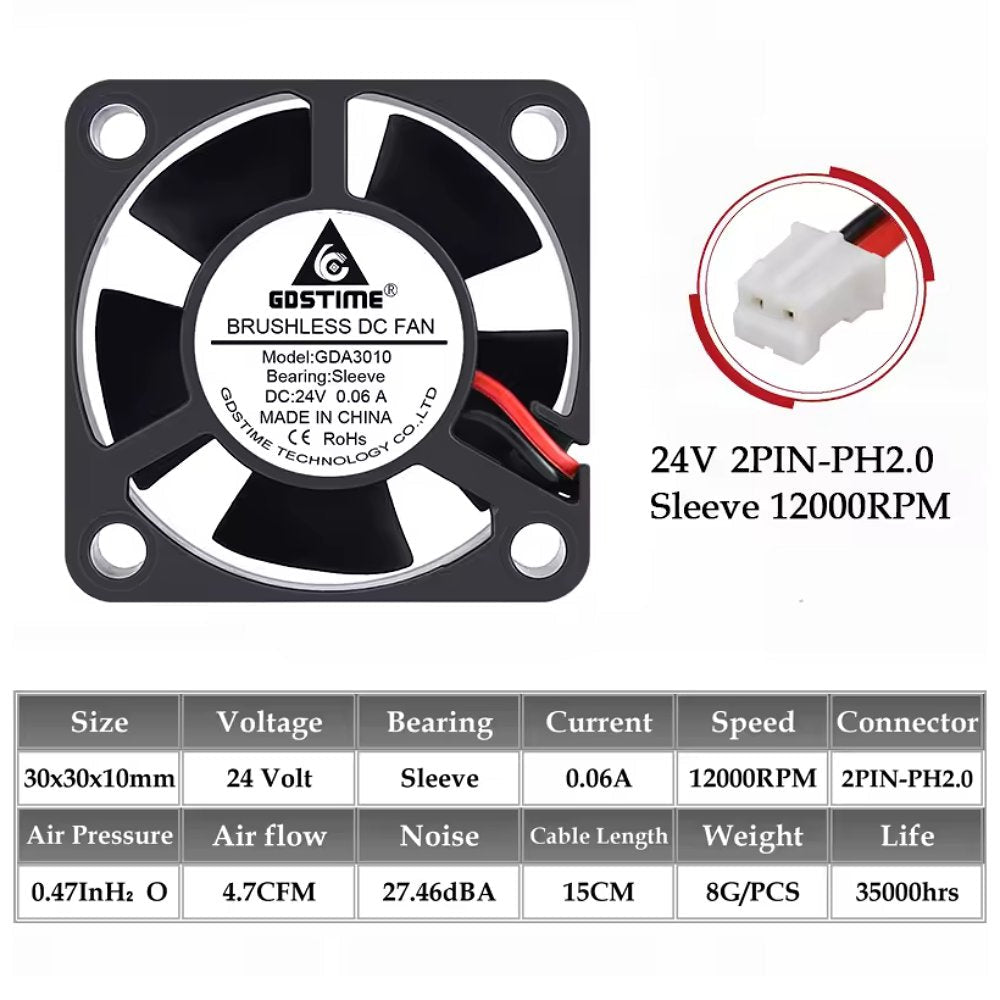

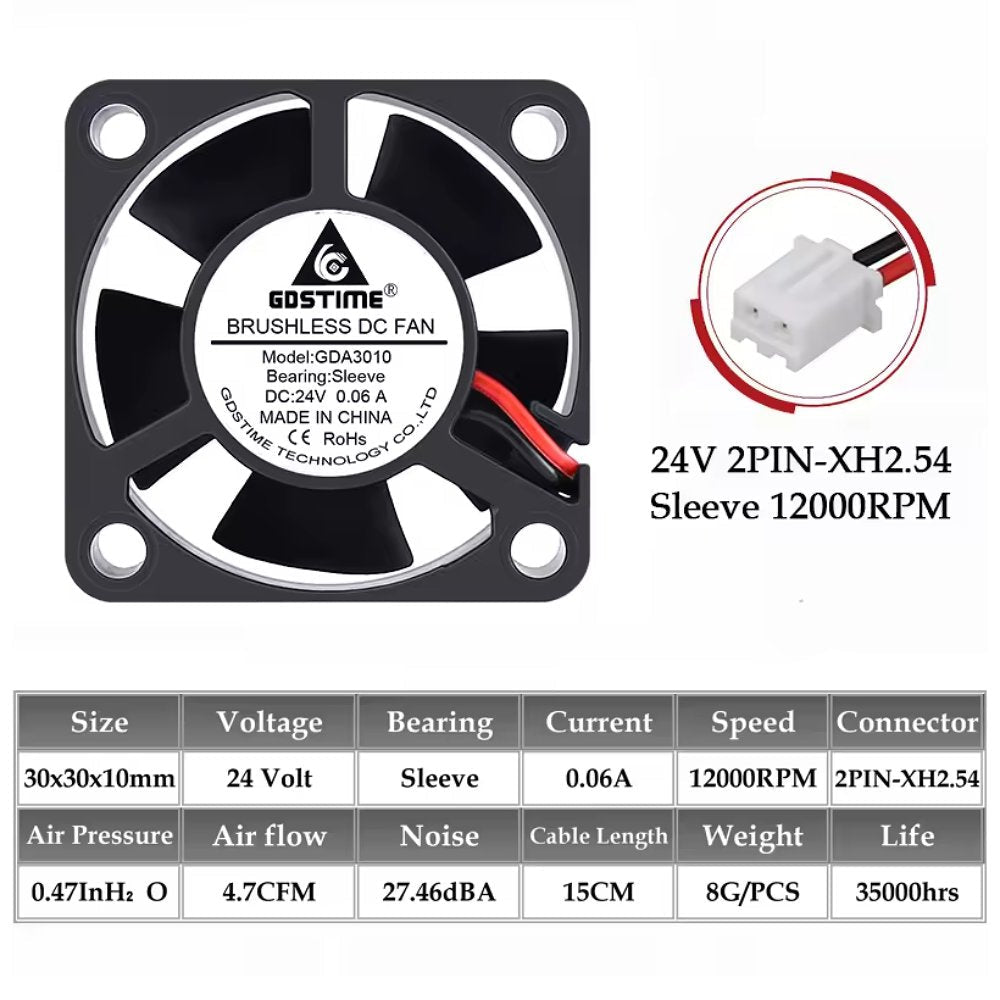

📊 Specifications
| Spec | Value |
|---|---|

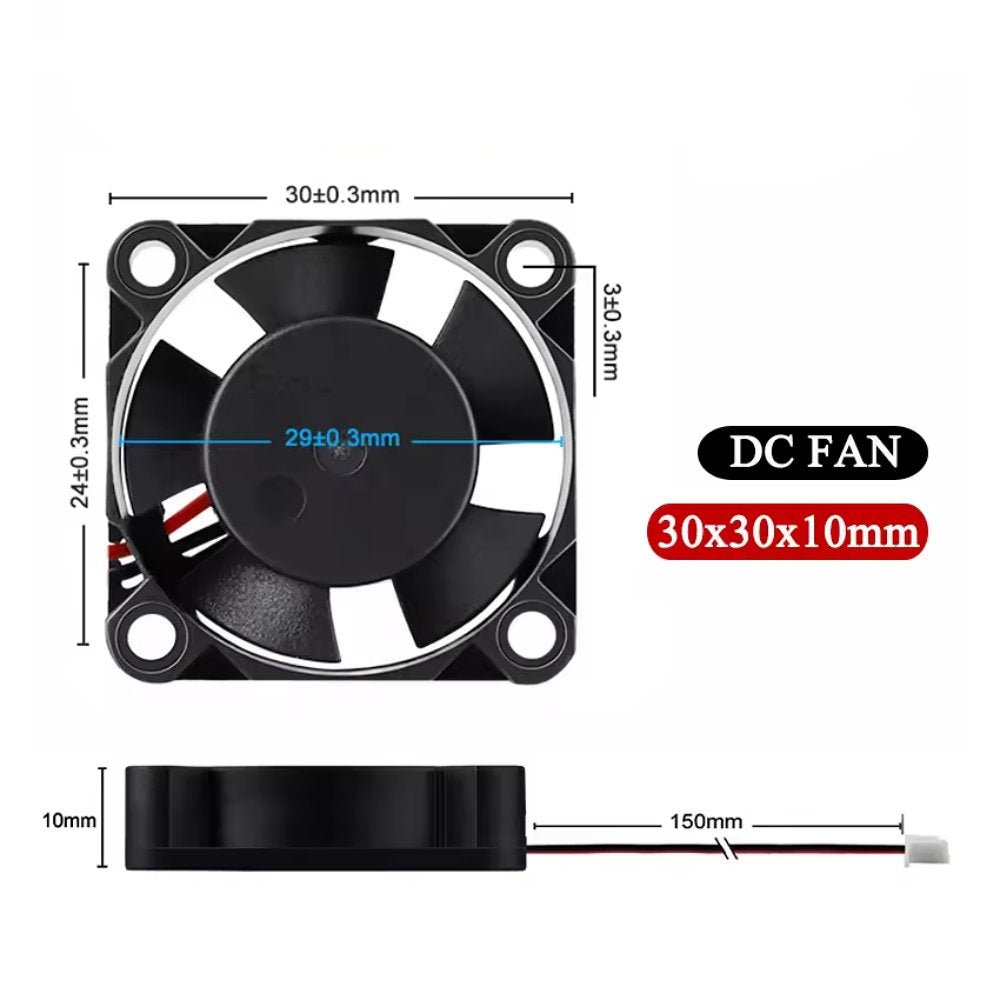

| Dimensions | Approx. 30 × 30 × 10 mm (1.2 x 1.2 x 0.4 inches) L × W × H |
| Airflow | 4.7 CFM |
| Rated Voltage | 24V DC |
| Rated Current | 0.06 Amp ±10% |
| Bearing | Sleeve Bearing |
| Connector | 2-Pin PH2.0 (2mm) or 2-Pin XH2.54 (2.54mm) — select variant above |
| Rated Speed | 12000 ±10% rpm |
| Noise Level | 28dBA ±10% |
| Wire Lead Length | ~15cm (6 inches) |
| Life | 35,000 hours |
| Weight | 8g (0.3 ounces) |
📦 What's in the Box
- 1x 3010 30mm (1.2 inch) 24V Fan with your selected connector (PH2.0 or XH2.54 connector - selected above)
Sold and supported by Envistia Mall. Ships from the USA. The manufacturer and Envistia LLC (dba Envistia Mall) are not responsible for any damages or losses resulting from the use of this product. Always follow proper electrical safety practices when working with electronic components. Specifications are based on manufacturer data and are subject to change without notice.
