12V (8-24V) To 5V 3A DC-DC Waterproof Step-Down Converter Power Supply Module F23J5V3A4S
12V (8-24V) To 5V 3A DC-DC Waterproof Step-Down Converter Power Supply Module F23J5V3A4S
Couldn't load pickup availability
📋 Overview
This miniature DC-DC step-down converter takes an 8–24V DC input (nominally 12V) and delivers a clean, regulated 5V DC output at up to 3A (15W maximum). It's a waterproof, straightforward way to power 5V electronics — dash cams, USB-powered devices, microcontroller boards, and more — directly from a 12V battery, vehicle system, or wall adapter.
Built as a non-isolated buck (step-down) converter, it operates at over 96% efficiency, so very little power is wasted as heat even under full load. The epoxy-sealed housing makes it safe for outdoor, automotive, or otherwise exposed installations.
⭐ Key Features
- Regulated 5V output — Clean, stable power for 5V-logic devices, USB accessories, and sensors
- Wide input range — Accepts 8–24V DC, ideal for 12V nominal systems with voltage sag or charging spikes
- Epoxy-sealed, waterproof housing — Safe for outdoor, automotive, and marine use
- High efficiency — Greater than 96% efficient, minimal heat generation
- Built-in protection — Overload, over-current, over-voltage, and low-voltage protection with automatic recovery
- Compact and lightweight — Easy to tuck into enclosures, dashboards, or inline wiring runs
📊 Specifications

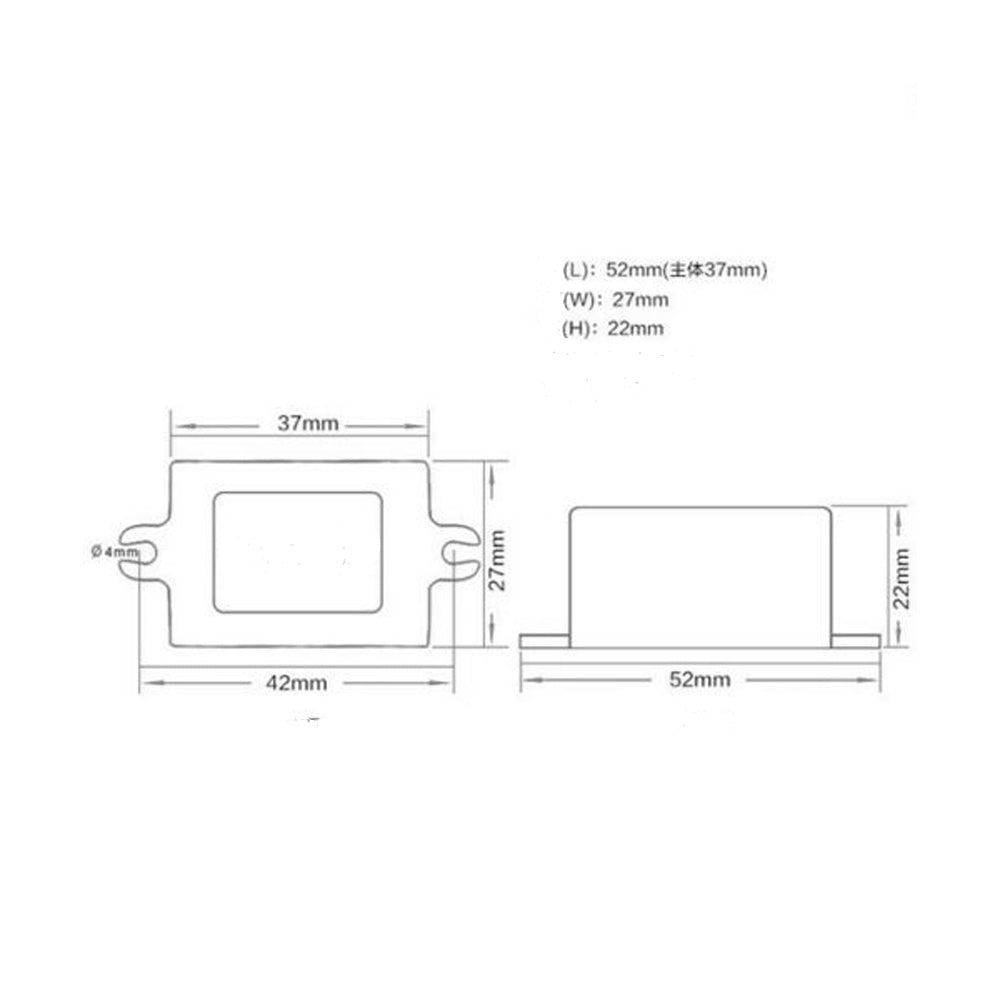

| Specification | Value |
|---|---|
| Envistia P/N | F23J5V3A4S |
| Input Voltage Range | 8–24V DC |
| Nominal Input | 12V DC |
| Output Voltage | 5V |
| Max Output Current | 3A |
| Max Output Power | 15W |
| Approx. Max Input Current (at full load, 12V in) | ~1.25A |
| Quiescent Current (no load) | <10mA |
| Efficiency | >96% |
| Operating Temperature | -40°C to +70°C |
| Size (L × W × H) | Approx. 38 × 27 × 23 mm (1.50 × 1.06 × 0.91 inches) L × W × H (52 mm / 2.05 inches overall length including mounting tabs) |
| Weight | Approx. 30g |
| Input & Output Wire Length | Approx. 12cm (4.7 inches) per lead |
| Input & Output Wire Size | 0.5mm² cross-sectional area, equivalent to ~20 AWG |
| Case Color | White |
| Housing | Epoxy-sealed, waterproof |
🔌 Wiring & Connections
Two pairs of wires — no pins or connectors needed. Simply splice, solder, or crimp into your circuit.
| Wire Color | Function |
|---|---|
| Red (input side) | Input +V — connect to your 12V positive supply |
| Black (input side) | Input Ground — connect to your 12V negative/ground |
| Red (output side) | Output +V — connect to your load's positive terminal |
| Yellow (output side) | Output Ground — connect to your load's negative/ground terminal |
Wire gauge: all leads are 0.5mm² cross-sectional area (20 AWG).
⚠️ Important: Double-check polarity before powering up. Reversing the input wires can damage the converter, and reversing the output wires can damage your connected device.
⚠️ Important Notes
Your 12V input power source must be able to supply at least as much power as your load will draw from the output, divided by the converter's efficiency (~96%). If the input source can't keep up, the output voltage will fold back (sag) rather than deliver the full 5V. See the full User Guide linked below for wiring diagrams and a detailed power-budget walkthrough.
📦 What's in the Box
- 1× 12V to 5V 3A Mini DC-DC Step-Down Converter (F23J5V3A4S)
🎯 Applications
- Dash cams and USB accessories — Convert 12V vehicle power down to the 5V that most USB-powered dash cams and gadgets expect
- Microcontroller and hobby electronics projects — Cleanly power Arduino, Raspberry Pi, or similar 5V boards from a 12V supply
- Networking and low-voltage equipment — Power 5V switches, routers, or modules from a 12V battery or solar setup
- Retrofit and alarm system power — Step down 12V power to run legacy 5V equipment without rewiring the whole system
📄 Documentation & Resources
- User Guide — Wiring, specifications, Mechanical & STEP Files, power-budget calculations & troubleshooting
- All Buck Step-Down DC/DC Converter User Guides
🛒 Other Models in the F23JxVxA4S Series
- 12V to 3.3V 3A DC-DC Converter (F23J3V3A4S)
- 12V to 6V 2.5A DC-DC Converter (F23J6V2.5A4S)
- 12V to 9V 1.7A DC-DC Converter (F23J9V1.7A4S)
Sold and supported by Envistia Mall. Ships from the USA. For wiring diagrams, sample code, and troubleshooting, see the User Guide tab on this product page. The manufacturer and Envistia LLC (dba Envistia Mall) are not responsible for any damages or losses resulting from the use of this product. Always follow proper electrical safety practices when working with electronic components. Specifications are based on manufacturer data and are subject to change without notice.
