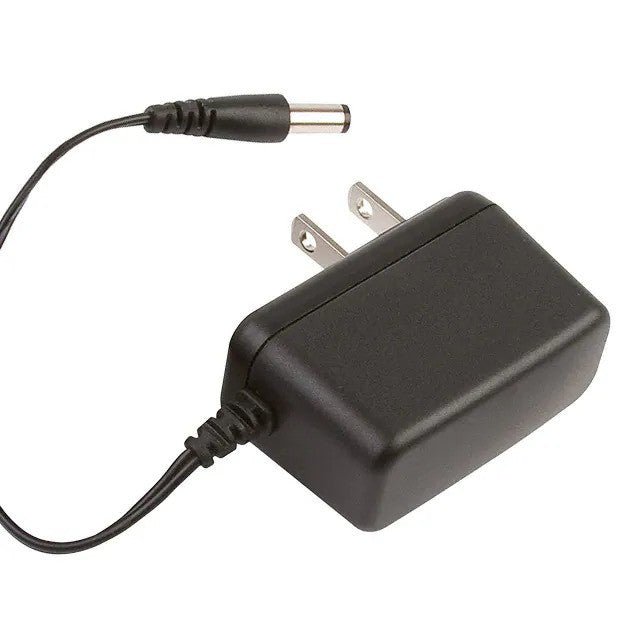

This XP Power VEL05 series wall plug adaptor complies with energy efficiency VI standards, has high active mode efficiency, and extremely low no-load power consumption.
Available in fixed US plug format with a standard 2.1mm x 5.5mm barrel jack plug connector, this adaptor suits a wide variety of applications.
Specifications
- Form: Wall Mount (Class II)
- Input Type: US Fixed Blade
- Voltage - Input: 90 ~ 264 VAC
- Voltage - Output: 5V DC
- Current - Output (Max): 1A
- Power (Watts): 5 W
- No Load Power Consumption: 100mW (Max)
- Polarization: Positive Center
- Applications: ITE (Commercial)
- Efficiency: Level VI
- Operating Temperature: 0°C ~ 60°C
- Output Connector: Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm, positive center
- Cord Length: 59" (1.50m)
- Input Connector: NEMA 1-15P (US Fixed Blade)
- Size / Dimension: 2.17" L x 0.95" W x 1.40" H (55.1mm x 24.1mm x 35.5mm)
- Approval Agency: CB, TUV
- Standard Number: 62368-1
- Weight: 2.5 Ounces (70 grams)
- Model: XP Power VEL05US050-US-JA
