4S Battery Holder Case Box for 4X 18650 Li-Ion Batteries in Series (~15V)

📋 Overview

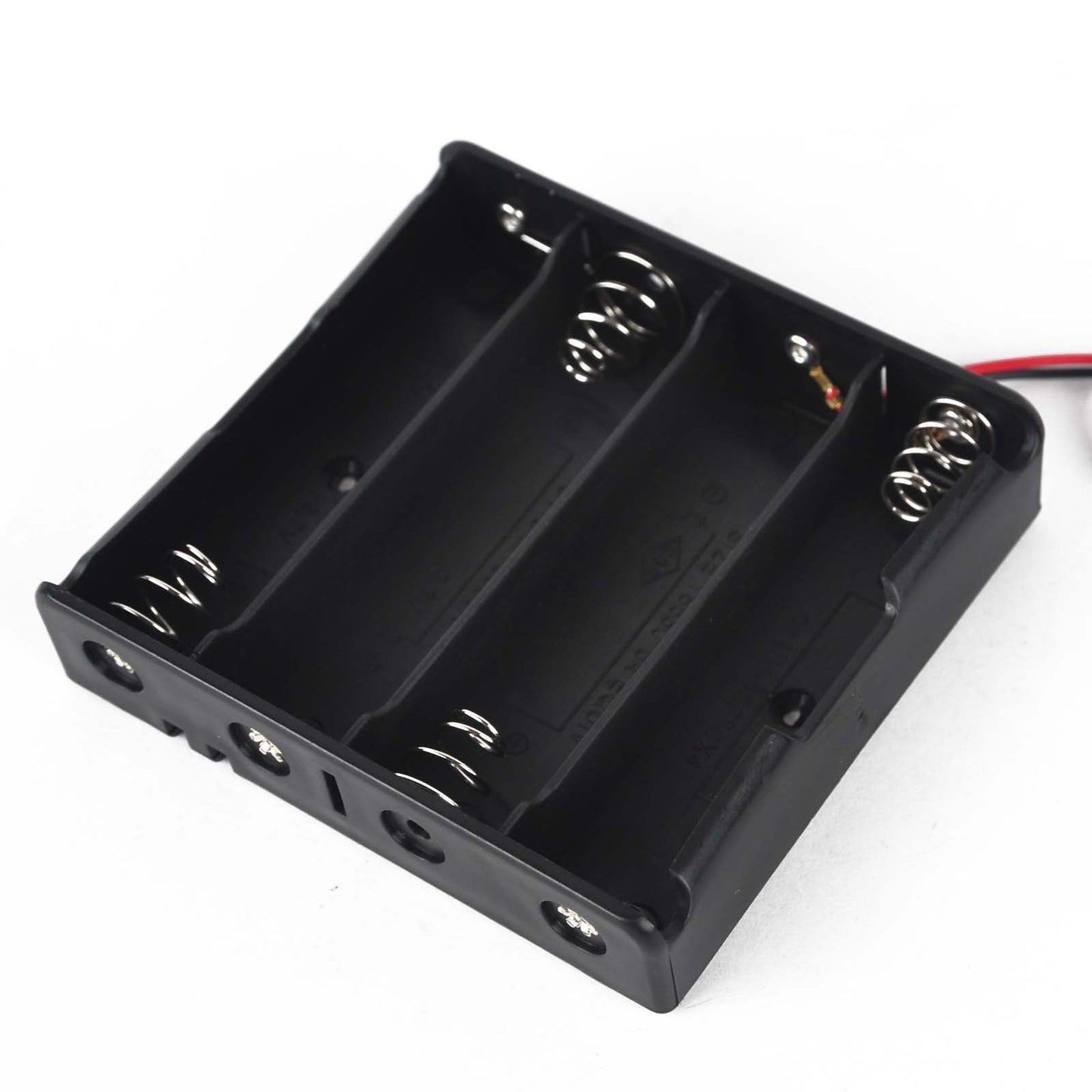

This plastic battery holder case holds four (4) 18650 lithium-ion batteries connected in series, providing approximately 14.8V nominal output (3.7V × 4) and up to 16.8V when fully charged. It includes approximately 6-inch color-coded wire leads (red for positive, black for negative) for easy soldering or direct connection to your circuit. A reliable way to build a high-voltage rechargeable Li-Ion battery pack for your electronics projects, prototypes, or DIY builds.

💡 Tip: Use only 18650 cells that are ~65 mm in length. Some protected 18650 cells are longer (68–70 mm) and may not fit properly.

⭐ Key Features

• 4× 18650 Series Configuration — Holds four 18650 Li-Ion batteries wired in series for a combined ~14.8V nominal output
• Wire Leads Included — Approximately 6" (15 cm) pre-attached wire leads for easy integration
• Color-Coded Wires — Red (positive) and black (negative) leads for quick polarity identification
• Lightweight Plastic Construction — Durable and lightweight plastic housing
• Spring Contacts — Reliable metal spring contacts ensure solid battery connection
• Open Frame Design — Easy battery insertion and removal
• Mounting Holes — Screw holes for secure board or enclosure mounting

📊 Specifications

🎯 Applications

• Arduino and microcontroller projects requiring higher voltage
• LED lighting circuits and high-power LED drivers
• Portable power banks and battery packs
• Electric motor and fan projects
• Robotics and RC projects
• Solar charging circuits
• Portable electronics prototyping
• Replacement battery compartments

📦 What's in the Box

• 1× Battery Holder Case for 4× 18650 Batteries with Wire Leads

Note: 18650 batteries are not included.

💡 Tips

• Always observe correct polarity when inserting batteries — match the + and − markings inside the holder.
• Use only 18650 cells that are ~65 mm in length. Some protected 18650 cells are longer (68–70 mm) and may not fit properly.
• Use batteries of the same brand, type, capacity, and charge level for best performance and safety.
• Strip and tin the wire leads before soldering for a clean, reliable connection.
• Always use a proper lithium-ion charger designed for 4S packs to charge the batteries — do not overcharge or over-discharge.
• A 4S battery protection circuit (BMS) is strongly recommended to prevent over-discharge, overcharge, and short circuits.
• Remove the batteries when the holder will not be used for an extended period.

⚠️ Important Notes

• Wire Current Limit: The included 24 AWG wire leads are rated for approximately 3.5A continuous. For higher-current applications, replace the leads with thicker gauge wire (e.g., 18–20 AWG) to prevent overheating.
• High Voltage Caution: A fully charged 4S Li-Ion pack outputs up to 16.8V. Exercise caution and ensure your circuit components are rated for this voltage.
• Do not mix batteries of different brands, capacities, or charge states — this can cause dangerous imbalances in a series configuration.
• Do not mix rechargeable and non-rechargeable cells.
• This holder does not include built-in battery protection. Always use an external BMS or protection circuit with Li-Ion batteries.
