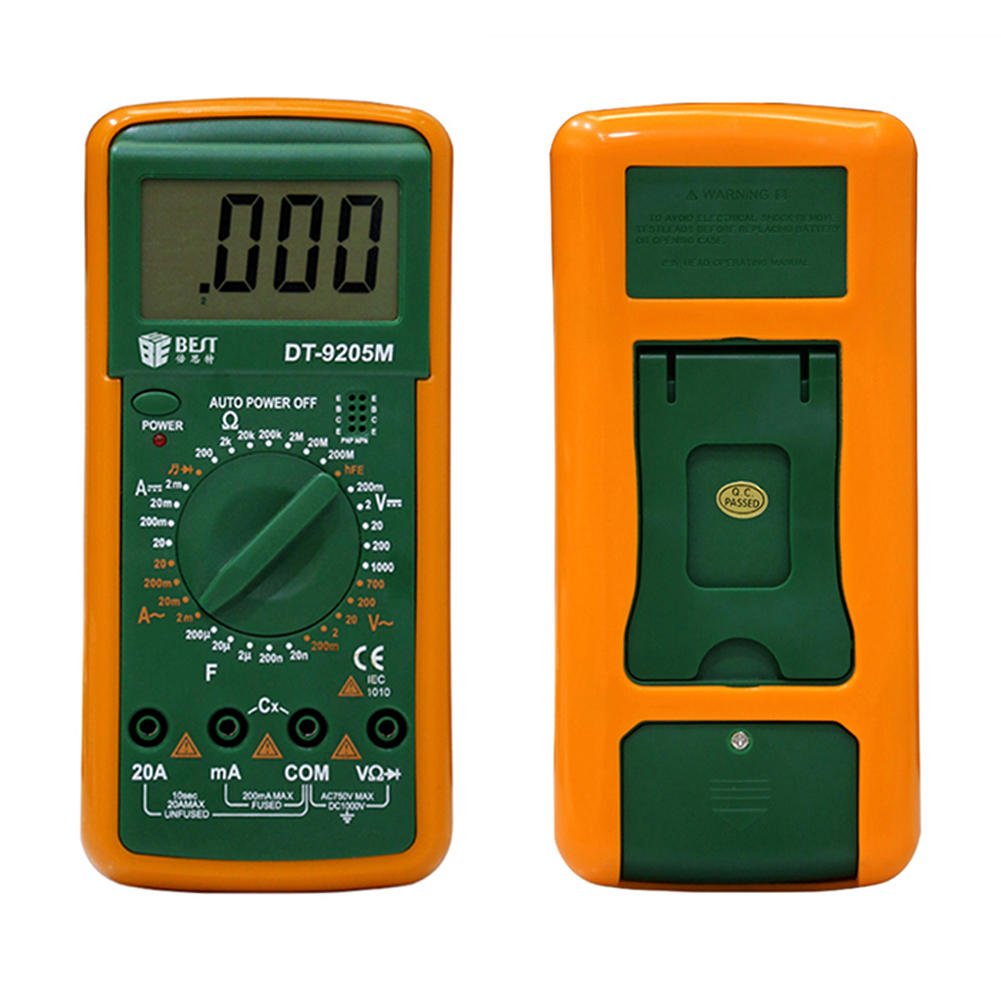

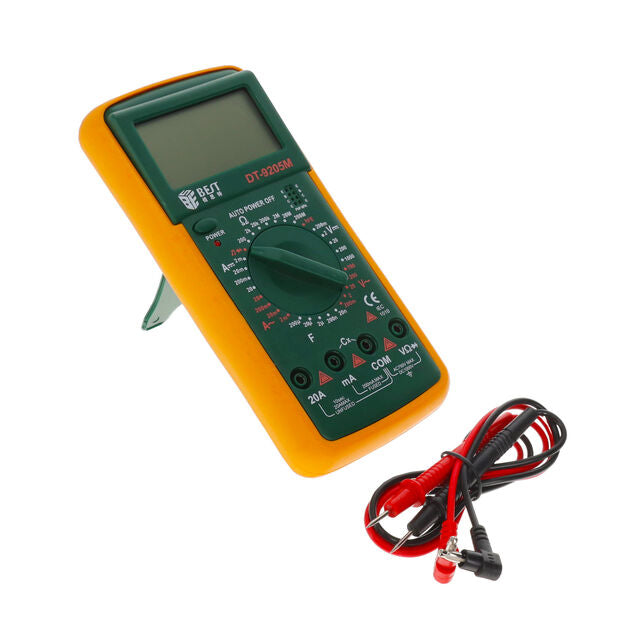

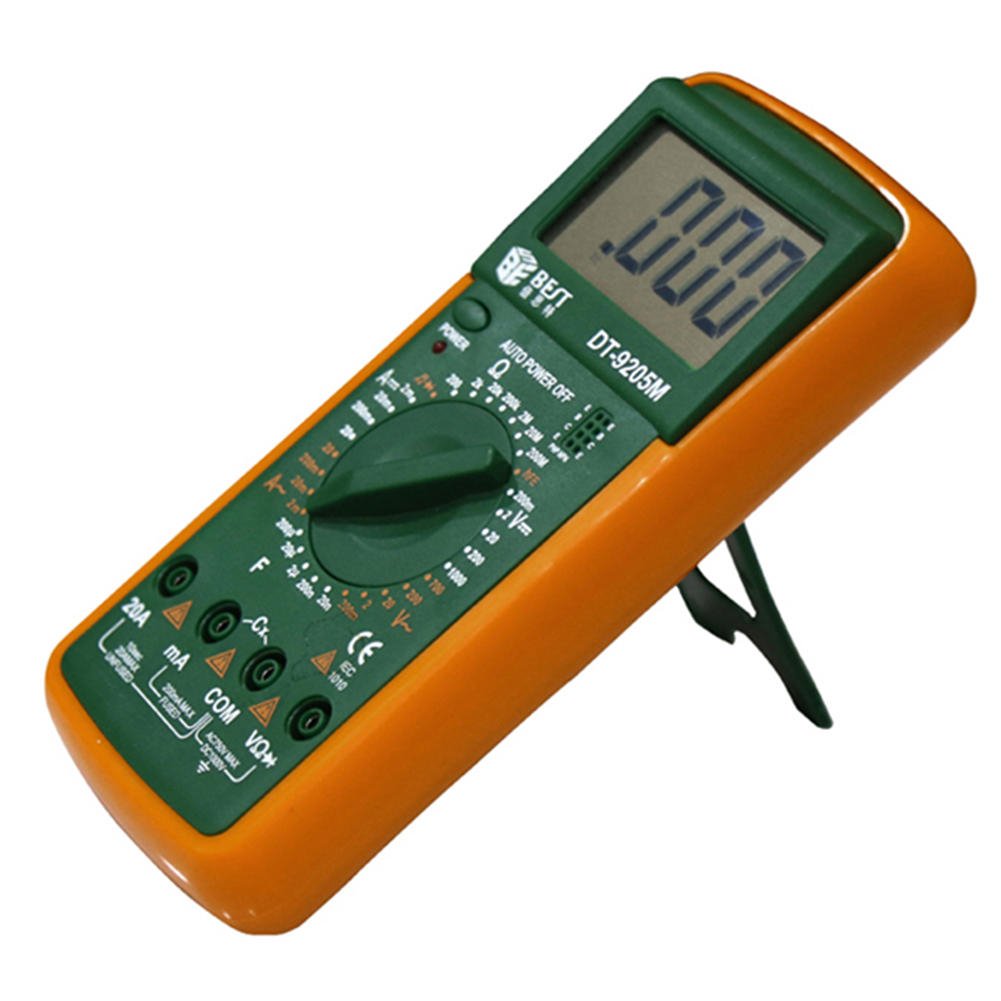

BEST DT9205M Digital Multimeter — Voltage, Current, Resistance, Capacitance, Diode & Transistor hFE Tester

Name: BEST DT9205M Digital Multimeter — Voltage, Current, Resistance, Capacitance, Diode & Transistor hFE Tester
Brand: BEST
Price: 13.49 USD
Availability: InStock

$13.49

Sale Sold out

Shipping calculated at checkout.

Whether you're just getting started with electronics or you've been troubleshooting circuits for years, the BEST DT-9205M Digital Multimeter is an affordable, full-featured handheld meter that covers everything from basic battery checks to component-level diagnostics. It measures AC/DC voltage, AC/DC current, resistance, and capacitance, and includes diode testing, audible continuity testing, and transistor (hFE) testing — all in one tool.

The large 3-1/2 digit LCD display is easy to read, the single rotary dial makes function and range selection fast and intuitive, and the auto power-off feature helps preserve battery life between uses.

⚠️ Safety note: This meter is rated for Category II installations up to 1000VDC / 700VAC. It is not rated for Category III/IV environments — avoid using it on utility mains distribution panels, industrial equipment, or any circuit where a fault could produce a high-energy arc.

⭐ Key Features

All-in-one measurement: DC/AC voltage, DC/AC current, resistance, and capacitance in a single handheld meter.
Diode test: Checks forward voltage drop and diode orientation.
Audible continuity test: Quickly verify wires, fuses, and connections without reading exact resistance values.
Transistor hFE test: Estimate the gain of NPN or PNP transistors for sorting and matching.
Large, easy-to-read LCD: 3-1/2 digit display with automatic negative polarity indication.
Auto power-off: Helps extend battery life between sessions.
Dual-slope integration A/D converter: For stable, repeatable readings.

📦 What's in the Box

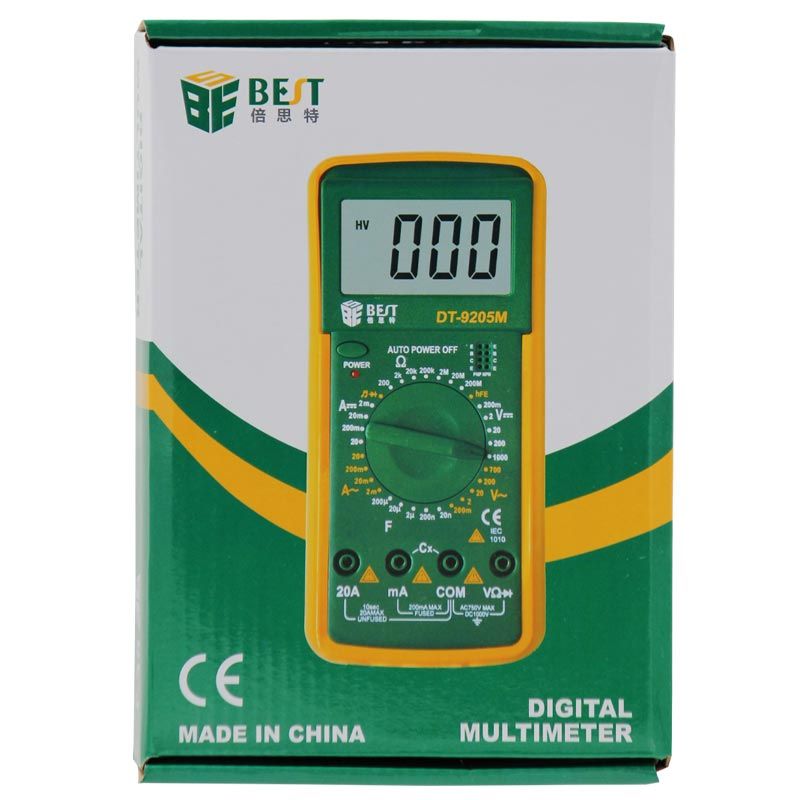

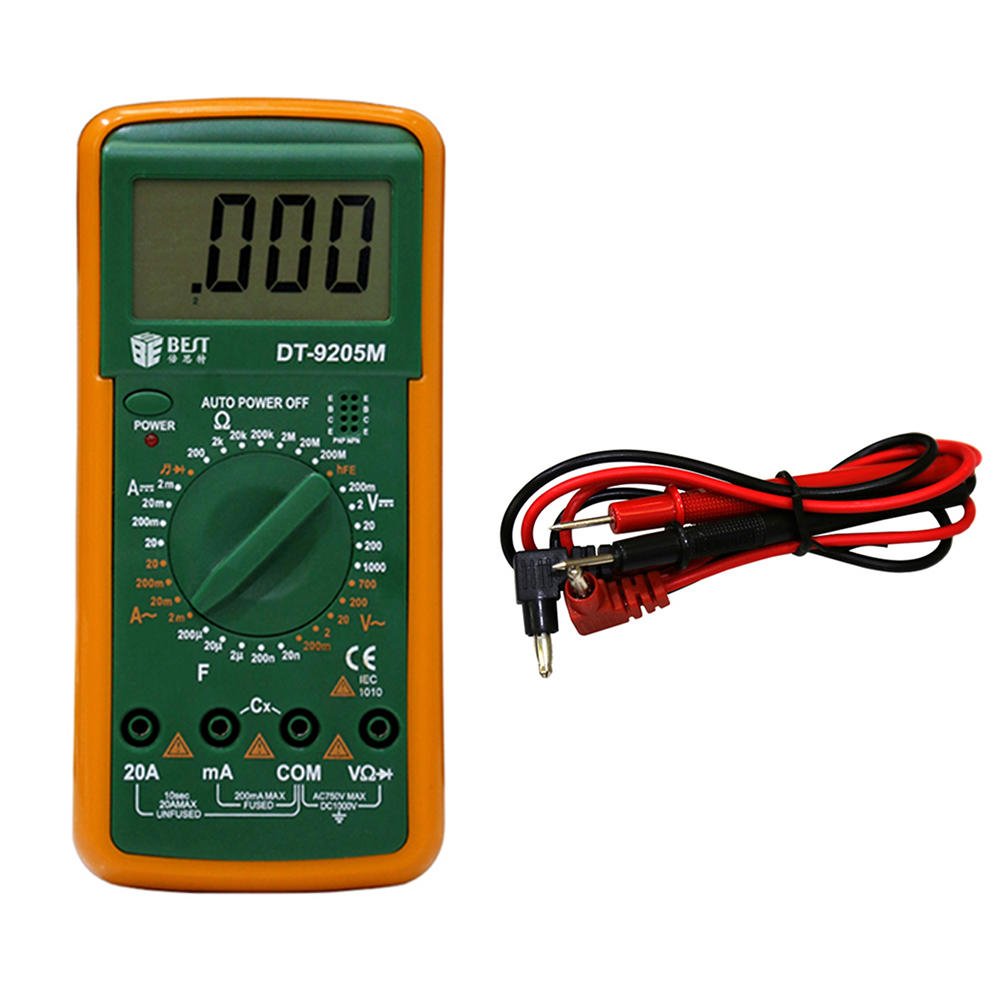

1 × BEST DT-9205M Digital Multimeter
1 × Set of test leads (red and black)
1 × 9V Battery

📊 Specifications

Display	LCD, 3-1/2 digit, 1999 counts, updates every 2–3 seconds
DC Voltage	200mV – 1000V, accuracy ±(0.5%+2) to ±(0.8%+2)
AC Voltage	200mV – 700V, accuracy ±(0.8%+3) to ±(1.2%+3)
DC Current	2mA – 20A, accuracy ±(1.2%+2) to ±(2.0%+2)
AC Current	2mA – 20A, accuracy ±(1.2%+3) to ±(3.0%+7)
Resistance	200Ω – 200MΩ, accuracy ±(0.8%+2) to ±(5.0%+10)
Capacitance	2nF – 200µF, accuracy ±(4.0%+5)
Additional Functions	Audible continuity test, diode test, transistor hFE test (NPN/PNP)
Power	Single 9V battery, type NEDA 1604 or 6F22 (not included)
Fuse	200mA (0.2A) / 250V — protects the mA jack only; the 20A jack is unfused
Max Voltage to Earth Ground	1000VDC or 700VAC (Category II installations)
Operating Environment	0°C to 40°C
Dimensions	Approx. 189 × 91 × 31.5 mm (7.44 x 3.58 x 1.24 inches) L × W × H
Weight	Approx. 280g (10 Ounces)

Full accuracy and resolution tables for every range are available in the User Guide linked below.

🎯 Perfect For

Electronics hobbyist projects — checking battery voltage, verifying Arduino/microcontroller circuit voltages, testing LEDs and resistors
DIY and home repair — checking household outlet voltage, testing fuses and switches for continuity, diagnosing dead batteries and chargers
Light manufacturing and assembly/test — quick component verification during assembly or rework, continuity checks on wiring harnesses
Automotive — checking 12V battery and charging system voltage, testing fuses (vehicle off)
General troubleshooting — sorting/matching transistors by hFE, verifying capacitor values, tracing wiring faults

📄 Documentation & Resources

Sold and supported by Envistia Mall. Ships from the USA. For full specifications, wiring examples, and troubleshooting, see the User Guide linked above. The manufacturer and Envistia LLC (dba Envistia Mall) are not responsible for any damages or losses resulting from the use of this product. Always follow proper electrical safety practices when working with electronic components. Specifications are based on manufacturer data and physical inspection of the product and may vary between production batches.
