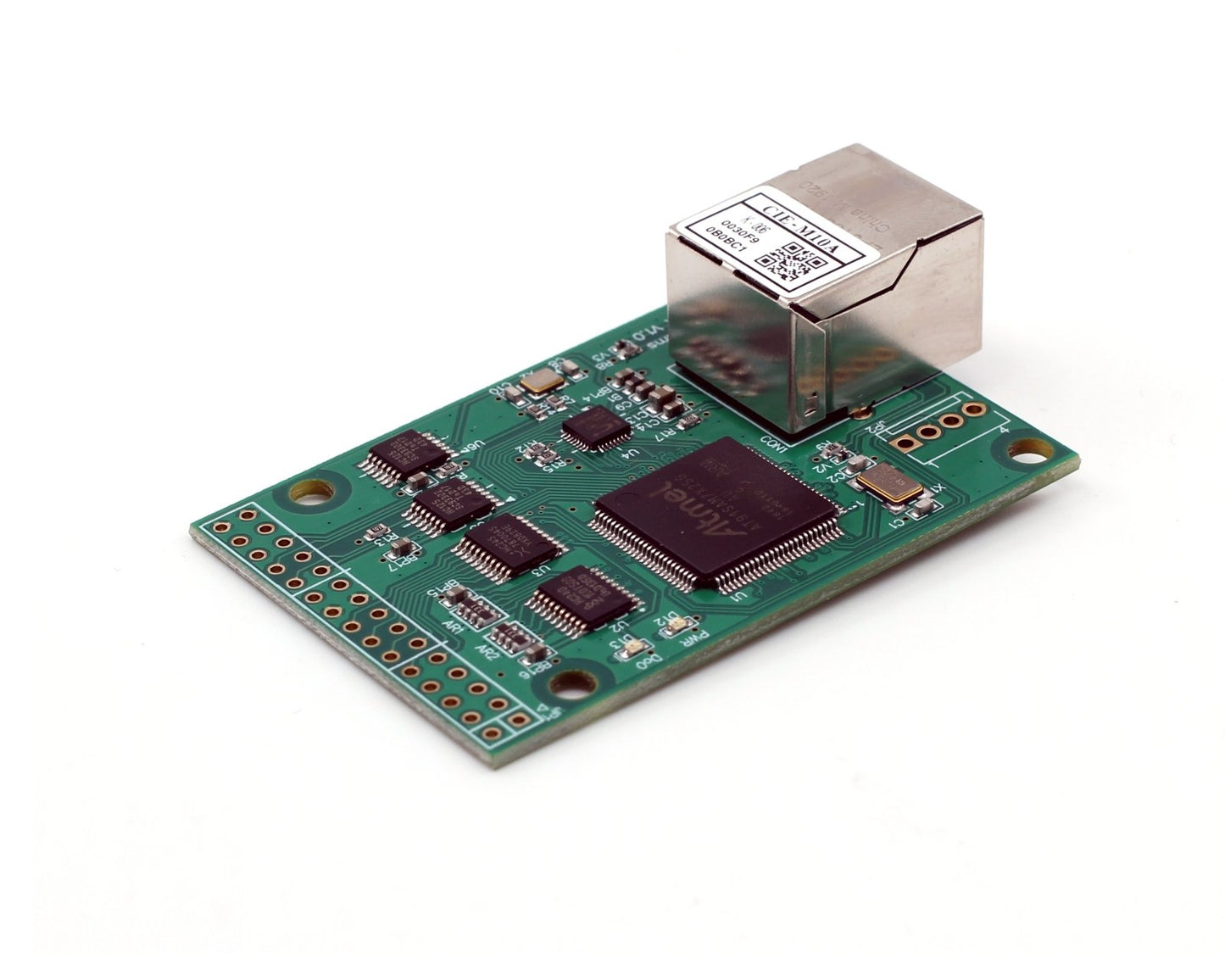

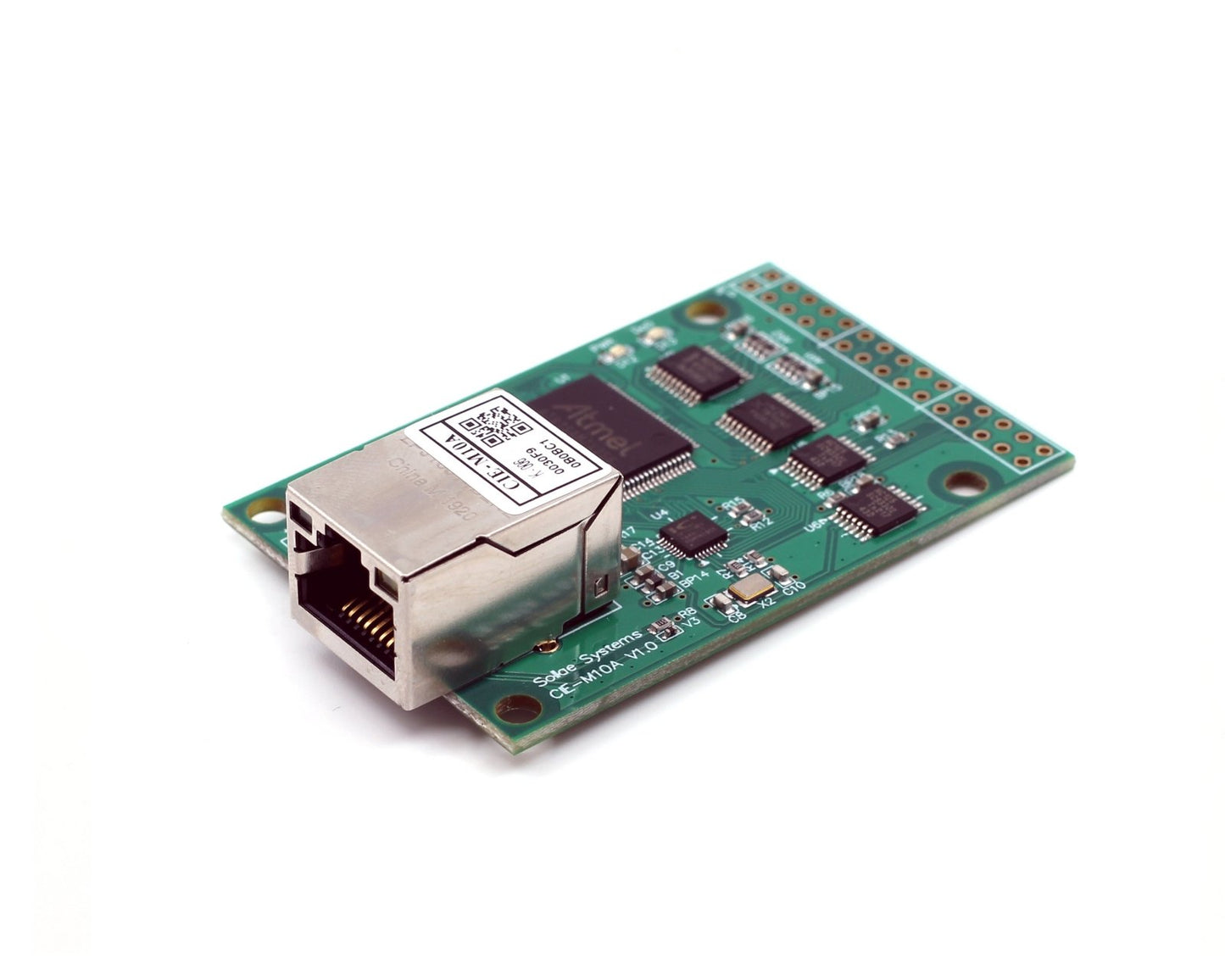

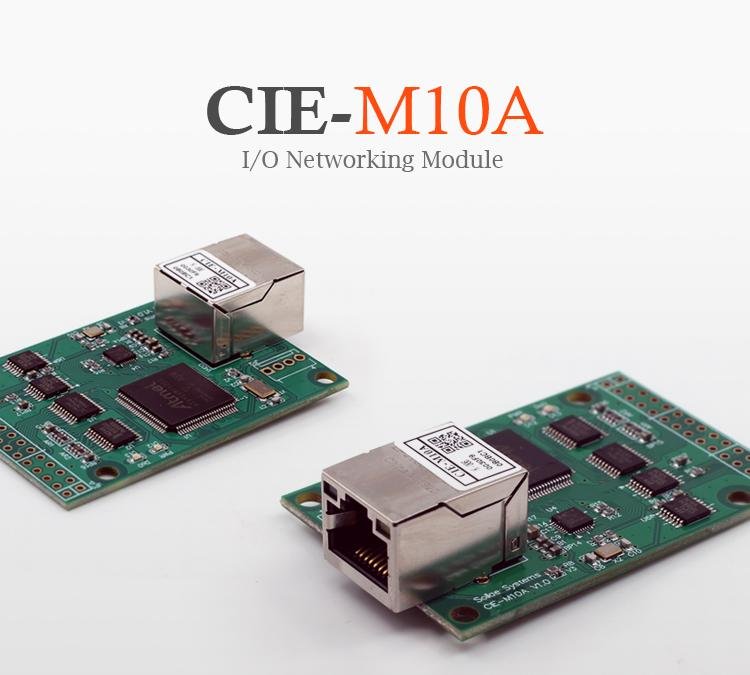

8-Port Remote I/O to Ethernet Network Module ezTCP CIE-M10A

8-Port Remote I/O to Ethernet Network Module ezTCP CIE-M10A

Regular price $99.00
Regular price Sale price $99.00
Sale Sold out

The ezTCP CIE-M10A is a remote I/O control module that supports 8 digital input ports, 8 digital output ports, and 1 analog input port. The module provides the functionality to monitor and control the input/output port through its Ethernet interface.

Since the I/O contacts can be controlled through Ethernet, I/O equipment can be efficiently managed from anywhere. In addition, the CIE-M10A provides a serial ↔ TCP/IP conversion function, so you can easily manage serial devices without additionally applying a separate serial wired LAN module.

The Modbus/TCP (or Serialized Modbus/TCP) protocol is used to control the contacts of the CIE-M10A, and since the web method is also supported, the output port can be controlled from anywhere through the website. Users can change the control screen to suit their needs. Additionally, a Macro function that automatically controls the output port by a simple logic expression according to the input port is also provided.

The ezTCP CIE-M10A can be used in any environment where there are I/O devices that need monitoring and control and is especially suitable for applications such as Internet Switches.

Features:

  • Compact size product
  • 8 digital input ports, 8 digital output ports (3.3V CMOS interface)
  • 1 ADC port (10-bit)
  • Monitoring and control via Modbus/TCP or Web
  • Simple logical control support (can operate independently)
  • User web-page upload function
  • Internet switch
  • Free Modbus/TCP program (ModMap)

Specifications:

  • Digital Input Port
    • Number of Ports 8
    • Interface 3.3V CMOS
    • Electric Parameter:
      Min VIL=-0.3V, Max VIL=0.8V
      Min VIH=2.0V, Max VIH=5.5V
  • Digital Output Port
    • Number of Ports 8
    • Interface 3.3V CMOS
    • Relay Capacity Min VOH=2.9V, Max VOL=0.4V
  • Analog Input Port
    • Number 10bit ADC 1 Port
    • Interface ADIN, ADVREF
    • Conversion Time 2.33us
    • Electric Parameter
      Min ADVREF=2.6V, Max ADVREF=3.3V
      ADIN's Input Voltage Range = 0V ~ VADVREF
  • Serial Physical Interface
    • Serial Interface 1 x UART Port/RXD, TXD, RTS, CTS, GND
    • Electric Parameter:
      Min VIL=-0.3V, Max VIL=0.8V
      Min VIH=2.0V, Max VIH=5.5V
      Min VOH=2.9V, Max VOL=0.4V
  • Serial Port Property
    • Baudrate 300bps~230,400bps
    • Data Bits 5, 6, 7, 8 bits
    • Parity None, Even, Odd, Mark, Space
    • Stop Bits 1, 1.5, 2
  • Network Physical Interface
    • Network Interface:
      10Base-T/100Base-TX Ethernet(RJ45)
      Ethernet Speed Auto Sense
      1:1 or Cross-over Cable Auto Sense
      1000 VAC Isolation
  • Software Functions
    • Protocols TCP, UDP, IP, ICMP, ARP, Ethernet, TELNET
      TFTP DHCP, PPPoE, DNS, DDNS, HTTP, Modbus/TCP
    • Security IP & MAC filtering - Restrict host or network
      Password for Configuring
    • Digital I/O Port
    • Communication Mode Modbus/TCP, HTTP(User web page)
    • Stand alone(by simple equation)
    • Serial Port
    • Communication Mode:
      TCP Server(T2S)
      TCP Client(COD)
      TCP Server/Client with AT command(ATC)-Patent
      UDP Mode(U2S)
    • Additional Functions:
      Remote Debug Function
      TCP Server/Client mode
      Sending MAC address Option
  • Indicators(LEDs):
    • Power: Red
    • Digital Output Port 0: Green
  • Management
    • ezManager Configuration and Monitoring Tool through Ethernet
    • Telnet Telnet Login
    • AT Command Configuring in ATC mode-Patent
  • Supplementary Software
    • ezManager Configuration Tool for Windows
    • ModMap Management Tool of I/O controllers for Windows
    • ezVSP Serial to Network Virtual Driver for Windows
    • ezTerm Simple TCP/IP Communication Test Tool
  • Dimensions
    • Size: 64.4mm x 40mm x 17mm (2.54in x 1.57in x 0.67in)
    • Weight: 19 Grams (0.7 Ounces)
  • Operating Environment
    • Input Voltage DC 3.3V±0.3V
    • Current Consumption 78mA @ 3.3V without load
    • Operating Temperature -40℃ ~ +85℃
    • Storage Temperature -40℃ ~ +85℃

* The above information is subject to change. Envistia Mall and Sollae Systems are not responsible for any changes.
