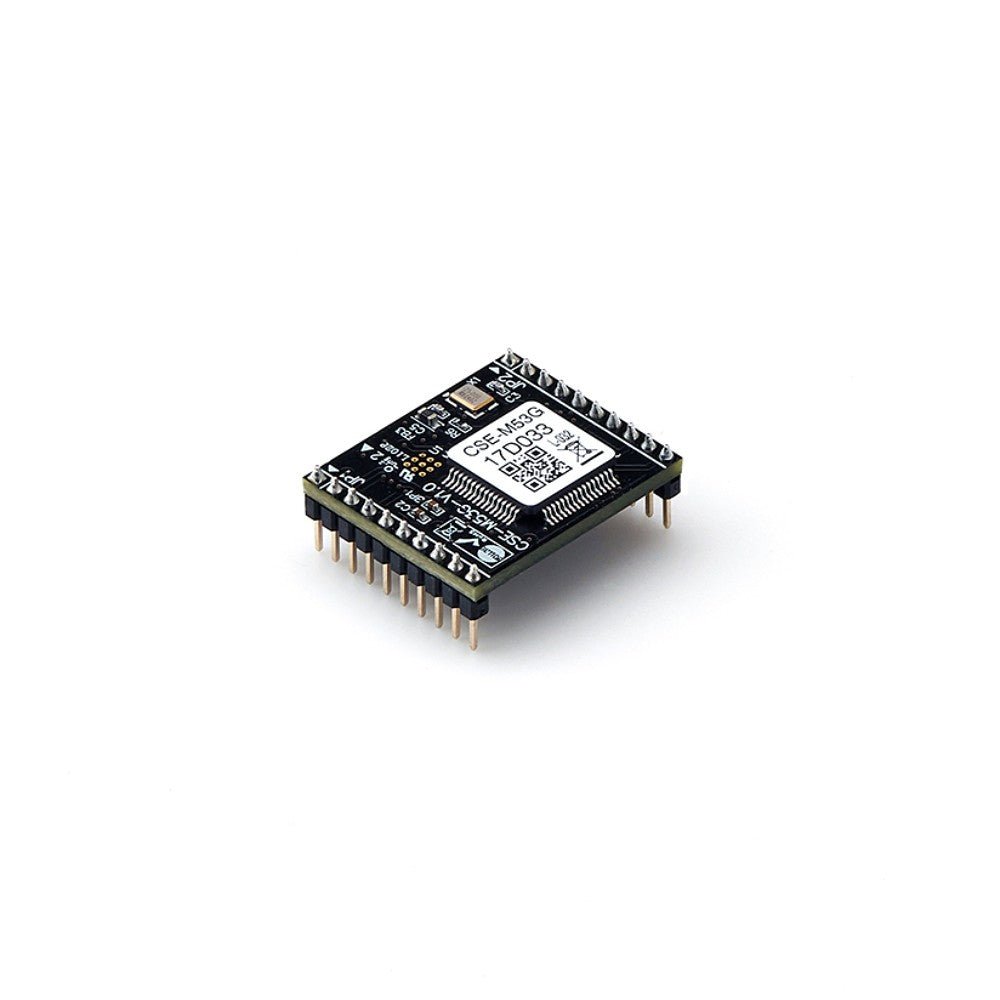

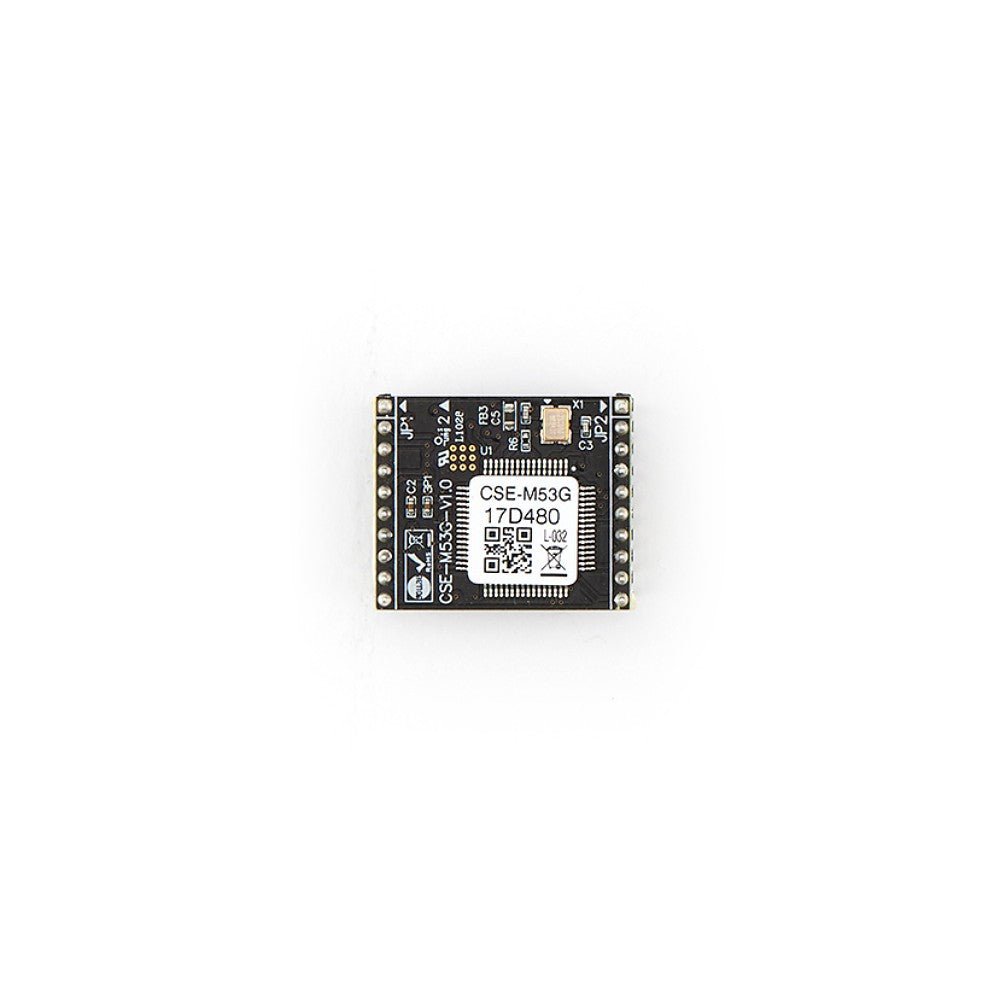

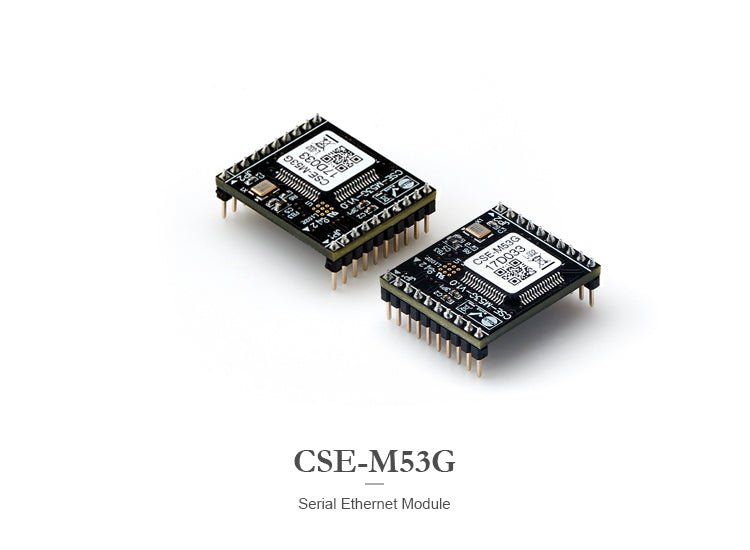

CSE-M53G ezTCP Embedded Serial to Ethernet Module

CSE-M53G ezTCP Embedded Serial to Ethernet Module

Regular price $39.00
Regular price Sale price $39.00
Sale Sold out

The EZTCP CSE-M53G is a micro-sized embedded serial to Ethernet module that is pin-compatible with CSE-M53N.

The CSE-M53G module provides conversion functions to remotely control and manage serial devices over Ethernet. CSE-M53G is the perfect solution for environments where an industrial operating temperature range (-40℃ ~ +85℃) is required and for those who plan to move forward to the next generation Internet protocol, IPv6.

This embedded serial to Ethernet module comes preloaded with basic communication functions (TCP, UDP, etc.) and strong security functions (SSL, MAC/IP filtering, etc.), along with a packet fragmentation separator so that it can be used in diverse applications. It has a high-speed (up to 921,600bps) UART port which can be extended to RS232/RS422/RS485, in accordance with the user's environment.

The CSE-M53N is ideal for various environments such as RFID Systems, Remote Monitoring Systems, Extending distance between two devices through the LAN (Serial Tunneling), etc.

Features:

  • 1 x UART(3.3V level)
  • 10/100Mbps Ethernet
  • Very compact module type (20mm x 24mm)
  • High speed UART x 1 (up to 921.6Kbps)
  • Industrial temperature range (-40℃~+85℃)
  • SSL (Secure Sockets Layer)
  • Separator settings for packet fragmentation
  • IPv4/IPv6 dual stack
  • Flexible configuration and network communication by 'AT Commands' (patent)

Specifications:

  • Serial Physical Interface
    • 3.3V level with 5V tolerant input RXD, TXD, RTS (TXDE for RS485), CTS, GND
    • Connector: 1 X 10 2mm pitch pin header X 2
  • Serial Port Property
    • Baudrate: 300bps ~ 921,600bps
    • Data Bits: 8 bits, 7 bits with Parity
    • Parity: None, Even, Odd, Mark, Space
    • Stop Bit: 1, 2 (※ A single idle bit is automatically added to every stop bit by the MCU function)
  • Network Interface
    • 10Base-T/100Base-TX Ethernet (RJ45)
    • Ethernet Speed Auto Sense
    • 1:1 or Cross-over Cable Auto Sense
    • Simple External Circuit Required
  • Protocols
    • IPv4/IPv6 dual stack, ICMPv6/TCPv6/UDPv6
      TCP, UDP, IP, ICMP, ARP, TELNET
      DHCP, PPPoE, DNS, DDNS
  • Security
    • SSL(Secure Socket Layer)
    • IP & MAC Filtering - Restrict Host or Network
    • Password for Configuring
  • Communication Mode
    • TCP Server (T2S)
    • TCP Client (COD)
    • TCP Server/Client with AT Command (ATC) - Patent
    • UDP Mode (U2S)
  • Additional Functions
    • Separator settings for packet fragmentation
    • TCP Server/Client Mode
    • Sending MAC address Option
  • Indicators (LEDs)
    • Status: The current status
    • DTR: TCP Connection Indicator
  • Management:
    • ezManager: Configuration and Monitoring Tool through Network and Serial
    • Telnet: Telnet Login
    • AT Command: Configuring in ATC mode - Patent
  • Supplementary Software
    • ezManager: Configuration Tool for Windows
    • ezVSP: Serial to Network Virtual Driver for Windows
    • ezTERM: Simple TCP/IP Communication Test Tool
  • Dimensions
    • Size: 20mm x 24mm x 9.1mm (0.79in x 0.95in x 0.36in)
    • Weight: 3.2 grams (0.11 oz)
  • Operating Environments
    • Input Voltage: 3.3VDC
    • Current Consumption: 110mA (100M Ethernet), 150mA (10M Ethernet)
    • Operating Temperature: -40C ~ +85C
    • Storage Temperature: -40C ~ +85C

* The above information is subject to change. Envistia Mall and Sollae Systems are not responsible for any changes.

 Package includes:

1X CSE-M53G Embedded Serial to Ethernet Module

NOTE: This device is a module, requiring an interface board to provide the mounting and interface.  The EVB-M53G evaluation board, which can be purchased separately, has been developed for testing the CSE-M53G module before users design their own interface board. The evaluation board provides many interfaces including a DC jack, a serial port that is selectable for both RS232 and RS485, and an RJ45 for network connectivity.

Delivery is stock to 2 weeks, if the item is out of stock, please contact us for availability.

Documentation & Resources:

EZTCP CSE-M53G Embedded Serial to Ethernet Module Product Page

EZTCP Utility Downloads

Videos:

Serial Networking Solutions | Serial to LAN/WLAN/Internet Converter Video
