Serial RS232 / RS422 / RS485 to Ethernet Network Module ezTCP CSE-M73A

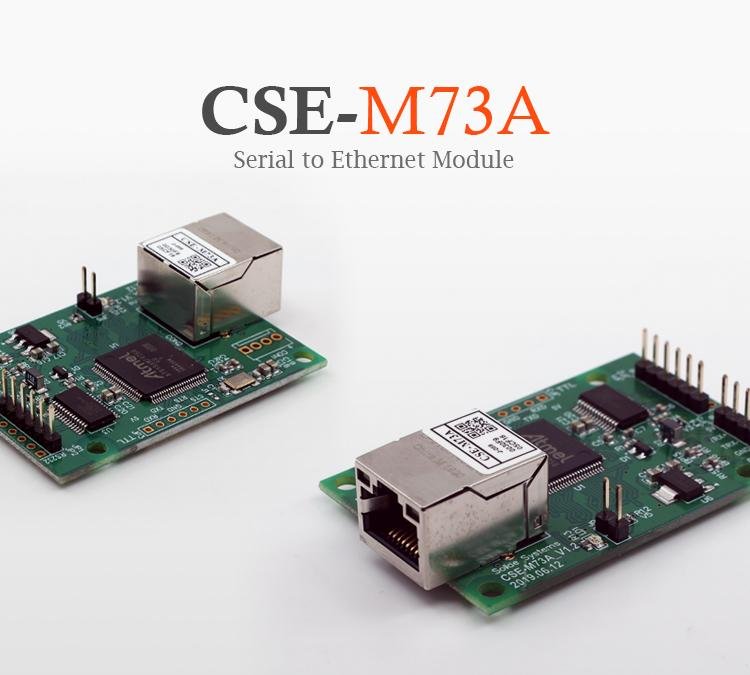

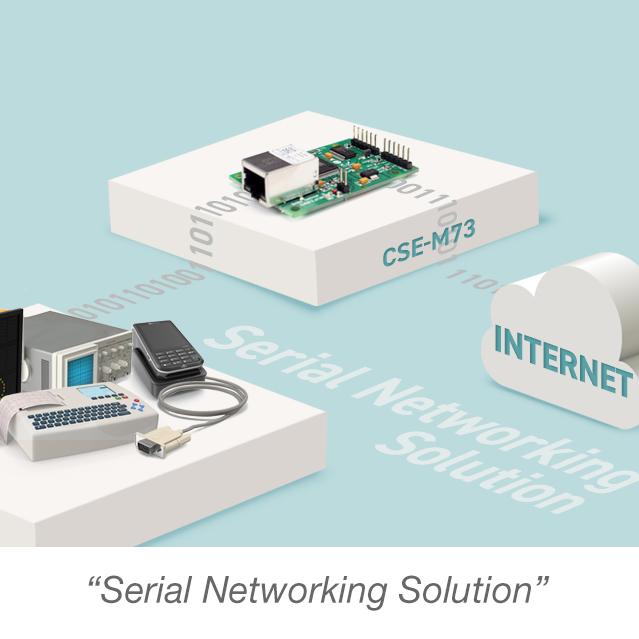

The ezTCP CSE-M73A from Sollae Systems is an embedded serial to Ethernet module. Embedded with an optimized TCP/IP stack, this module is equipped with an Ethernet RJ45 connector and a serial port interfaced with RS232, RS422, and RS485. The CSE-M73A provides conversion functions to remotely control and manage serial devices over Ethernet.

The CSE-M73A is especially suitable for Multi Monitoring, Solar Energy Management Systems, etc.

Features:

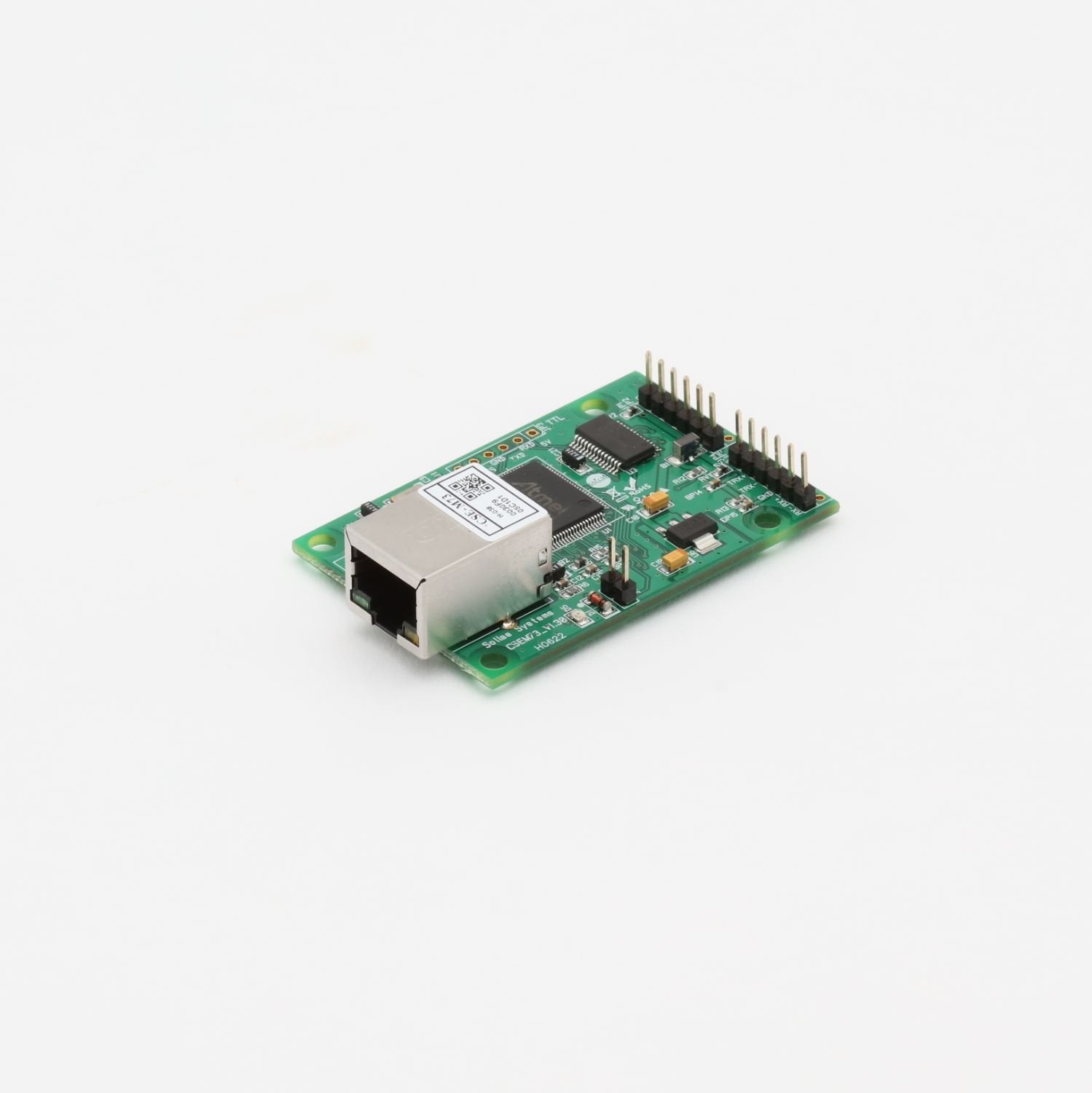

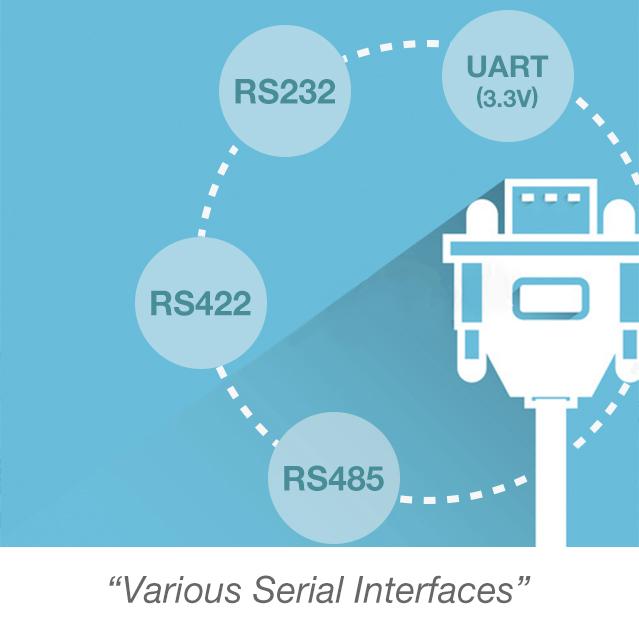

• 1 x RS232/RS422/RS485
• 10/100Mbps Ethernet
• RJ45 connector embedded
• Compact module type (64.4mm x 40mm x 17mm)

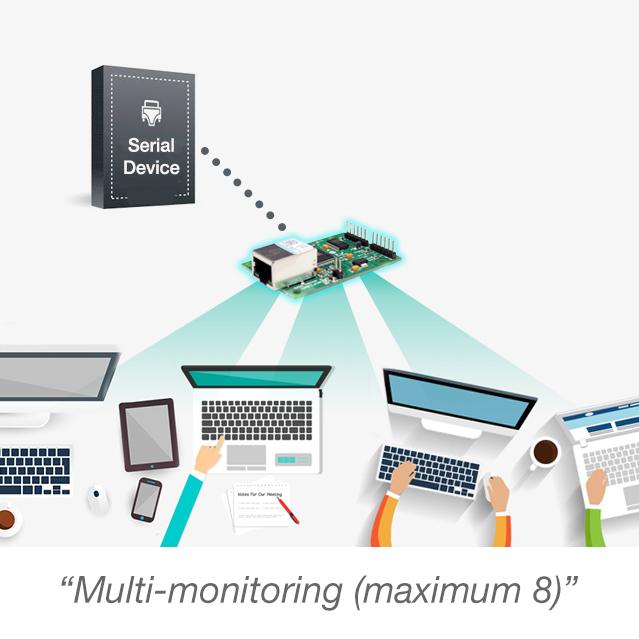

• Multi-Monitoring (maximum 8 channels)

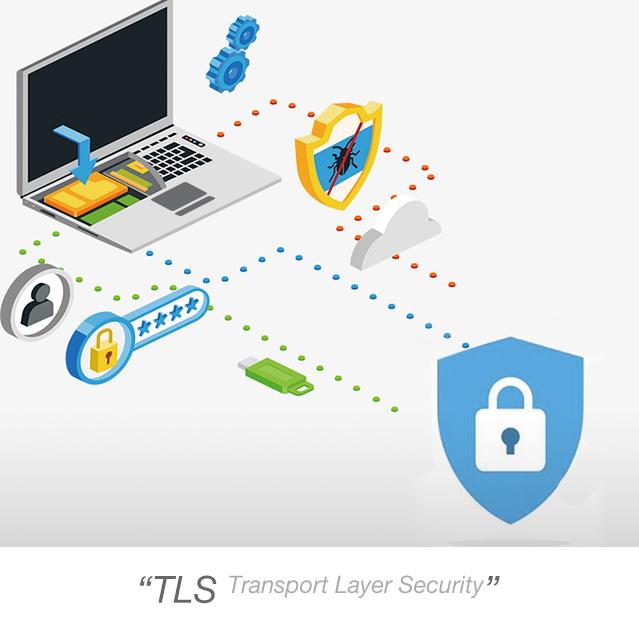

• SSL (Secure Sockets Layer)
• Separator settings for packet fragmentation
• Flexible configuration and network communication by 'AT Commands' (patent)

Specifications:

• Serial Interface
  • RS232 - RXD, TXD, CTS, RTS, GND
    3.3V level with 5V tolerant input - RXD, TXD, RTS, CTS, GND
    RS422 - TX+, TX-, RX+, RX-, GND
    RS485 - TRX+, TRX- , GND
  • Connector: 1 X 6 2.54mm pitch pin header
• Serial Port Property
  • Baud Rate: 300 bps ~ 230,400 bps
  • Data Bits: 5, 6, 7, 8 bits
  • Parity: None, Even, Odd, Mark, Space
  • Stop Bit: 1, 1.5, 2
• Network Interface
  • 10Base-T/100Base-TX Ethernet (RJ45)
  • Ethernet Speed Auto Sense
  • 1:1 or Cross-over Cable Auto Sense

• Software Functions
• Protocols
  • TCP, UDP, IP, ICMP, ARP, Ethernet, TELNET
    TFTP, DHCP, PPPoE, DNS, DDNS
    Telnet COM Port Control Option (RFC 2217)
• Security
  • SSL(Secure Socket Layer)
  • SSH (Secure Shell)
  • IP & MAC Filtering - Restrict Host or Network
  • Password for Configuring
• Communication Mode
  • TCP Server (T2S)
  • TCP Client (COD)
  • TCP Server/Client with AT Command (ATC) - Patent
  • UDP Mode (U2S)
• Additional Functions
  • Multi-monitoring(Max. 8 TCP connections simultaneously)
  • Remote Debug Function
  • TCP Server/Client Mode
  • Sending MAC address Option
• Indicators (LEDs)
• Power: Red
• LAN Link/LAN RXD: Green
• Status/LAN TXD: Yellow
• Management:

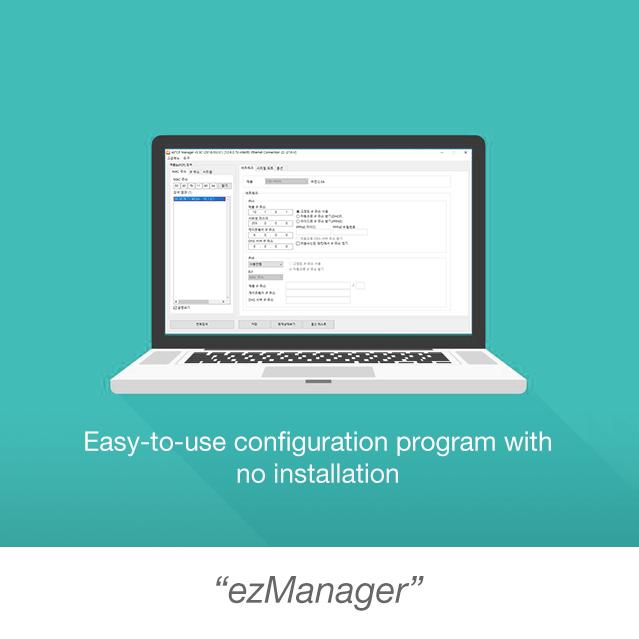

  • ezManager: Configuration and Monitoring Tool through Network and Serial
  • Telnet: Telnet Login
  • AT Command: Configuring in ATC mode - Patent
• Supplementary Software
  • ezManager: Configuration Tool for Windows

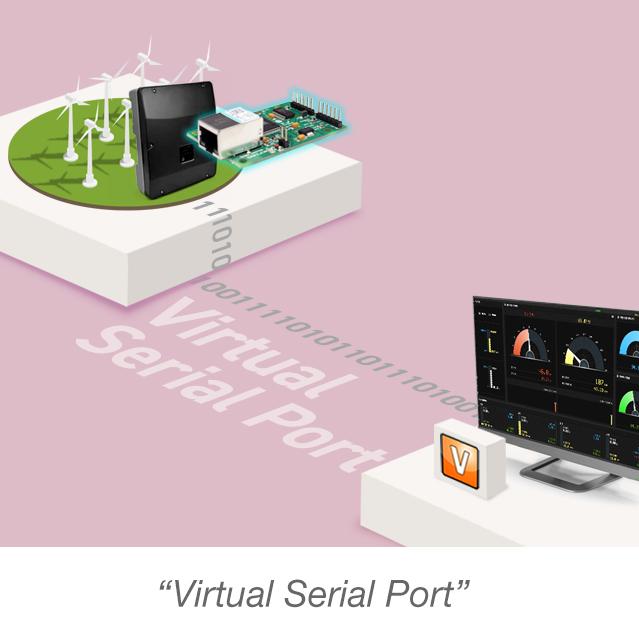

  • ezVSP: Serial to Network Virtual Driver for Windows
  • ezTERM: Simple TCP/IP Communication Test Tool
• Dimensions
  • Size: 64.4mm x 40mm x 17mm (2.54in x 1.57in x 0.67in)
  • Weight: 19 Grams (0.7 Ounces)
• Operating Environment
  • Input Voltage: 5VDC
  • Current Consumption: 200mA typical
  • Operating Temperature: 0C ~ +55C
  • Storage Temperature: -45C ~ +85C

* The above information is subject to change. Envistia Mall and Sollae Systems are not responsible for any changes.

 Package includes:

1X CSE-M73A ezTCP Serial Ethernet Module

Delivery of evaluation quantities is stock to 2 weeks, if the item is out of stock, please contact us for availability.

Documentation & Resources:

EZTCP CSE-M73A Serial Ethernet Module Product Page

EZTCP Utility Downloads

Videos:

CSE-M73A ezTCP Serial Ethernet Module Product Video
