12V (8-36V) In To 5V Out DC-DC Converter Module 3A 15W with Micro USB Output F23J5V3A1S-MC

This miniature DC-DC step-down converter module converts an 8V to 36V (nominally 12V or 24V) DC input to 5V DC output at up to 3A current (15W maximum). It features a MicroUSB output connector, compatible with many cell phones and personal electronics.

Specifications:

• Epoxy sealed plastic waterproof housing (IP68)
• Lightweight, compact, convenient to use and transport
• Non-isolated
• Protection: Over-current, over-heating, short-circuit, reverse polarity
• Auto recovery
• Input voltage: DC 12V or 24V nominal, will operate on any input voltage from 8V to 36V DC
• Maximum input current at 3A output: Approximately 1.25A at 12V input, 1A at 15V input
• Output voltage: 5V
• Maximum output current: 3A
• Maximum Output Power: 15W
• Efficiency: 85.4% typical
• Voltage regulation: ±3%
• Load regulation: ± 5%
• Ripple (Full load test): < 120mVp-p, typically 46mVp-p
• No-load current: < 10mA
• Operating temperature: -40C to +55C

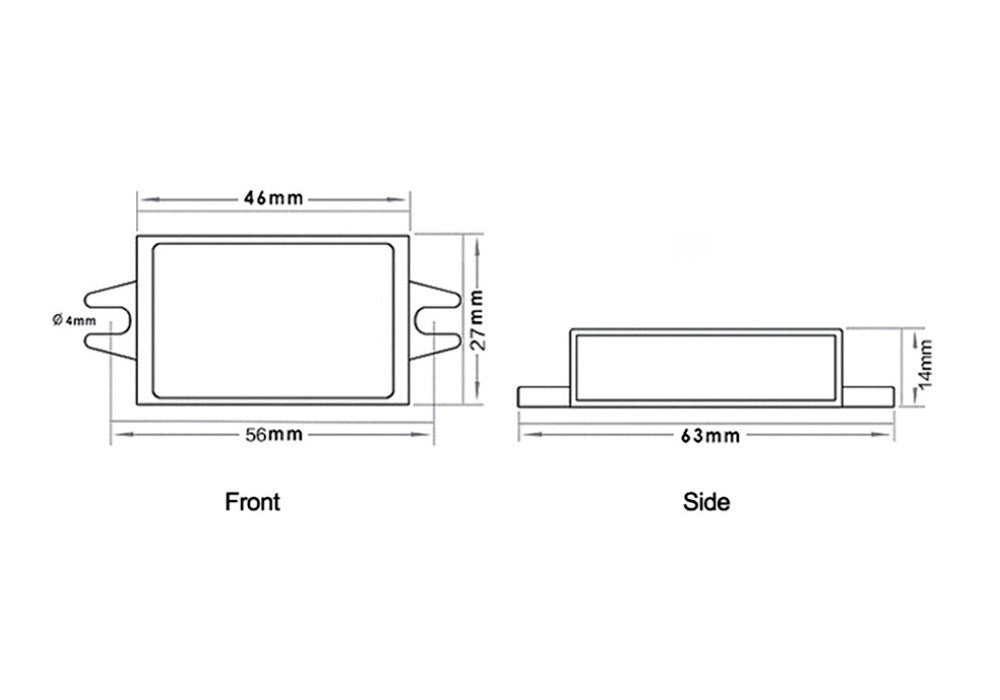

• Size (L x W x H): 46 * 27 * 14 mm / 1.81" x 1.06" x 0.55" (Length including mounting tabs is 63mm / 2.5")
• Weight: 36g / 1.3oz
• Waterproof rating: IP68
• Input and output wire length: 13.5cm / 5.3" (approx)

• Output connector: Micro-USB

Operating Notes:

As with any DC-DC converter, the input DC power supply powering this converter must be capable of providing the maximum power drawn by your load. If the input supply is not capable of providing the power, the converter will fold back the output voltage as necessary. Example: If your load draws 3A at 5V (15W), and the input supply is only capable of providing 12V at 1A (12W), the maximum output voltage the converter will deliver is 4V (12W/3A).

• 1X 8V-36V Input to 5V Output 3A 15W MicroUSB DC-DC Step Down Converter

Envistia P/N: F23J5V3A1S-MC
