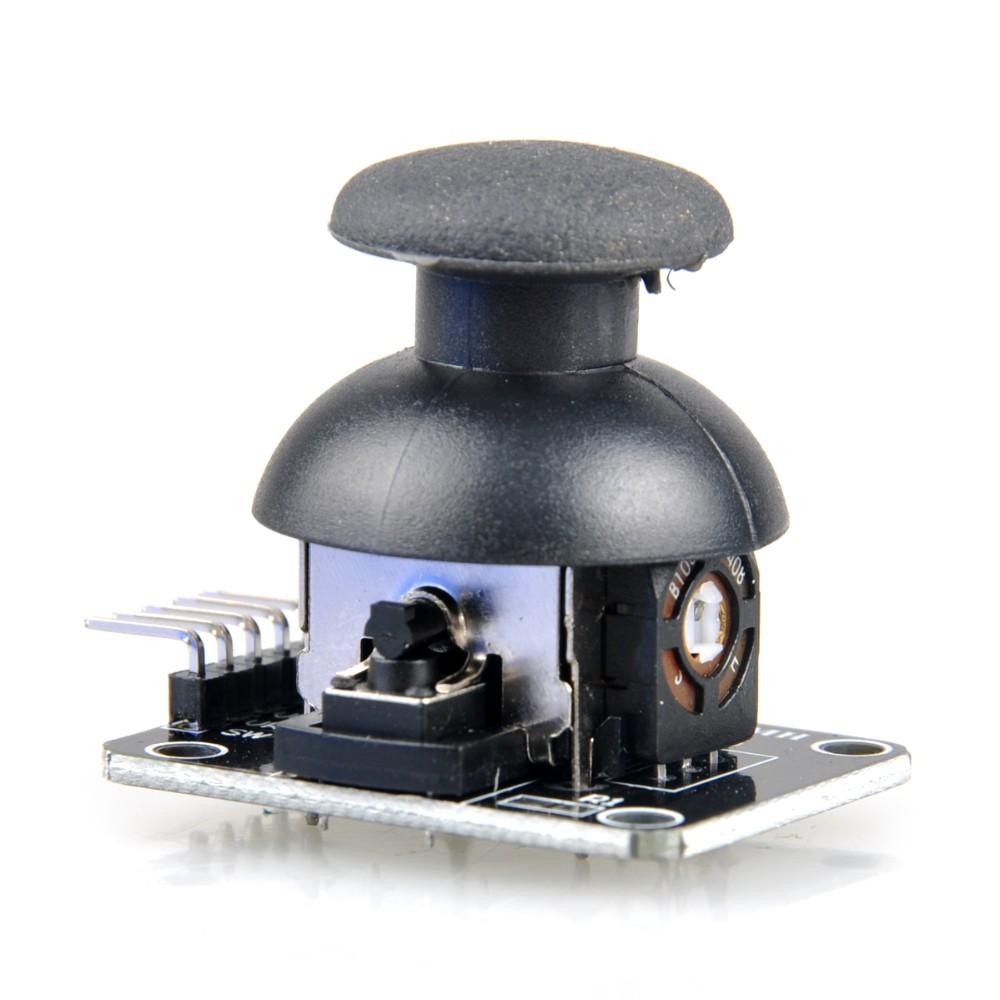

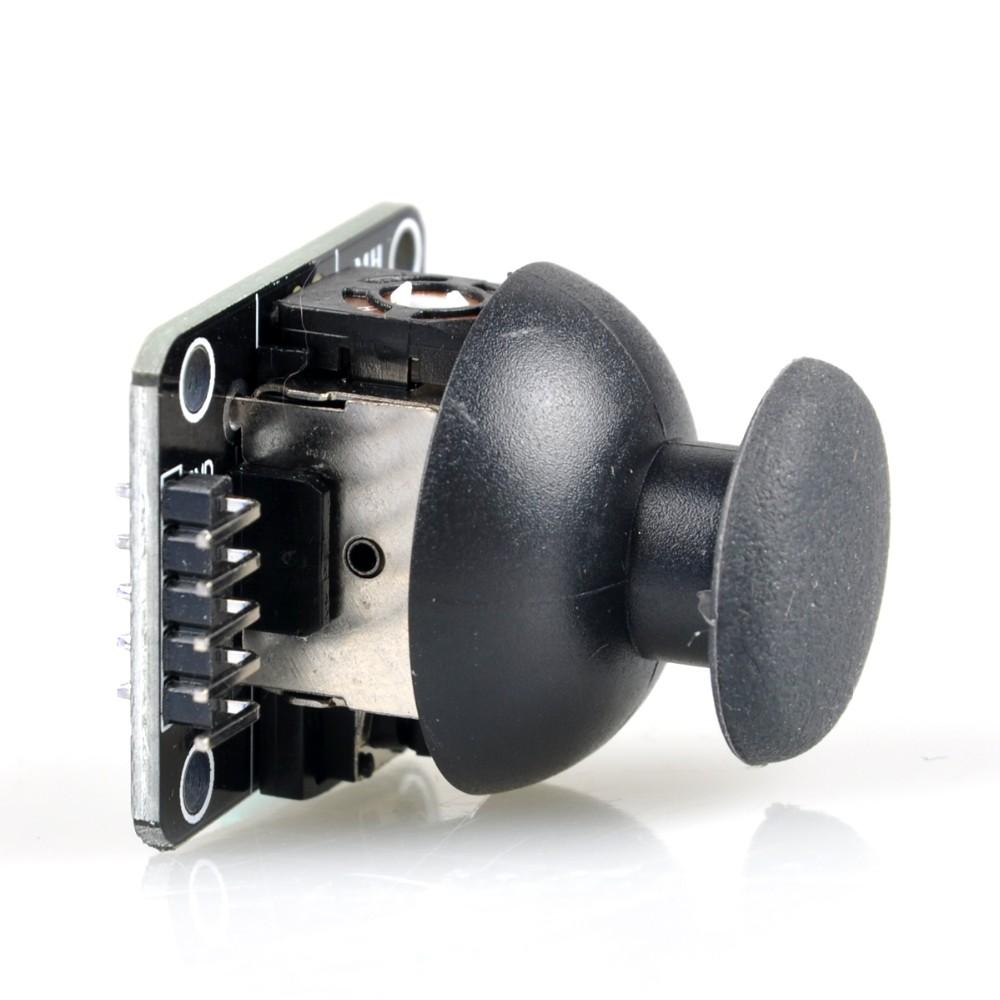

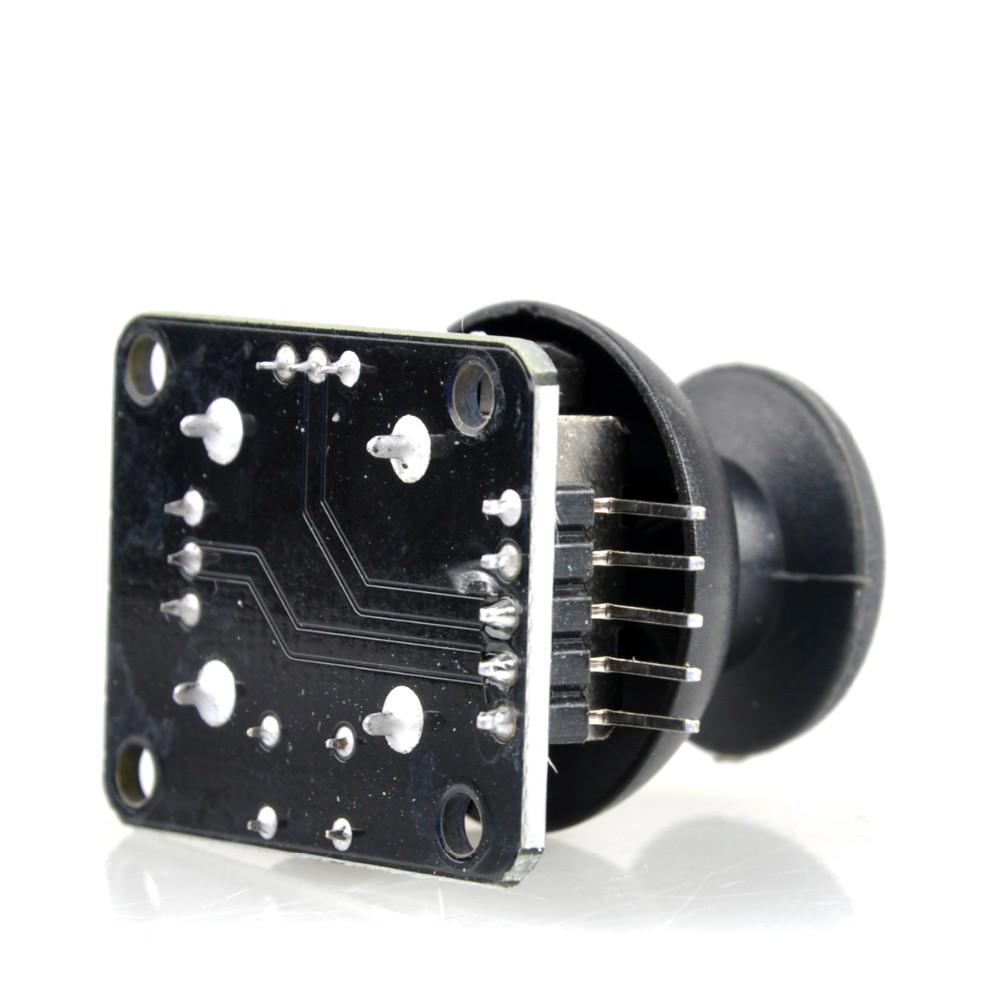

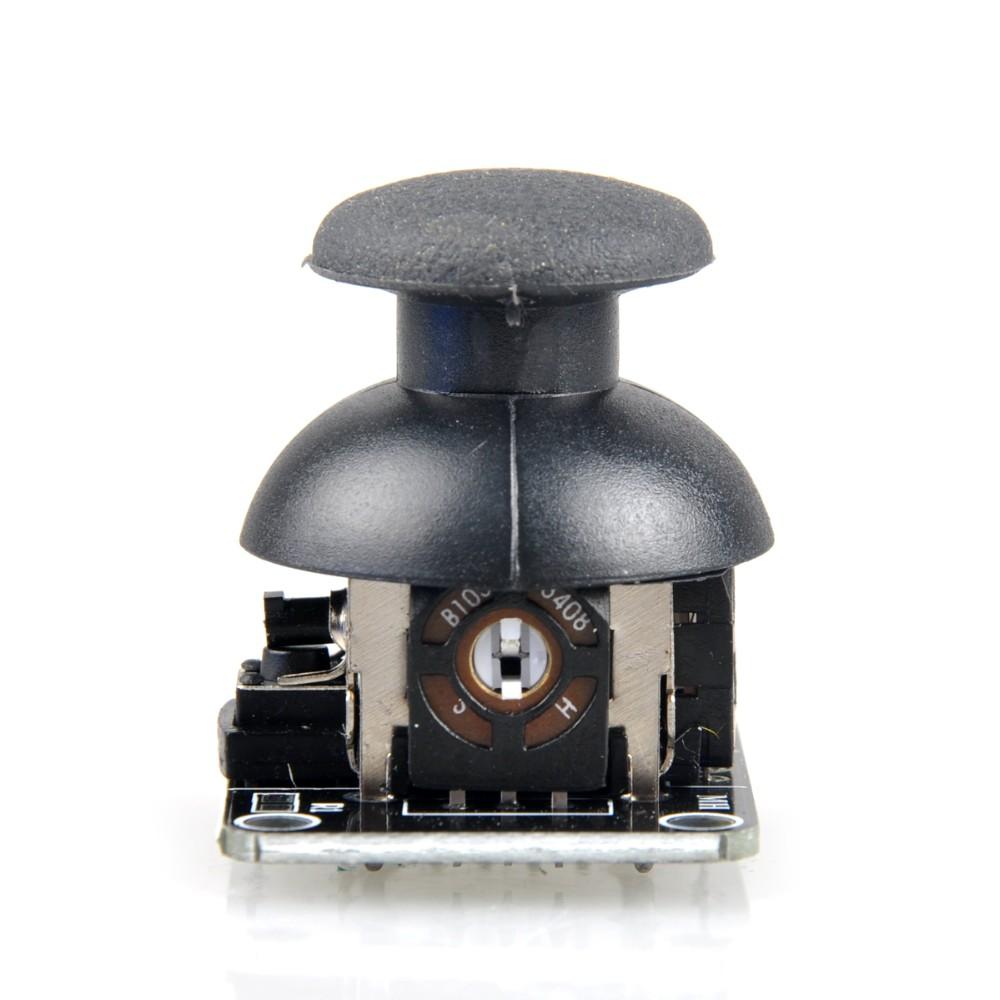

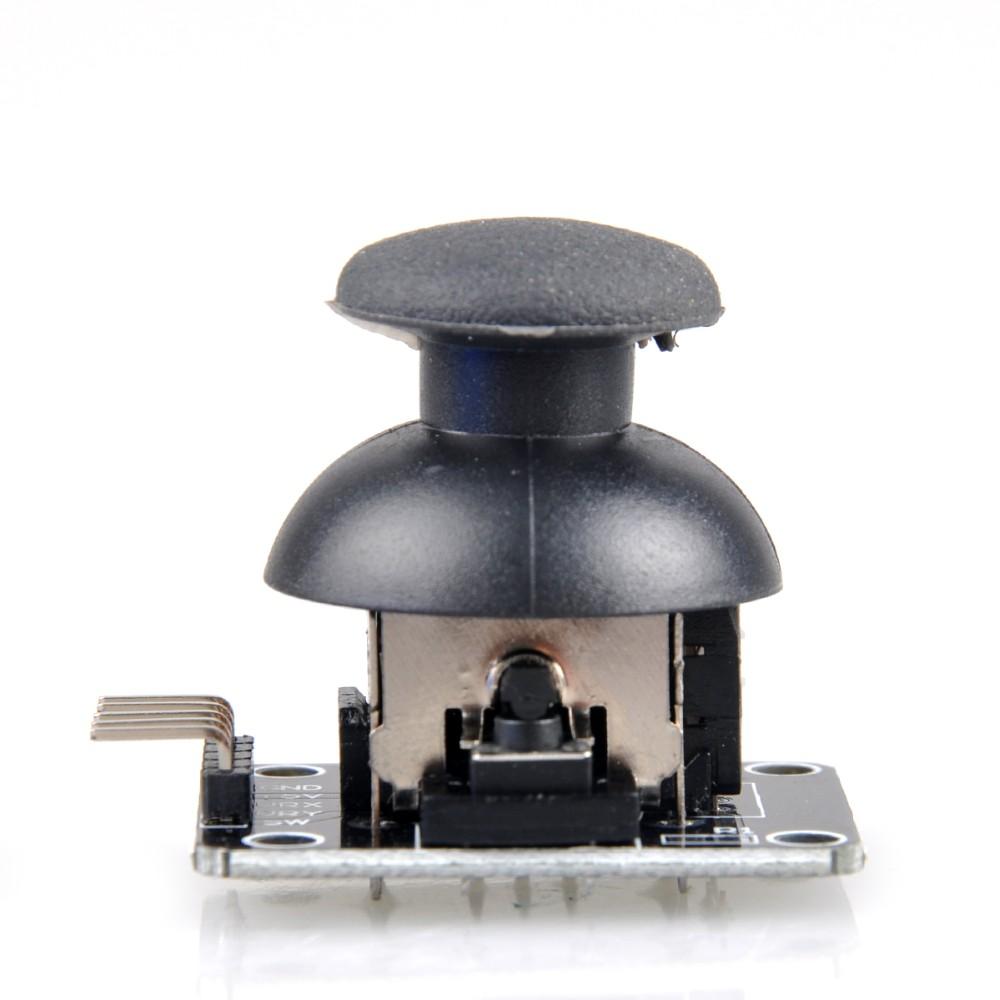

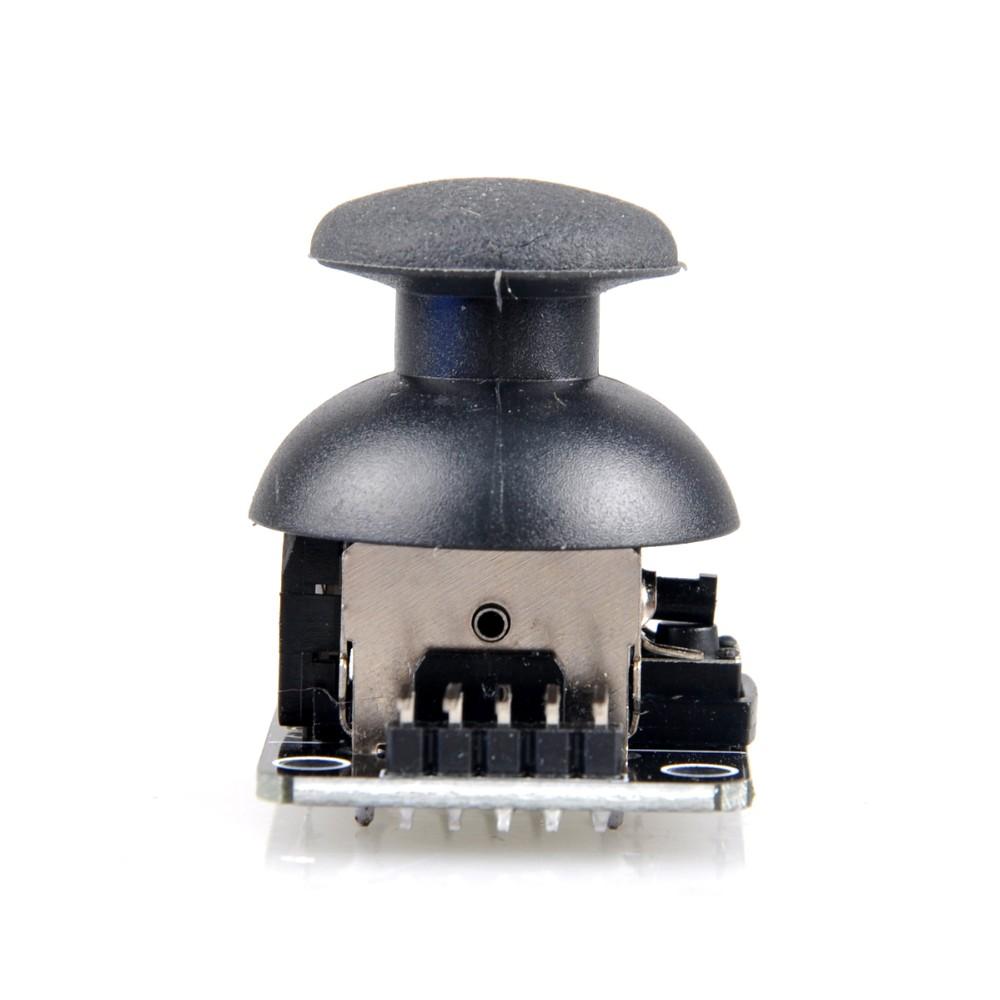

KY-023 Dual Axis XY Joystick Module — Analog X/Y + Push Button, 3.3V/5V, Arduino Compatible

Add intuitive directional control to your project with the KY-023 Dual Axis XY Joystick Module. This thumb-stick controller provides analog X and Y axis output (0–5V) for smooth, proportional movement control, plus an integrated push-button switch for mode selection or action triggers. The self-centering spring mechanism returns the stick to center when released — just like a game controller.

Connect three wires to your Arduino's analog and digital inputs, upload a few lines of code, and you have full 2D directional control with a button. No libraries required, no complex setup — it works right out of the box.

⚡ Key Features

• Dual-axis analog output: Two 10KΩ potentiometers provide smooth, proportional X and Y axis readings (0V–5V range, ~2.5V at center).
• Integrated push-button switch: Press the joystick down for a digital input — perfect for mode switching, menu selection, or action triggers. Pulls to ground when pressed.
• Self-centering: Spring-loaded mechanism returns the stick to center position when released.
• 3.3V and 5V compatible: Works with both 3.3V and 5V microcontrollers (5V recommended for full analog range).

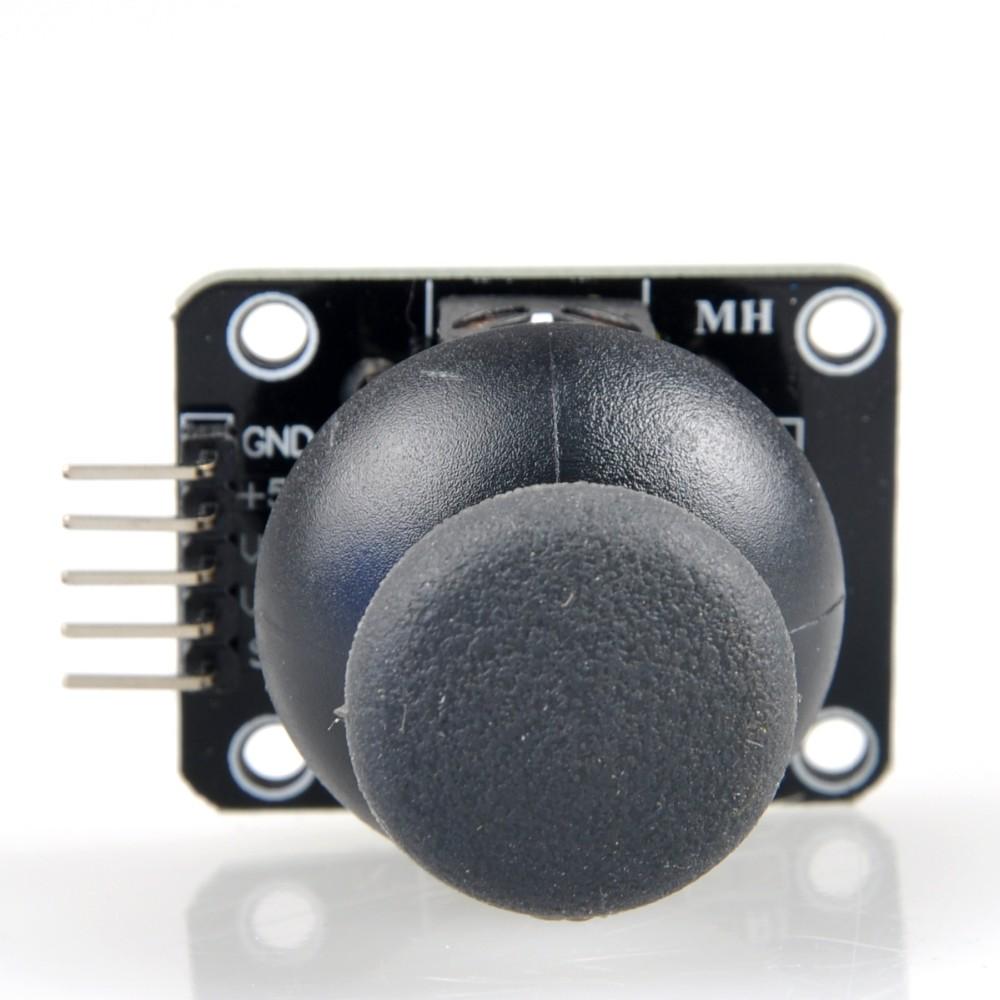

• Simple 5-pin interface: Clearly labeled VCC, GND, VRx, VRy, and SW pins — connect directly to your microcontroller with jumper wires.
• No libraries needed: Uses standard analogRead() and digitalRead() functions — works immediately with basic Arduino code.
• Compact: Just 34mm × 26mm × 32mm — fits easily on breadboards and inside project enclosures.

🔧 How It Works

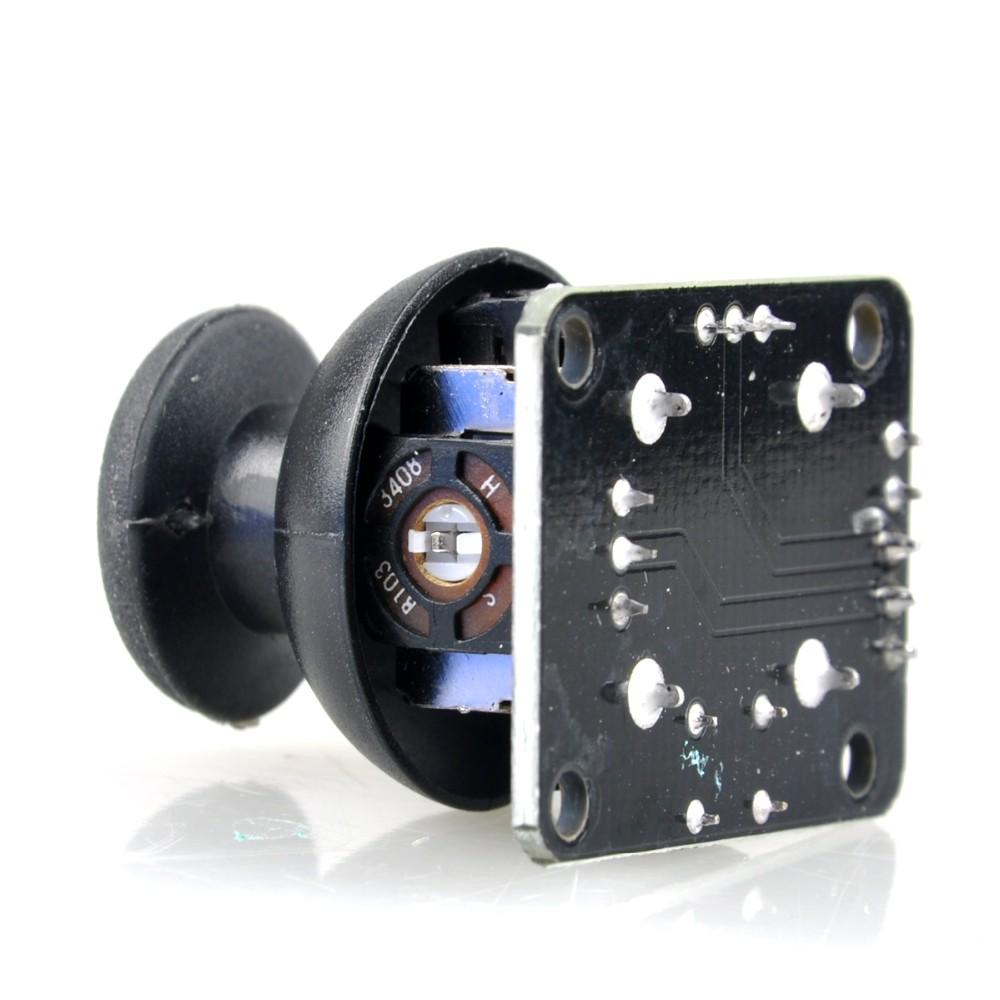

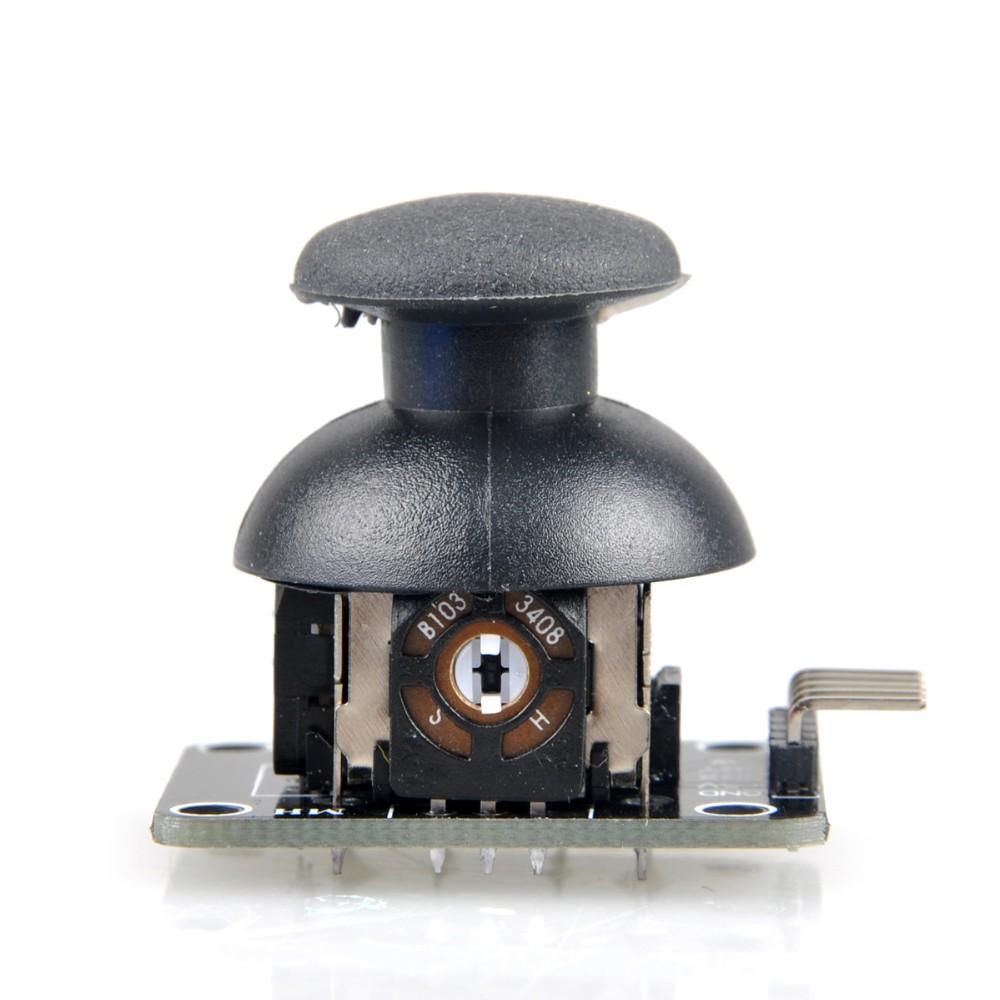

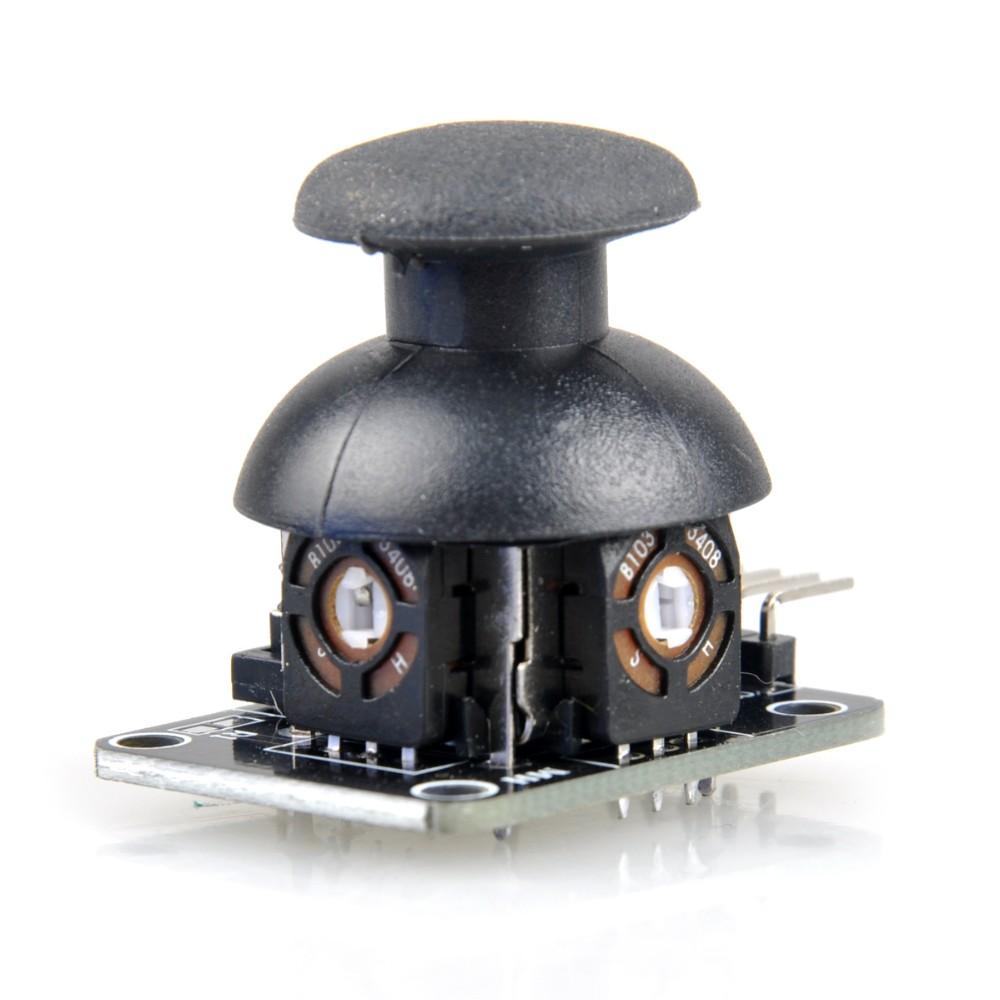

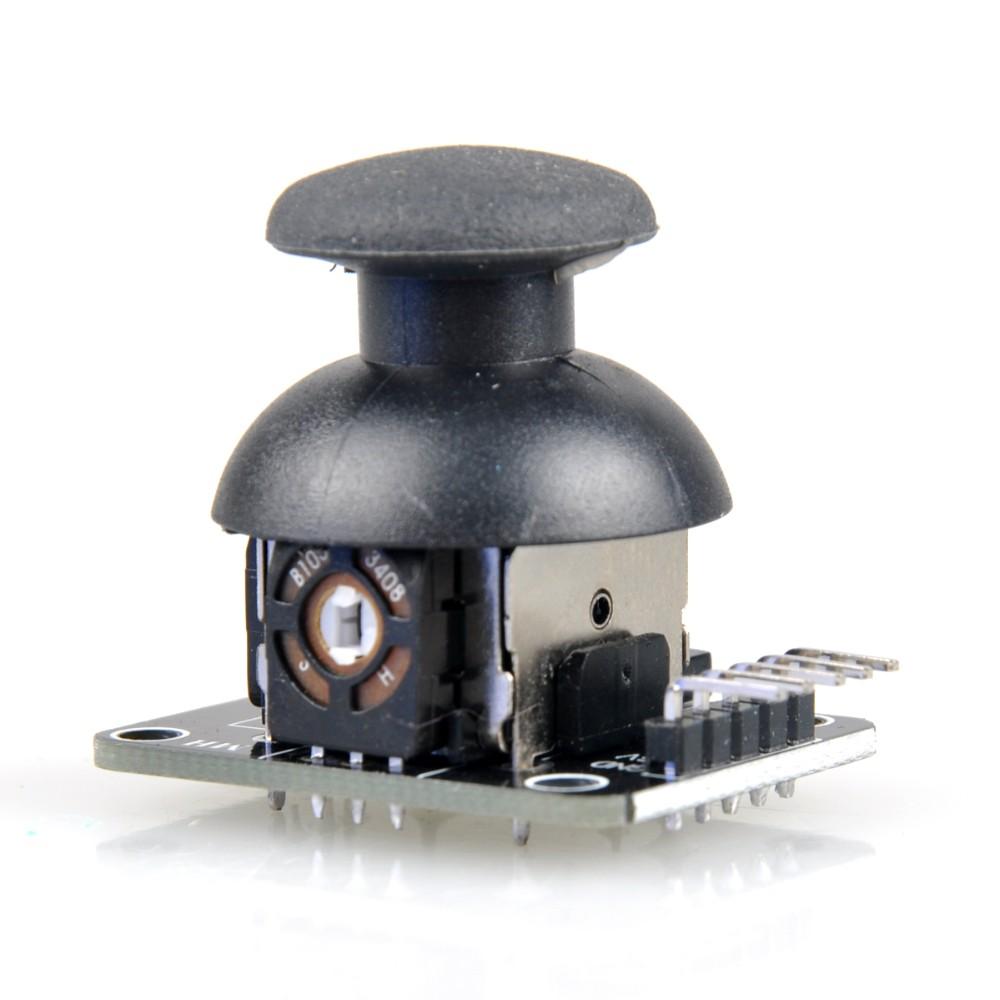

The module contains two 10KΩ potentiometers mounted at 90° to each other, connected to a thumb-stick via a gimbal mechanism. Each potentiometer acts as a voltage divider:

• Center position: Both VRx and VRy output ~2.5V (analog reading ~512 on Arduino's 10-bit ADC).
• Full left / full down: Output drops toward 0V (analog reading ~0).
• Full right / full up: Output rises toward 5V (analog reading ~1023).
• Button press: Pressing the stick down closes the SW switch, pulling the pin to GND (reads LOW with pull-up enabled).

Orientation tip: For correct X-Y orientation (X horizontal, Y vertical), mount the module with the pins facing to the left.

📌 Pinout

🎯 Perfect For

• Robotics control — drive motors proportionally for smooth robot movement, control robotic arms and grippers
• RC vehicles & drones — build custom transmitters with proportional throttle and steering
• Game controllers — create custom game pads for PC, retro gaming, or arcade cabinets
• Camera pan/tilt — control servo-driven camera gimbals and pan-tilt mechanisms
• Menu navigation — scroll through menus on OLED/LCD displays with intuitive stick control
• IoT & home automation — manual override control for smart home devices
• STEM education — teach analog input, voltage dividers, and human-machine interfaces
• Any project that needs intuitive 2D directional input with a button

📐 Specifications

• Model: KY-023
• Axes: X and Y (analog output)
• Switch: Push-button (digital, active LOW)
• Operating voltage: 3.3V – 5V DC
• Potentiometer type: 10KΩ ±20%, linear taper
• Analog output range: 0V to VCC (proportional to stick position)
• Center output: ~VCC/2 (approximately 2.5V at 5V supply)
• Switch activation: Pulls to ground when pressed (requires pull-up resistor)

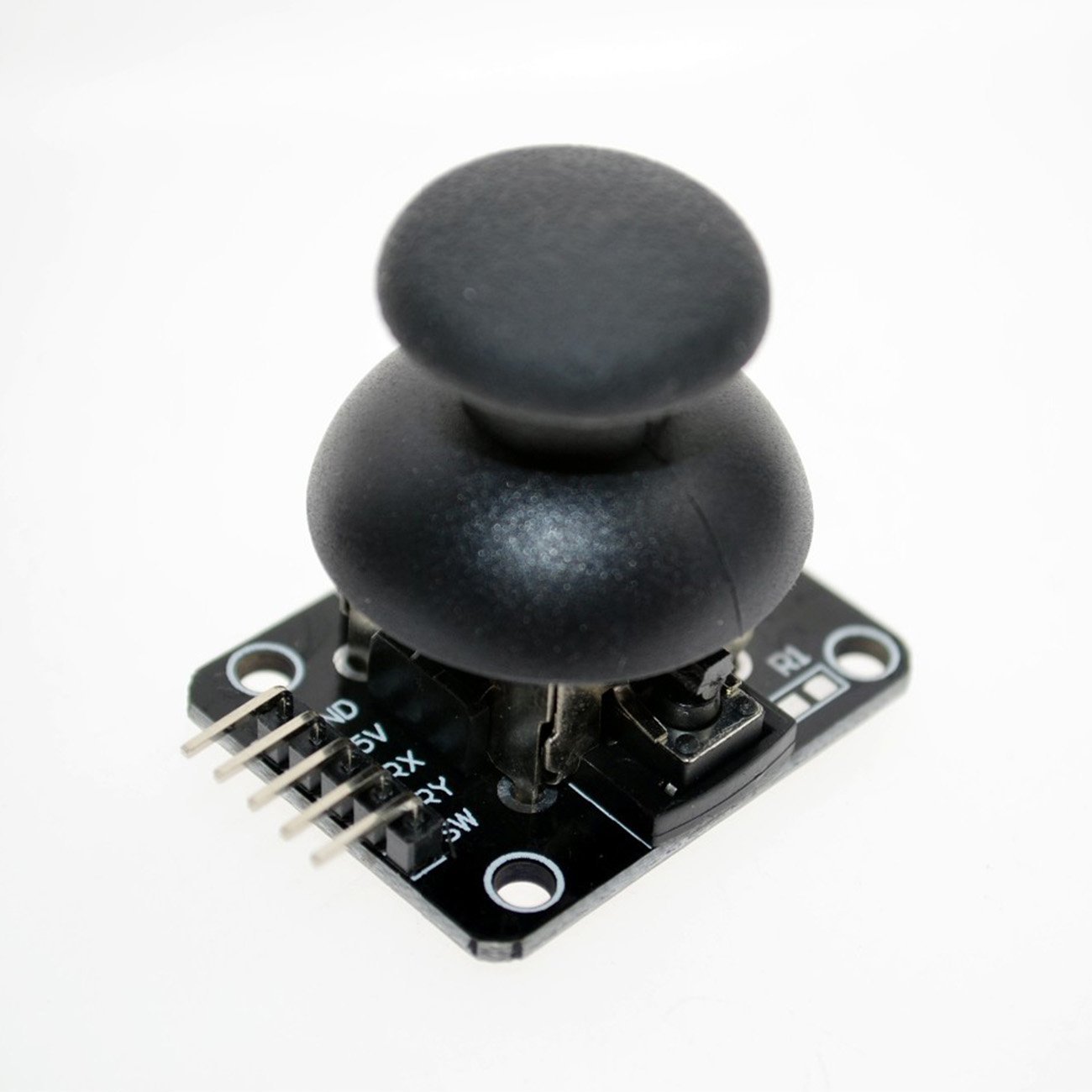

• Interface: 5-pin header (VCC, GND, VRx, VRy, SW)

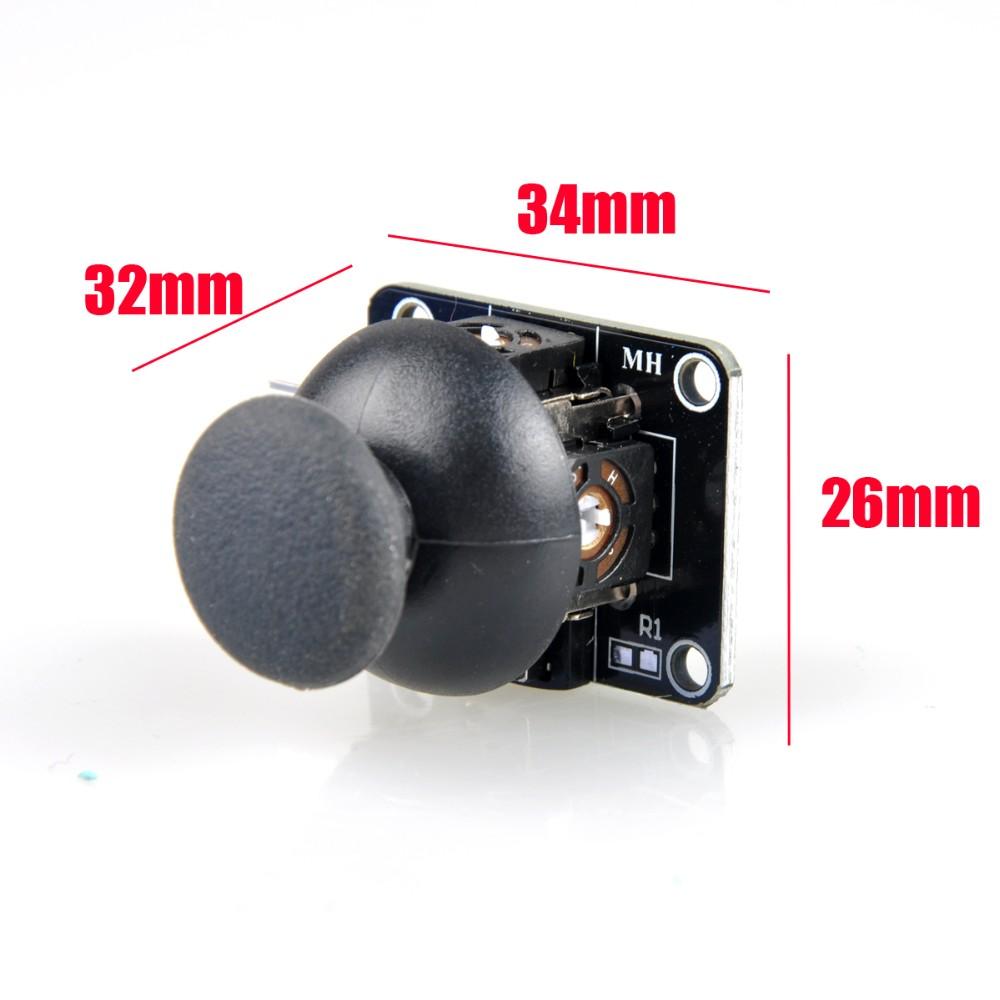

• Dimensions: 34mm × 26mm × 32mm (1.3" × 1.0" × 1.3")

🔌 Compatible With

• Arduino Uno, Mega, Nano, Leonardo, and all compatible boards
• ESP32, ESP8266 (use 3.3V supply; note: ESP32 ADC is 12-bit, 0–4095 range)
• Raspberry Pi (requires external ADC — Pi has no built-in analog inputs)
• STM32, AVR, PIC, and other microcontrollers with analog inputs
• Any 3.3V or 5V system with at least 2 analog input pins and 1 digital input pin

📦 Package Contents

• 1 × KY-023 Dual Axis XY Joystick Module

Jumper wires, Arduino board, and breadboard are not included.
