Control the brightness of your single-color LED bulb or strip lighting with this LED dimmer switch. The screw-type terminal connectors and mounting holes make it a great option for permanent installations.
A simple rotating control knob provides quick and continuous adjustment of the LED's brightness from 0 to 100%.
Features:
LED brightness 0~100% adjustable
Easy to install and simple to use
Adjusts the light output with no flickering
PWM digital dimming, avoids inrush current, protecting your LED lights
Designed to adjust the output of single-color LED lamps and LED Strips
LED Dimmer Switch Specifications:
Voltage: 12V - 24V DC
Max Load Current: 8A
Max Power: 96W @ 12V, 192W @ 24V
Size: 3.5 x 2.3 x 1.4 inches / 89 × 59 × 35 mm (LxWxH, excluding knob)
Weight: 2.3 oz / 65 grams)
Operating Temperature: -4 - 140F / -20 - 60C
NOTES:
The supply voltage for this LED dimmer switch is 12V to 24V DC. Do not connect it to 110V or 220V AC.

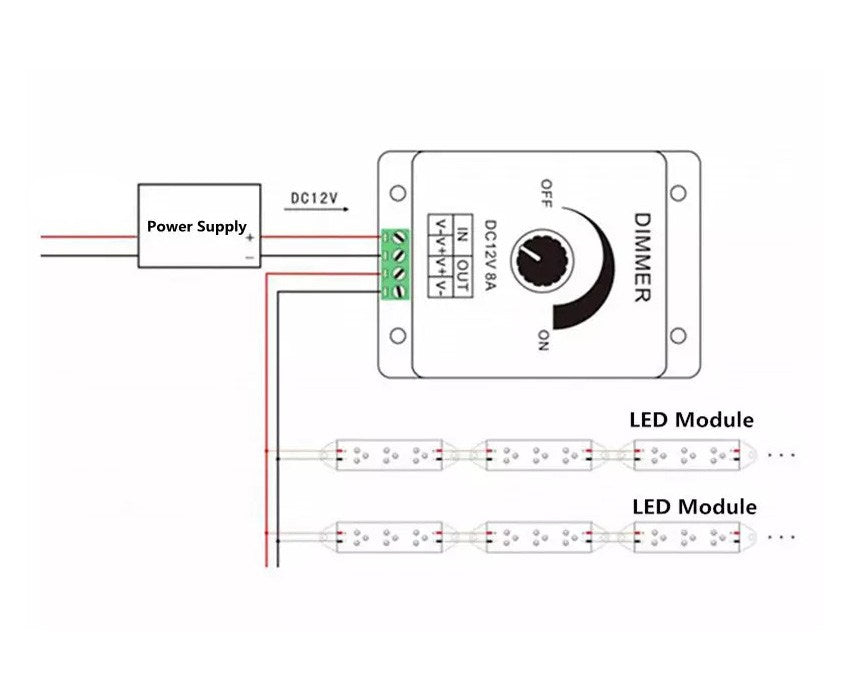

The ground connections to the power supply and the LEDs must be separate connections. Do not tie the "IN V -" and the "OUT V -" connections together, otherwise the controller will not work.
