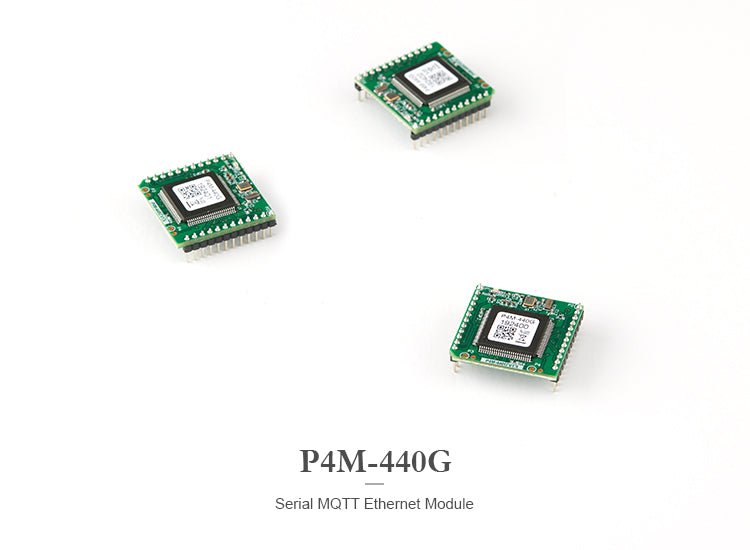

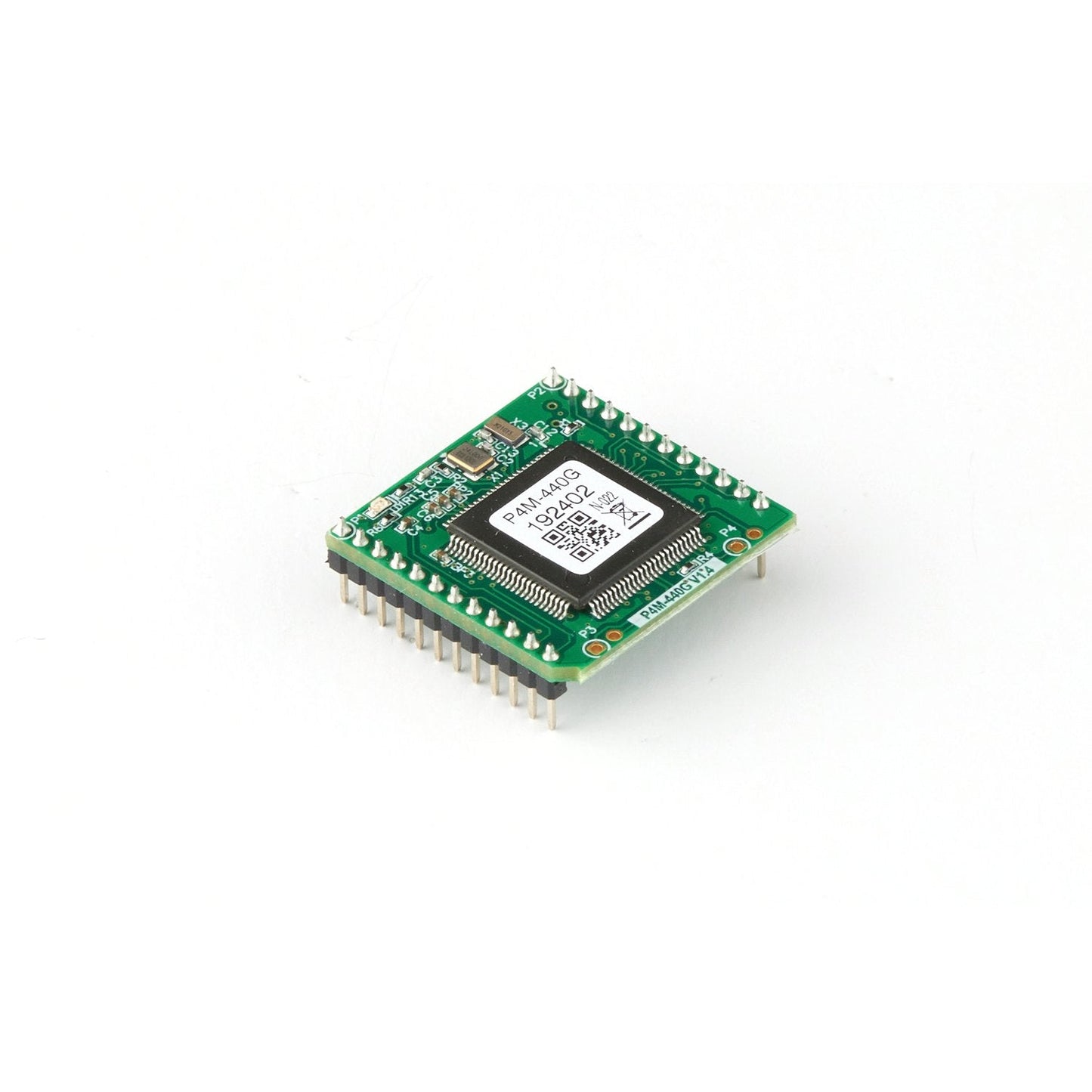

P4M-440G Serial MQTT Ethernet Module by Sollae Systems

MQTT (Message Queuing Telemetry Transport) is a publish-subscribe messaging protocol that operates on top of the TCP/IP protocol. This protocol comprises a server and a client, with the server serving as an MQTT broker and the client functioning as a publisher or subscriber.

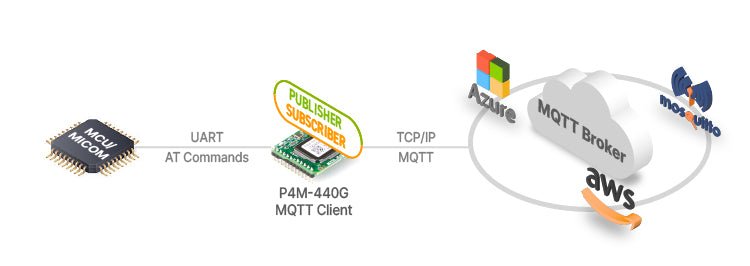

The P4M-440G from Sollae Systems serves as an MQTT client module, capable of receiving AT commands via the UART port and offering diverse MQTT communication functionalities. Using the P4M-440G module users can easily implement MQTT functions on their MCU or microcomputer.

P4M-440G Serial MQTT Ethernet Module Features:

• MQTT Client Functionality
• Simple AT Command Control Method Supported
• Equipped with 1 x 10/100Mbit Ethernet Port
• 1 x UART Port (default 19200 bps)
• Supports Security Protocol (TLS v1.2)
• Storage of Root CA and Client Certificates: Integration with commercial clouds (AWS & AZURE)
• Supports USB-Type PC Connection
• Dedicated Configuration Program: PHPoC Debugger

P4M-440G Serial MQTT Ethernet Module Specifications:

• Serial Physical Interface
• Serial Interface 3.3V level with 5V tolerant input
• RXD, TXD, GND
• Connector 1 X 12 2mm pitch pin header X 2

• Serial Port Property
• Baudrate 19,200 bps
• Data Bits 8 bits
• Parity None
• Stop Bit 1 bit

• Network Physical Interface
• Network Interface 10Base-T/100Base-TX Ethernet
• Ethernet Speed Auto Sense
• 1:1 or Cross-over Cable Auto Sense
• Simple External Circuit Required

• USB Physical Interface
• USB Interface 1 x USB Device (VBUS, USB_D_D+, USB_D_D-)

• Software Functions

• Protocols MQTT, TCP, UDP, IP, ICMP, ARP, DHCP, DNS
• Security TLS v1.2
• Communication Mode TCP Client on AT Commands

• MQTT Functions
• Control Packets CONNECT / DISCONNECT, SUBSCRIBE / UNSUBSCRIBE, PUBLISH, PINGREQ
• QoS Level 0 & 1
• Topic Wildcard NOT supported yet


• Management
• PHPoC Debugger Configuration and Monitoring Tool through Network and USB

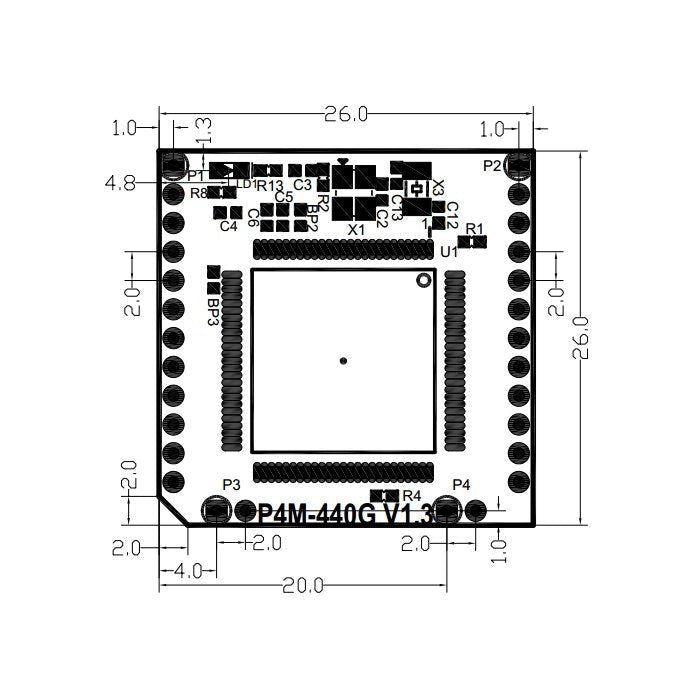

• Dimensions
• Size 26mm x 26mm x 9mm (1.0 x 1.0 x 0.35 inches)
• Body Weight Approximately 4g (0.14 ounces)

• Operating Environment
• Input Voltage DC 3.3V
• Current Consumption 95mA Typical
• Operating Temperature -40℃ ~ +85℃
• Storage Temperature -40℃ ~ +85℃

Package includes:

1X P4M-440G Serial MQTT Ethernet Module

Delivery is stock to 2 weeks ARO

Optional Accessories:

P4M-440G Evaluation Board Kit

P4M-440G MQTT Serial Ethernet Module Documentation, Specifications, and Resources

P4M-440G Serial MQTT Ethernet Module Product Page on the ezTCP website:
https://www.eztcp.com/en/products/p4m-440g
